E27 outdoor silicone socket kit

E27 outdoor silicone socket kit

Outdoor E27 socket kit: the socket, pre-filled with insulating gel, is protected by a soft-touch silicone cup. It stands up to water and rain and lets you build a garden, terrace or patio pendant light; the outdoor cable, the ceiling rose and the bulb are not supplied.

Features and use

• Cup: soft-touch silicone, 60 mm in diameter, 105 mm high, hole diameter 12 mm.
• Socket: E27 in black thermoplastic, pre-filled with insulating gel, with a membrane that comes into contact with the bulb.
• Protection rating: IP65, class II, PVC seal.
• Terminals: screw type, for rigid or flexible cables of 0.5 to 2.5 mm²; built-in cable grip.
• Rated voltage and current: 250 V / 4 A.
• Compatible cables: round outdoor neoprene cables H05RN-F 2×1.00 mm².
• Bulbs: glass LED only, not milky/opal and not porcelain; the IP65 rating is only guaranteed with the A60, ST64, G95 and G125 shapes.

Versions and finishes

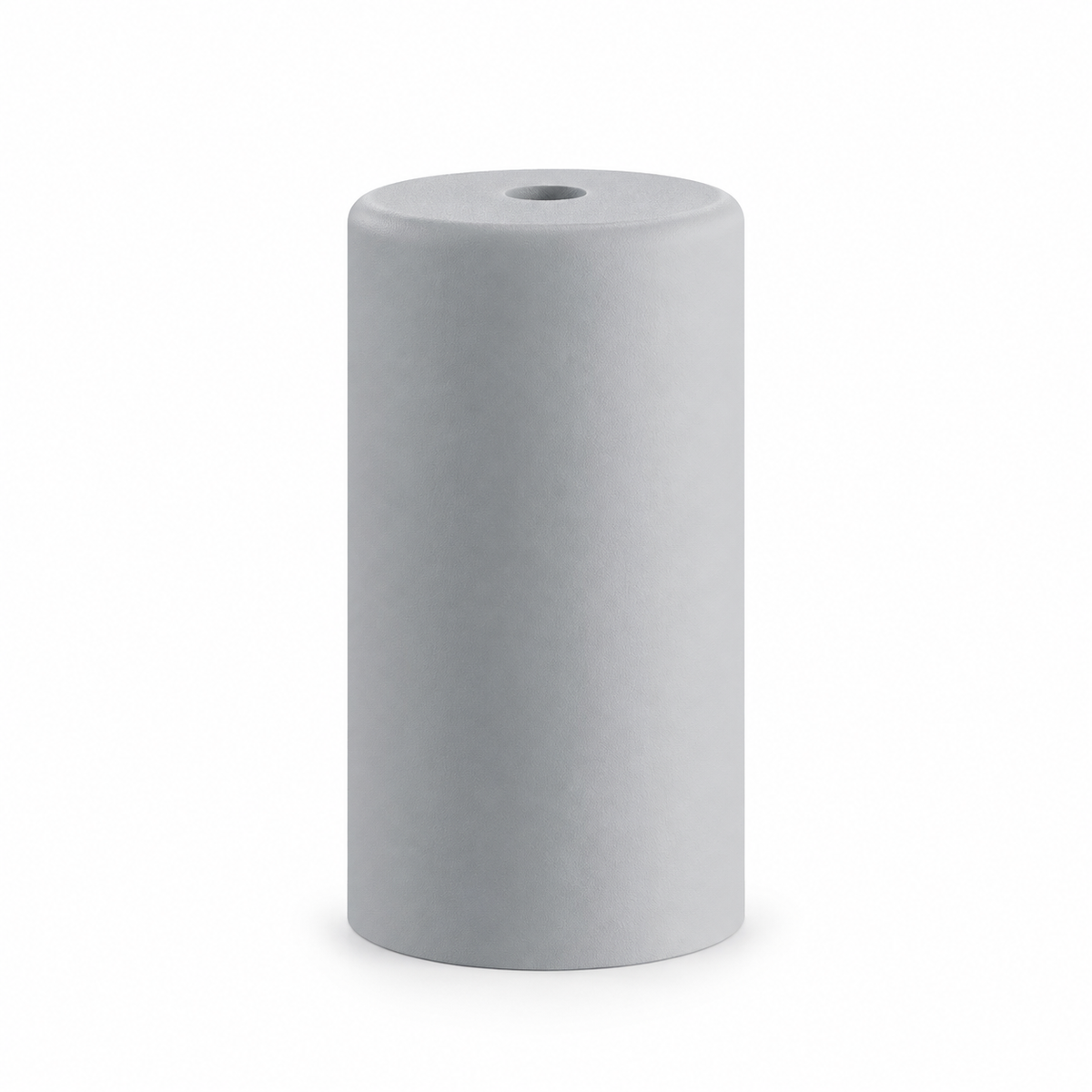

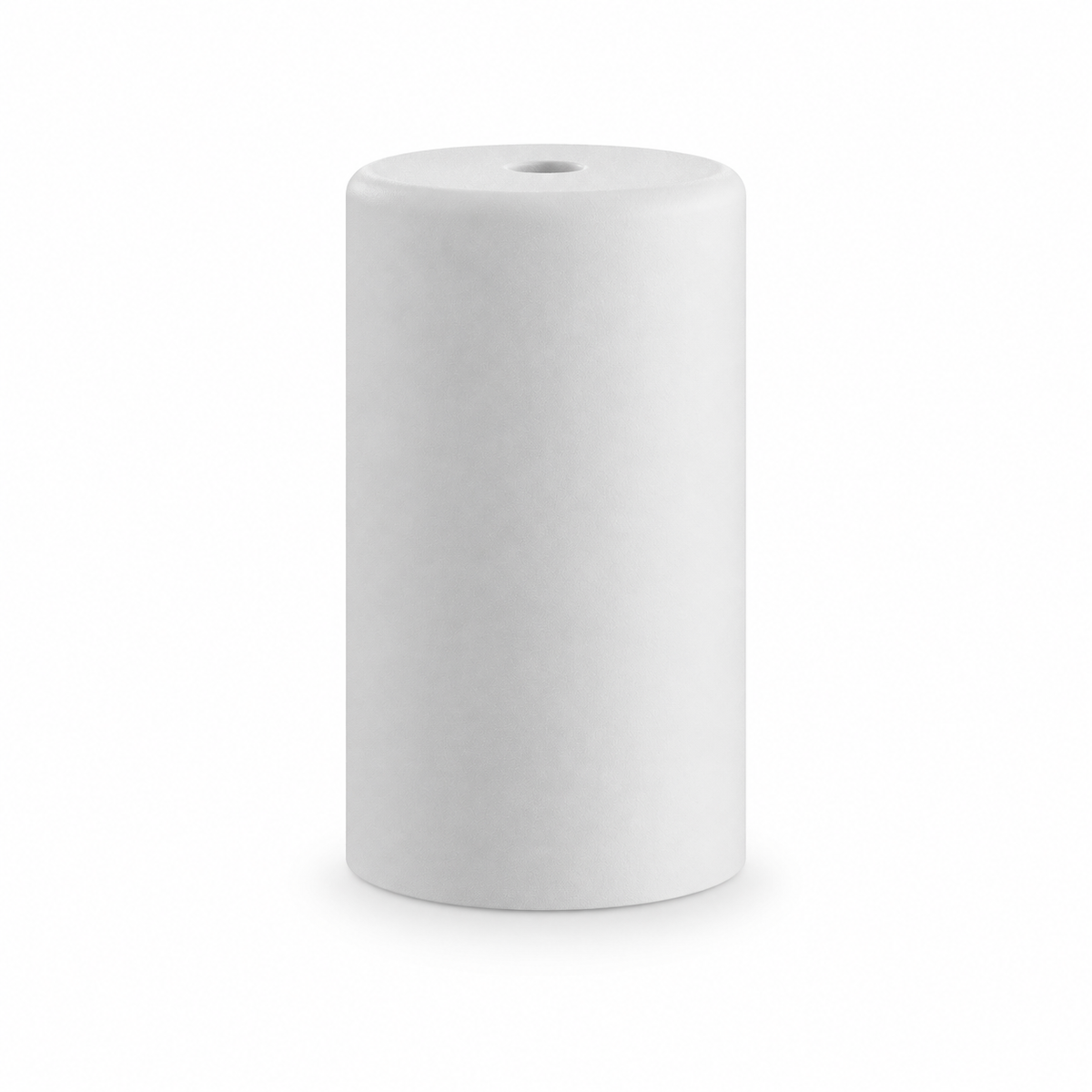

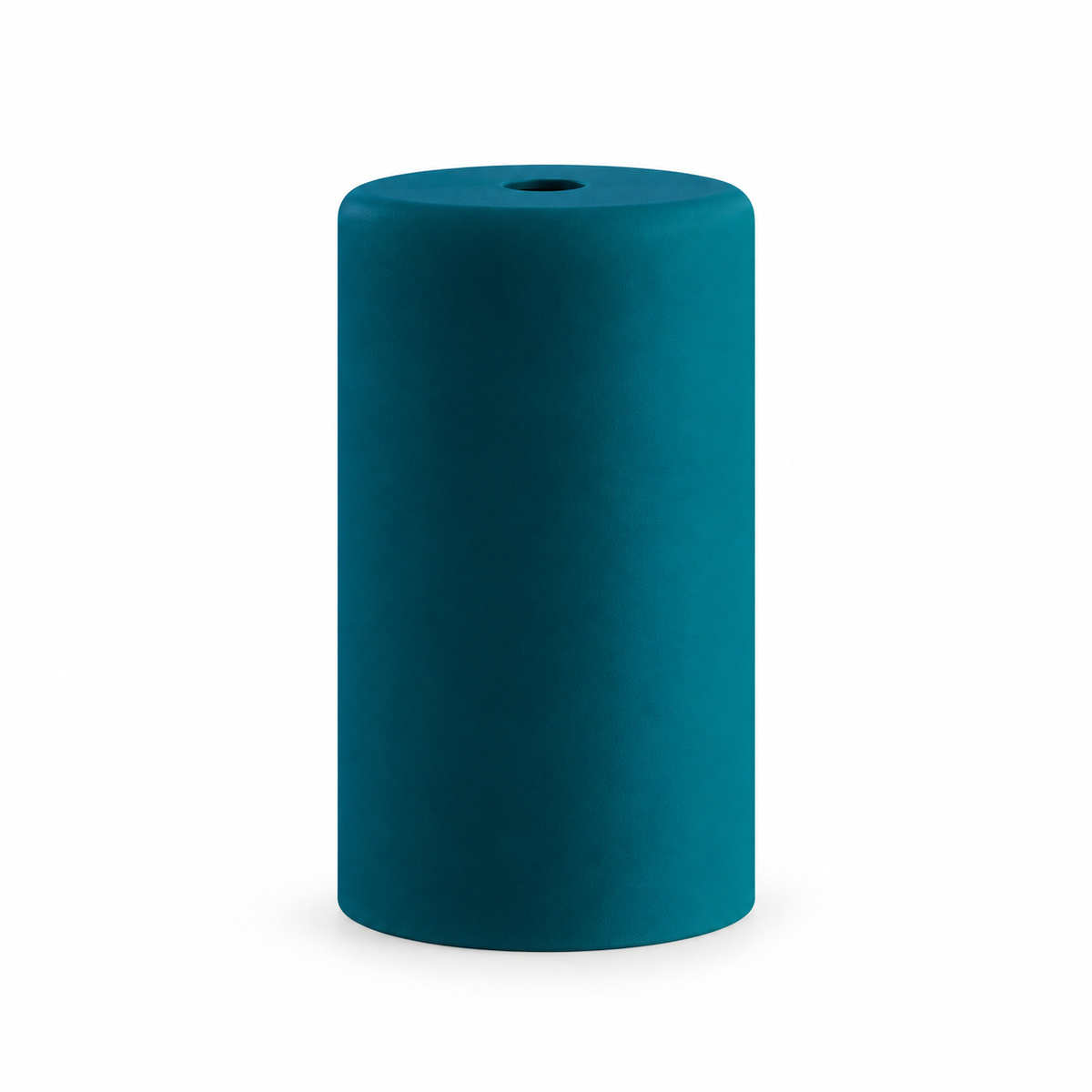

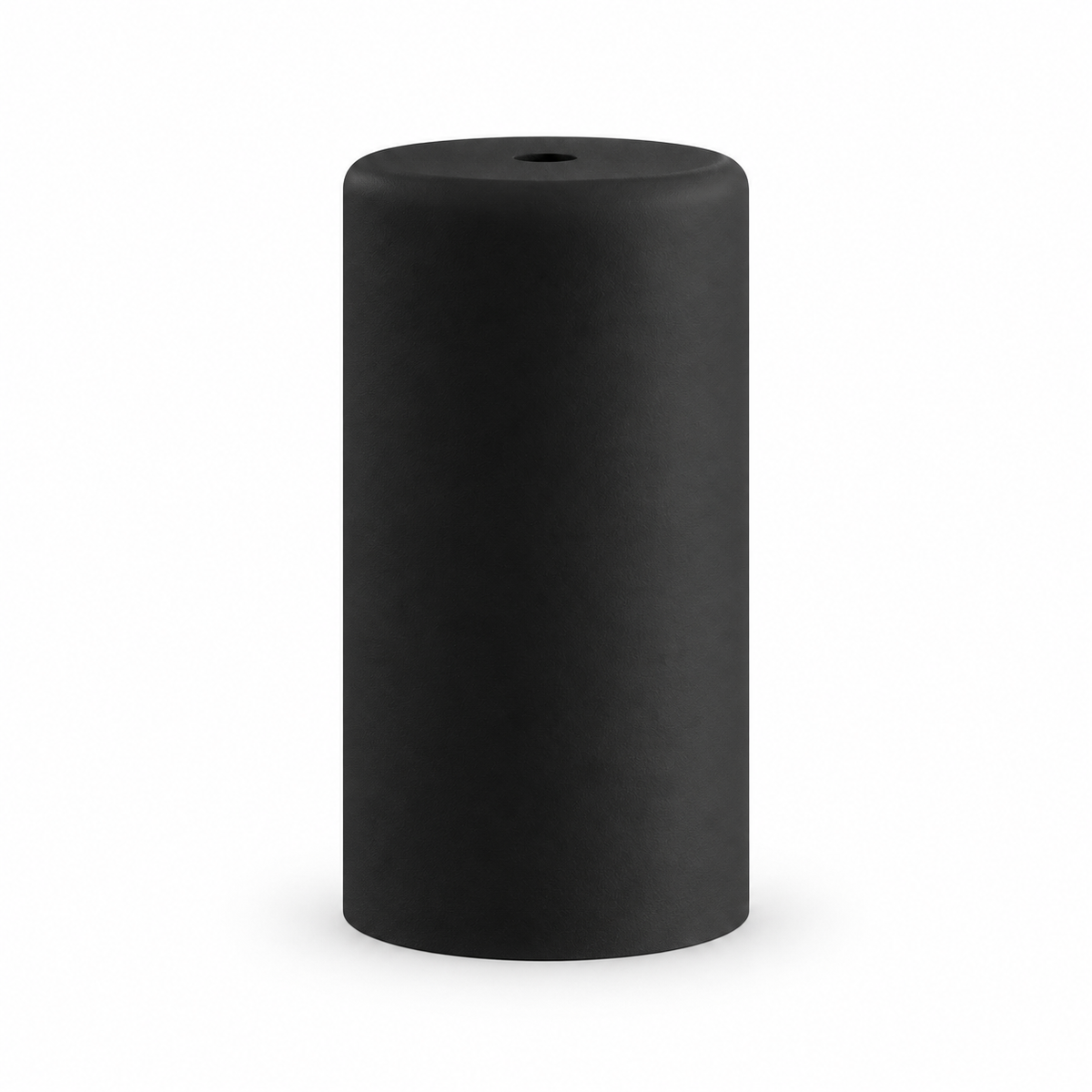

Four cup colours: White, Glacier grey, Petrol blue and Black.

Technical information

• Cap: E27
• Cup material: soft-touch silicone
• Diameter: 60 mm
• Height: 105 mm
• Hole diameter: 12 mm
• Shell: threaded
• Rated voltage and current: 250 V / 4 A
• Class: II
• Seal: PVC
• Terminals: screw type for rigid or flexible cables of 0.5 to 2.5 mm²
• Cable grip: built in
• Protection rating: IP65
• Marking: CE
• Made in: Italy
• Finishes: White, Glacier grey, Petrol blue, Black
