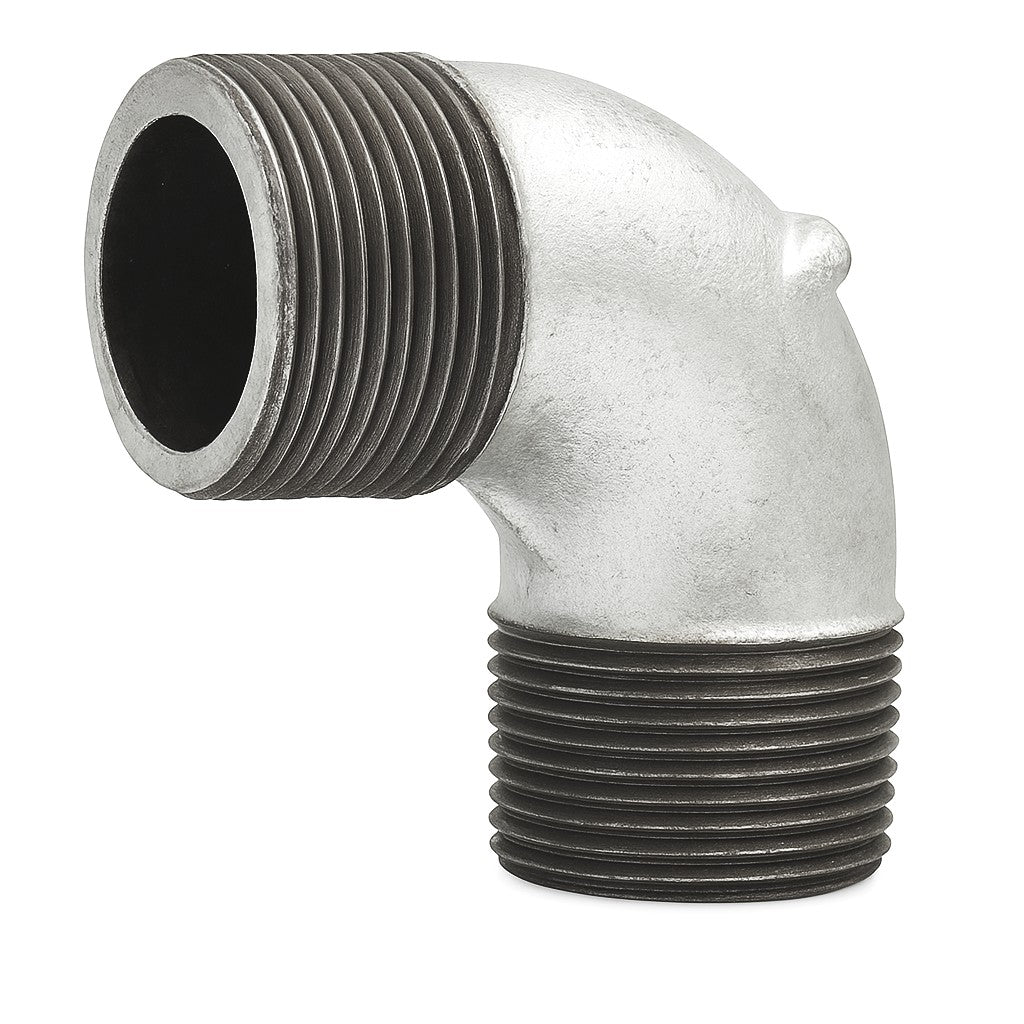

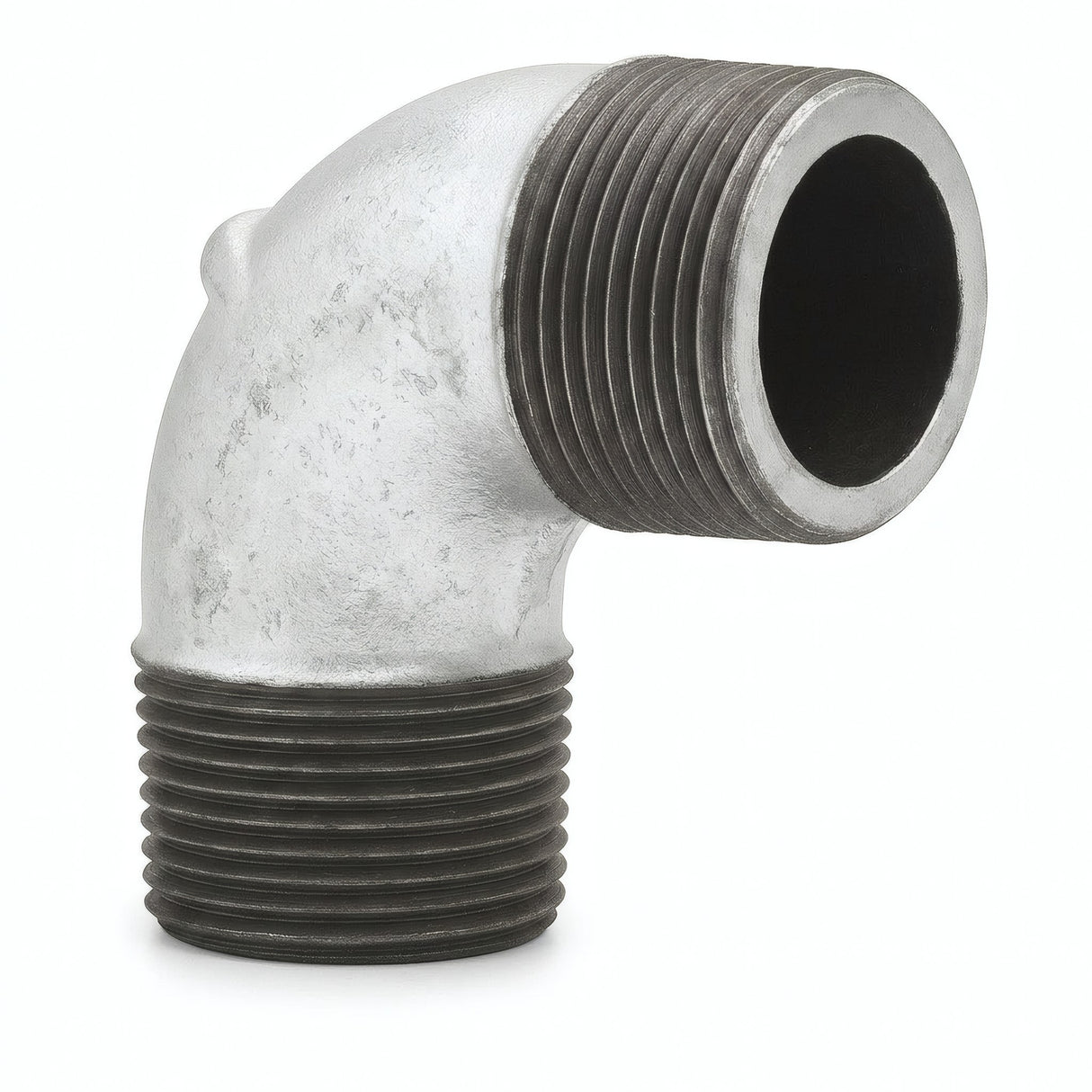

Elbow 90° M/M Galvanized Malleable Iron

The 90° Male‑Male (MM) elbow in hot-dip galvanized malleable cast iron is a specific fitting designed to join two female‑threaded components and to create a perfect right angle. Each piece is rigorously factory‑tested to ensure absolute tightness.

What is this 90° Male/Male elbow used for?

Unlike standard elbows, this model with two male ends connects directly to female‑threaded parts (such as tees, couplings, crosses, or valve outlets) without needing a separate nipple between them.

It is particularly useful in compact assemblies where space is limited. For industrial‑style décor projects, it creates crisp angles and complex structures by connecting directly to other cast‑iron elements.

Technical Features (EN 10242 Compliance)

Manufactured to European standard EN 10242. Together with strict quality controls, this ensures superior quality and reliability.

• High‑Quality Material: Malleable cast iron (EN‑GJMW‑400‑5), offering very high mechanical strength.
• Anti‑Corrosion Protection: Hot‑dip galvanized finish (approx. 70 µm), ensuring long life and an industrial raw look.
• Taper Sealing Threads (BSPT): Both male threads are taper (R) to ISO 7‑1. This profile seals effectively on the threads when tightened into a female fitting.
• Leak‑Tightness Control: 100% of fittings are individually factory‑tested to guarantee perfect sealing for maximum safety.

Indicative Dimensions

Approximate dimensions and weights by size:

Note: Dimension “A” is the distance from the fitting centerline to the end of one thread.

Installation Tip

For perfect sealing, apply your chosen sealant (hemp, PTFE tape, anaerobic resin) to both male threads before tightening into the female fittings.
