Elbow long radius 45° M/F black malleable iron

45° (Degrees) Male/Female Long Radius Curved Elbow Plumbing Fitting in Black Cast Iron

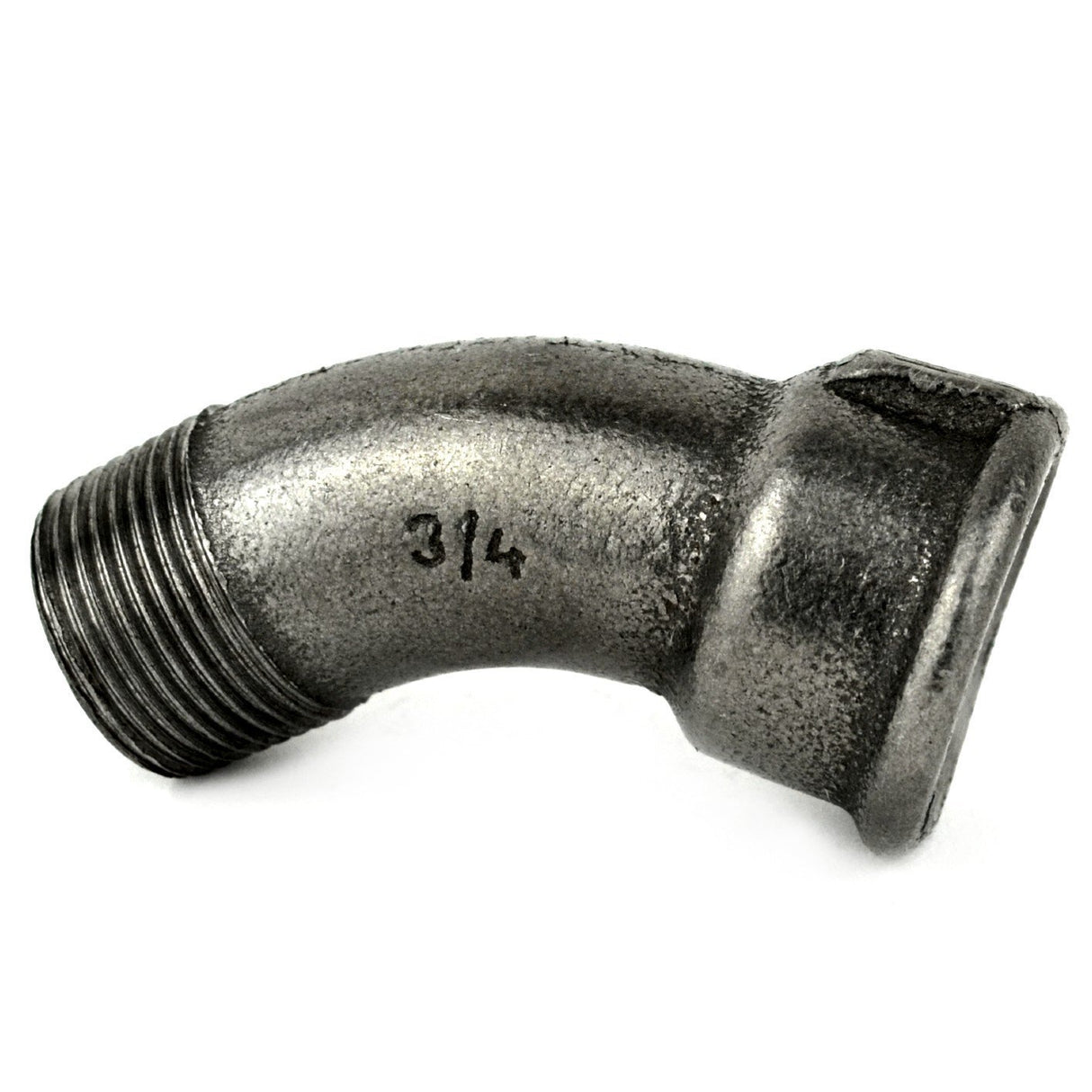

This male/female (M/F) 45° long radius curved elbow in black cast iron makes it easy to connect threaded or tapped fittings or threaded pipes by screwing them together. It is compatible with all black cast iron fittings or galvanized ones and threaded black steel pipes or galvanized ones of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the 45-Degree Male/Female Long Radius Elbow Fitting

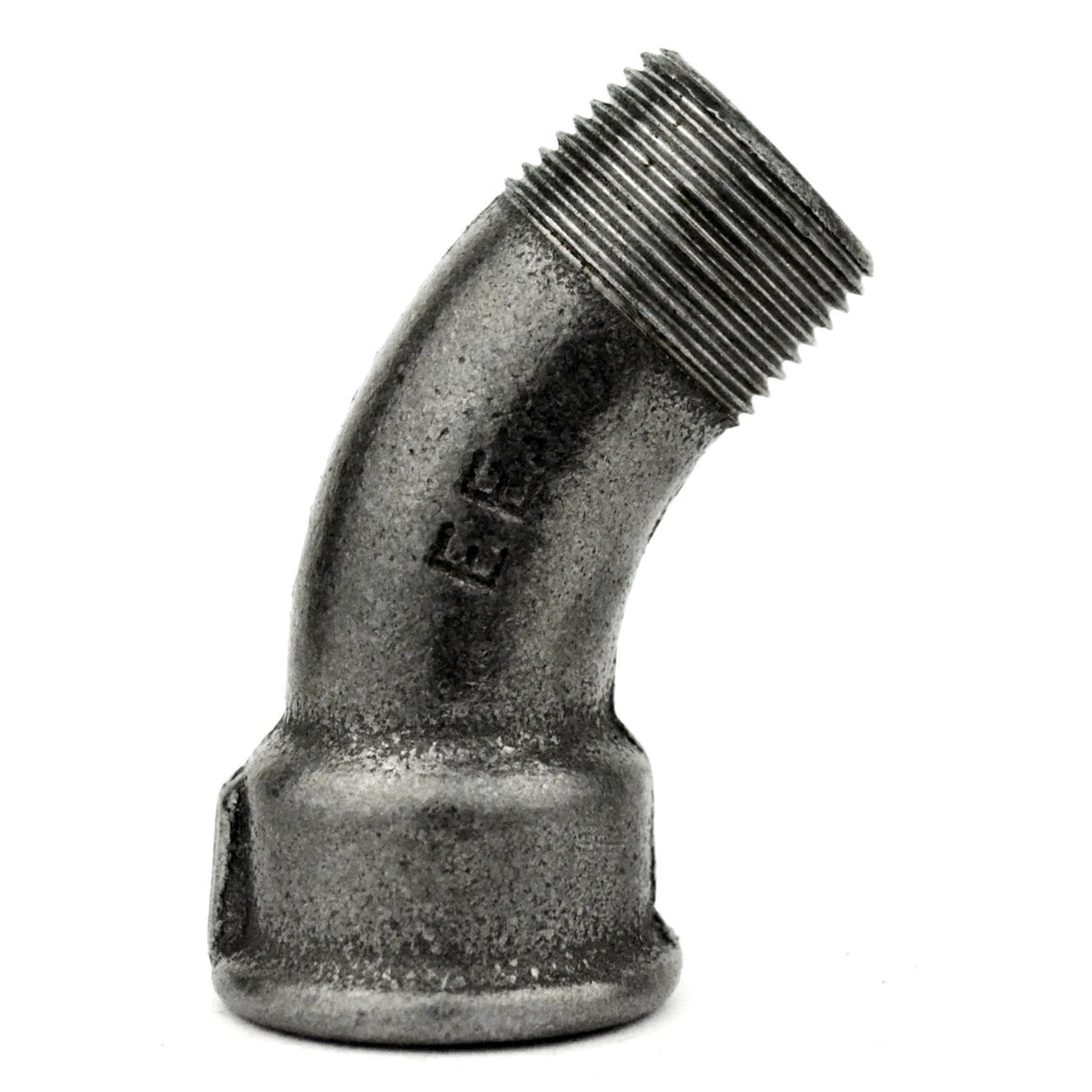

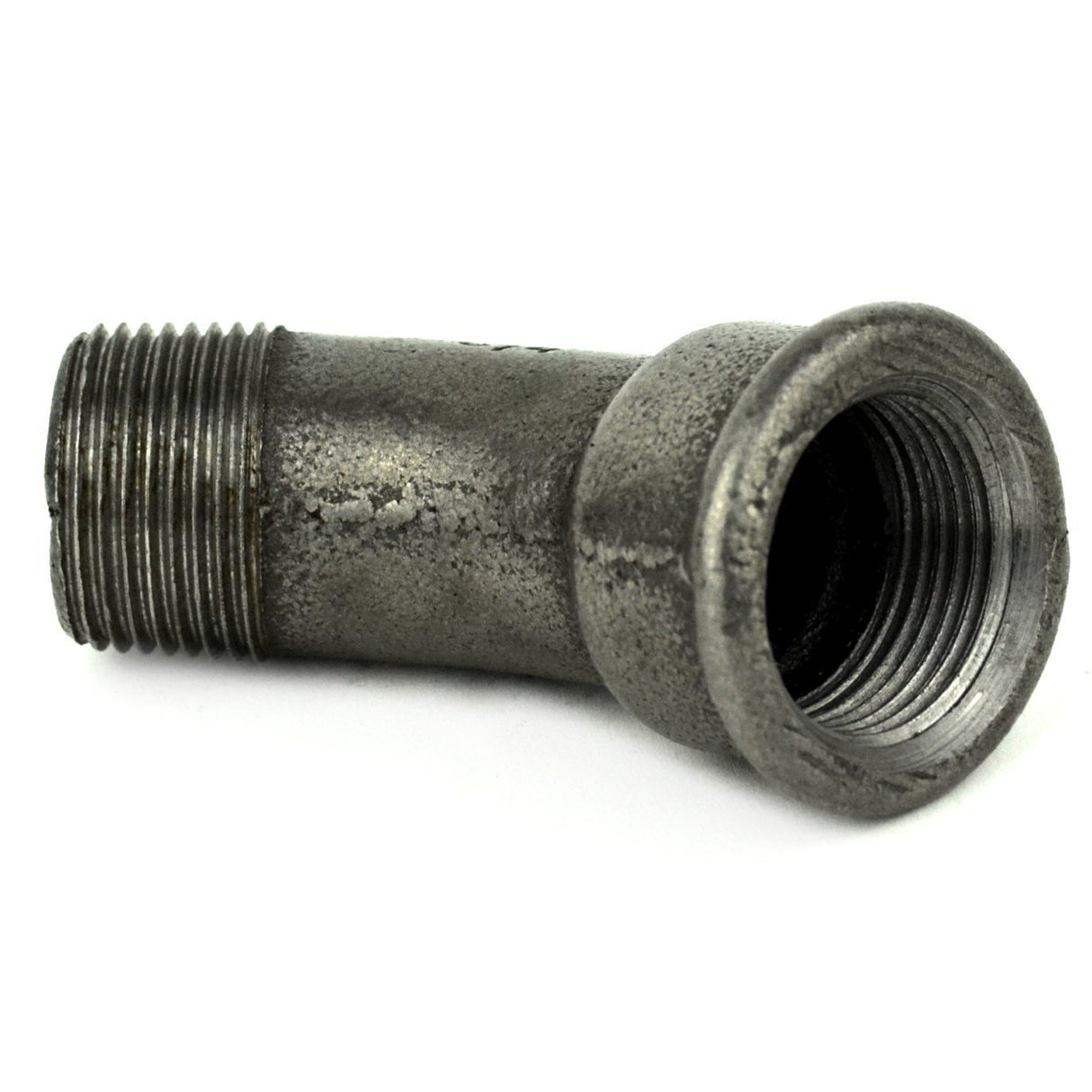

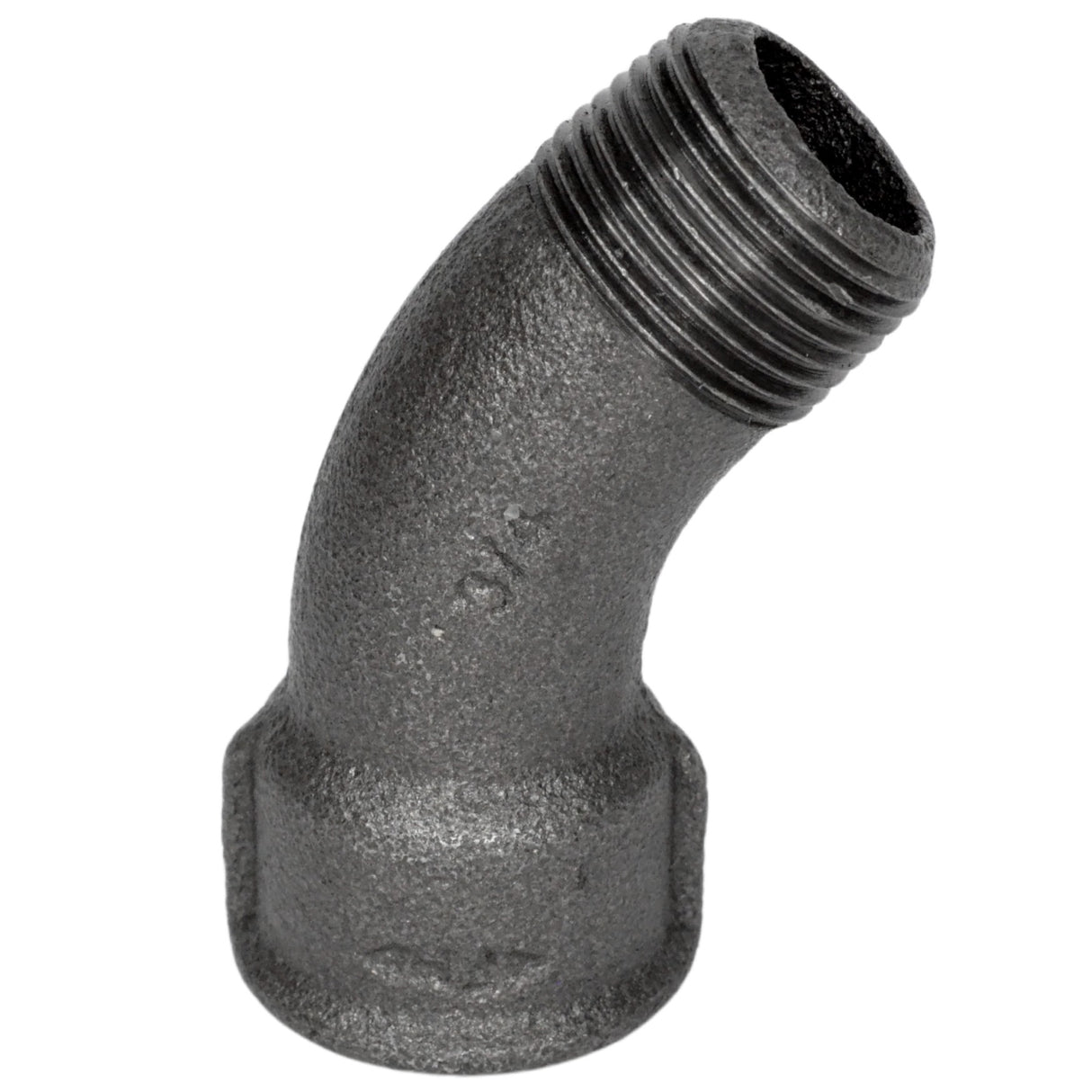

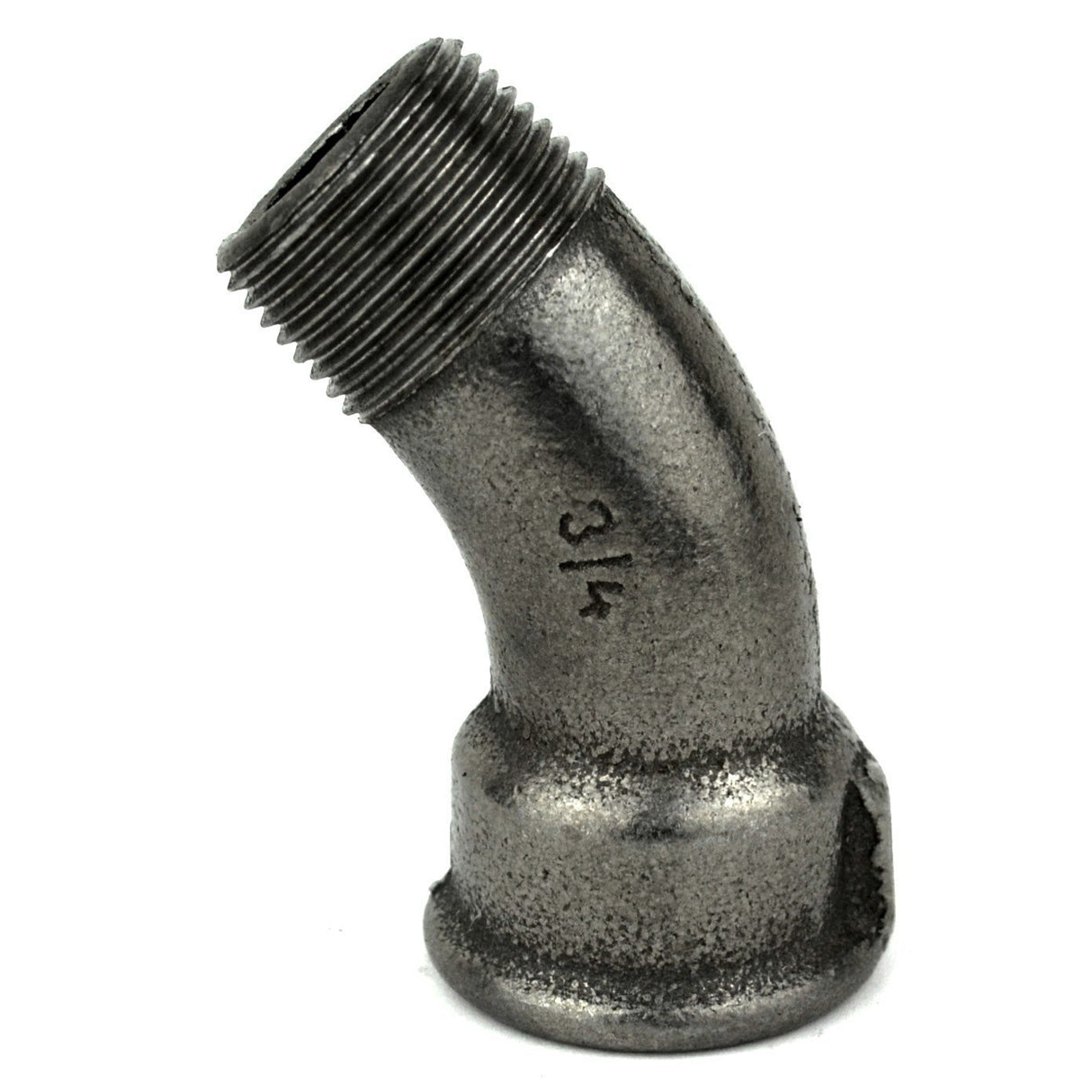

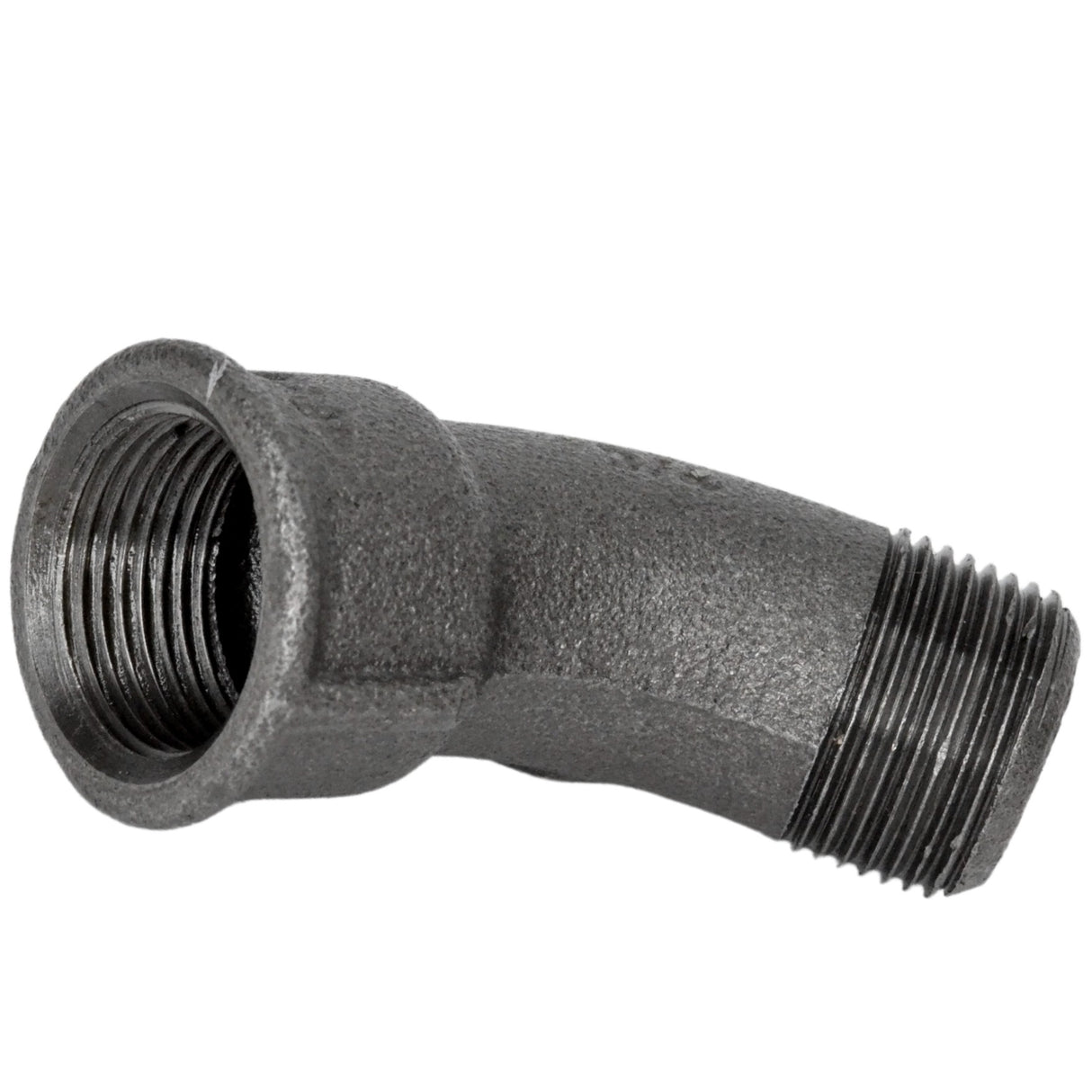

This 45° curved elbow is perfect for joining parts at an angle of 135° (135 degrees), i.e. 45° more than a 90° elbow. One side is tapped (female) so that a threaded (male) fitting or pipe can be screwed into it; the other side is threaded (male) so that a female (tapped) fitting can be screwed onto it. Both sides are the same size.

Alternatively, the 45° long radius curved elbow is also available in a Female/Female version.

Premium or Eco range?

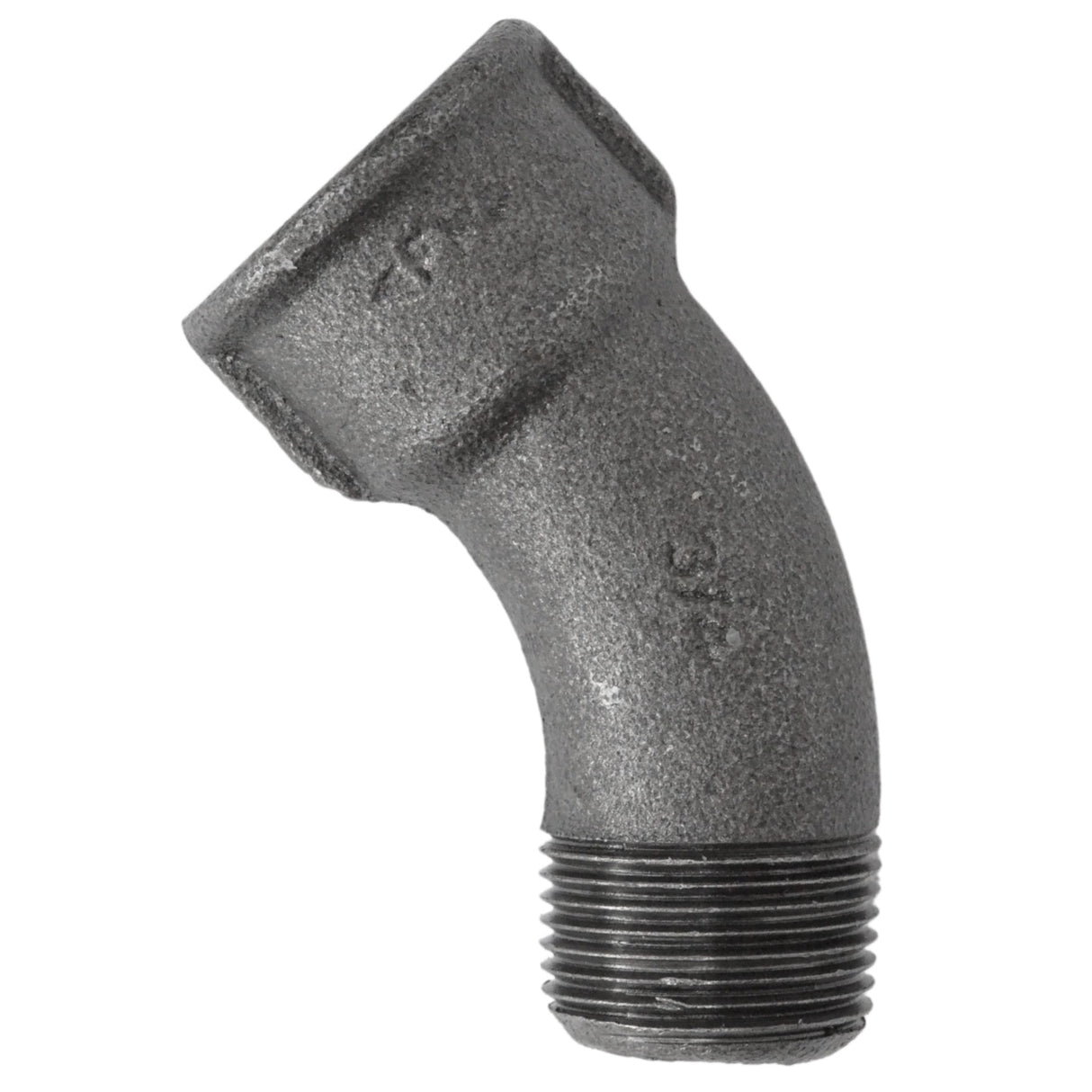

This part is available in our Premium or Economy ranges. In both cases, these are genuine, fully functional plumbing fittings.

The differences are as follows:

Premium 45° Male/Female Long Radius Curved Elbow Features and Uses

Although we use our fittings for decoration, this is a genuine plumbing part made of whiteheart malleable cast iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of rock-solid sturdiness!

This part has a parallel female (tapped) gas thread (Rp) and a tapered male thread (R, known as BSPT), in accordance with the ISO 7-1 standard.

• Screw-in depth, depending on the part screwed in and the tightening force:

  Size	Screw-in depth (approx.)
  1/4"	10 mm
  3/8"	10 mm
  1/2"	13 mm
  3/4"	15 mm
  1"	17 mm
  1"1/4	19 mm
  1"1/2	19 mm
  2"	24 mm
  2"1/2	27 mm
  3"	30 mm
  4"	36 mm

• Materials: black cast iron
• Colour: dark grey
• High quality
• Made in Europe (Premium)

45° Male/Female Long Radius Curved Elbow Fitting Dimensions

Tapping / Threads: 3/8'' | 12x17 mm
Dimensions in mm (length x width x height): 50 x 25 x 35
Weight (kg): 0.07

Tapping / Threads: 1/2'' | 15x21 mm
Dimensions in mm (length x width x height): 64 x 30 x 42
Weight (kg): 0.1

Tapping / Threads: 3/4'' | 20x27 mm
Dimensions in mm (length x width x height): 70 x 37 x 52
Weight (kg): 0.15

Tapping / Threads: 1'' | 26x34 mm
Dimensions in mm (length x width x height): 87 x 45 x 62
Weight (kg): 0.27

Tapping / Threads: 1''1/4 | 33x42 mm
Dimensions in mm (length x width x height): 112 x 54 x 78
Weight (kg): 0.48

Conversion table of plumbing fitting sizes in inches and mm (approx.):
