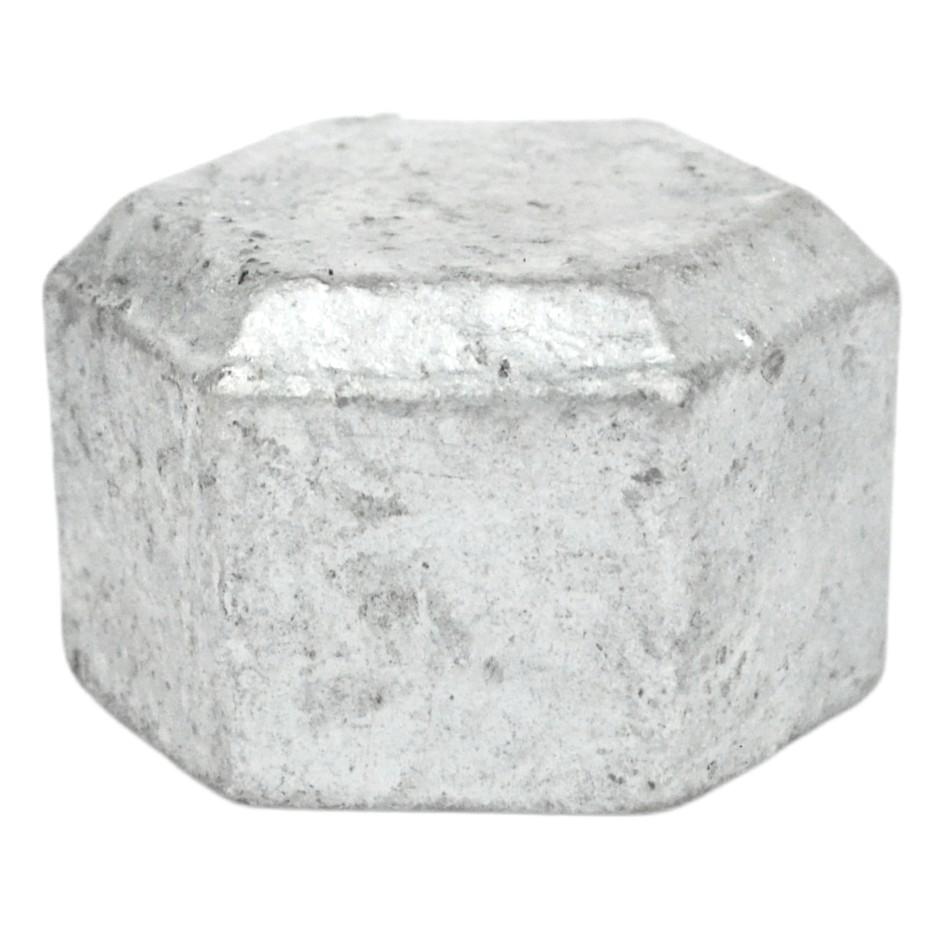

Female plug galvanised cast iron
Plumbing Fitting Galvanised Cast Iron Female Plug with 6 Spigots
This galvanised cast iron female plug will allow you to add the finishing touch to your creation. It screws onto a male fitting or onto the end of a threaded pipe. It is compatible with all galvanised cast iron or black fittings and galvanised steel or black threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.
Description of the Galvanised Cast Iron Female Plug Fitting
This Plug is the essential part to complete your project. Whether it's a table leg, a dispenser, a coat rack, or any other project, it will screw onto your fitting or pipe to hide the threads on your part.
The female plug has a hexagonal hexagonal shape which makes it easy to screw on with a spanner. The top side is bevelled, which avoids protruding angles that could hinder certain uses.
The top face is flat, allowing the piece to be used to make feet or any object that needs to be placed.
Plugs are also available in a male version to close a threaded (female) fitting.
Female Plug Features and Uses
Although we use our fittings for decoration, this is a genuine piece of white-core malleable iron plumbing that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of foolproof sturdiness!
The threads on this part are BSPT (ISO 7-1 standard) with a cylindrical female (tapped) end.
- Vissage over 10 to 15 mm (depending on the nature of the part being screwed and the strength of the screwing)
- Materials: galvanised cast iron
- Colour: galva (slightly shiny silver-grey)
- High quality
- Made in Europe (Premium)
Galvanised cast iron female plug fitting size:
Tapping / Threads: 3/8'' | 12x17mm
Dimensions (mm) (L x W x H): 25 x 18
Weight (kg): 0.04
Tapping / Threads: 1/2'' | 15x21mm
Dimensions (mm) (L x W x H): 30 x 23
Weight (kg): 0.06
Tapping / Threads: 3/4'' | 20x27mm
Dimensions (mm) (L x W x H): 35 x 25
Weight (kg): 0.09
Tap / Thread: 1'' | 26x34mm
Dimensions (mm) (L x W x H): 45 x 38
Weight (kg): 0.150
Tap / Thread: 1''1/4 | 33x42mm
Dimensions (mm) (L x W x H): 55 x 30
Weight (kg): 0.220
Table of plumbing fitting sizes in inches and mm (approx):
| Size inch | Size mm | Pipe outside diameter | DN |
|---|---|---|---|
| 3/8" | 12/17mm | 17mm | DN10 |
| 1/2" | 15/21mm | 21mm | DN15 |
| 3/4" | 20/27mm | 27mm | DN20 |
| 1" | 26/34mm | 34mm | DN25 |
| 1"1/4 | 33/42mm | 42mm | DN32 |
