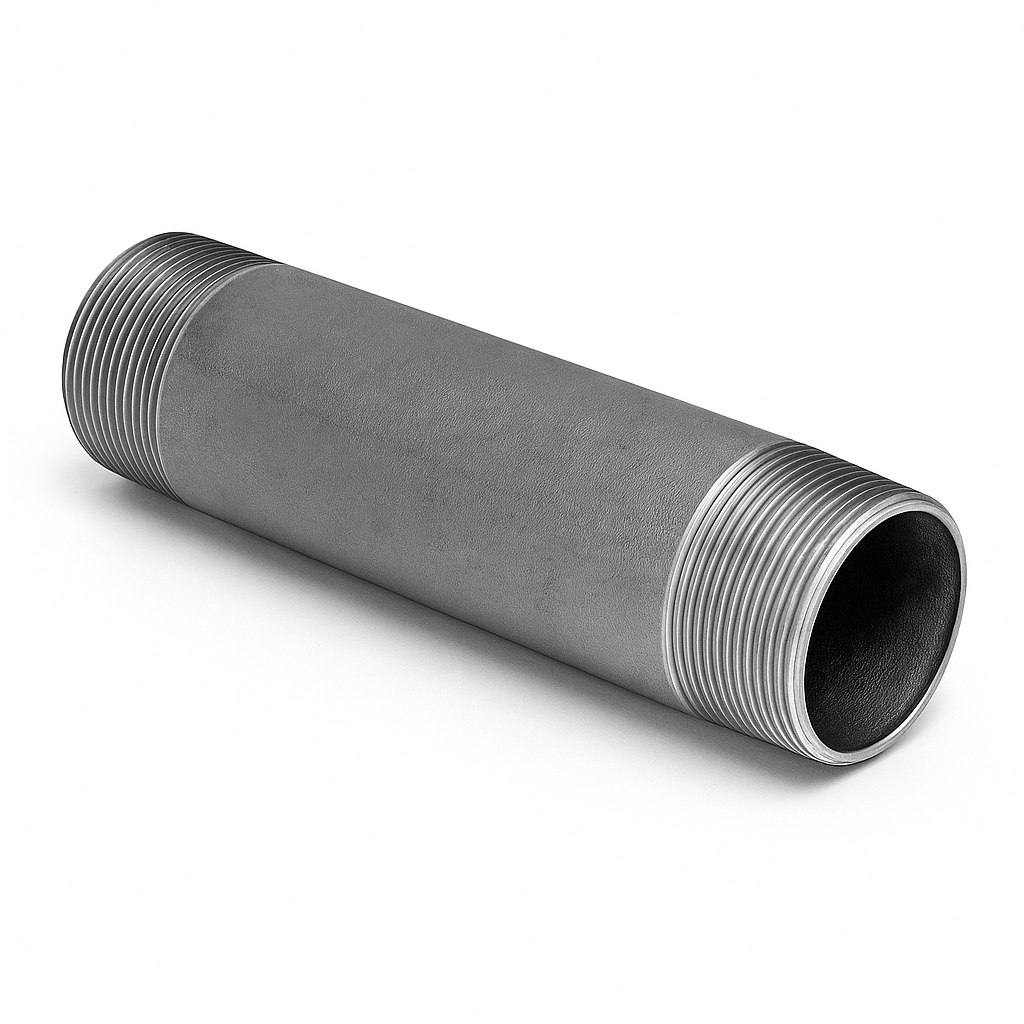

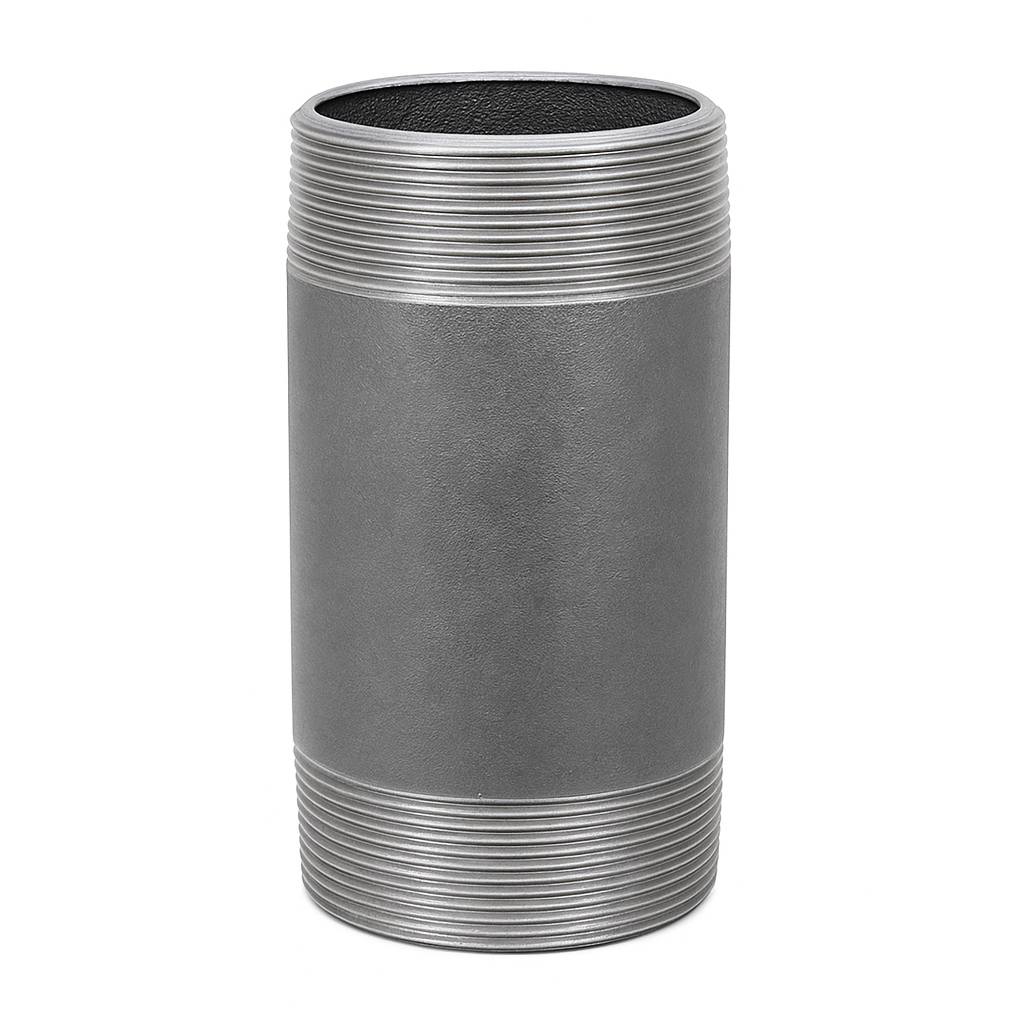

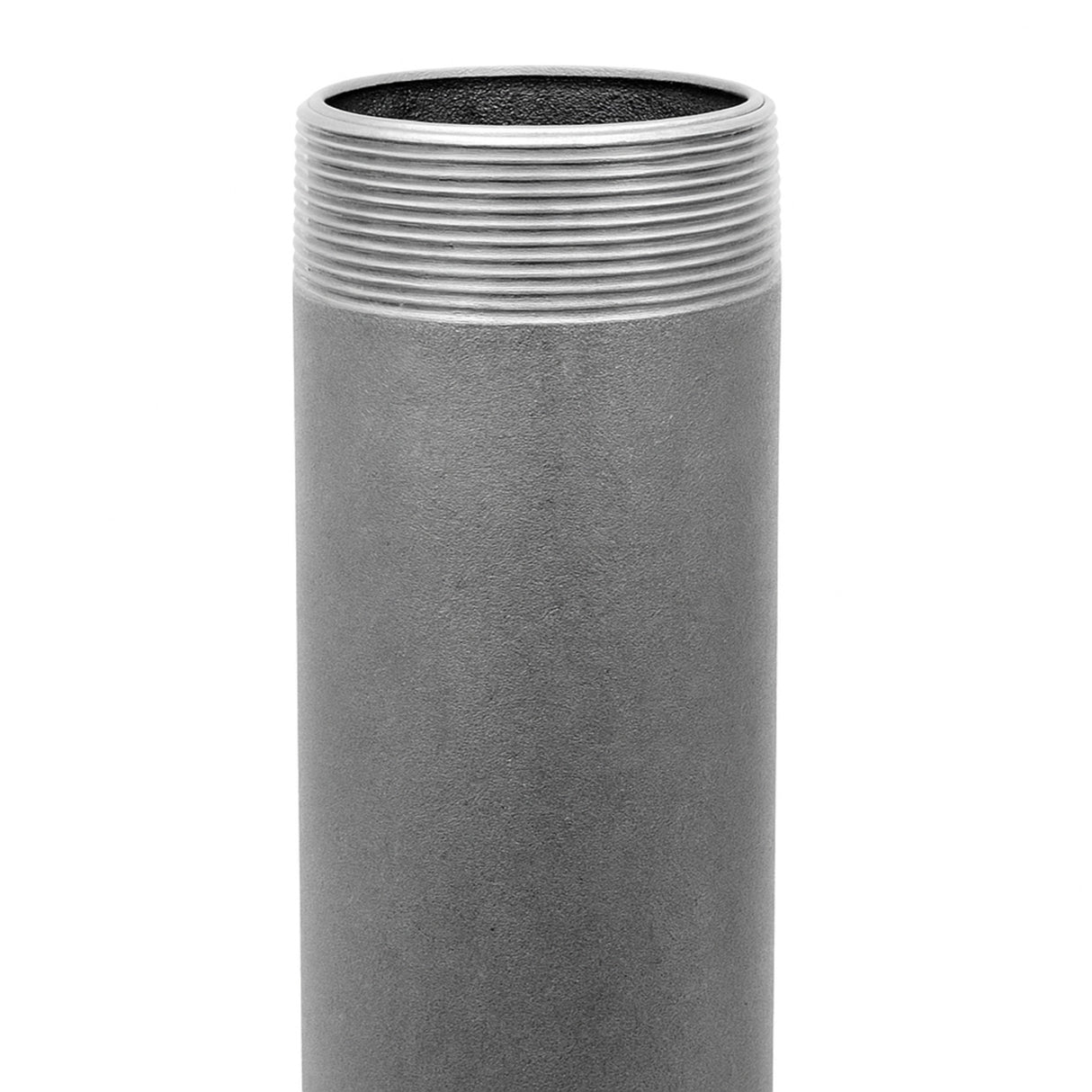

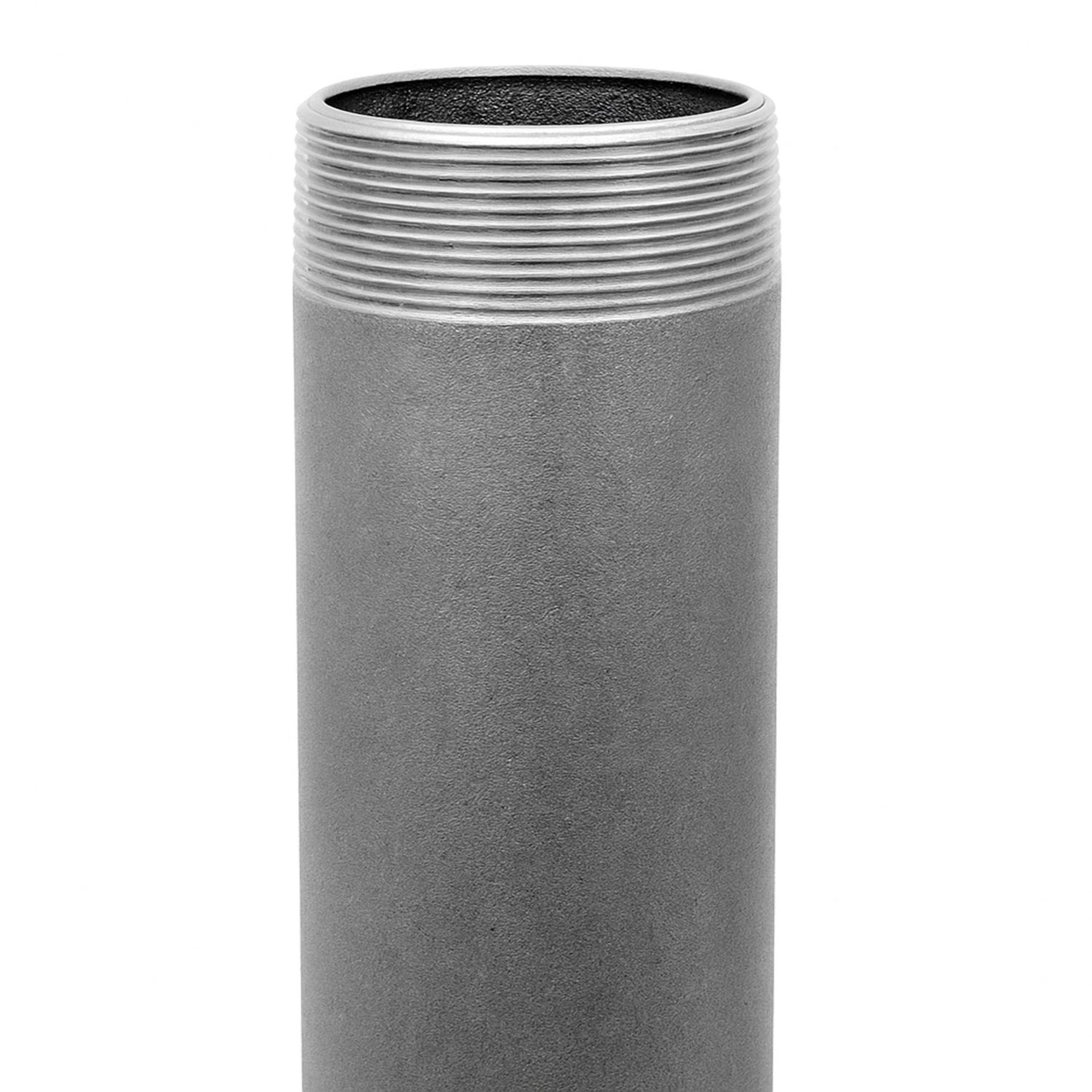

Steel pipe 2"1/2 – 66x76 mm black steel
Technical Specifications
- Finish: Available in a "black steel" finish (actual appearance is gray, see Color section below).
- Compliance:
- EN 10241 (formerly DIN) for threaded fittings.
- EN 10226 (formerly DIN), fully interchangeable with ISO 7-1 (BSPT): features tapered external threads (R) and parallel internal threads (Rp).
- Material: Steel (grade type S195T or equivalent).
- Process: Welded tube, cut to length, and threaded on both ends.
- Size: 2″ 1/2 • DN 65 • 66 × 76 mm — Outer Dia. (OD) 76.1 mm • Inner Dia. (ID) ≈ 68.9 mm (indicative, depends on series).
- Minimum Thickness: ≈ 3.6 mm.
- Threading: BSP-T R 2″ 1/2 (55°). L2 ≈ 31.8 mm; effective engagement ≈ 24 mm.
Applications and Use Cases
These male threaded tubes are compatible with any female tapped fitting of the same size (R/Rp 2″ 1/2). They are ideal for low-pressure threaded networks (e.g., water, air, steam ≤ 120°C) and for industrial-style decorative constructions (furniture, legs, guardrails, etc.).
Finish & Color Notice (Important)
Despite the "black steel" designation, the actual appearance is generally gray (from a grainy medium gray to a smooth dark gray). The shade may vary depending on the length, batch, and the light protective oil coating. If color uniformity is critical for your project, please contact us before placing an order.
Available Lengths
60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 mm
Weight per Length (indicative)
| Length | Weight |
|---|---|
| 60 mm | 376 g |
| 80 mm | 548 g |
| 100 mm | 721 g |
| 120 mm | 894 g |
| 150 mm | 1,153 g |
| 180 mm | 1,432 g |
| 200 mm | 1,584 g |
| 250 mm | 2,016 g |
| 300 mm | 2,447 g |
| 400 mm | 3,310 g |
Tolerances & Dimensional Accuracy
- Indicative length tolerance: −0 / +2 mm for ≤ 300 mm • −0 / +3 mm for > 300 mm.
- The specified lengths include the threads on both ends.
Pipe Size Cross-Reference Chart
| Inch Size | Metric Size (DN) | OD (mm) |
|---|---|---|
| 1/2″ | 15/21 (DN 15) | 21.3 |
| 1″ | 26/34 (DN 25) | 33.7 |
| 1″ 1/4 | 33/42 (DN 32) | 42.4 |
| 2″ | 50/60 (DN 50) | 60.3 |
| 2″ 1/2 | 66/76 (DN 65) | 76.1 |
| 3″ | 80/90 (DN 80) | 88.9 |
| 4″ | 102/114 (DN 100) | 114.3 |
