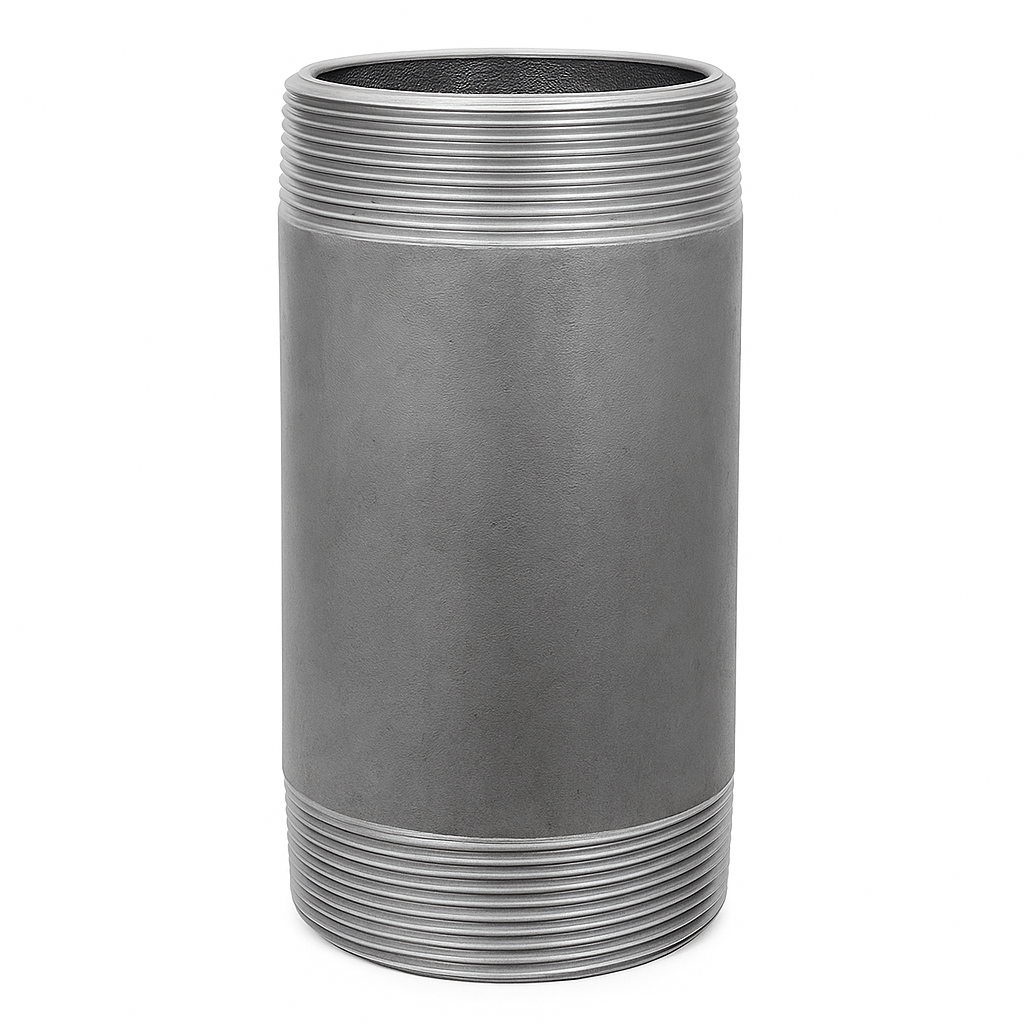

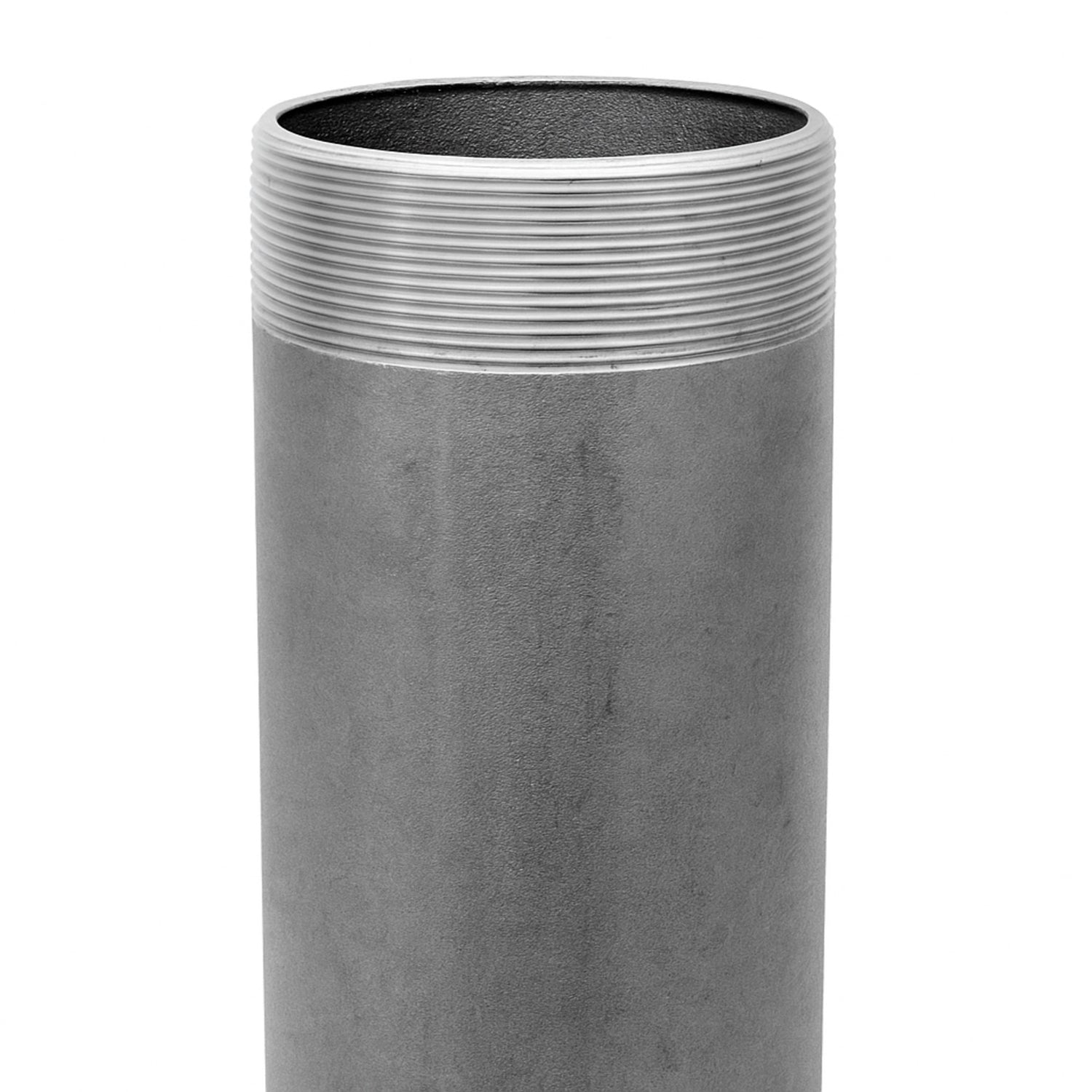

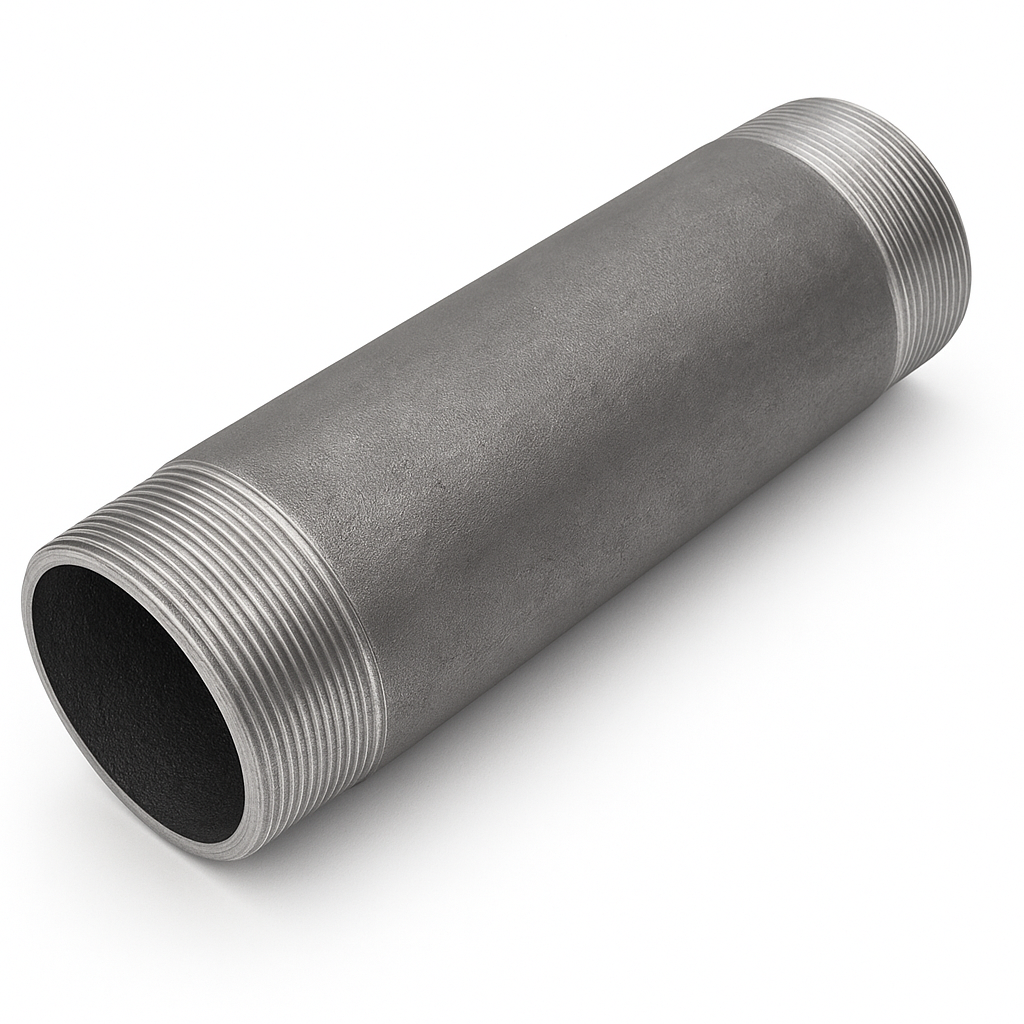

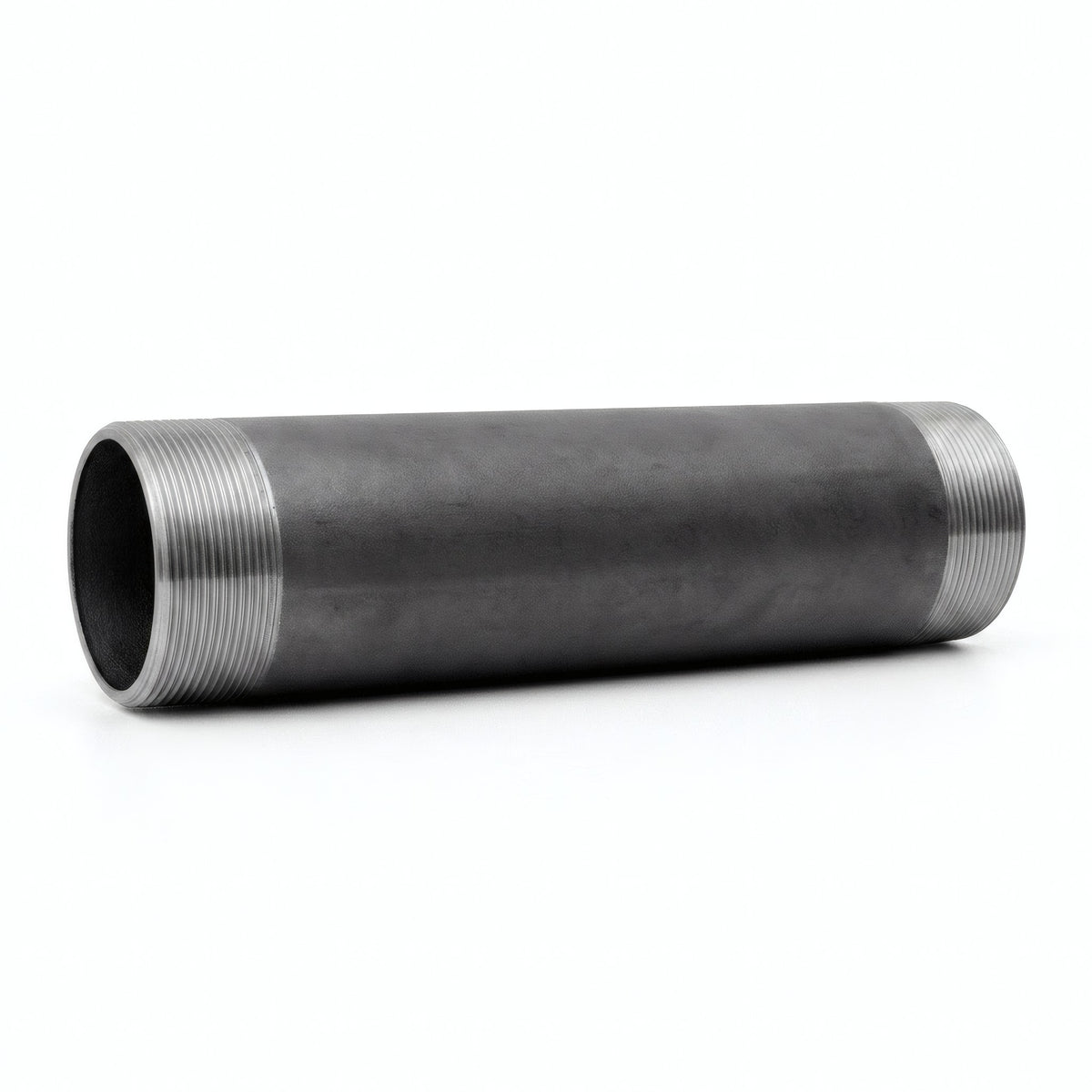

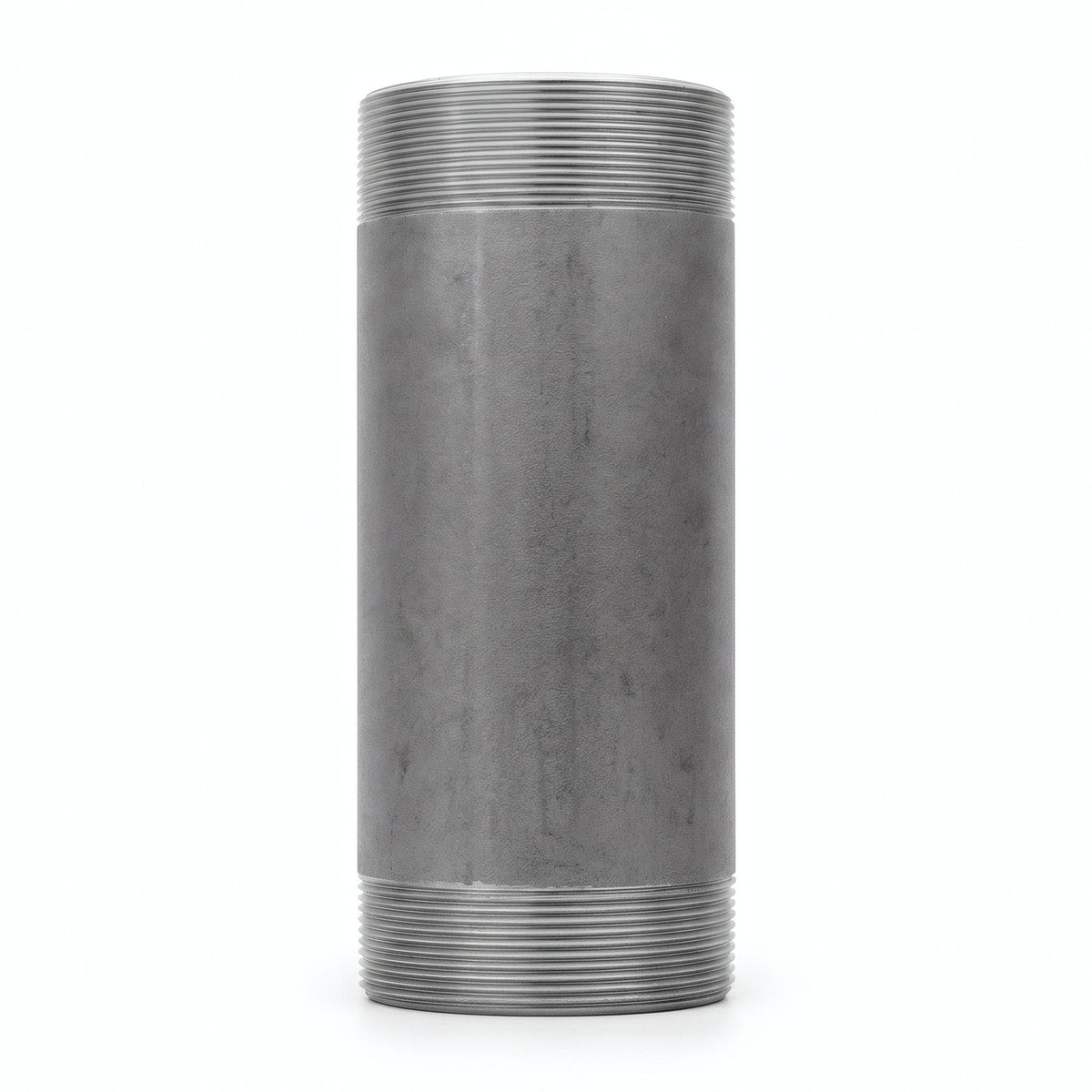

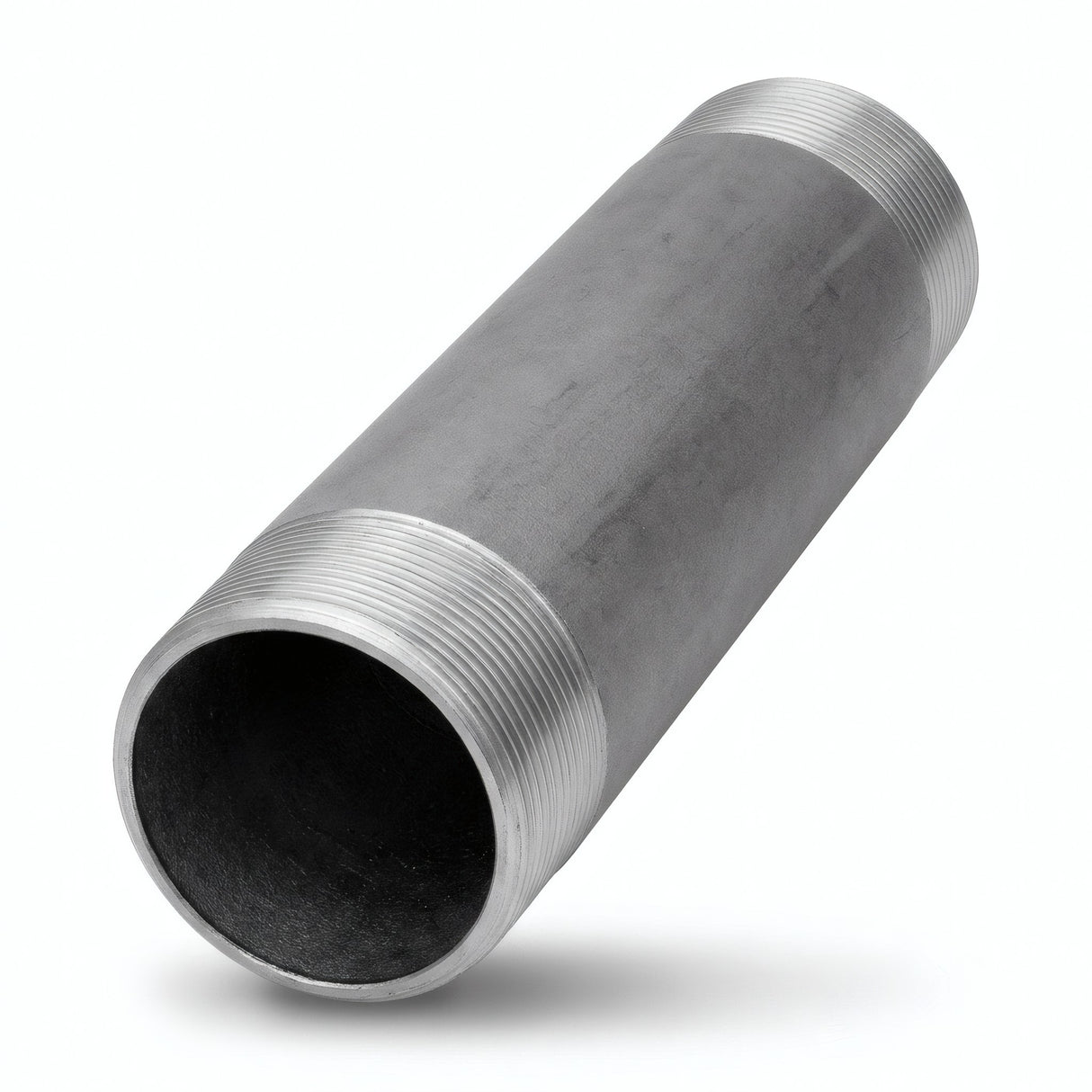

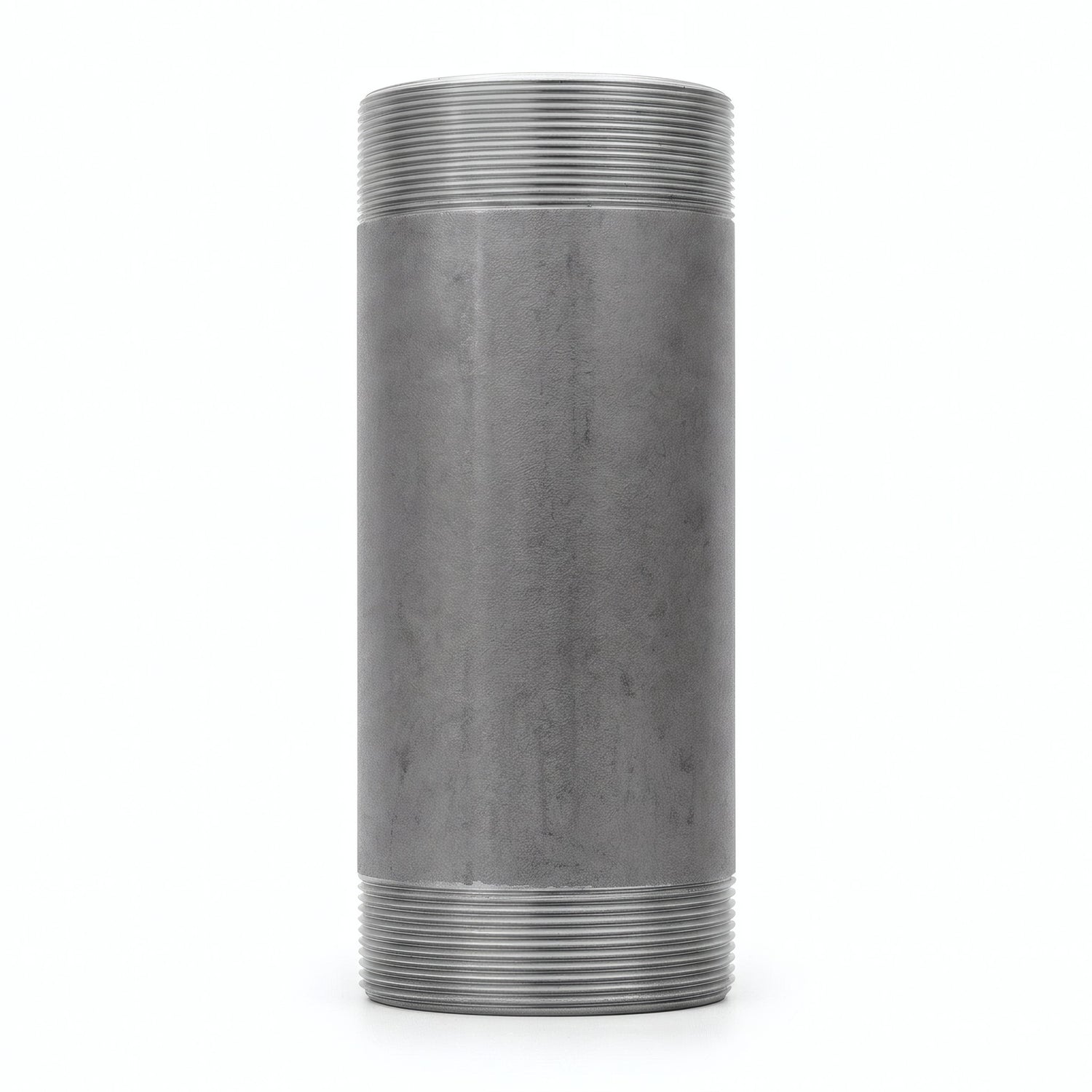

Steel pipe 3" – 80x90 mm black steel
Technical Summary
- Finish: available in a "black steel" finish (actual appearance is gray, see Color section).
-
Compliance:
- EN 10241 (formerly DIN) for threaded tubes.
- EN 10226 (formerly DIN), fully interchangeable with ISO 7-1 (BSPT): tapered external threads R, parallel internal threads Rp.
- Material: steel (grade S195T or equivalent).
- Process: welded tube, cut to length and threaded on both sides.
- Size: 3″ • DN 80 • 80 × 90 mm — OD 88.9 mm • ID ≈ 80.9 mm (indicative, depends on series).
- Min. thickness: ≈ 4.0 mm.
- Threading: BSP-T R 3″ (55°). L2 ≈ 36.5 mm; effective engagement ≈ 27 mm.
Use
Male threaded tubes compatible with any female tapped fitting of the same size (R/Rp 3″). Suitable for low-pressure threaded systems (water, air, steam ≤ 120°C) and for large-section industrial decor structures (furniture, bases, guardrails, etc.). For wall/ceiling attachments, consider the mass (see weight table).
Color (important)
Despite the "black steel" designation, the actual appearance is generally gray (from a grainy medium gray to a smooth dark gray). The shade may vary depending on the length, batch, and the light protective oil coating. If color uniformity is critical, please contact us before ordering.
Available Lengths
60 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 mm
Weight per length (indicative)
| Length | Weight |
|---|---|
| 60 mm | 444 g |
| 80 mm | 606 g |
| 100 mm | 832 g |
| 120 mm | 1,058 g |
| 150 mm | 1,397 g |
| 180 mm | 1,735 g |
| 200 mm | 1,961 g |
| 250 mm | 2,526 g |
| 300 mm | 3,090 g |
| 400 mm | 4,219 g |
Tolerances & dimensional accuracy
- Indicative length tolerance: −0 / +2 mm ≤ 300 mm • −0 / +3 mm > 300 mm.
- The specified lengths include the threads (on both sides).
Size Chart (main diameter cross-reference)
| Inch Size | Metric Size (DN) | OD (mm) |
|---|---|---|
| 1/2″ | 15/21 (DN 15) | 21.3 |
| 1″ | 26/34 (DN 25) | 33.7 |
| 1″ 1/4 | 33/42 (DN 32) | 42.4 |
| 2″ | 50/60 (DN 50) | 60.3 |
| 2″ 1/2 | 66/76 (DN 65) | 76.1 |
| 3″ | 80/90 (DN 80) | 88.9 |
| 4″ | 102/114 (DN 100) | 114.3 |
