Y - 3-way - black cast iron

$8.00
Tax included Shipping calculated at checkout.
(1)

Size

Shipping and Delivery

Product Type Delivery Method Preparation Time Transport Time Delivery Time
All Parts Pickup Point 0 to 3 days 3 to 6 days 3 to 9 days
All Parts Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Tubes > 90cm Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Tubes > 200cm Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Assembled Products Home Delivery & Pickup Point 0 to 5 days (see methods) 3 to 11 days

* Tubes longer than 90cm cannot be delivered to a pickup point

For confirmation of delivery times on specific items, please send us a message

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Samuel G. (Le Pin, FR)
Repose etagère

Bonne élément pour pouvoir faire des étagères plus modernes et légères.
Adaptable sur la largeur des planches grâce au tube entre le Y et le coude.

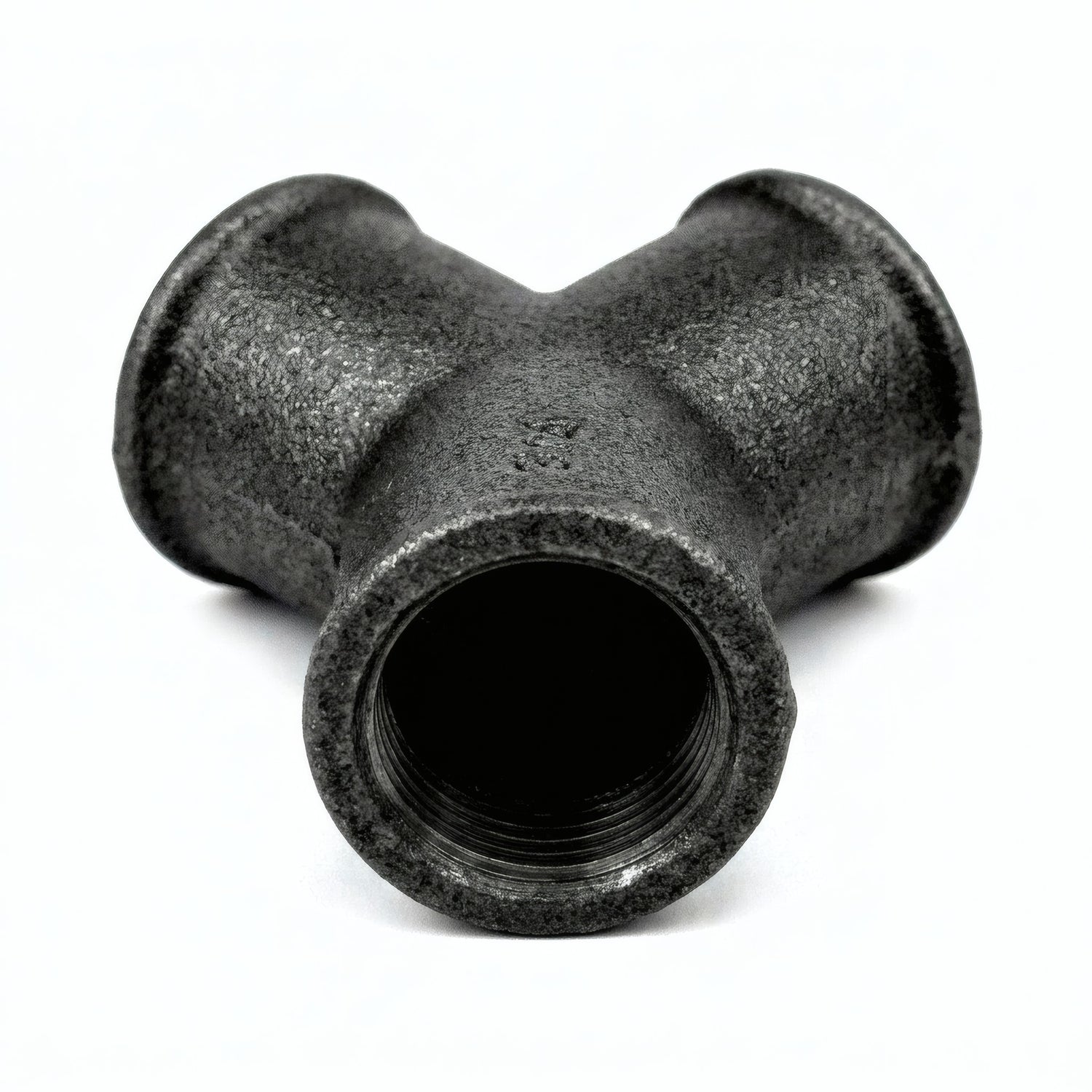

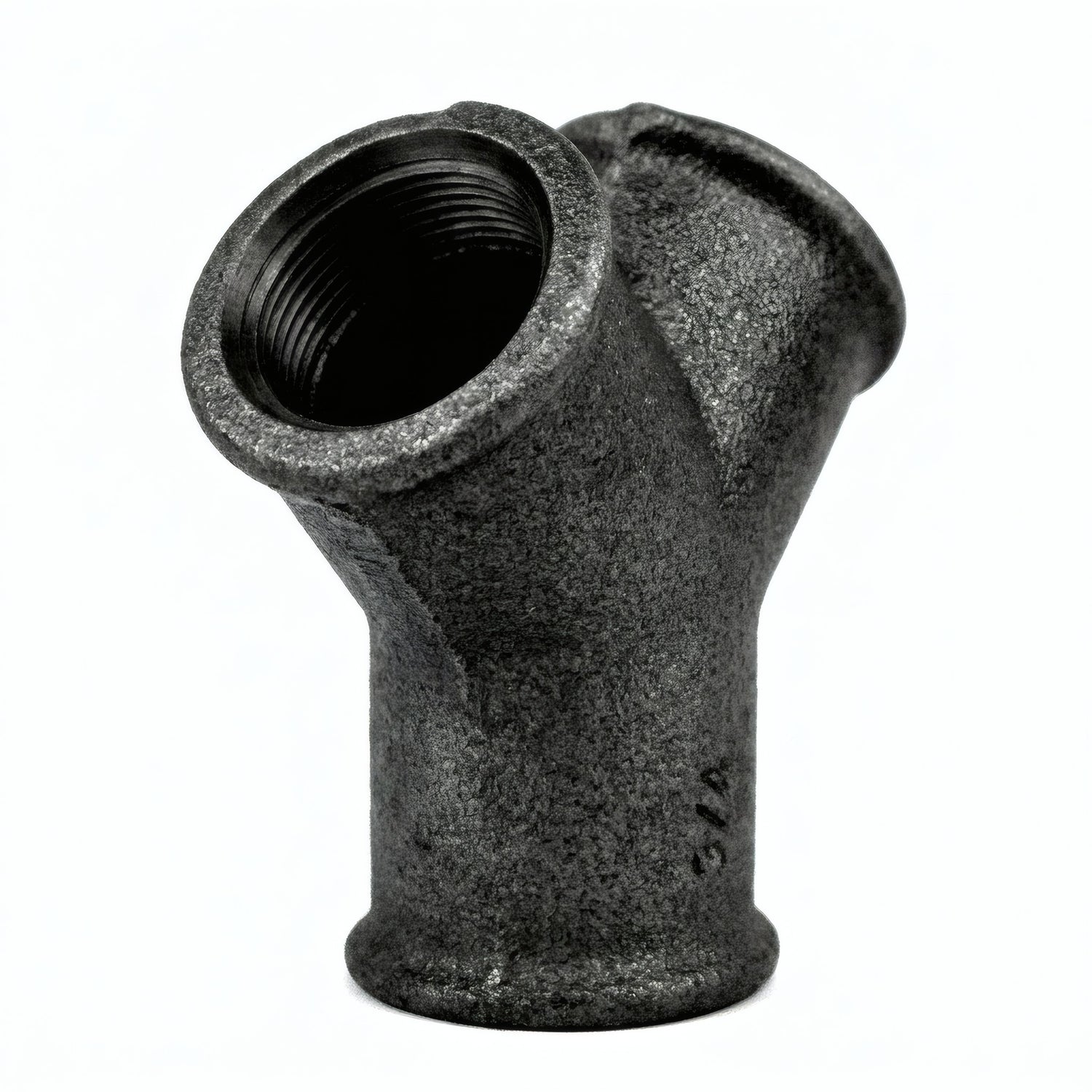

Y plumbing fitting, 3-way, black cast iron

The Black Cast Iron Y is an ideal plumbing fitting for some complex assemblies. It is compatible with all black cast iron or galvanised fittings and black steel or galvanised threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the Y fitting

The Y is a part with 3 ways, allowing 3 pipes or fittings of the same size to be screwed together. The angles are 90° (90 degrees on one side) and 135° (135 degrees) on the other two sides.

Y characteristics and uses

Although we use our fittings for decoration, this is a real piece of malleable cast iron plumbing. Superior quality and a guarantee of foolproof sturdiness!

The Threads on this part are BSPT (ISO 7-1 standard) with female (tapped) cylindrical type ends.

  • Vissage over 10 to 15mm (depending on the nature of the part being screwed and the strength of the screwing)
  • Materials: black cast iron
  • Colours: dark grey
  • High quality

Dimensions of Y fitting

Tap / Thread: 3/8'' | 12x17mm
Dimensions (mm) : - x - x -
Weight (kg) : 0.1

Tapping / Threads: 1/2'' | 15x21mm
Dimensions (mm) : 55 x 25 x 60
Weight (kg) : 0.100

Tapping / Threads: 3/4'' | 20x27mm
Dimensions (mm) : 70 x 35 x 70
Weight (kg) : 0.175

Tap / Thread: 1'' | 26x34mm
Dimensions (mm) : 80 x 45 x 85
Weight (kg) : 0.285

Tap / Thread: 1''1/4 | 33x42mm
Dimensions (mm) : - x - x -
Weight (kg) : 0.6

Table of plumbing fitting sizes in inches and mm

Size
inch
Size
mm
Diameter
outside.
3/8" 12/17mm 17mm
1/2" 15/21mm 21mm
3/4" 20/27mm 27mm
1" 26/34mm 34mm
1"1/4 33/42mm 42mm
