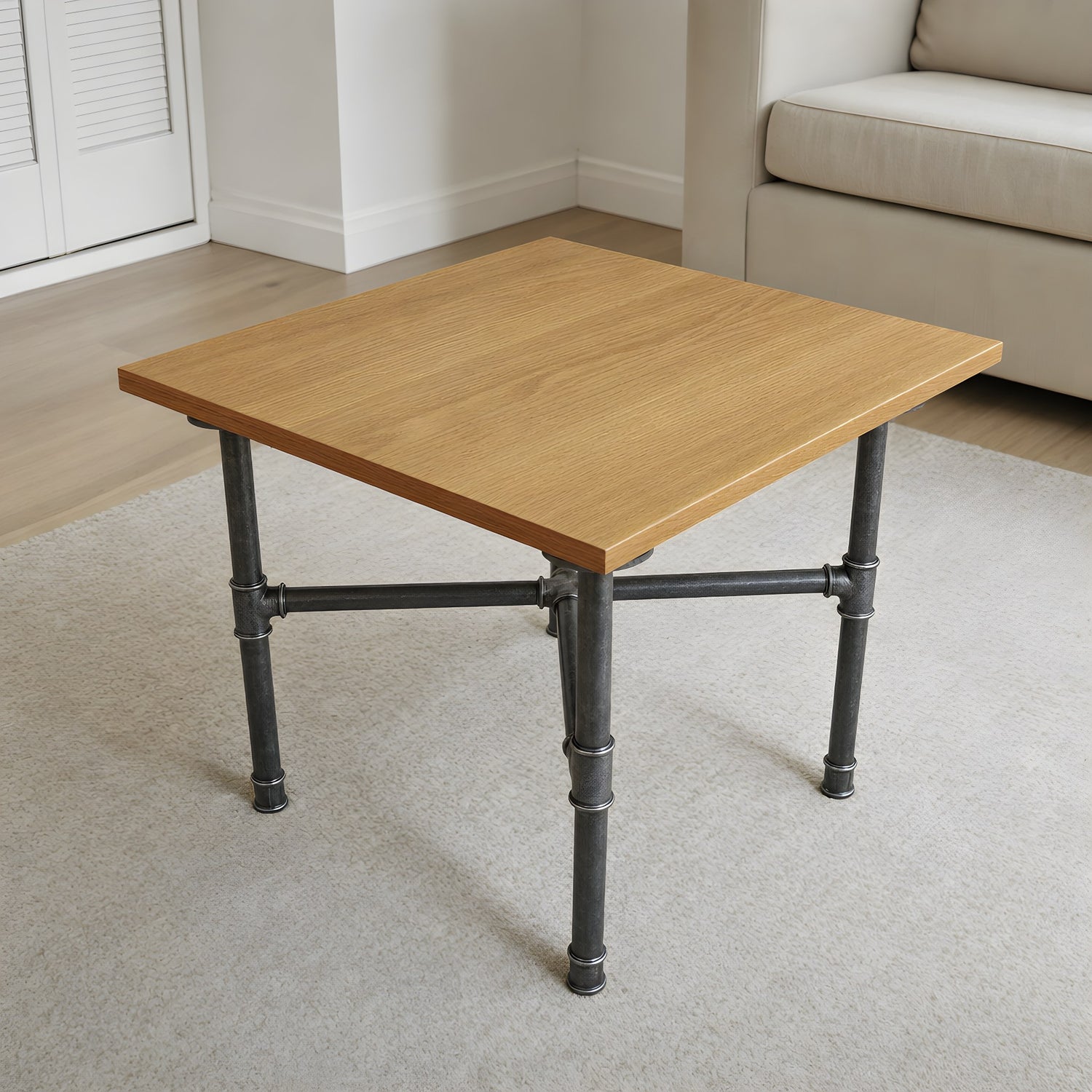

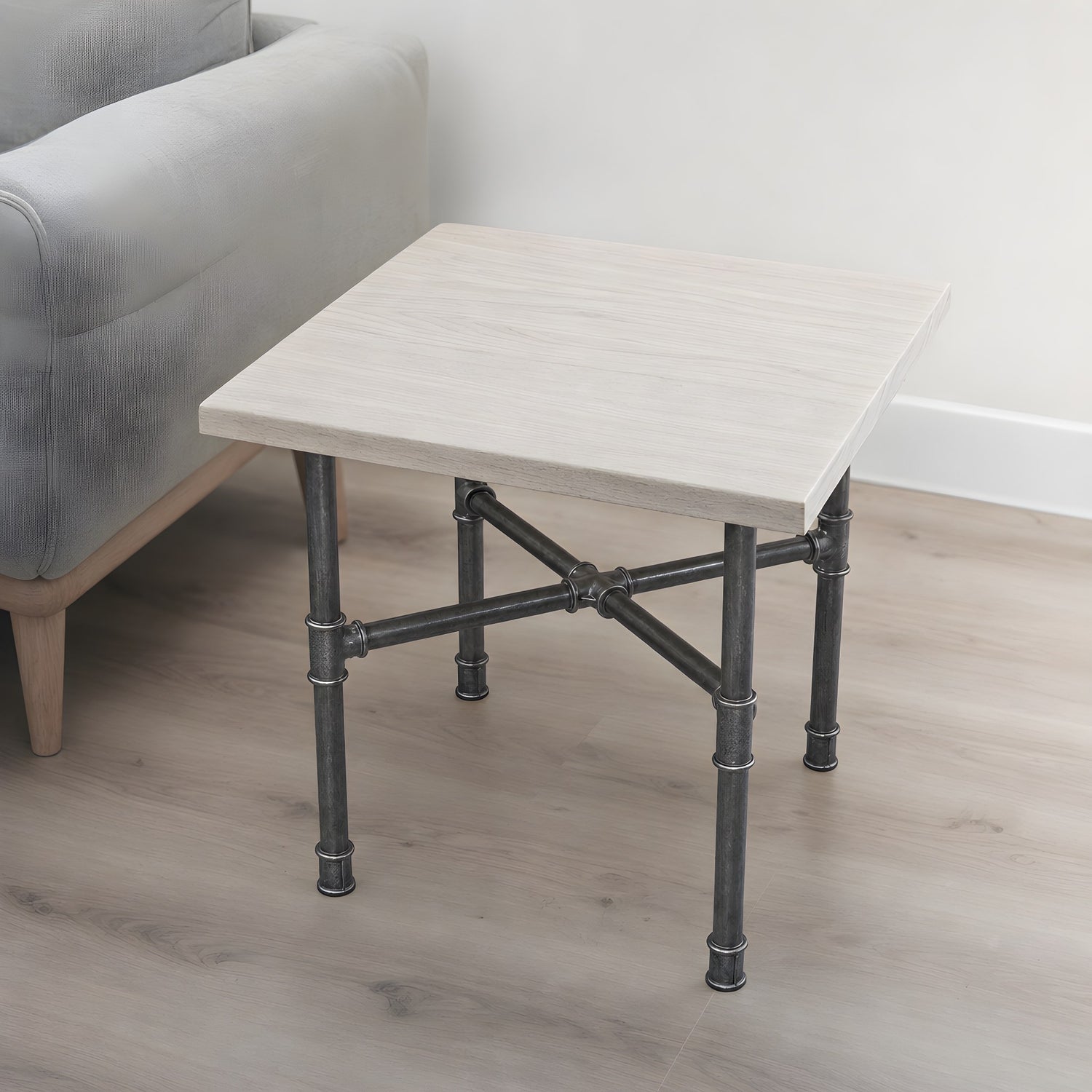

Cross-leg coffee table base, cast iron and varnished steel Ø 27 mm
A cross base for the tabletop of your choice
Give your living room some character with this coffee table base in an authentic industrial style. Its cross-shaped base, assembled from genuine cast iron plumbing pipe fittings and steel pipes, forms a sturdy, strikingly geometric frame onto which you fix the tabletop of your choice (wood, glass, etc.). End table, side table or a proper living-room coffee table: it's up to you to build the piece that suits your loft, workshop or steampunk interior.
Authentic Industrial Character
Handmade in Annecy, Haute-Savoie, from genuine plumbing parts, each base is one of a kind. Four legs (coupling, pipe, tee, pipe and flange) are joined at the centre by a cross and four horizontal pipes, for a screw-assembled, weld-free base that is solid and hard-wearing. The leg couplings are fitted with black plastic inserts that protect your floors.
Choosing the right size and height
Size follows the tabletop you plan to fit: allow an overhang of 8 to 15 cm on each side. A 55 × 55 cm base therefore carries a 70 to 80 cm tabletop comfortably. The smaller the overhang, the steadier the table.
Height follows your seating: 32 cm for a low-slung living room, 42 cm for most sofas — the most versatile — and 52 cm for a deep sofa or an end table. The figure given is for the base alone: add the thickness of your tabletop for the finished height (42 cm + a 3 cm top = 45 cm).
Key Features
Available in 18 size combinations (square footprint) — choose yours above: width/depth from 35 to 95 cm, height of 32, 42 or 52 cm.
| Pipes | black steel 3/4" (20 × 27), giving an outside diameter of 27 mm — see the table of steel pipe diameters |
|---|---|
| Materials | malleable cast iron fittings, black steel pipes (black or galvanised steel?) |
| Finish | clear varnish applied to the cast iron and the steel alike, leaving the raw metal visible |
| Colour | Grey / anthracite grey depending on the light |
| Tabletop | not included — the flanges are drilled with 3 holes to screw on the tabletop of your choice (wood, glass, etc.) — choosing a floor flange |
| Flange spacing (centre-to-centre) | approximately width − 7 cm, to position the tabletop |
| Floor protection | black plastic inserts under each leg |
| Assembly | delivered part-assembled — a few fittings to screw together on arrival, then fix your tabletop to the flanges (how to screw threaded fittings together) |
| Weight | 4.6 to 7.9 kg depending on size and height (table below) |
The same base, other pipe diameters
This cross-leg base comes in three pipe diameters: Ø 27 mm (this page), Ø 34 mm and Ø 42 mm. The thicker the pipe, the heavier, steadier and bolder the base; the thinner it is, the more discreet the silhouette. The same frame is also offered at dining-table height (74 cm).
Details and Features
The metal is protected by a clear varnish that preserves its raw look; care for it with a soft, dry cloth, without water or abrasive cleaners. For indoor use only.
The photos showing a tabletop are for illustration only: the tabletop is not included.
The materials may show slight differences in appearance compared to the photographs. These imperfections, which make each piece unique, are part of the raw, authentic and unmistakably industrial character of every item sold by Home Invasion.
Made to order in Annecy, Haute-Savoie, France.
Detailed dimensions
The letters refer to the drawings below. All dimensions in centimetres; dimension A is measured from the outer edge of one flange to the opposite flange. Centre distances (B, C) are measured between flange centres — useful for drilling the top.
Tolerance: these are nominal dimensions. How far each fitting is tightened, together with casting tolerances, gives about ±5 mm of variation on each dimension. Measure the assembled base before drilling your tabletop or having it cut.
| Size | A – overall width | B – centre distance, opposite flanges | C – centre distance, adjacent flanges |
|---|---|---|---|
| 35 × 35 | 34.7 | 27.7 | 19.6 |
| 45 × 45 | 44.7 | 37.7 | 26.7 |
| 55 × 55 | 54.7 | 47.7 | 33.7 |
| 65 × 65 | 64.7 | 57.7 | 40.8 |
| 75 × 75 | 74.7 | 67.7 | 47.9 |
| 95 × 95 | 94.7 | 87.7 | 62.0 |
| Height | D – overall height | E – height to rail centreline |
|---|---|---|
| 32 cm | 31.5 | 19.4 |
| 42 cm | 41.5 | 24.4 |
| 52 cm | 51.5 | 29.4 |
Weight of the packed base, in kilograms:
| Size | H 32 cm | H 42 cm | H 52 cm |
|---|---|---|---|
| 35 × 35 | 4.6 | 5.2 | 5.9 |
| 45 × 45 | 4.9 | 5.5 | 6.2 |
| 55 × 55 | 5.2 | 5.9 | 6.5 |
| 65 × 65 | 5.5 | 6.2 | 6.8 |
| 75 × 75 | 5.9 | 6.5 | 7.1 |
| 95 × 95 | 6.6 | 7.2 | 7.9 |
To choose your tabletop and fix it in place, follow our tutorial: making a DIY wood and pipe coffee table.
Would you rather build it yourself?
There is nothing sealed about this base: it is a fully screwed assembly, with no welding and no glue. Every part it is made of is in our catalogue and can be ordered separately — enough to build it with an adjustable spanner, change the lengths, or reuse only part of it.
The parts of one base:
Pipe lengths, cart and 3D view by size:
| Size | Height | Pipes to order | Cart | 3D view |
|---|---|---|---|---|
| 35 × 35 cm | 32 cm | 8 × 100 mm, 4 × 150 mm | Add the 25 parts | Open the configurator |
| 35 × 35 cm | 42 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm | Add the 25 parts | Open the configurator |
| 35 × 35 cm | 52 cm | 4 × 100 mm, 4 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 45 × 45 cm | 32 cm | 4 × 100 mm, 8 × 150 mm | Add the 25 parts | Open the configurator |
| 45 × 45 cm | 42 cm | 8 × 150 mm, 4 × 200 mm | Add the 25 parts | Open the configurator |
| 45 × 45 cm | 52 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 55 × 55 cm | 32 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm | Add the 25 parts | Open the configurator |
| 55 × 55 cm | 42 cm | 4 × 150 mm, 8 × 200 mm | Add the 25 parts | Open the configurator |
| 55 × 55 cm | 52 cm | 8 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 65 × 65 cm | 32 cm | 4 × 100 mm, 4 × 150 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 65 × 65 cm | 42 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 65 × 65 cm | 52 cm | 4 × 200 mm, 8 × 250 mm | Add the 25 parts | Open the configurator |
| 75 × 75 cm | 32 cm | 4 × 100 mm, 4 × 150 mm, 4 × 300 mm | Add the 25 parts | Open the configurator |
| 75 × 75 cm | 42 cm | 4 × 150 mm, 4 × 200 mm, 4 × 300 mm | Add the 25 parts | Open the configurator |
| 75 × 75 cm | 52 cm | 4 × 200 mm, 4 × 250 mm, 4 × 300 mm | Add the 25 parts | Open the configurator |
| 95 × 95 cm | 32 cm | 4 × 100 mm, 4 × 150 mm, 4 × 400 mm | Add the 25 parts | Open the configurator |
| 95 × 95 cm | 42 cm | 4 × 150 mm, 4 × 200 mm, 4 × 400 mm | Add the 25 parts | Open the configurator |
| 95 × 95 cm | 52 cm | 4 × 200 mm, 4 × 250 mm, 4 × 400 mm | Add the 25 parts | Open the configurator |
The assembled base, for its part, arrives varnished, checked and fitted with its floor-protection inserts, which are not sold separately.
Adding castors
Castors with a 3/4″ fitting stem screw straight into the bottom sockets, with no drilling and no mounting plate: it is the same thread as the legs, nothing else is needed. You need four, one per leg.
They raise the base: take the castor's overall height minus the roughly 1.5 cm screwed into the socket, which comes to 9 cm more with a 75 mm wheel and 11.5 cm with a 100 mm wheel.
A 42 cm coffee table therefore becomes 51 cm: the height of a side table you move with one hand to run the vacuum underneath.
| Model | Brake | Overall height |
|---|---|---|
| 75 mm wheel, rubber | no brake | 105 mm |
| 75 mm wheel, cast iron | no brake | 105 mm |
| 75 mm wheel, rubber | with brake | 105 mm |
| 75 mm wheel, cast iron | with brake | 105 mm |
| 100 mm wheel, rubber | no brake | 130 mm |
| 100 mm wheel, cast iron | no brake | 130 mm |
| 100 mm wheel, rubber | with brake | 130 mm |
| 100 mm wheel, cast iron | with brake | 130 mm |
Braked models usually go on two of the four legs, diagonally opposite.
