Cross-leg coffee table base, cast iron and varnished steel Ø 42 mm

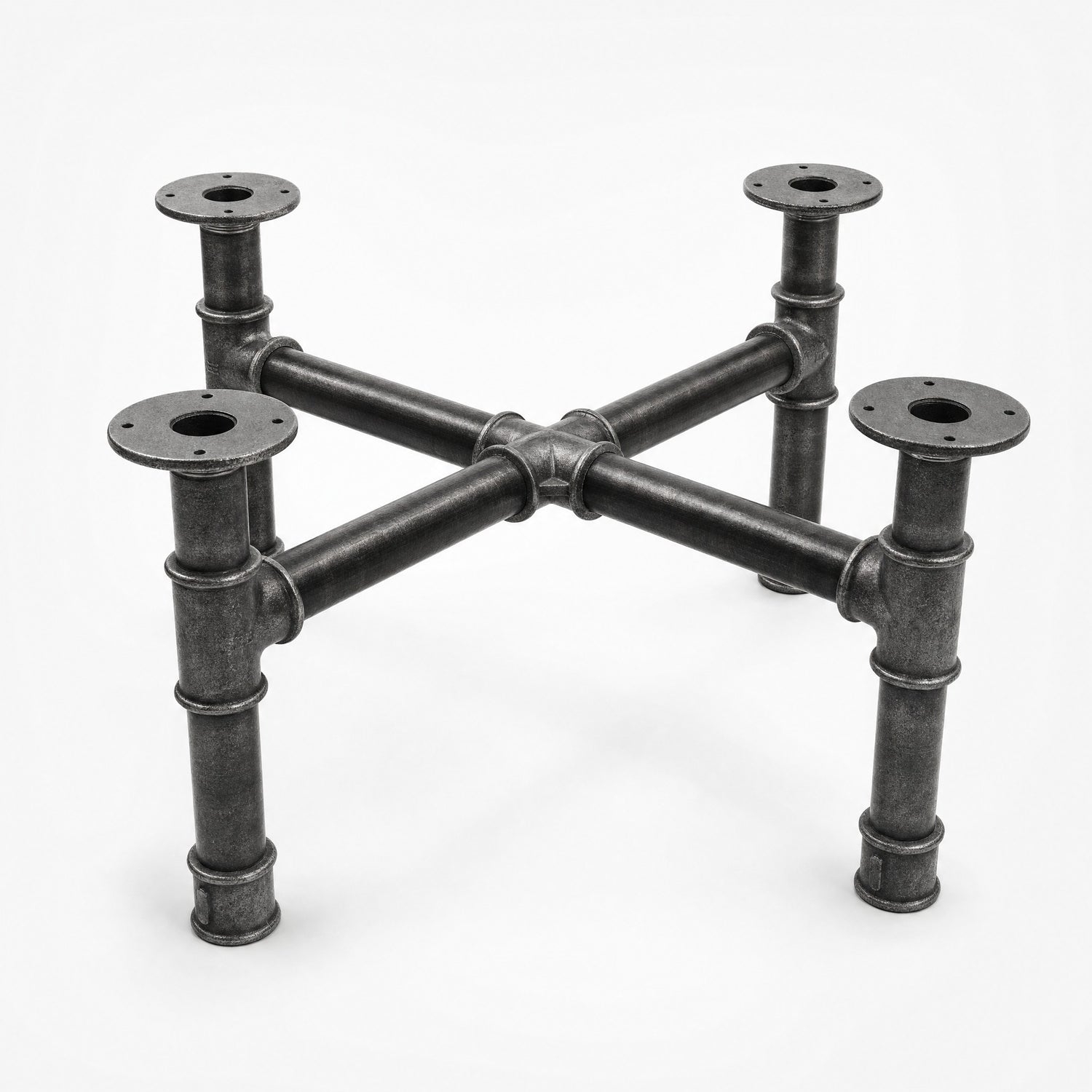

The cross base in heavy pipe: Ø 42 mm and four-hole flanges
This is the most imposing version of our cross base. The black steel pipes move up to 1 inch 1/4 — 42 mm outside diameter — and the floor flanges gain a fourth fixing hole, for a diameter of 100 mm. The result is frankly massive: 9.6 to 16 kg of cast iron and steel, a base that will not budge under a 5 cm oak slab or a stone top. A genuinely industrial piece of furniture, for large tabletops and rooms with volume to spare.
Malleable cast iron and black steel, assembled by hand

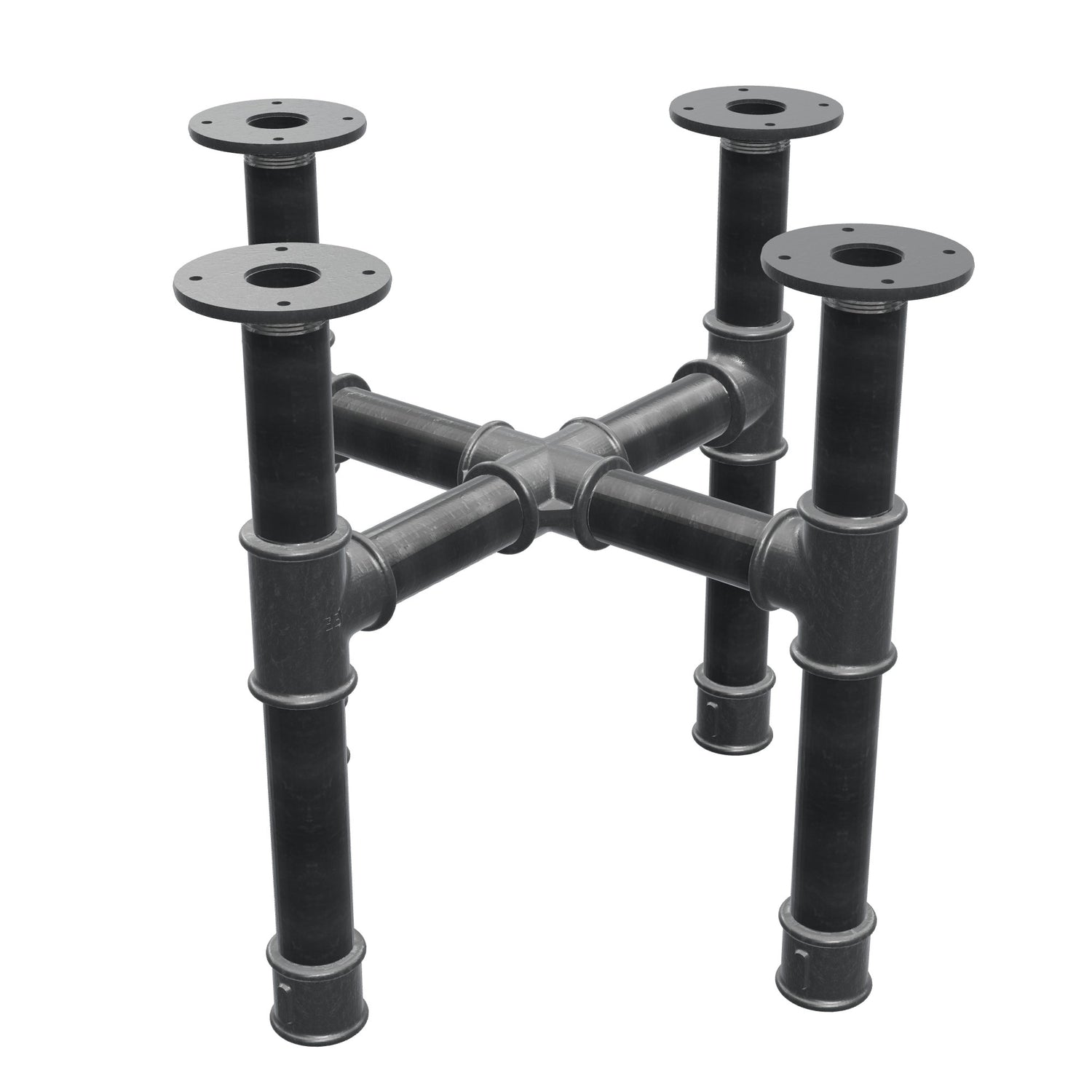

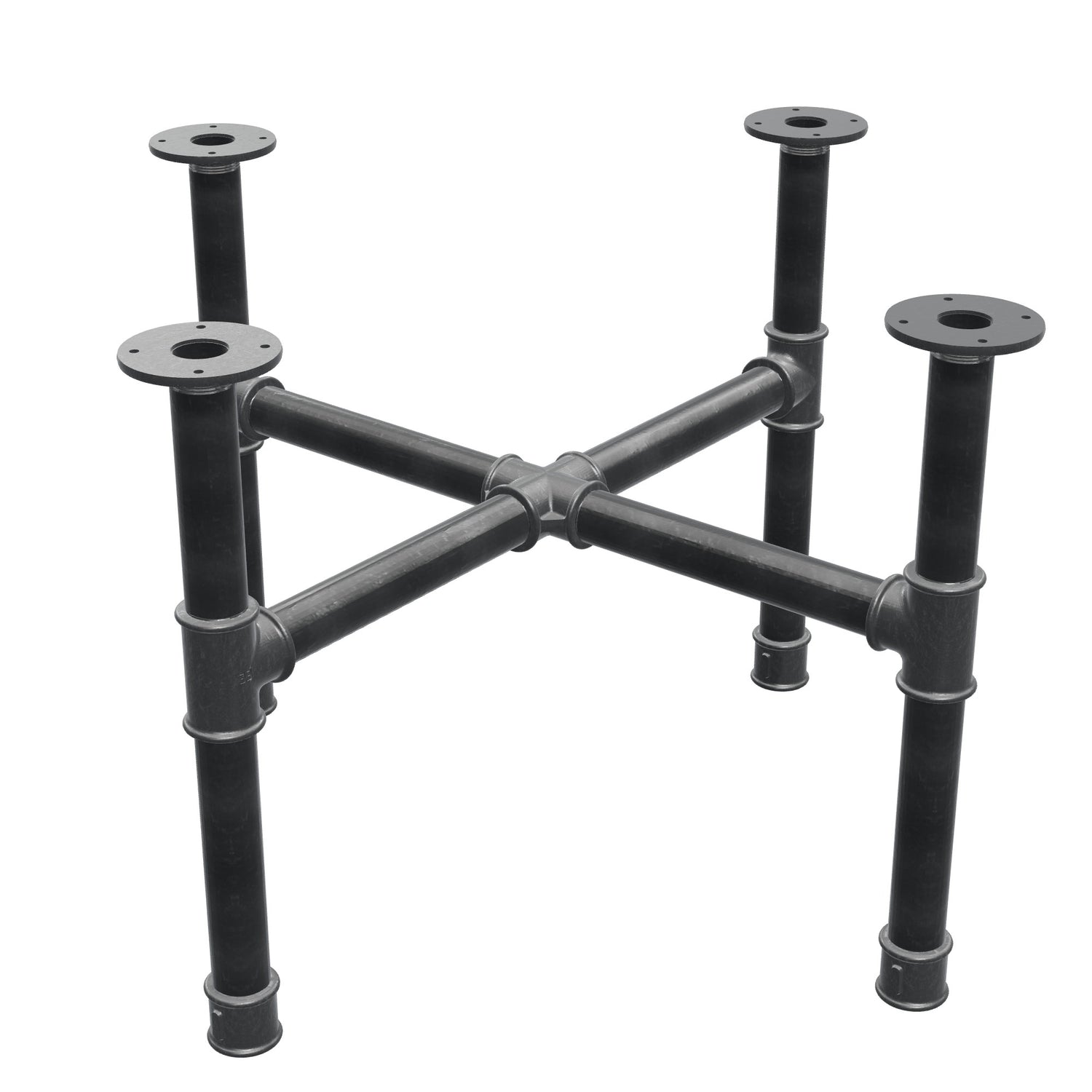

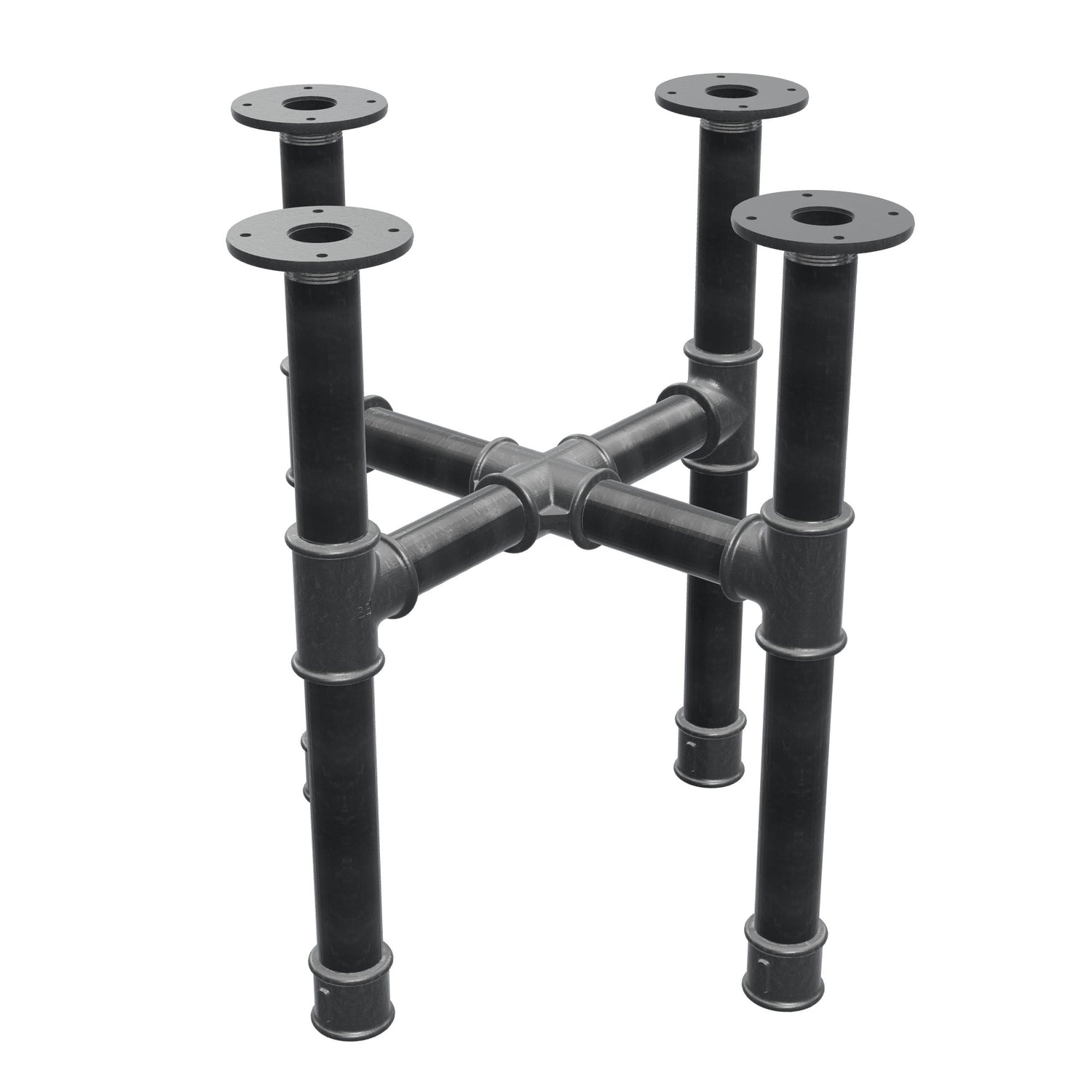

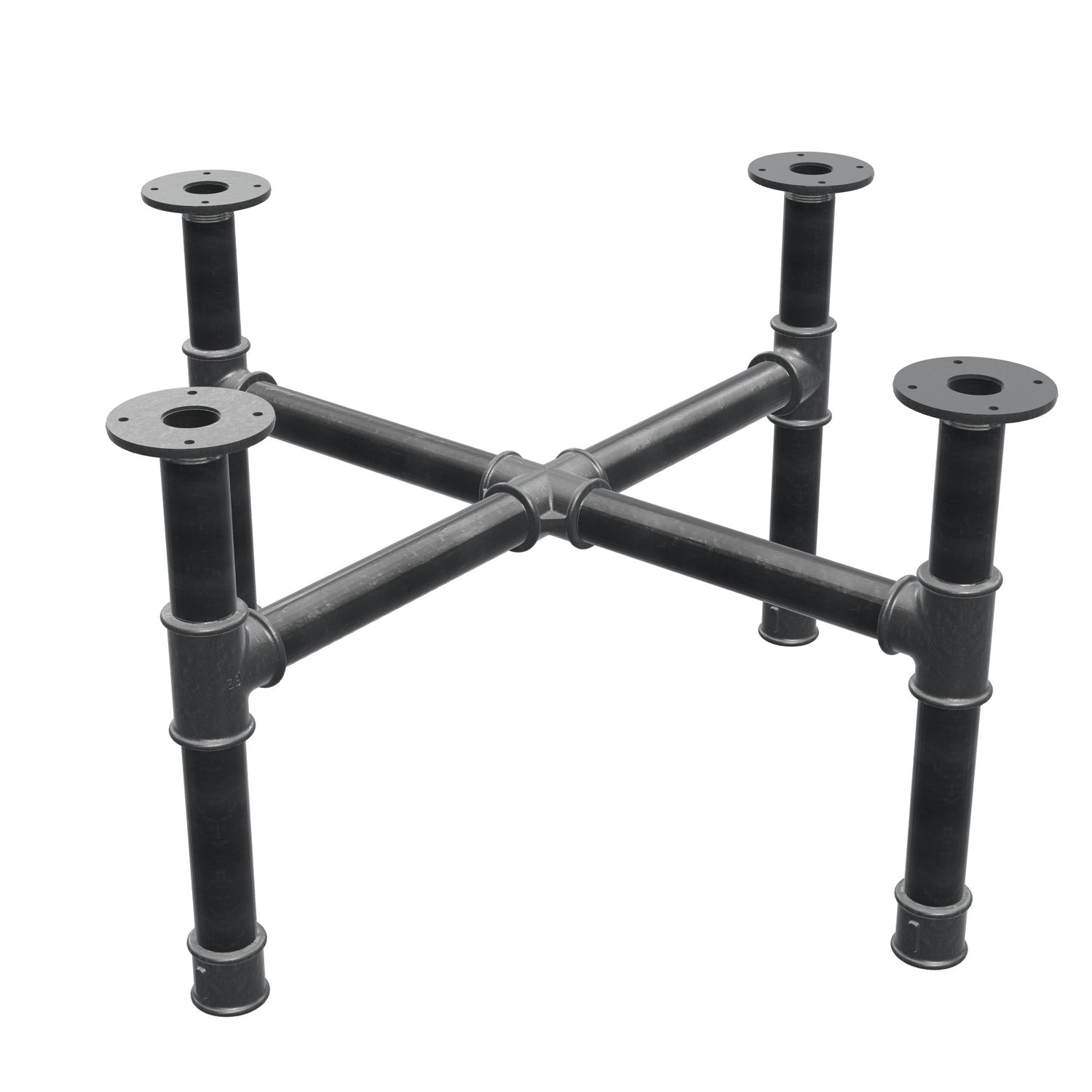

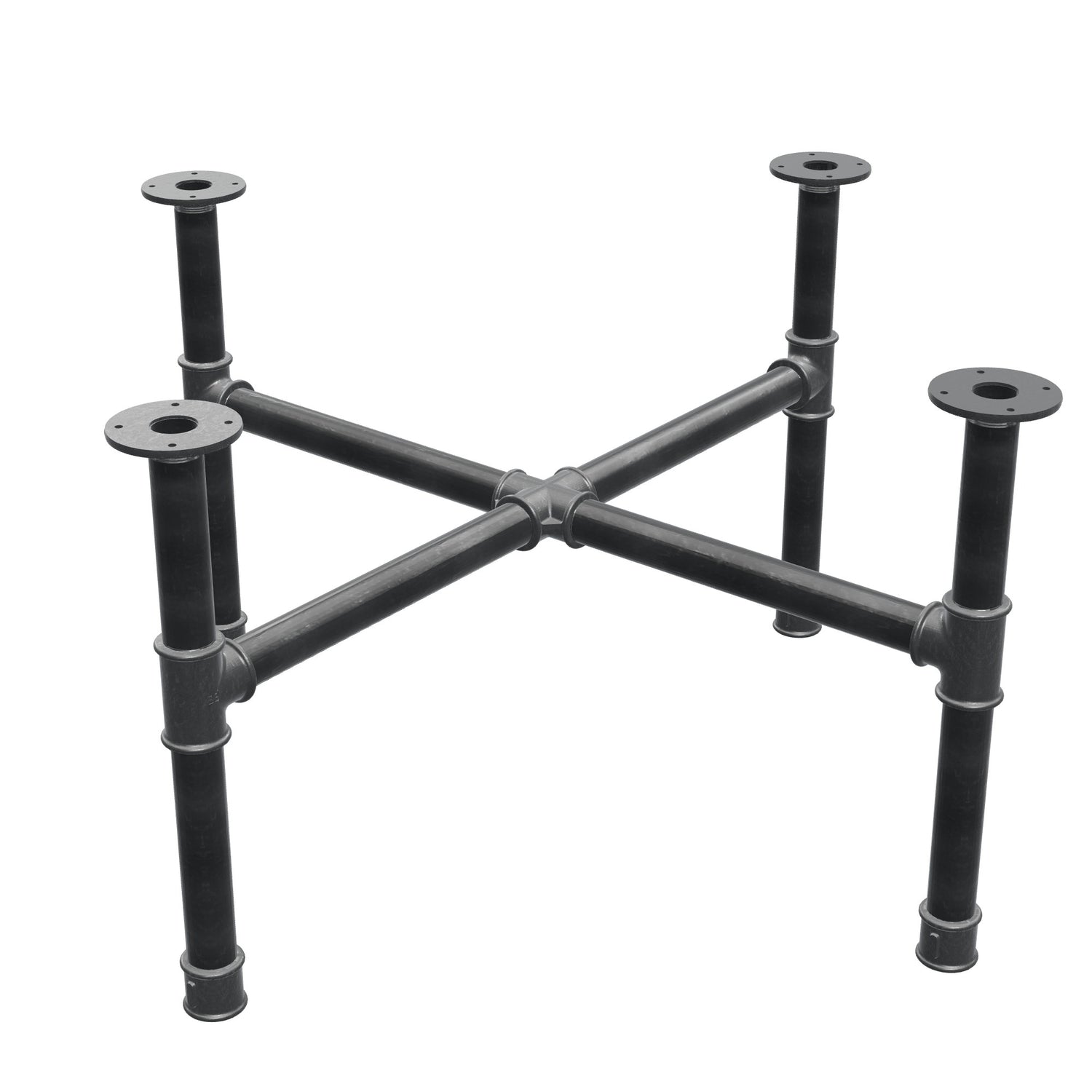

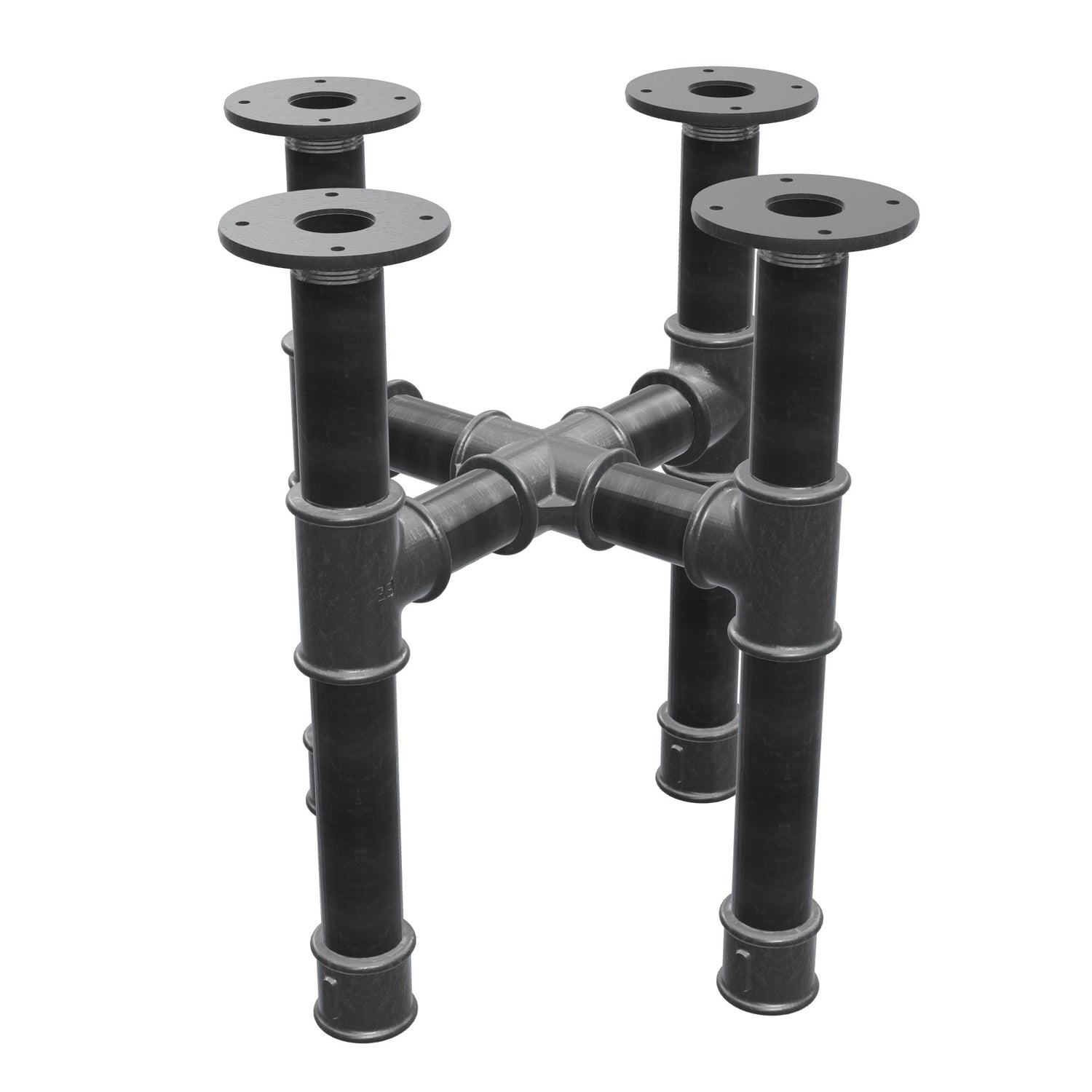

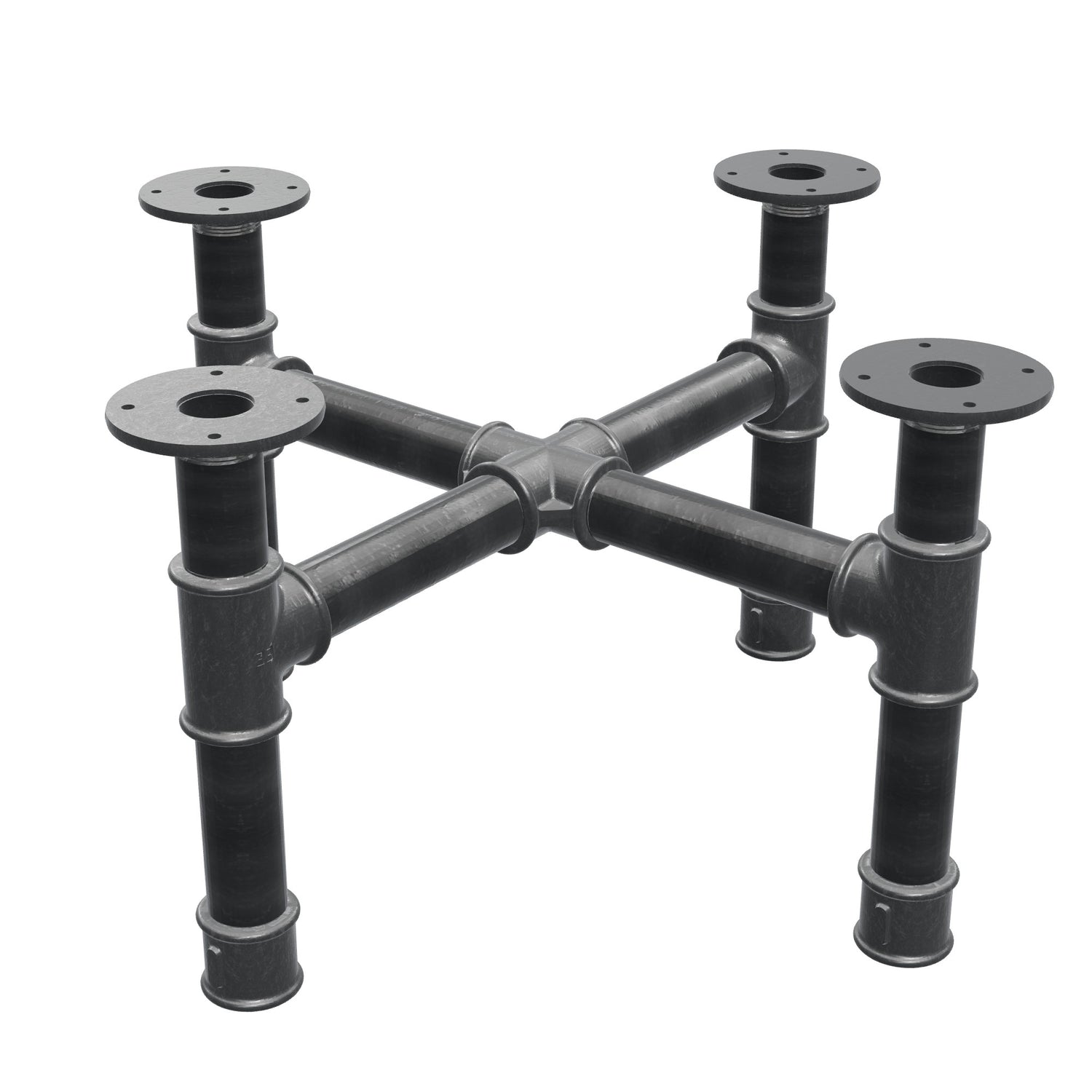

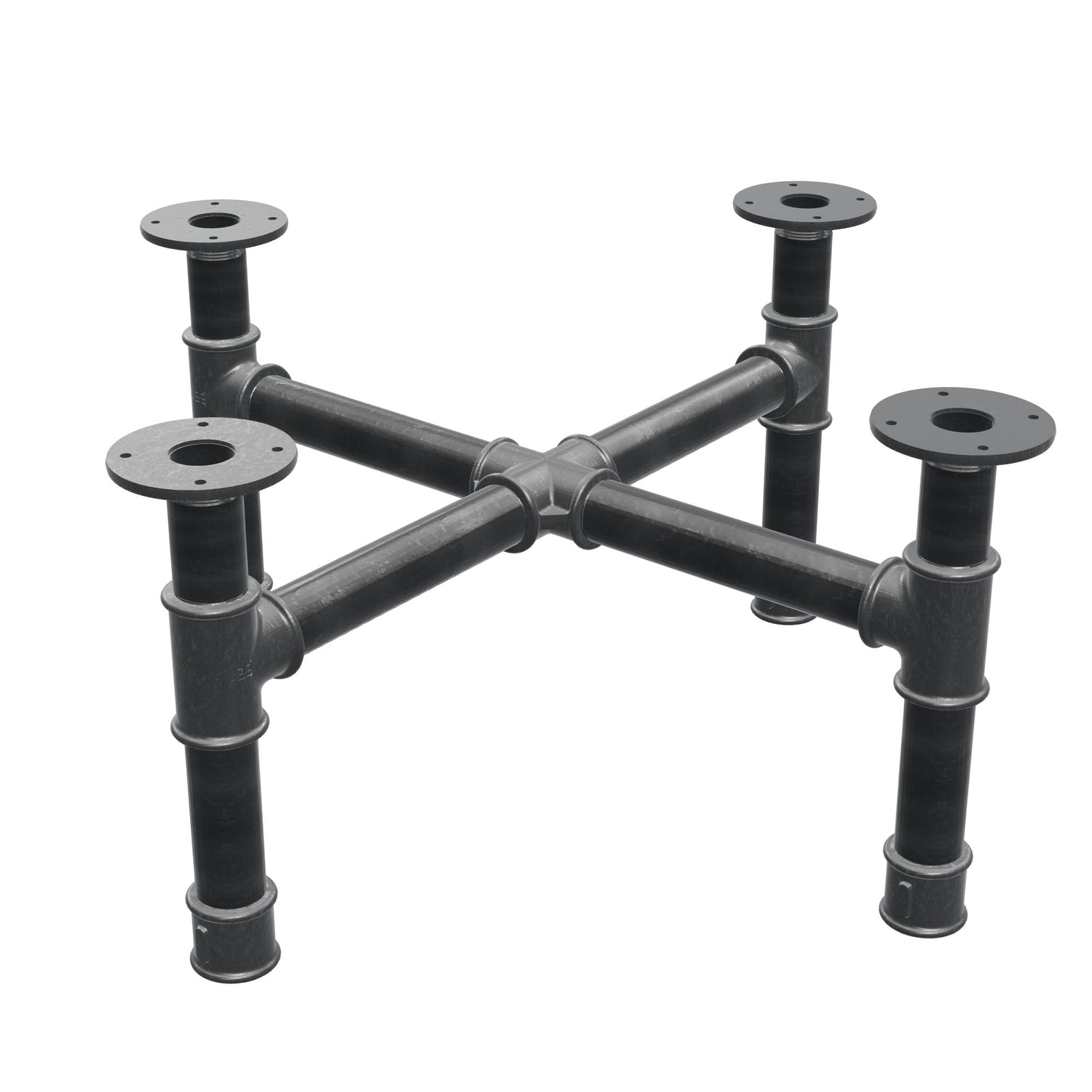

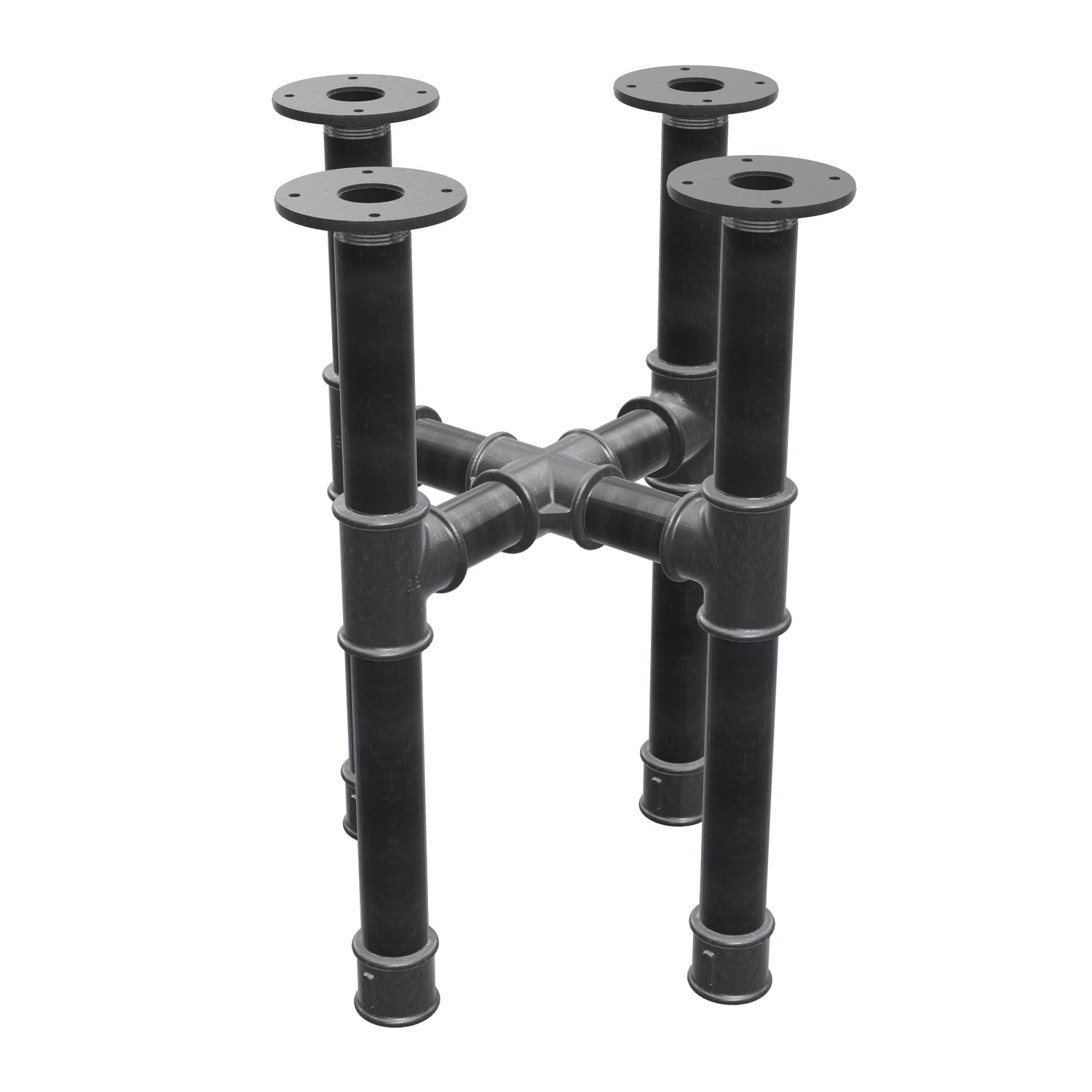

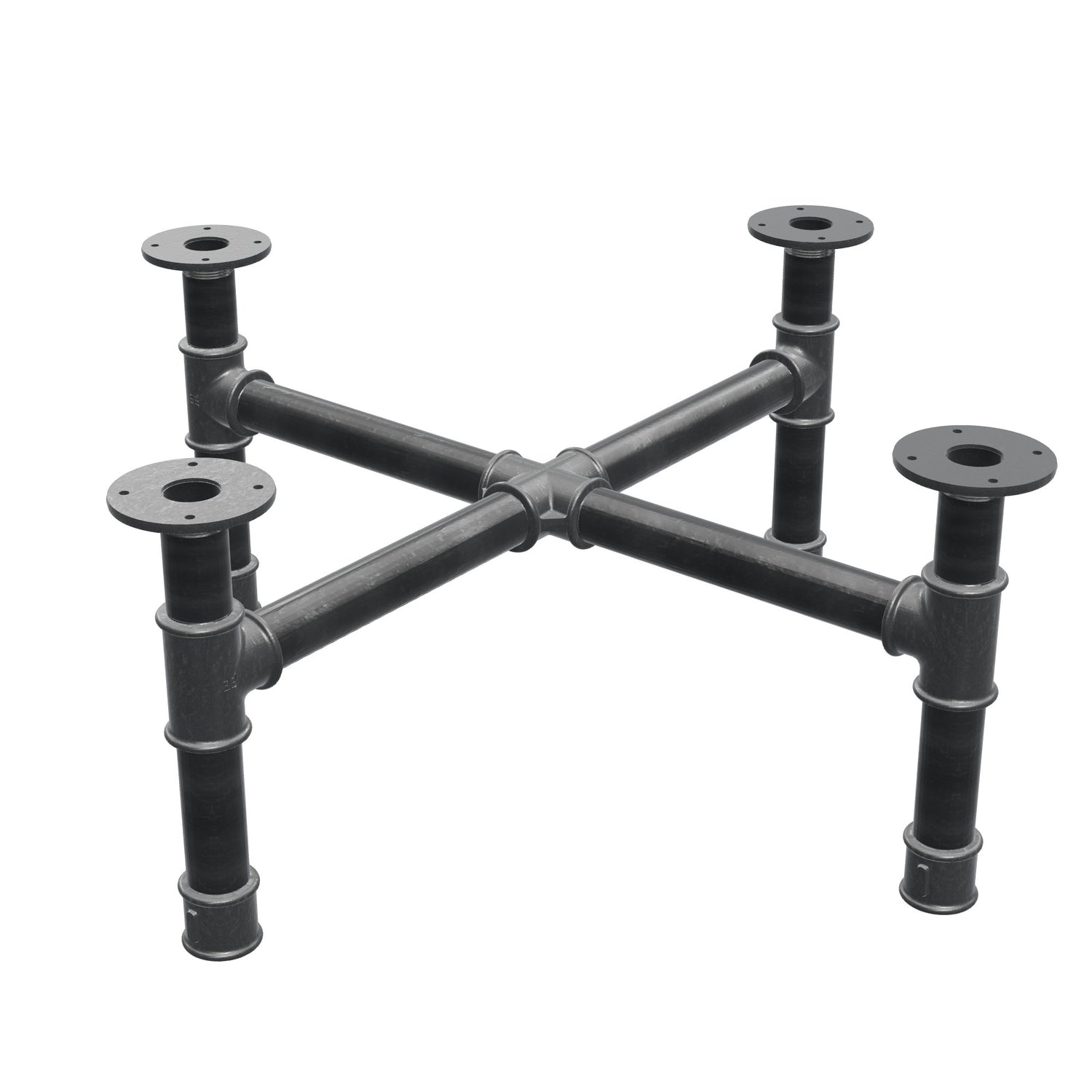

Every base is put together in Annecy from genuine plumbing parts: a central cast iron cross, four rails, then four legs made of a tee, an upper pipe topped by a flange and a lower pipe closed by a coupling. No welding at all: the threads do all the work. Black plastic inserts sit inside the couplings to protect the floor.
Choosing the size and the height
Size refers to the square footprint. Allow 8 to 15 cm of tabletop overhang on each side: a 61 × 61 cm base carries a 75 to 90 cm top. With this pipe diameter the base is heavy and takes a generous tabletop without complaint.
Height follows your seating: 34 cm for a low living room, 44 cm for most sofas — the most versatile —, 54 cm for a deep sofa or an end table. The figure given is for the base alone: add the thickness of your tabletop to get the final height (44 cm + a 3 cm top = 47 cm).
Key features

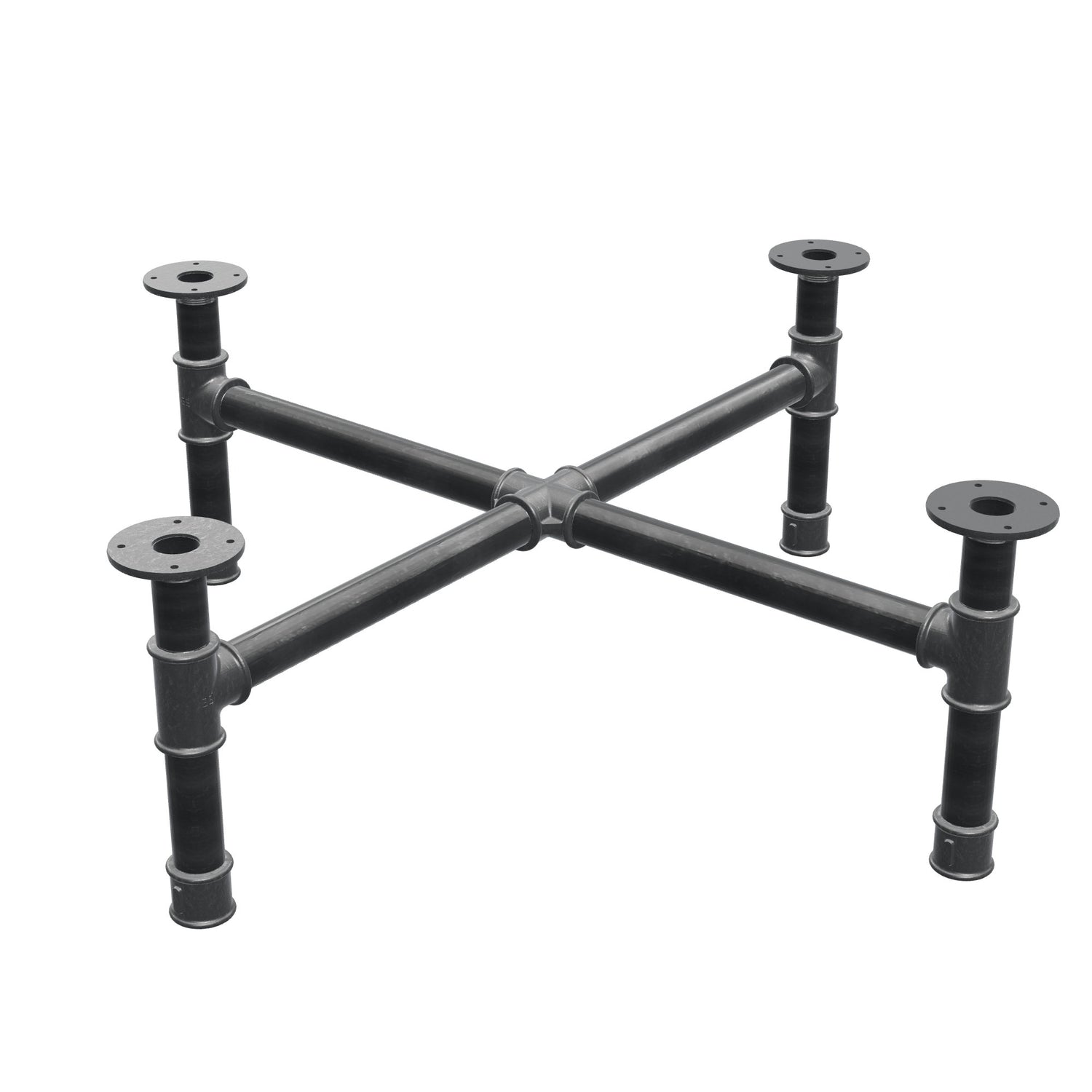

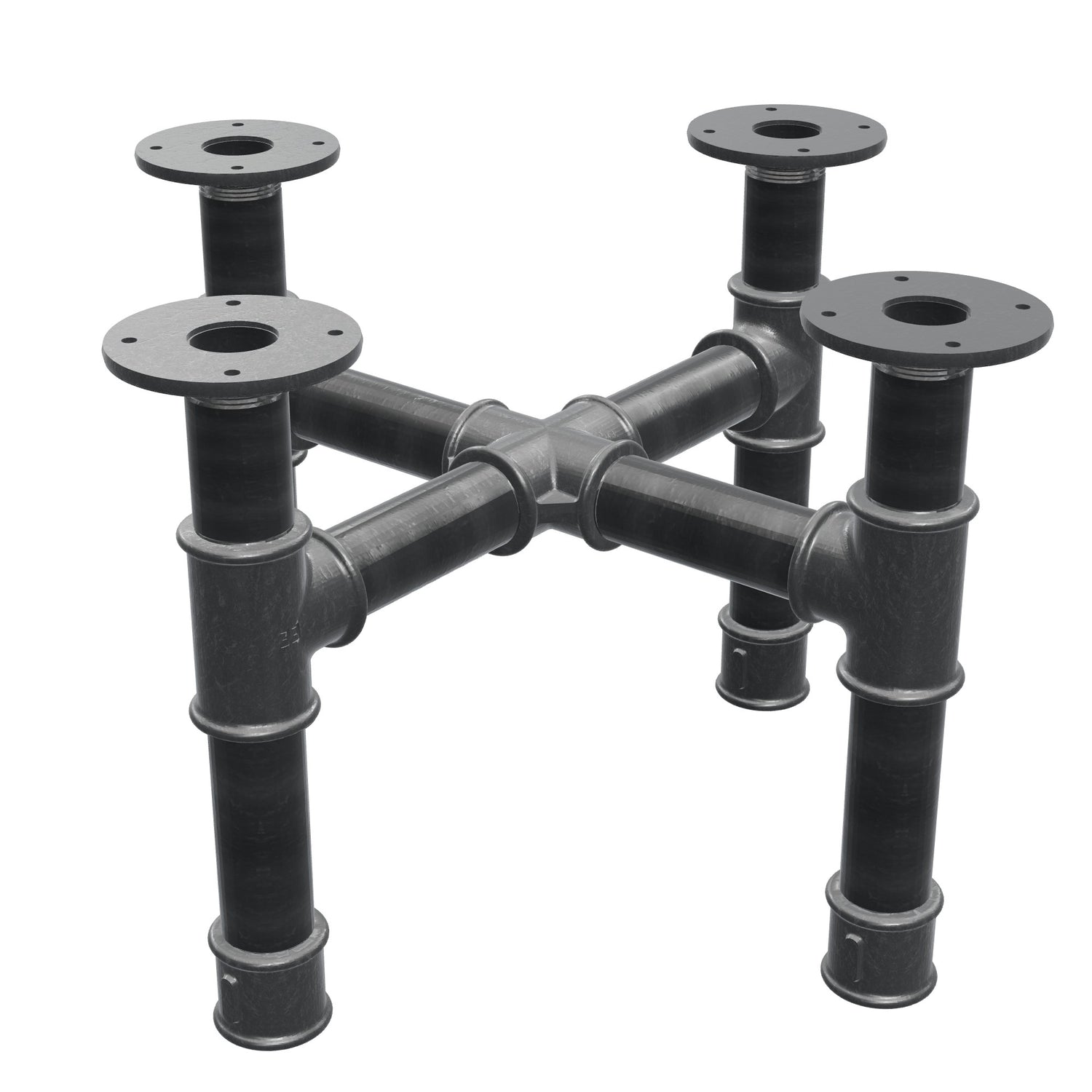

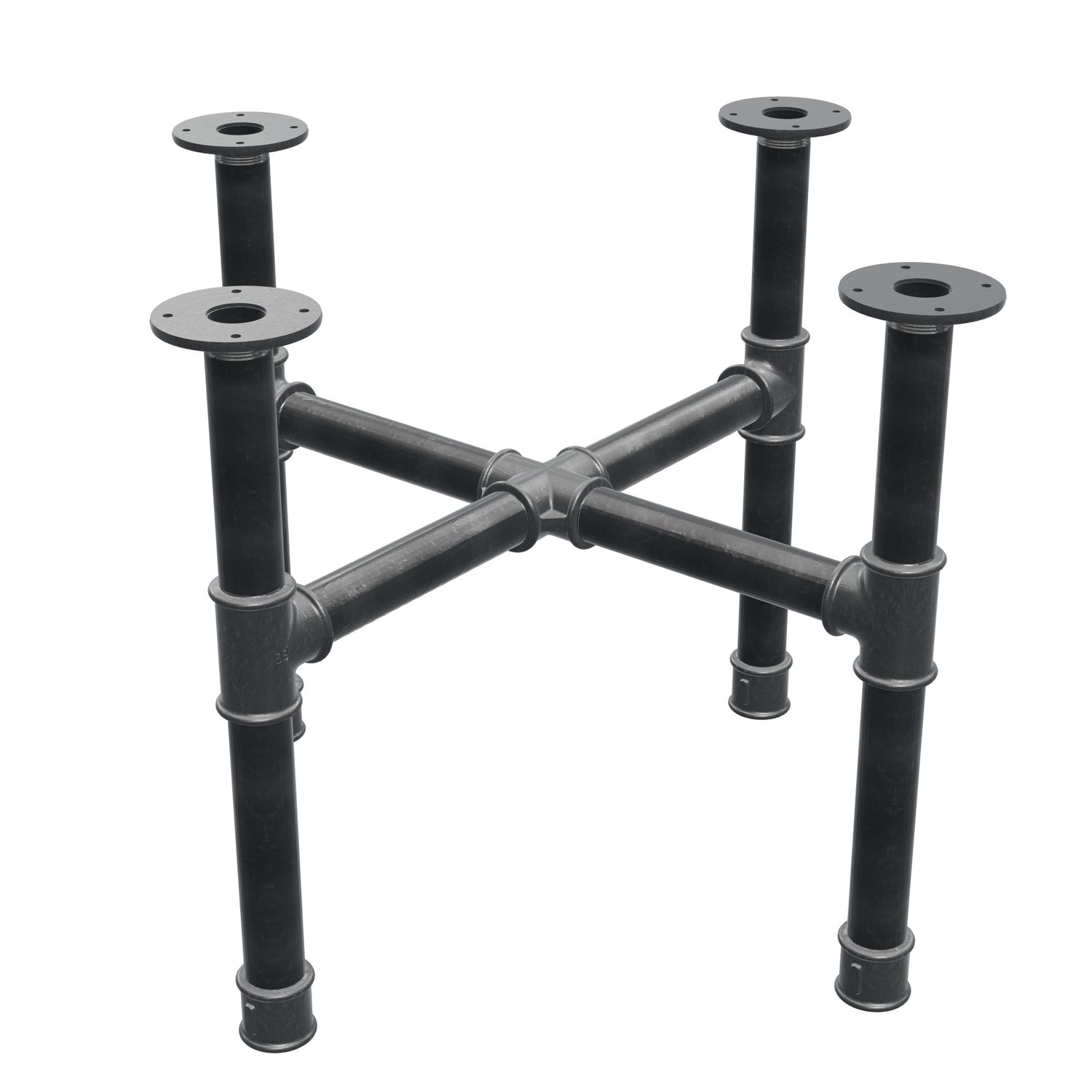

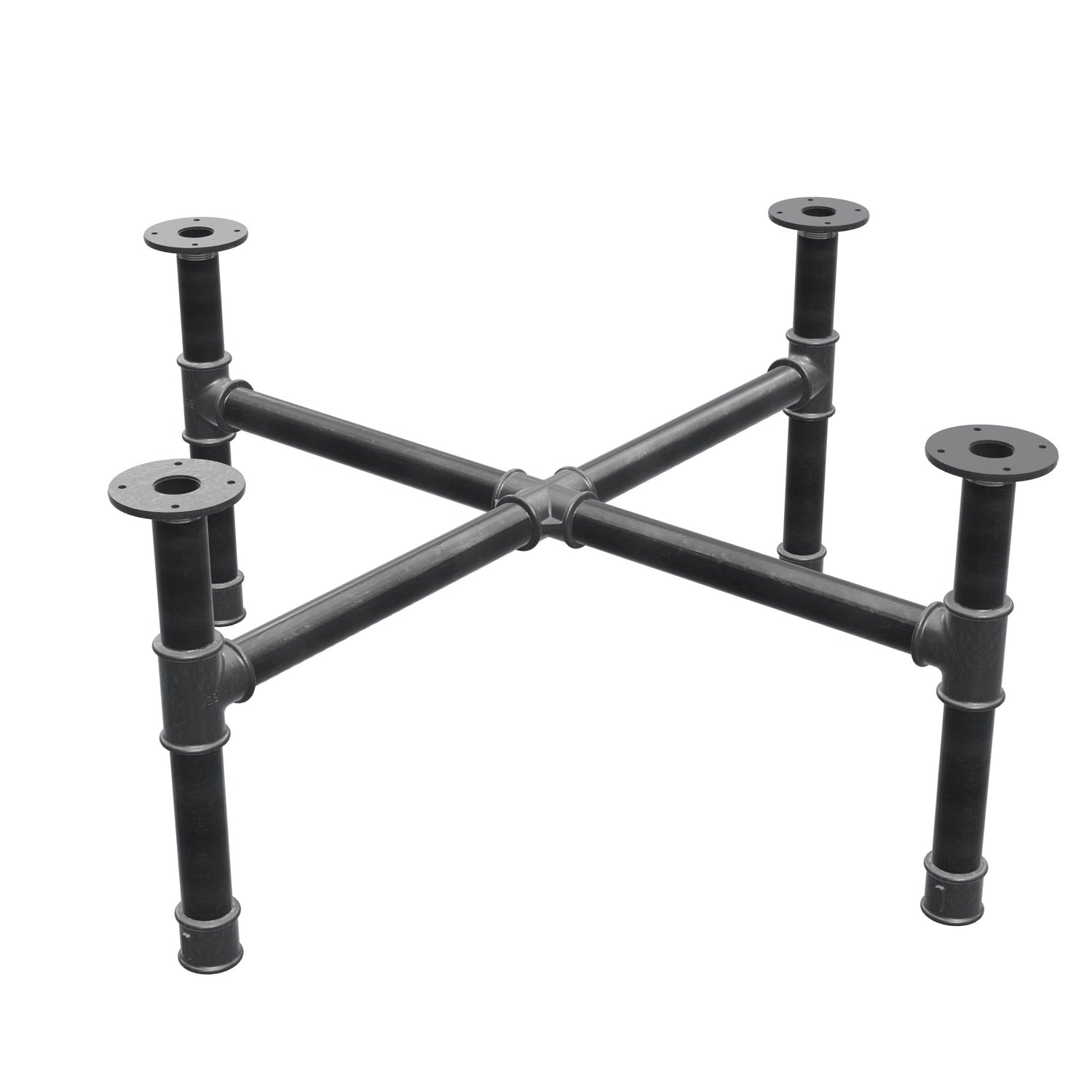

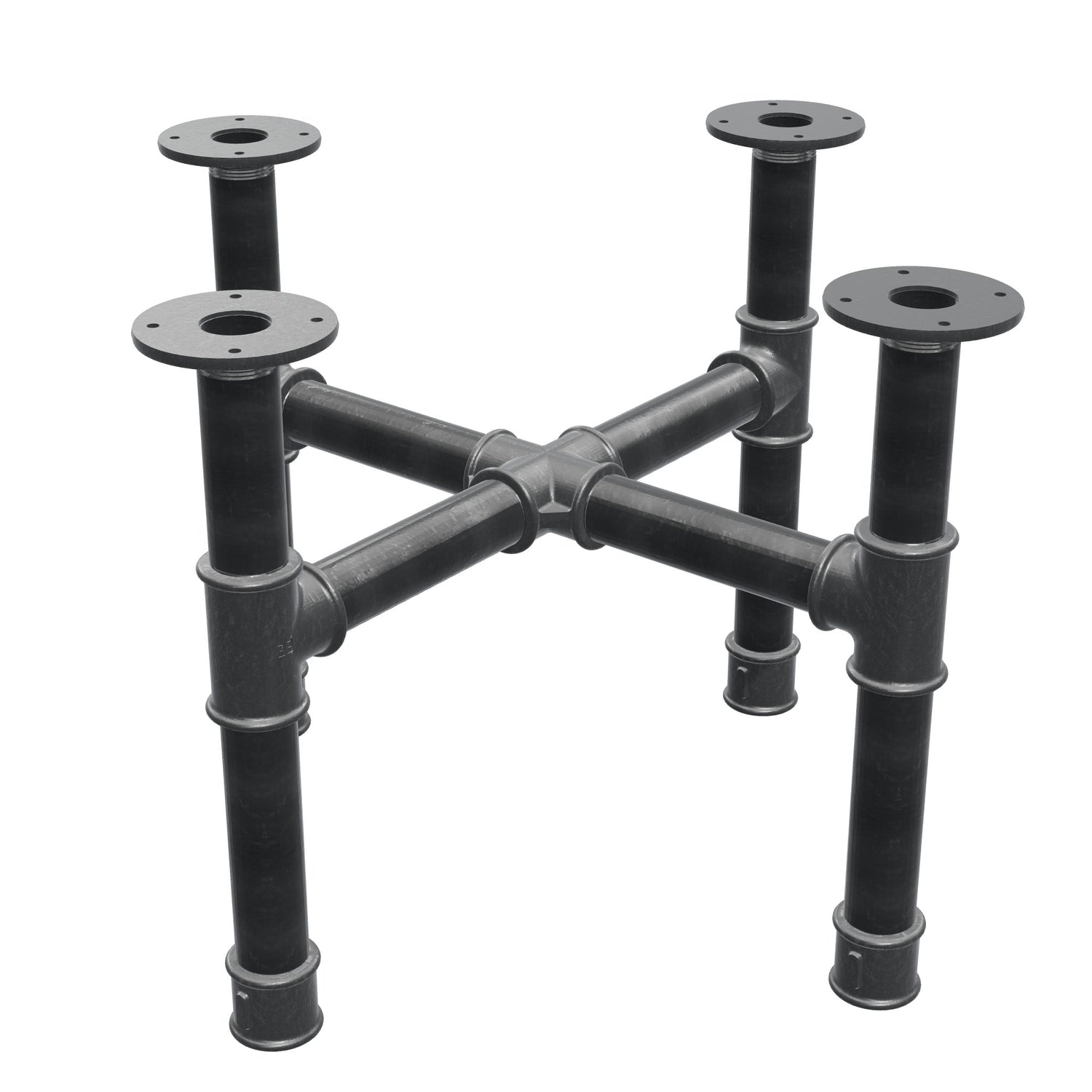

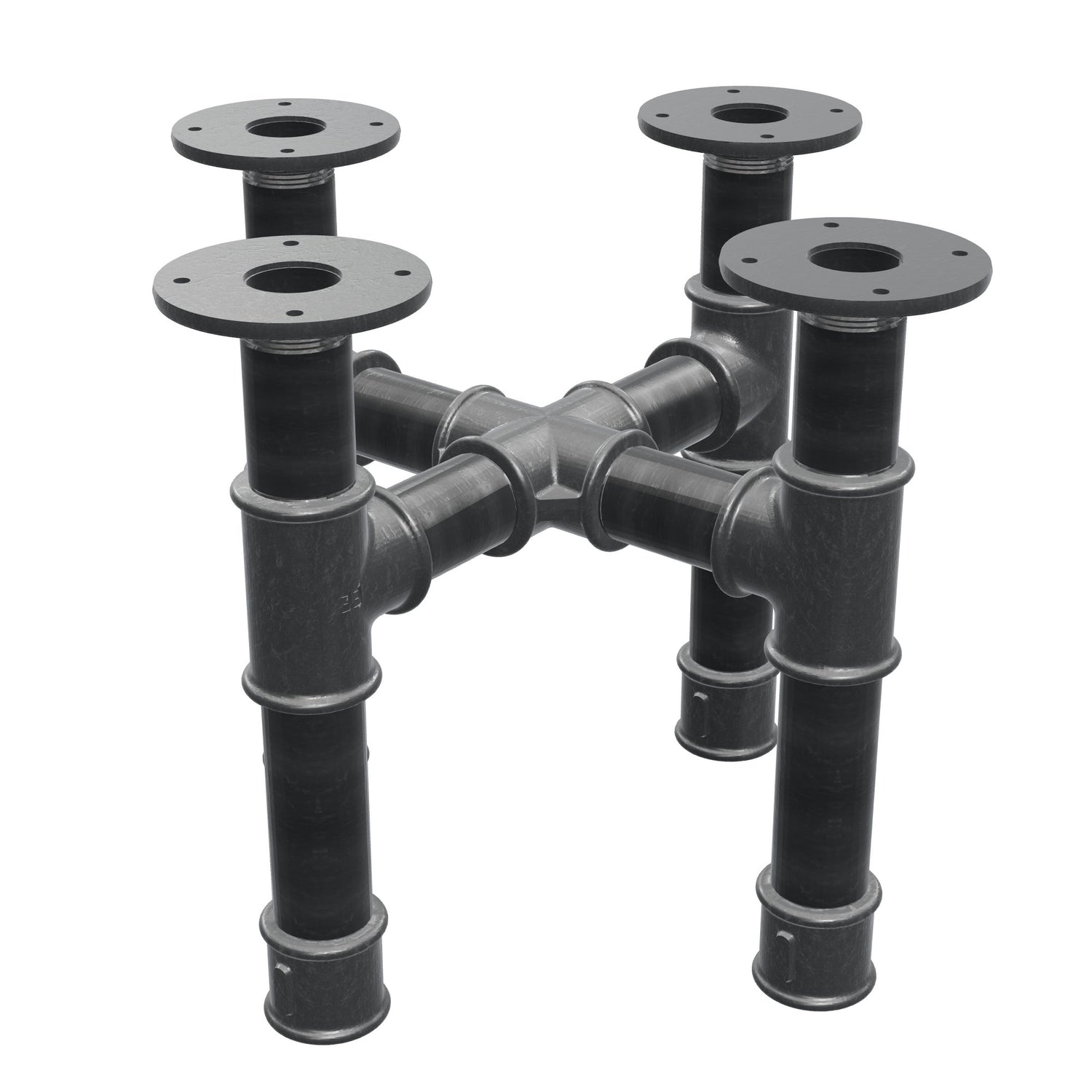

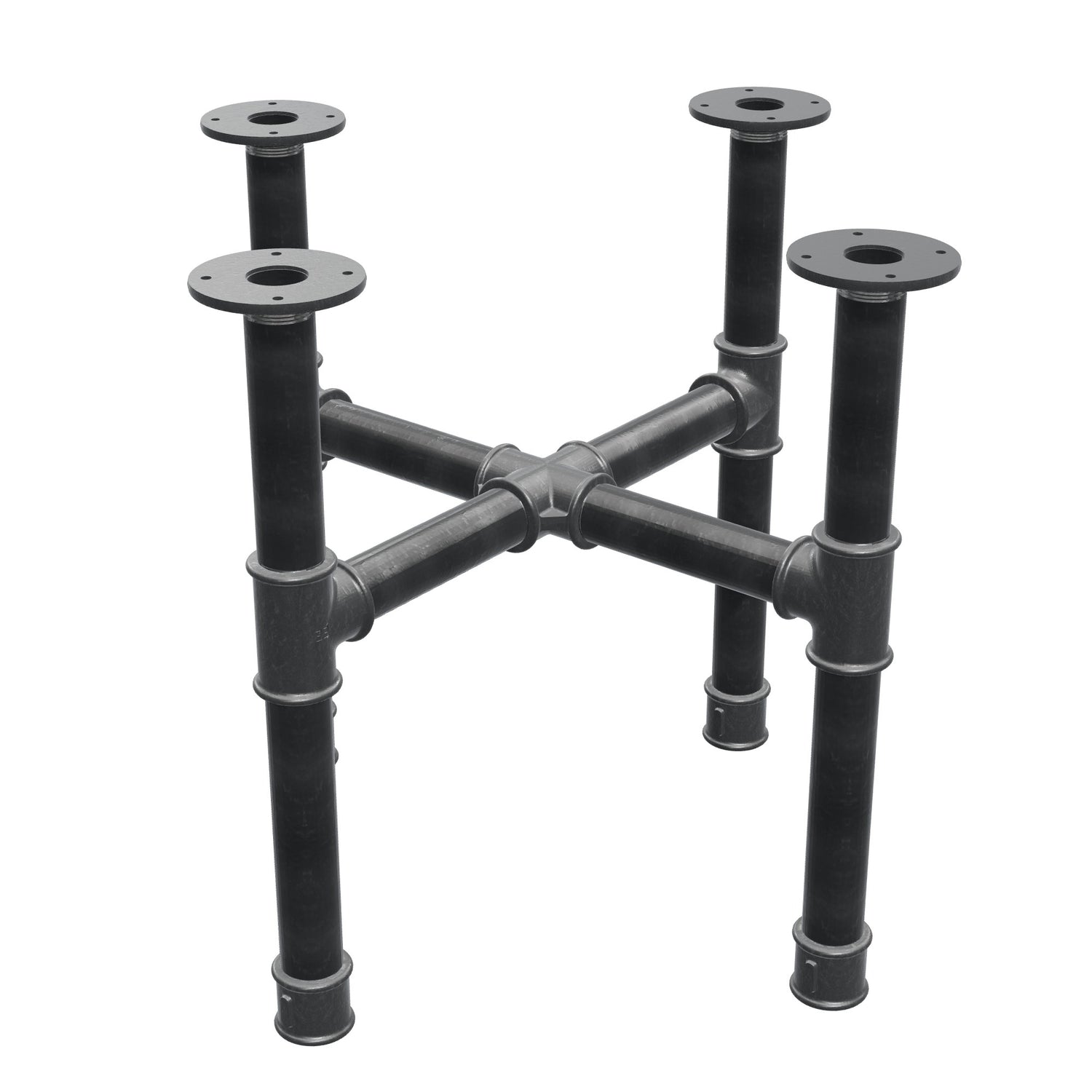

Available in 18 versions, to be chosen above: width and depth from 41 × 41 cm to 101 × 101 cm, height of 34, 44 or 54 cm.
| Pipes | black steel 1"1/4 (33 × 42), giving an outside diameter of 42 mm — see the table of steel pipe diameters |
|---|---|
| Materials | malleable cast iron fittings, black steel pipes (black or galvanised steel?) |
| Finish | clear varnish applied to the cast iron and the steel alike, leaving the raw metal visible |
| Colour | Grey / anthracite grey depending on the light |
| Tabletop | not included — the Ø 100 mm flanges are drilled with 4 holes to screw on the tabletop of your choice, wood or glass (choosing a floor flange) |
| Flange spacing (centre-to-centre) | approximately the width minus 10 cm between opposite flanges, to position the tabletop |
| Floor protection | black plastic inserts under each leg |
| Assembly | delivered part-assembled — a few fittings to screw together on arrival (how to screw threaded fittings together), then fix your tabletop to the flanges |
| Weight | 9.6 to 16.0 kg depending on the version (table below) |
The same base, other pipe diameters
This cross-leg base comes in three pipe diameters: Ø 27 mm, Ø 34 mm and Ø 42 mm (this page). The thicker the pipe, the heavier, steadier and bolder the base; the thinner it is, the more discreet the silhouette. The same frame is also offered at dining-table height (74 cm).
Details and features
A clear varnish protects the cast iron and the steel while leaving the raw look of the metal visible. Wipe it with a dry cloth; avoid water and abrasive cleaners. Indoor use only.
Pictures featuring a tabletop are staged; only the base is sold.
Slight variations in shade or surface are normal on cast parts: they belong to the raw, authentic character of Home Invasion products, and make every base one of a kind.
Built to order in our workshop in Annecy, France.
Detailed dimensions
The letters refer to the drawings below. All dimensions in centimetres; dimension A is measured from the outer edge of one flange to the opposite flange. Centre distances (B, C) are measured between flange centres — useful for drilling the top.
Tolerance: these are nominal dimensions. How far each fitting is tightened, together with casting tolerances, gives about ± 5 mm of variation on each dimension. Measure the base once assembled before drilling your tabletop or having it cut.
Side view, along the arms — indicative drawing, dimensions in the table
Top view — indicative drawing, dimensions in the table
| Size | A – overall width | B – centre distance, opposite flanges | C – centre distance, adjacent flanges |
|---|---|---|---|
| 41 × 41 cm | 40.9 | 30.9 | 21.8 |
| 51 × 51 cm | 50.9 | 40.9 | 28.9 |
| 61 × 61 cm | 60.9 | 50.9 | 36 |
| 71 × 71 cm | 70.9 | 60.9 | 43.1 |
| 81 × 81 cm | 80.9 | 70.9 | 50.1 |
| 101 × 101 cm | 100.9 | 90.9 | 64.3 |
Height of the base alone, tabletop not included:
| Height | D – overall height | E – height to rail centreline |
|---|---|---|
| 34 cm | 33.5 | 20.7 |
| 44 cm | 43.5 | 25.7 |
| 54 cm | 53.5 | 30.7 |
Weight of the packed base, in kilograms:
| Size | H 34 cm | H 44 cm | H 54 cm |
|---|---|---|---|
| 41 × 41 cm | 9.6 | 10.8 | 12.1 |
| 51 × 51 cm | 10.2 | 11.4 | 12.7 |
| 61 × 61 cm | 10.8 | 12.1 | 13.3 |
| 71 × 71 cm | 11.5 | 12.7 | 14.0 |
| 81 × 81 cm | 12.1 | 13.4 | 14.7 |
| 101 × 101 cm | 13.5 | 14.8 | 16.0 |
To choose your tabletop and fix it in place, follow our tutorial: making a DIY wood and pipe coffee table.
Would you rather build it yourself?
There is nothing sealed about this base: it is a fully screwed assembly, with no welding and no glue. Every part it is made of is in our catalogue and can be ordered separately — enough to build it with an adjustable spanner, change the lengths, or reuse only part of it.
The parts of one base:
Pipe lengths, cart and 3D view by size:
| Size | Height | Pipes to order | Cart | 3D view |
|---|---|---|---|---|
| 41 × 41 cm | 34 cm | 8 × 100 mm, 4 × 150 mm | Add the 25 parts | Open the configurator |
| 41 × 41 cm | 44 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm | Add the 25 parts | Open the configurator |
| 41 × 41 cm | 54 cm | 4 × 100 mm, 4 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 51 × 51 cm | 34 cm | 4 × 100 mm, 8 × 150 mm | Add the 25 parts | Open the configurator |
| 51 × 51 cm | 44 cm | 8 × 150 mm, 4 × 200 mm | Add the 25 parts | Open the configurator |
| 51 × 51 cm | 54 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 61 × 61 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm | Add the 25 parts | Open the configurator |
| 61 × 61 cm | 44 cm | 4 × 150 mm, 8 × 200 mm | Add the 25 parts | Open the configurator |
| 61 × 61 cm | 54 cm | 8 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 71 × 71 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 71 × 71 cm | 44 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm | Add the 25 parts | Open the configurator |
| 71 × 71 cm | 54 cm | 4 × 200 mm, 8 × 250 mm | Add the 25 parts | Open the configurator |
| 81 × 81 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 300 mm | Add the 25 parts | Open the configurator |
| 81 × 81 cm | 44 cm | 4 × 150 mm, 4 × 200 mm, 4 × 300 mm | Add the 25 parts | Open the configurator |
| 81 × 81 cm | 54 cm | 4 × 200 mm, 4 × 250 mm, 4 × 300 mm | Add the 25 parts | Open the configurator |
| 101 × 101 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 400 mm | Add the 25 parts | Open the configurator |
| 101 × 101 cm | 44 cm | 4 × 150 mm, 4 × 200 mm, 4 × 400 mm | Add the 25 parts | Open the configurator |
| 101 × 101 cm | 54 cm | 4 × 200 mm, 4 × 250 mm, 4 × 400 mm | Add the 25 parts | Open the configurator |
The assembled base, for its part, arrives varnished, checked and fitted with its floor-protection inserts, which are not sold separately.
