H-frame coffee table base, cast iron and varnished steel Ø 42 mm
The H-frame in 1 inch 1/4, for very large coffee tables

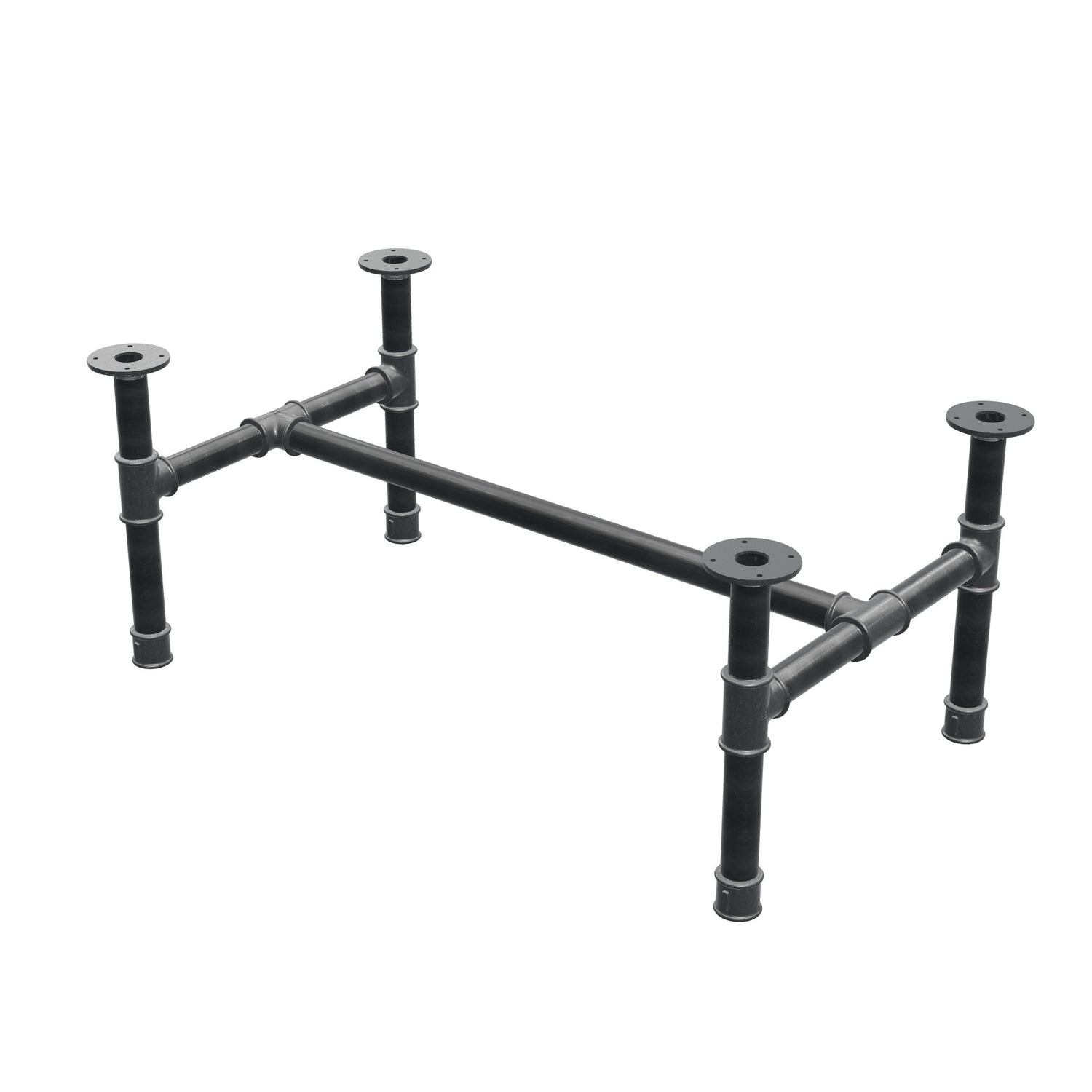

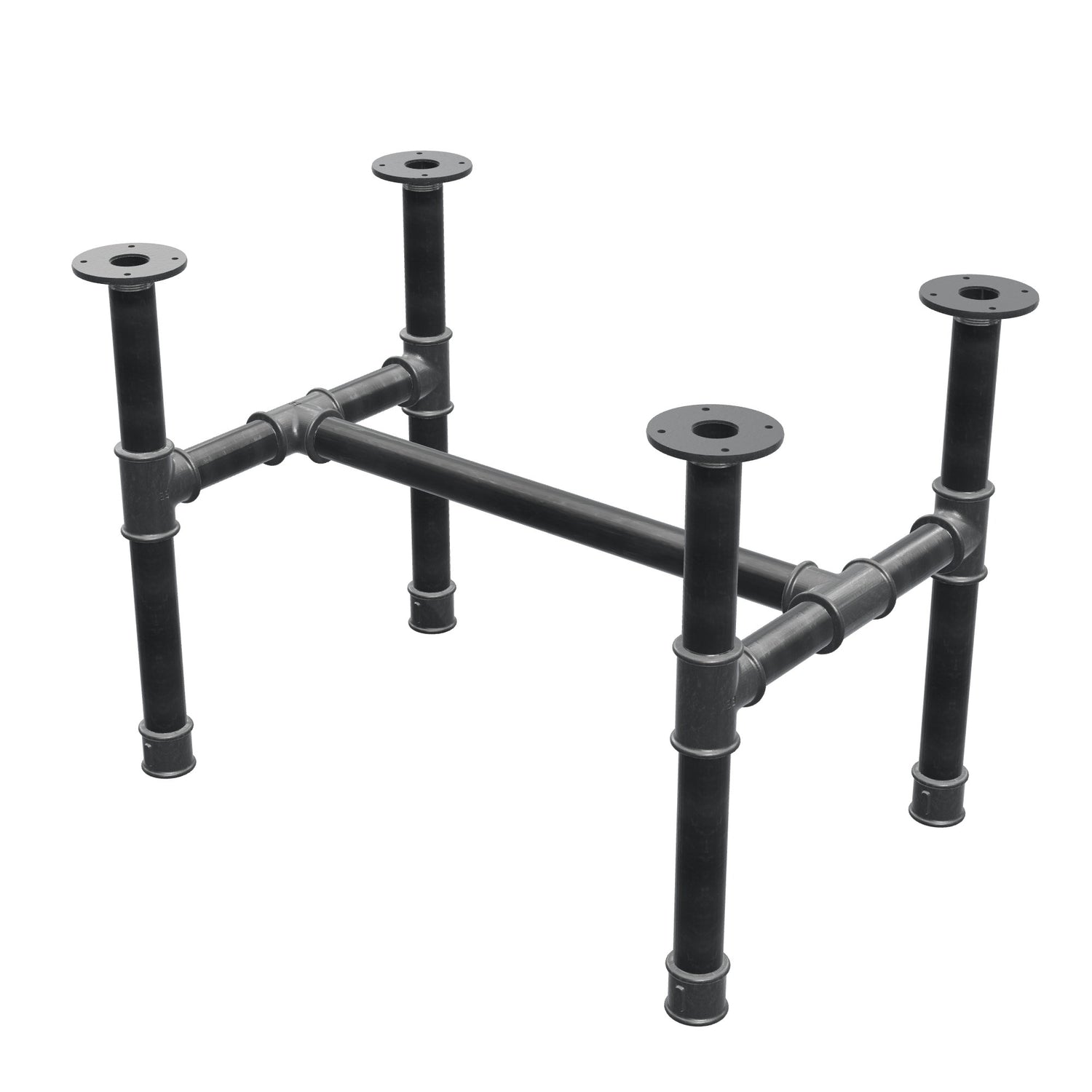

Beyond 1.20 m in length, a tabletop needs a base that will not flex. This version of the H-frame is built from 1 inch 1/4 black steel pipe — 42 mm outside diameter — with 100 mm floor flanges drilled with four holes. Nine sizes, up to 136 × 71 cm and 21 kg on the scales: enough to carry, without the slightest worry, a thick oak slab, a shuttering panel or an old door turned into an industrial coffee table.
Screwed together, by hand, in France

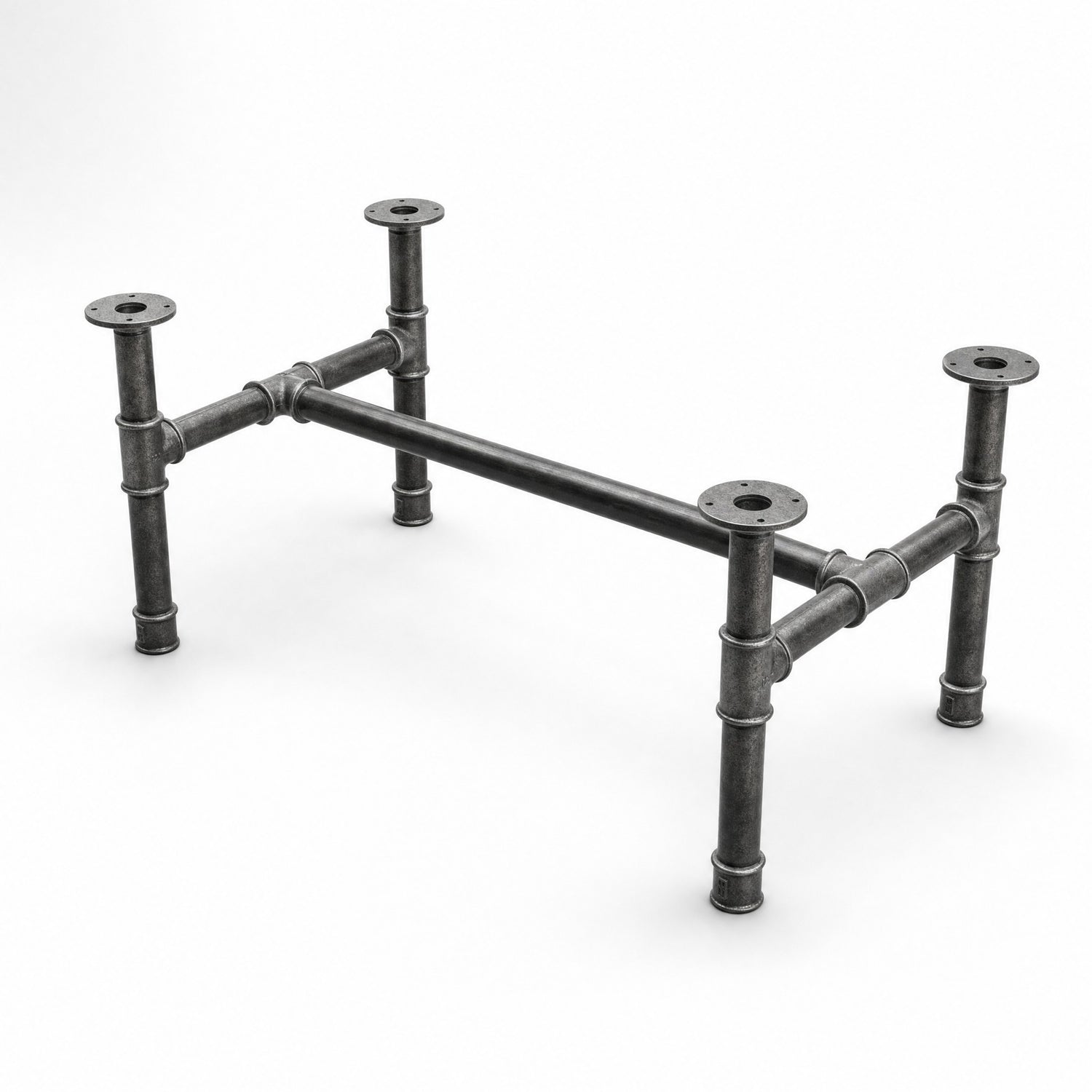

Six malleable cast iron tees give the H its structure: two at the centre of the stretcher, four at the top of the legs. The black steel pipes are taken into the threads, without welding or glue. At the top, a four-hole flange receives your tabletop; at the bottom, a coupling closes the leg and houses a black plastic insert that protects the floor.
Choosing the right size and height
Size follows from the tabletop: 8 to 15 cm of overhang on each side. A 116 × 71 cm base carries a top of about 135 × 85 cm. With this pipe diameter the base is heavy enough to accept a very generous tabletop without tipping.
Height follows your seating: 34 cm for a low living room, 44 cm for most sofas — the most versatile —, 54 cm for a deep sofa or an end table. The figure given is for the base alone: add the thickness of your tabletop to get the final height (44 cm + a 3 cm top = 47 cm).
Key features

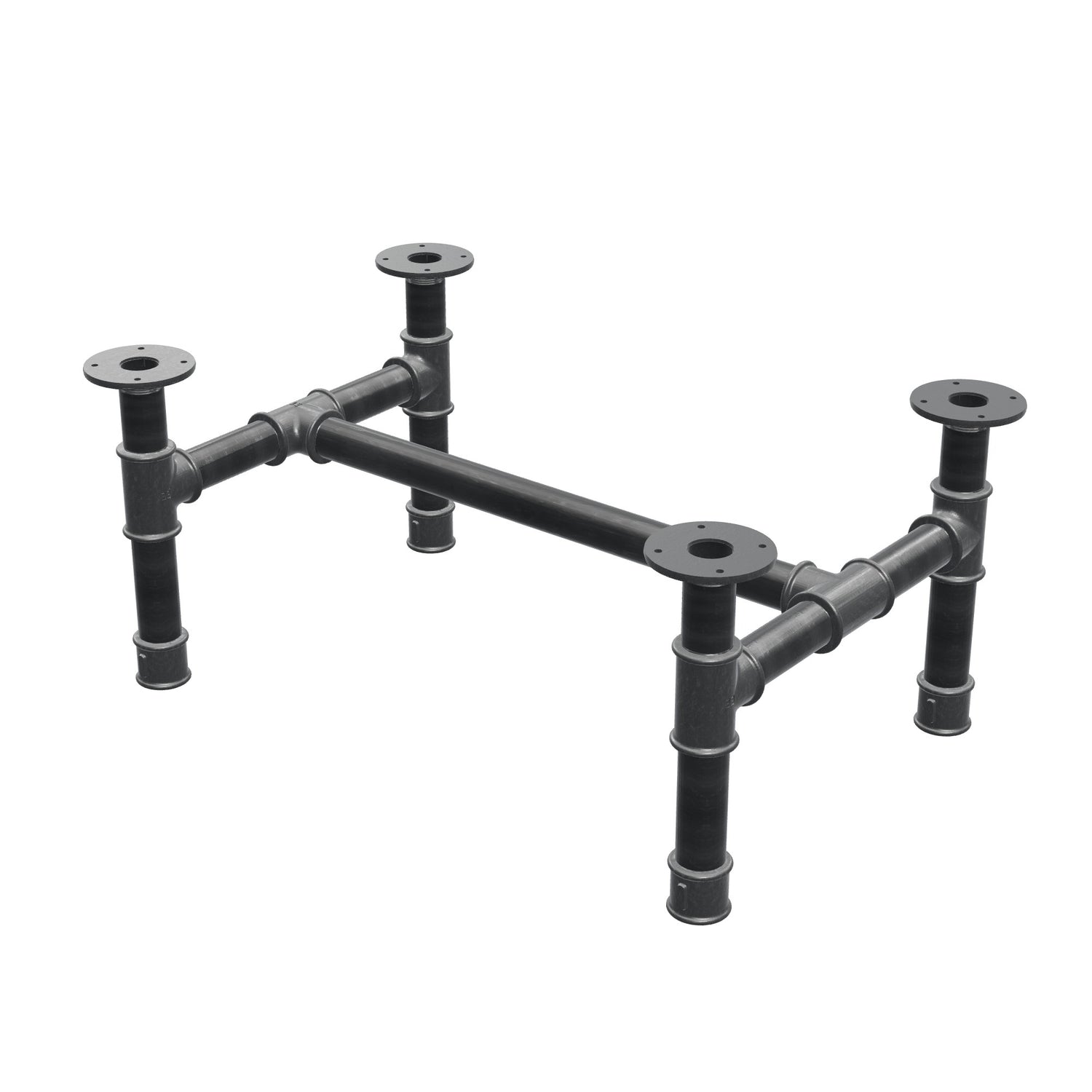

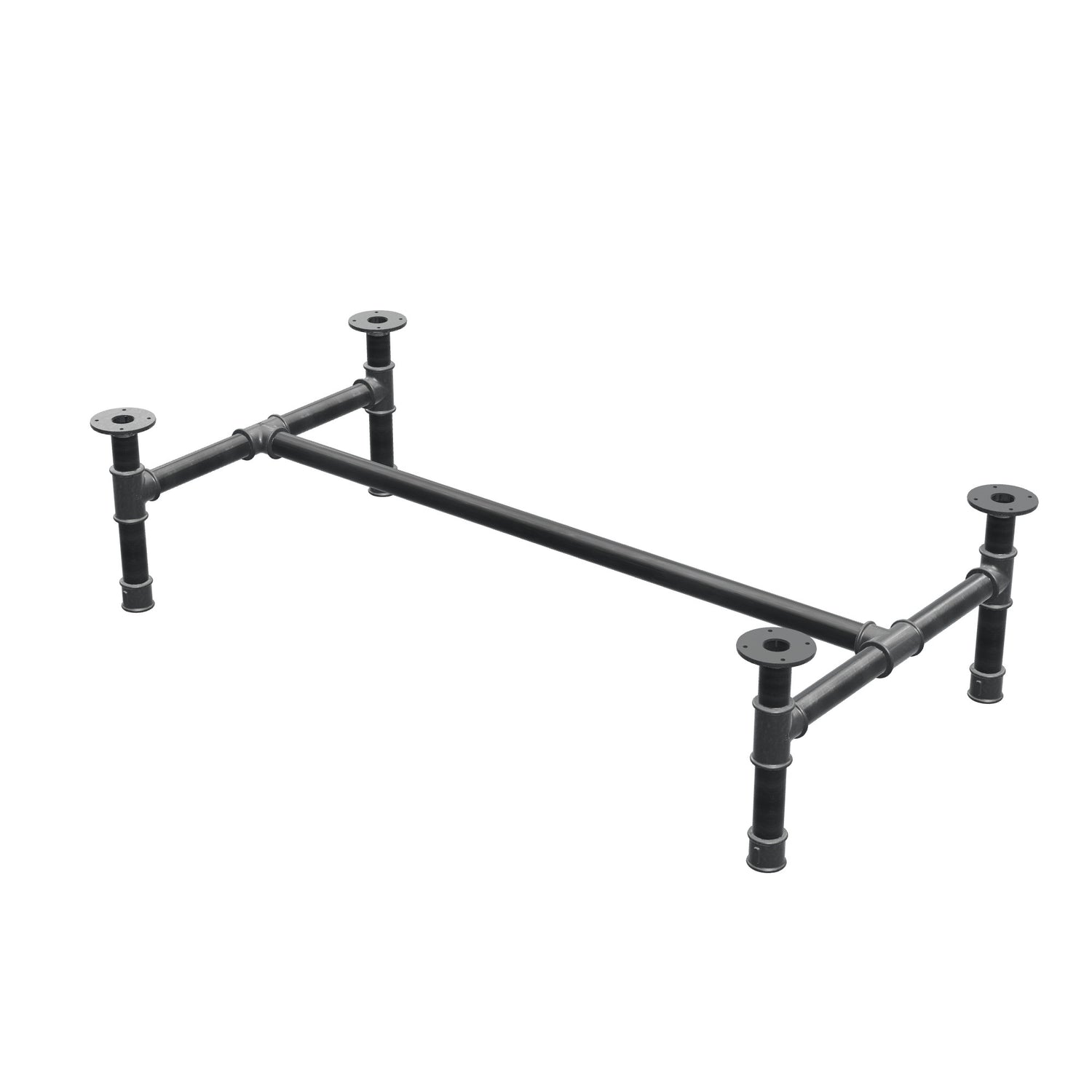

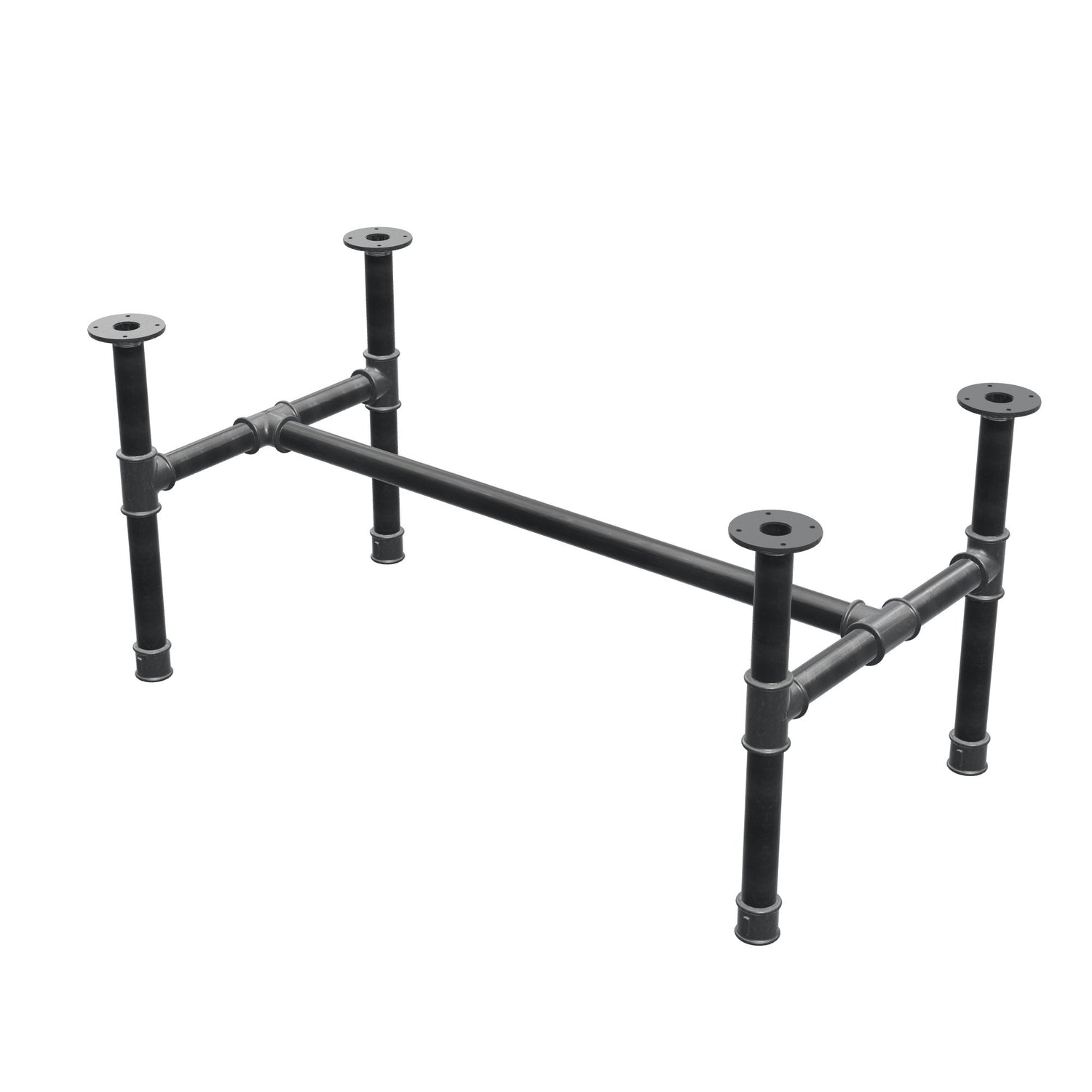

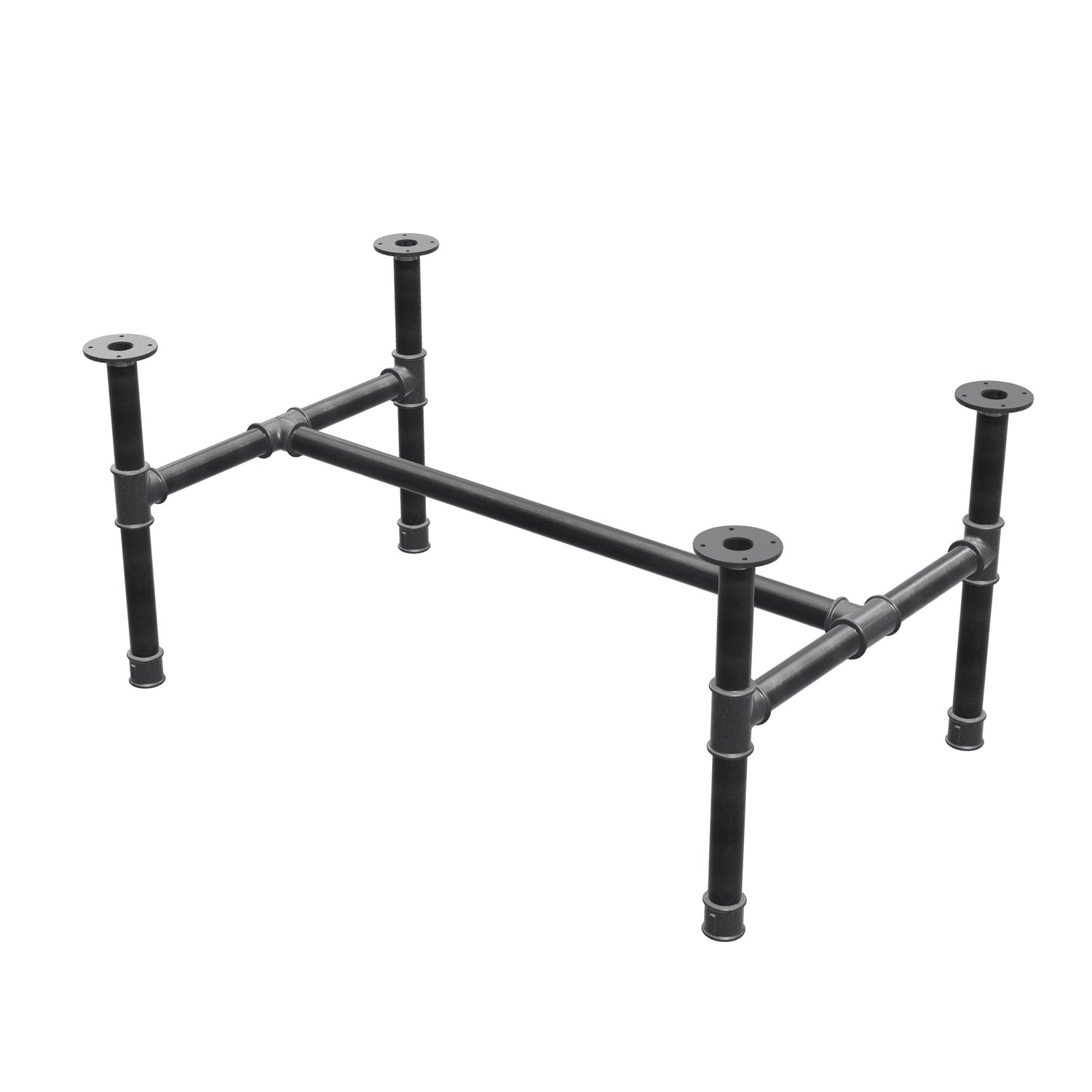

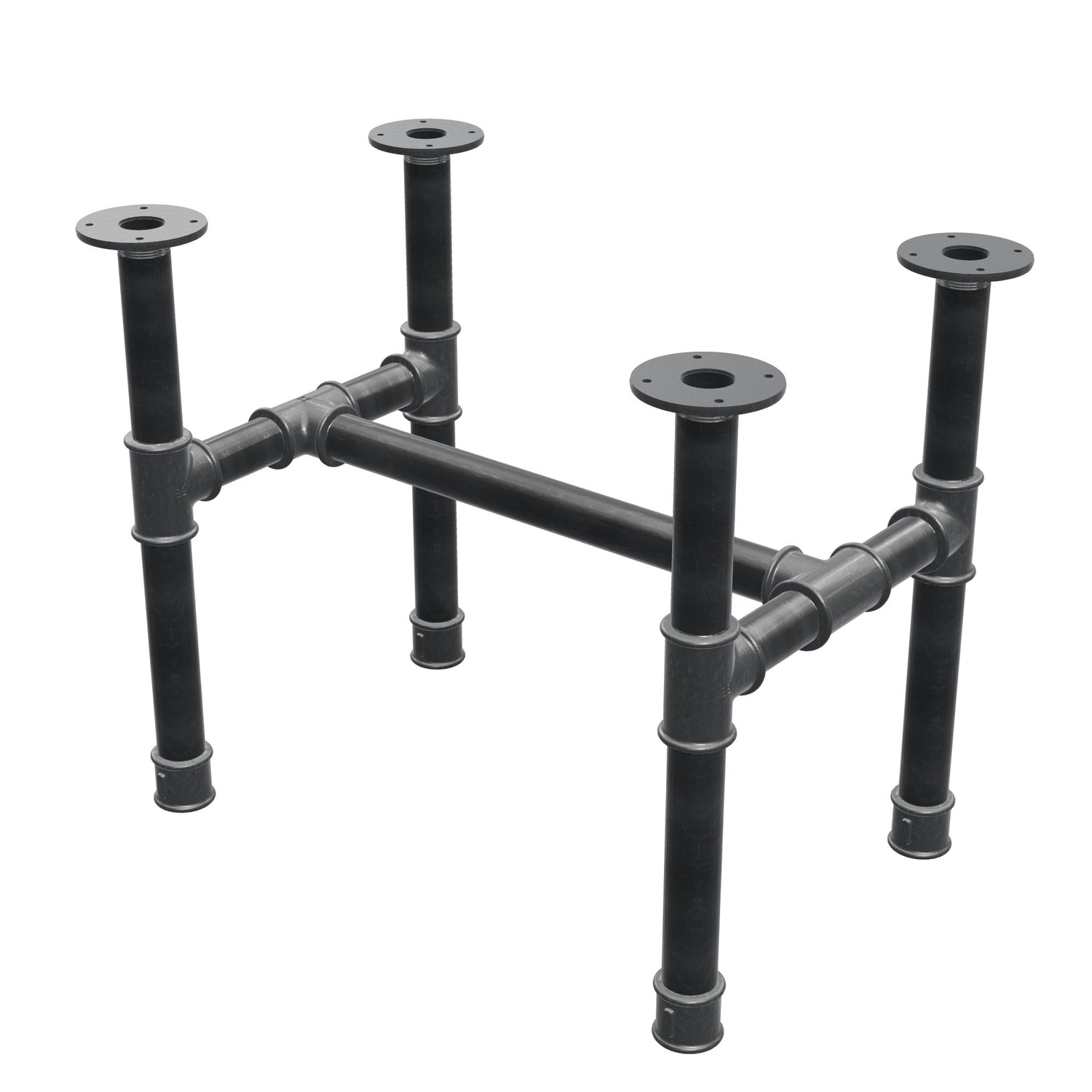

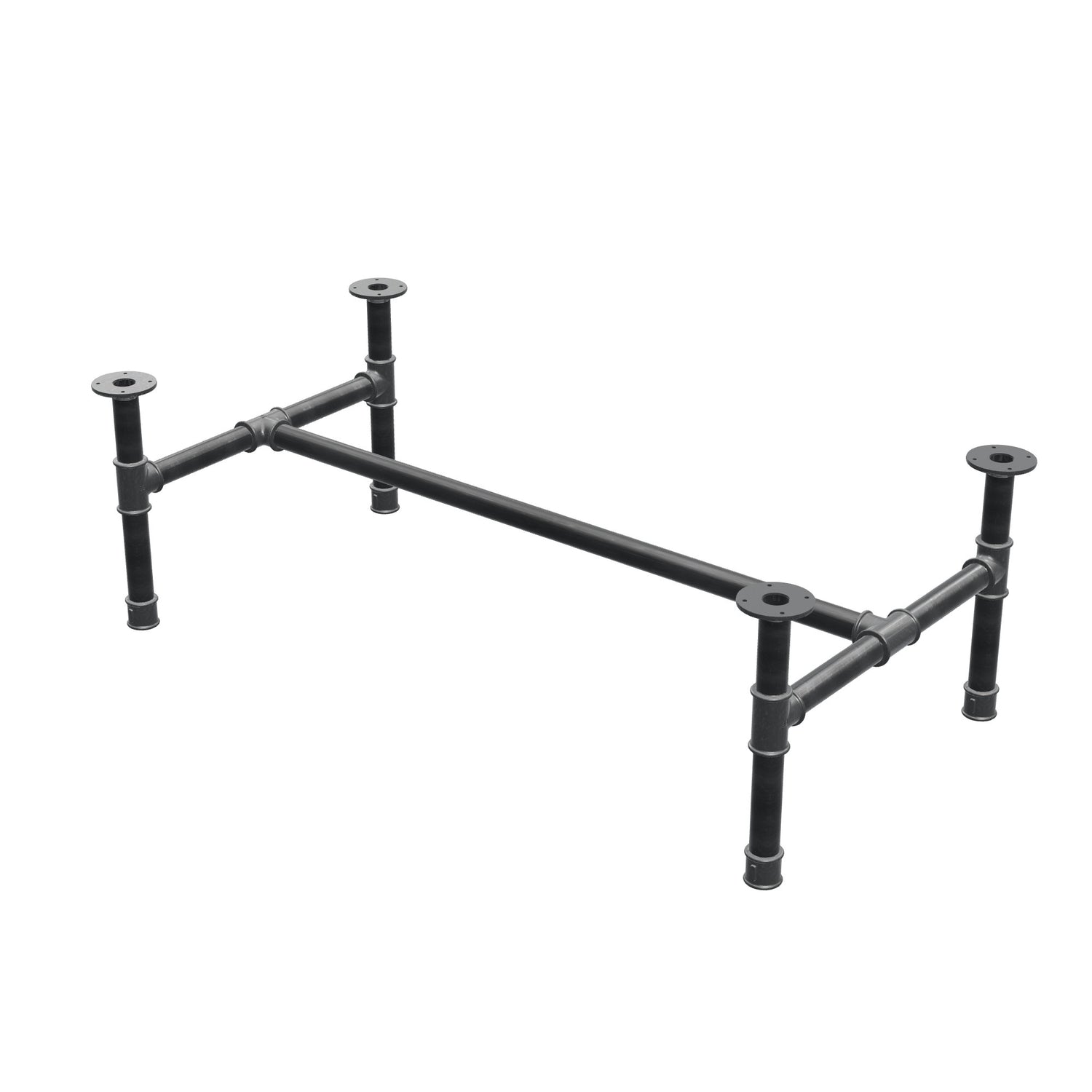

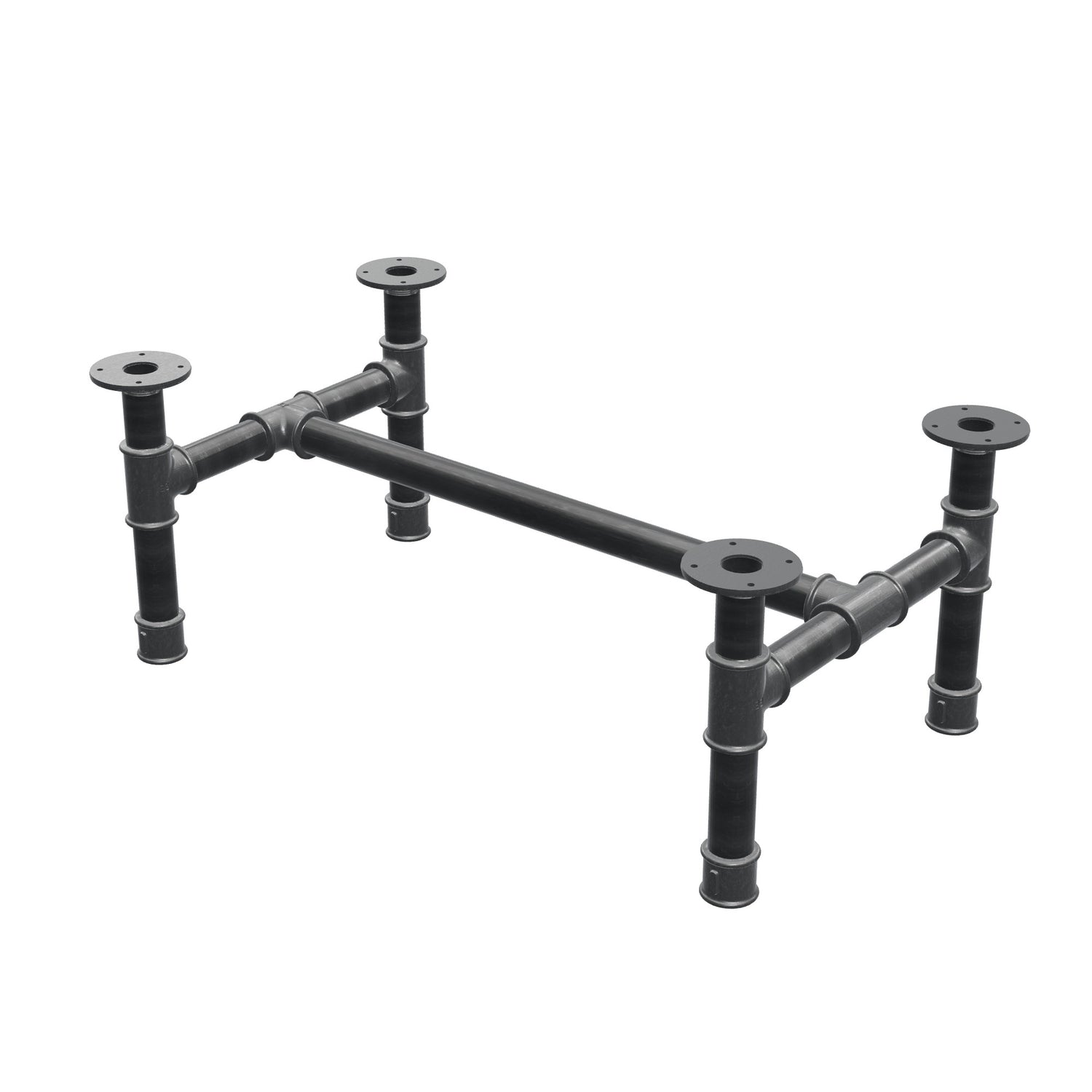

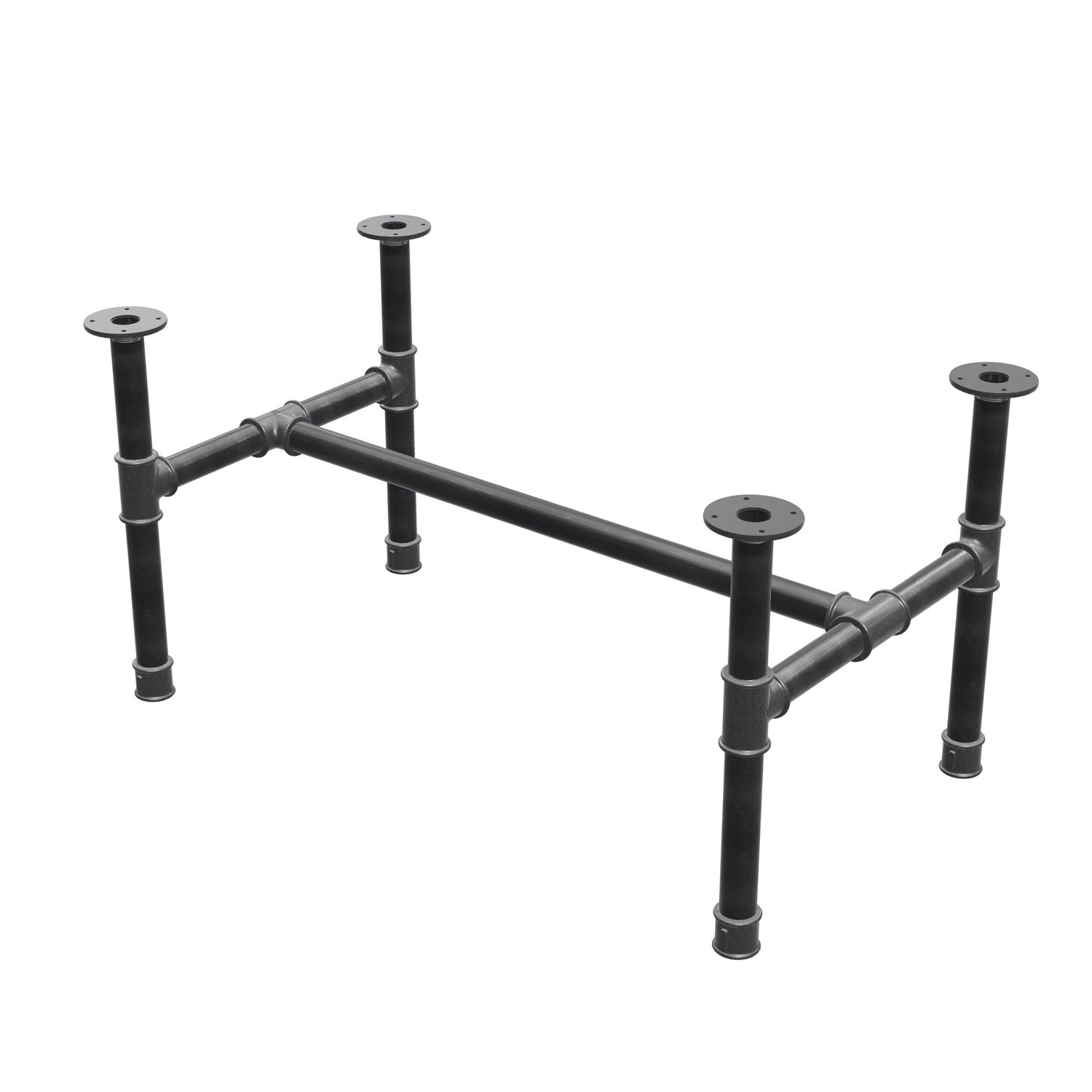

Available in 27 versions, to be chosen above: width and depth from 56 × 41 cm to 136 × 71 cm, height of 34, 44 or 54 cm.
| Pipes | black steel 1"1/4 (33 × 42), giving an outside diameter of 42 mm — see the table of steel pipe diameters |
|---|---|
| Materials | malleable cast iron fittings, black steel pipes (black or galvanised steel?) |
| Finish | clear varnish applied to the cast iron and the steel alike, leaving the raw metal visible |
| Colour | Grey / anthracite grey depending on the light |
| Tabletop | not included — the Ø 100 mm flanges are drilled with 4 holes to screw on the tabletop of your choice, wood or glass (choosing a floor flange) |
| Flange spacing (centre-to-centre) | approximately the dimension minus 10 cm, in length as well as in depth |
| Floor protection | black plastic inserts under each leg |
| Assembly | delivered part-assembled — a few fittings to screw together on arrival (how to screw threaded fittings together), then fix your tabletop to the flanges |
| Weight | 11.3 to 18.2 kg depending on the version (table below) |
The same base, other pipe diameters
This H-frame base comes in three pipe diameters: Ø 27 mm, Ø 34 mm and Ø 42 mm (this page). The thicker the pipe, the heavier, steadier and bolder the base; the thinner it is, the more discreet the silhouette. The same frame is also offered at dining-table height (74 cm).
Details and features
The metal is protected by a clear varnish that preserves its raw look: care for it with a soft, dry cloth, without water or abrasive cleaners. For indoor use only.

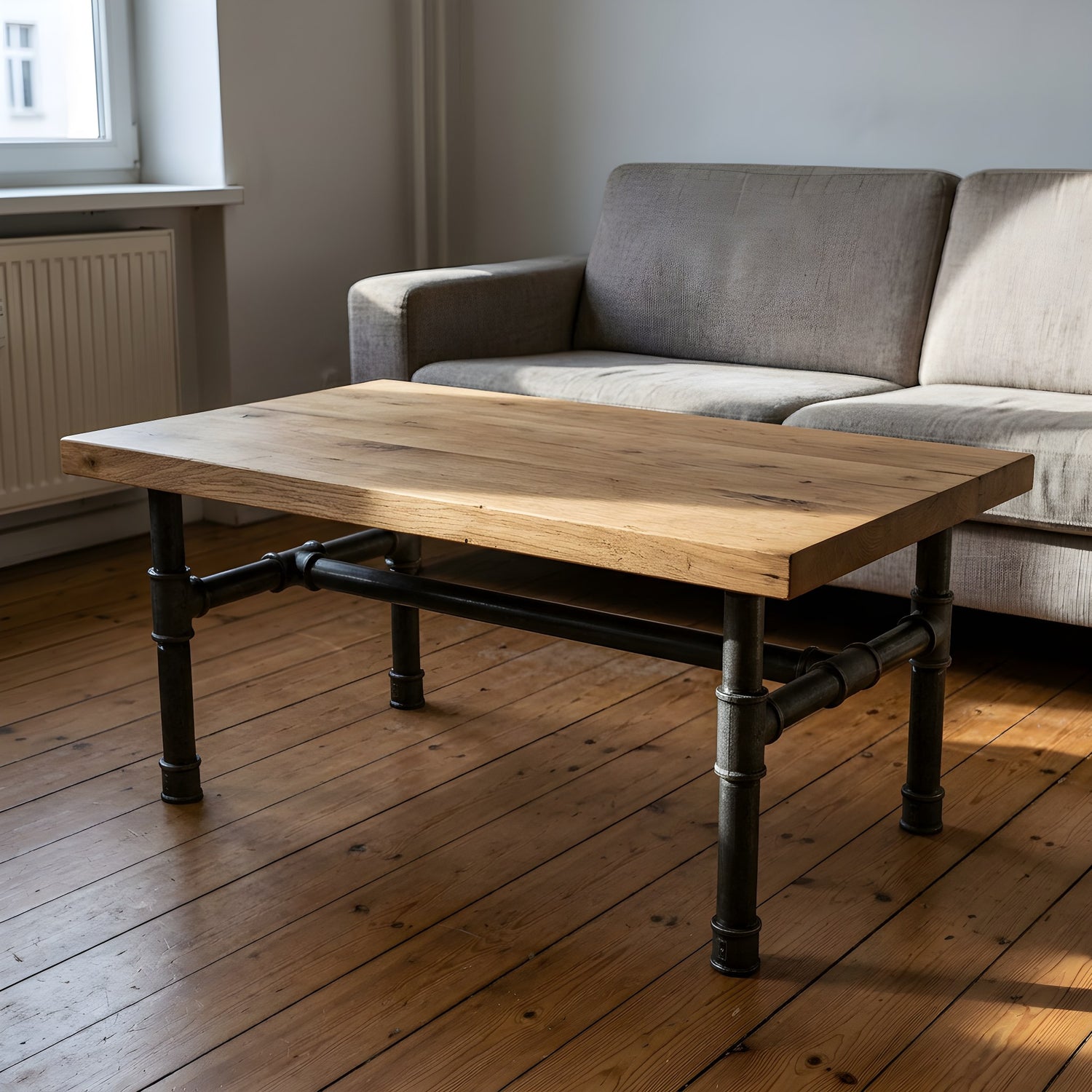

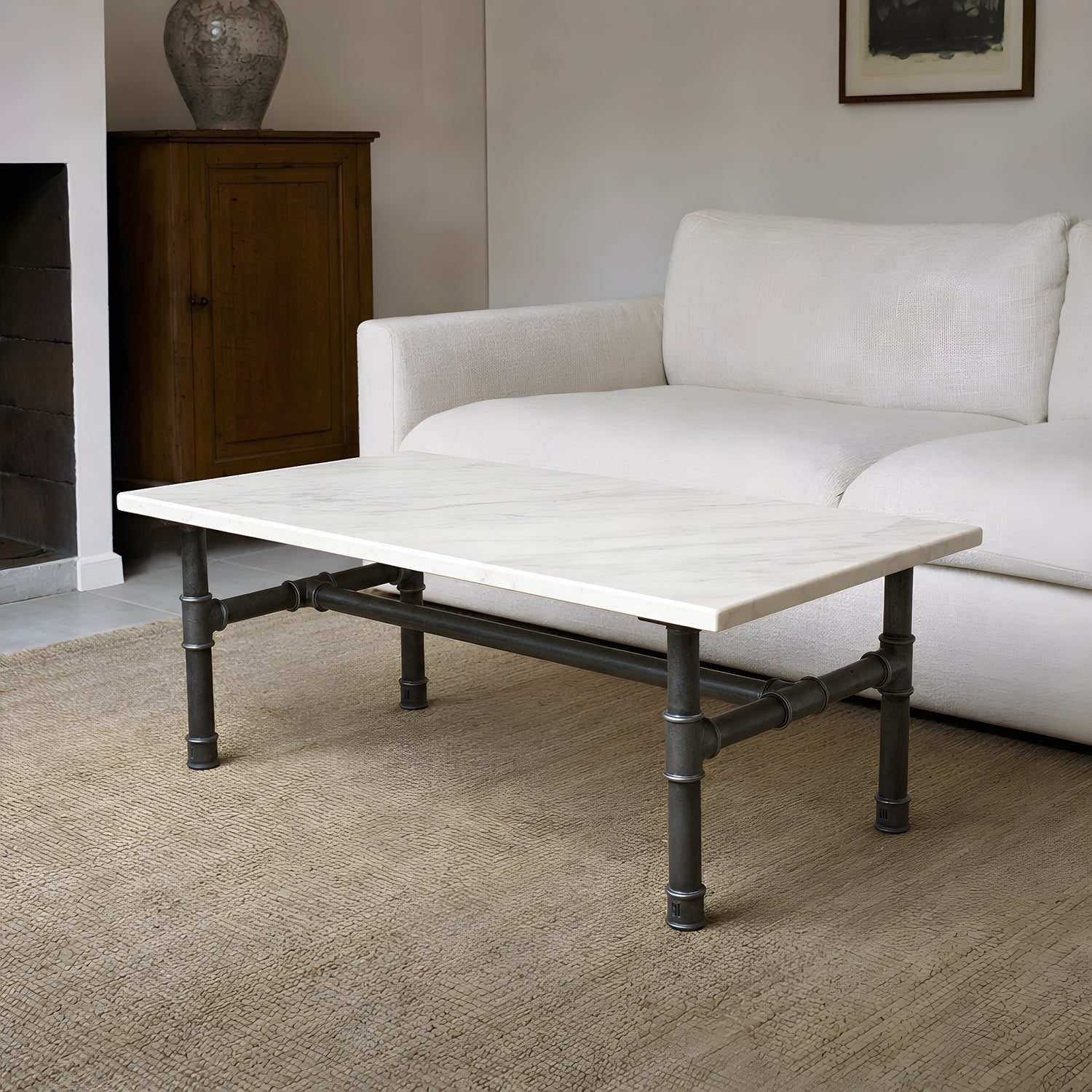

The photos showing a tabletop are for illustration only: the tabletop is not included.
The materials may show slight differences in appearance compared to the photographs. These imperfections, which make each piece unique, are part of the raw, authentic and unmistakably industrial character of every item sold by Home Invasion.
Assembled to order in Annecy, France.
Detailed dimensions
The letters refer to the drawings below. All dimensions in centimetres; dimension A is measured from the outer edge of one flange to the opposite flange. Centre distances (B, D) are measured between flange centres — useful for drilling the top.
Tolerance: these are nominal dimensions. How far each fitting is tightened, together with casting tolerances, gives about ± 5 mm of variation on each dimension. Measure the base once assembled before drilling your tabletop or having it cut.
Side view, along the length — indicative drawing, dimensions in the table
Top view — indicative drawing, dimensions in the table
| Size | A – overall length | B – centre distance (length) | C – overall depth | D – centre distance (depth) |
|---|---|---|---|---|

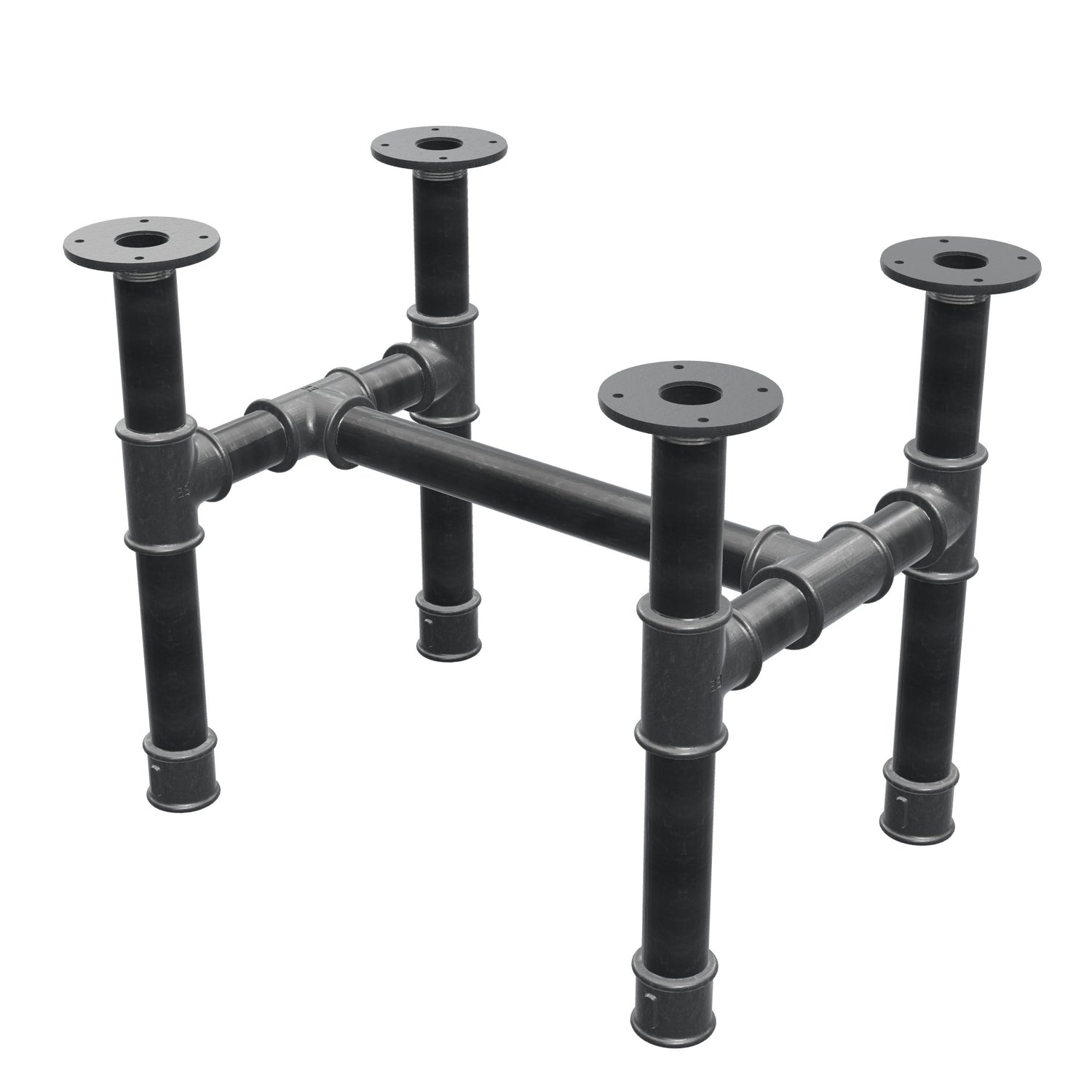

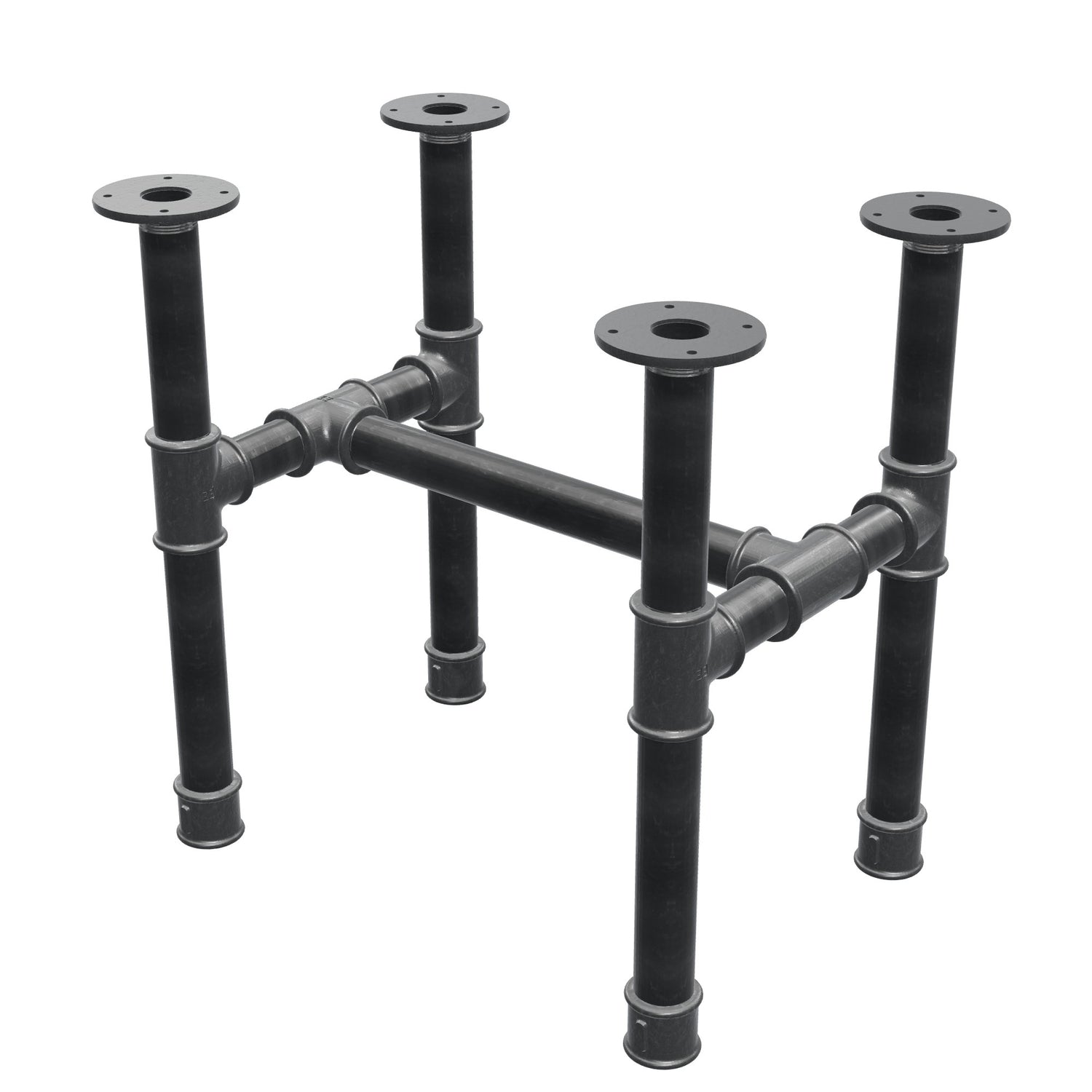

| 56 × 41 cm | 55.7 | 45.7 | 40.9 | 30.9 |
| 66 × 45 cm | 65.7 | 55.7 | 44.9 | 34.9 |

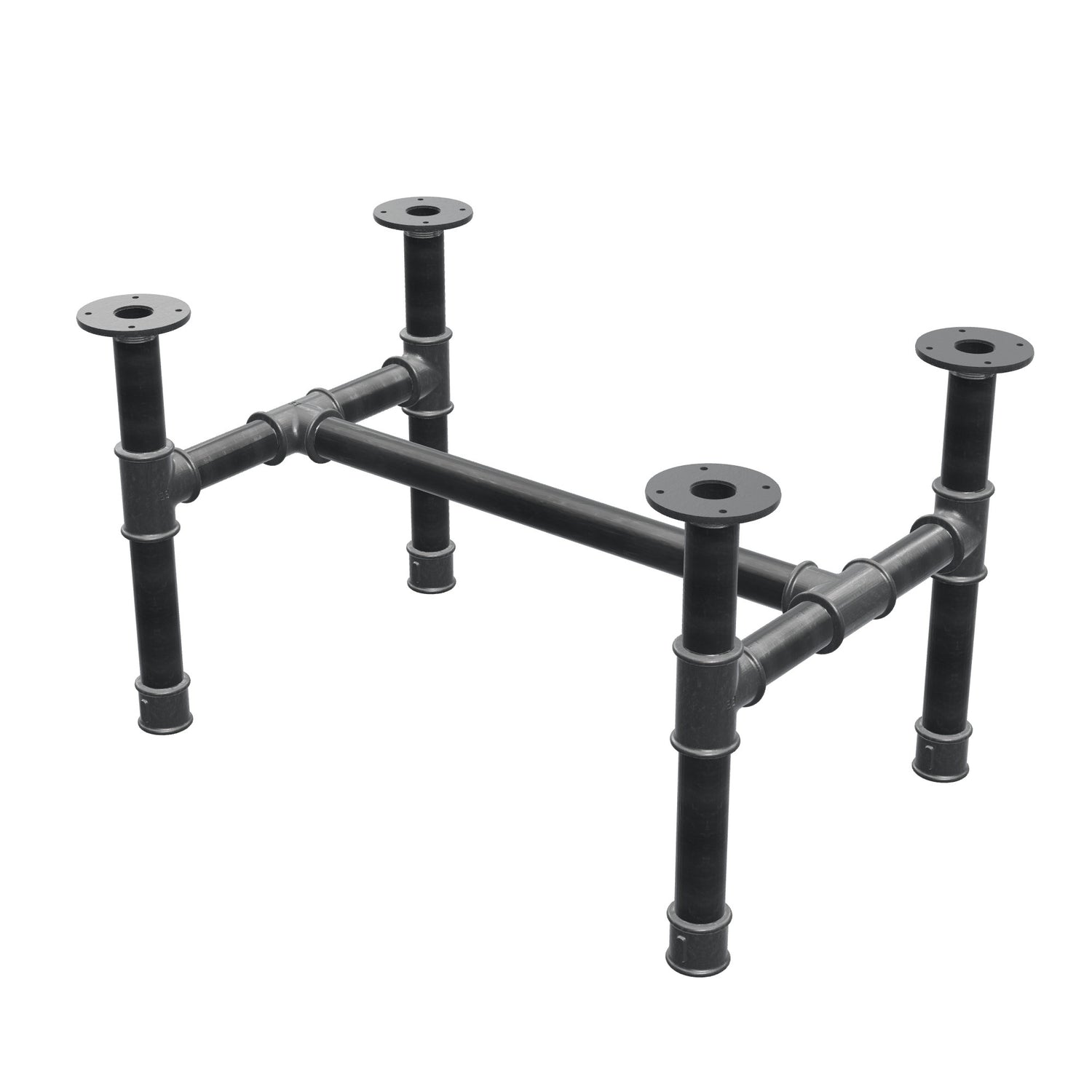

| 76 × 51 cm | 75.7 | 65.7 | 50.9 | 40.9 |

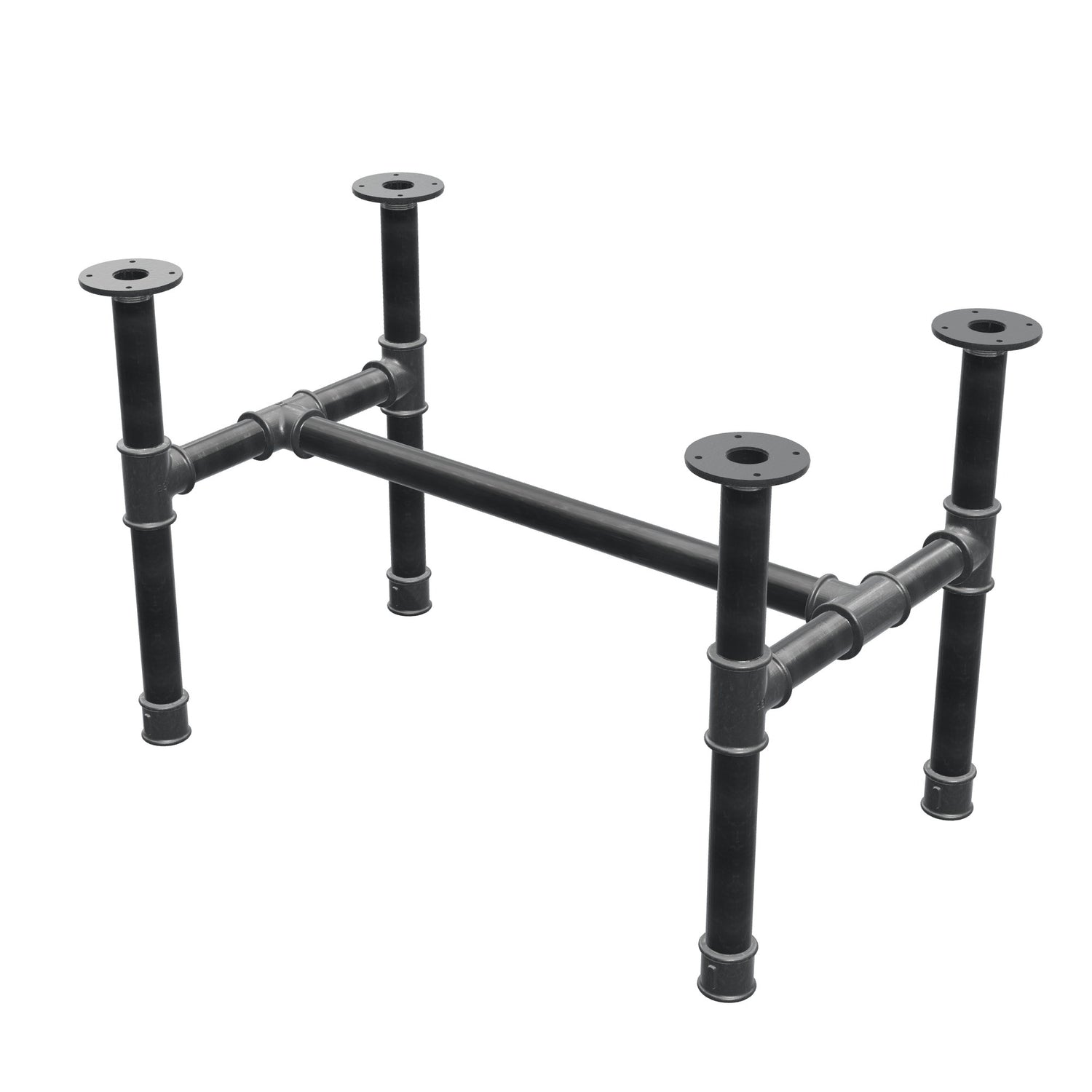

| 86 × 51 cm | 85.7 | 75.7 | 50.9 | 40.9 |

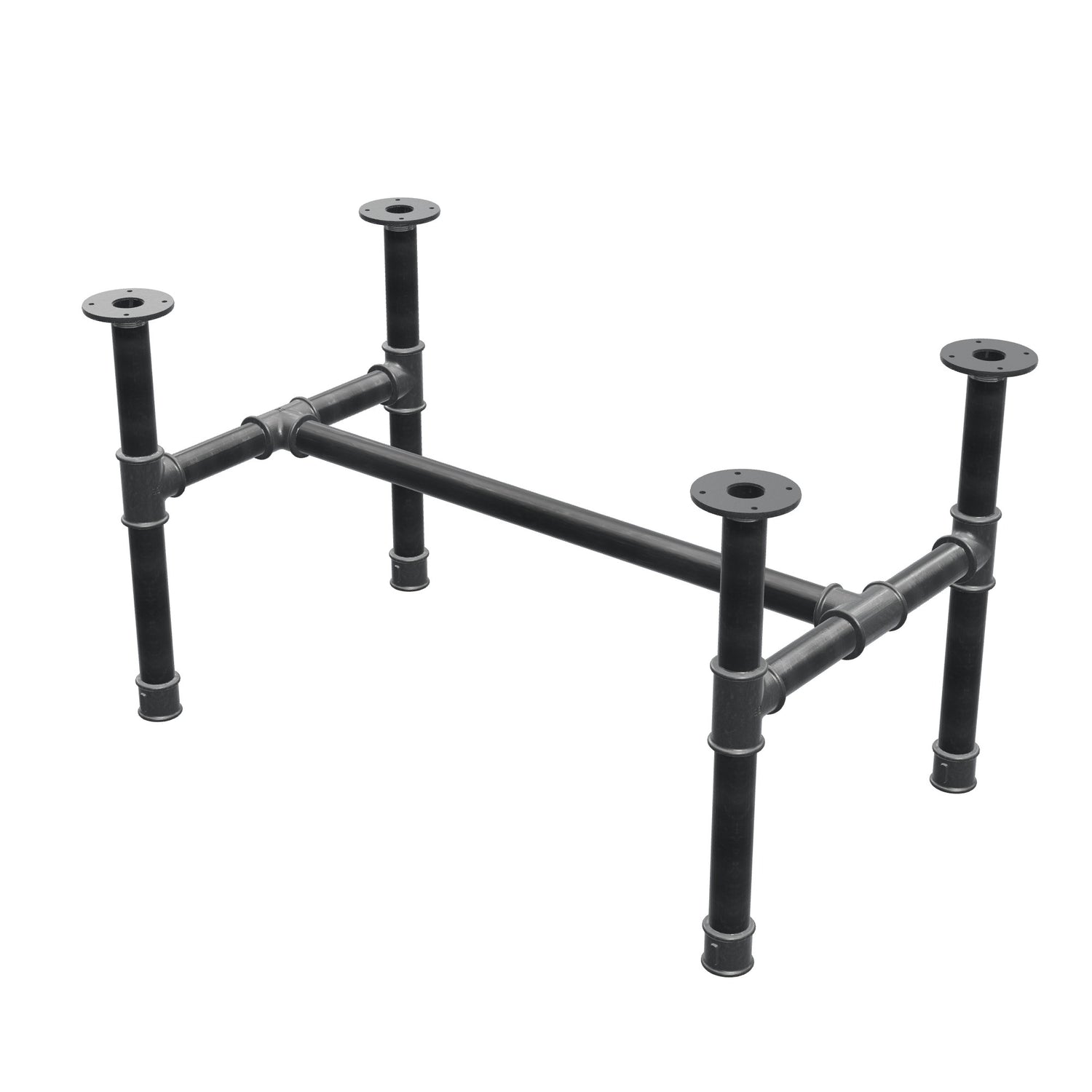

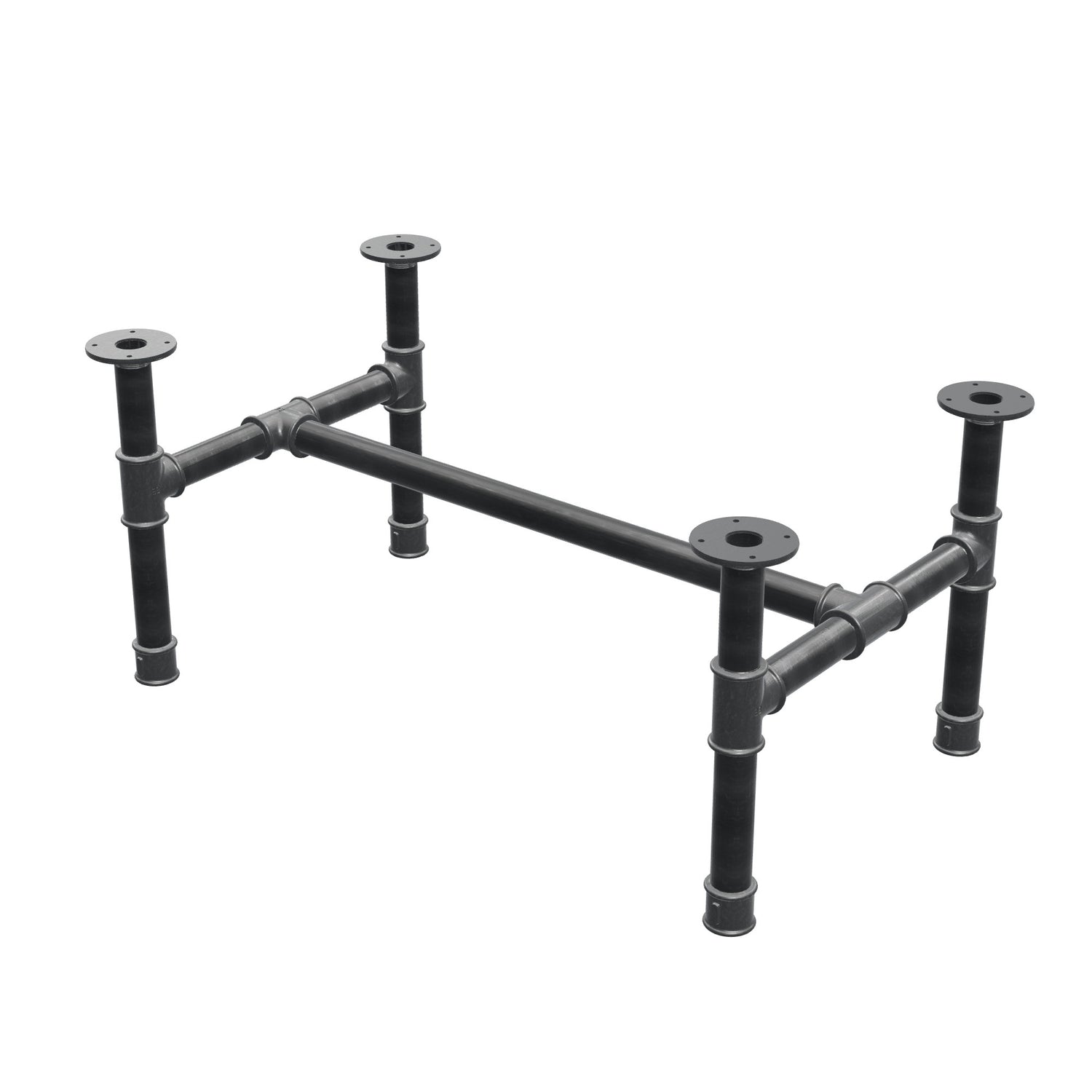

| 96 × 57 cm | 95.7 | 85.7 | 56.9 | 46.9 |

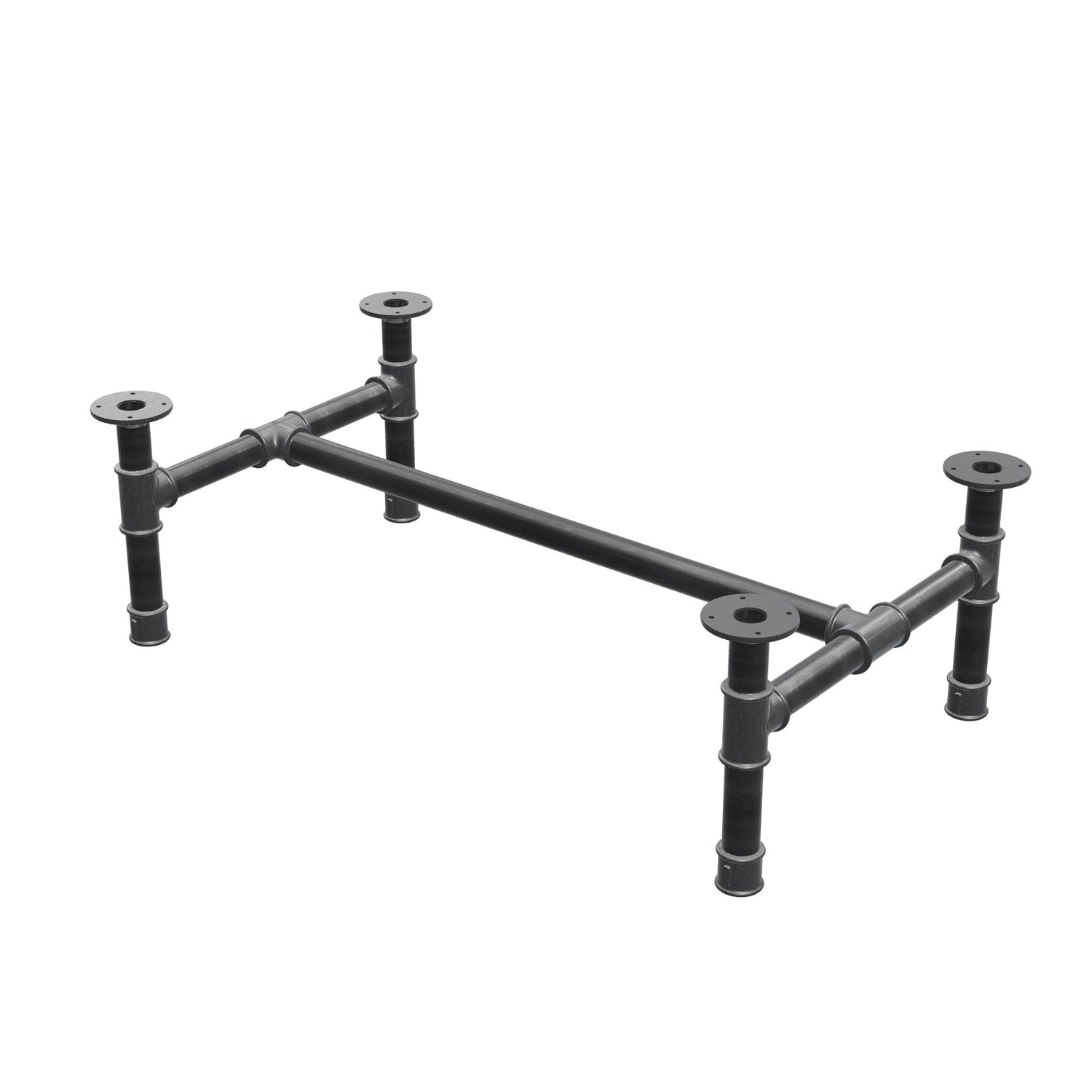

| 106 × 61 cm | 105.7 | 95.7 | 60.9 | 50.9 |
| 116 × 61 cm | 115.7 | 105.7 | 60.9 | 50.9 |
| 116 × 71 cm | 115.7 | 105.7 | 70.9 | 60.9 |
| 136 × 71 cm | 135.7 | 125.7 | 70.9 | 60.9 |
Height of the base alone, tabletop not included:
| Height | E – overall height | F – height to rail centreline |
|---|---|---|
| 34 cm | 33.5 | 20.7 |
| 44 cm | 43.5 | 25.7 |
| 54 cm | 53.5 | 30.7 |
Weight of the packed base, in kilograms:
| Size | H 34 cm | H 44 cm | H 54 cm |
|---|---|---|---|
| 56 × 41 cm | 11.3 | 12.5 | 13.8 |
| 66 × 45 cm | 11.9 | 13.2 | 14.5 |
| 76 × 51 cm | 12.5 | 13.8 | 15.0 |
| 86 × 51 cm | 12.8 | 14.1 | 15.3 |
| 96 × 57 cm | 13.5 | 14.8 | 16.0 |
| 106 × 61 cm | 14.1 | 15.3 | 16.6 |
| 116 × 61 cm | 14.4 | 15.6 | 16.9 |
| 116 × 71 cm | 15.0 | 16.3 | 17.6 |
| 136 × 71 cm | 15.7 | 16.9 | 18.2 |
To choose your tabletop and fix it in place, follow our tutorial: making a DIY wood and pipe coffee table.
Would you rather build it yourself?
Nothing here is welded: the base is a set of fittings screwed into one another, which you can redo, extend or take apart. Every part is sold individually in our catalogue, and the pipe lengths are standard references, not special cuts.
The parts of one base:
| Part | Quantity |
|---|---|
| Equal female tee, black malleable iron Ø 42 mm | 6 |
| Black malleable iron floor flange Ø 42 mm | 4 |
| Equal socket, black malleable iron Ø 42 mm | 4 |
| Threaded black steel pipe Ø 42 mm | 13 |
Pipe lengths, cart and 3D view by size:
| Size | Height | Pipes to order | Cart | 3D view |
|---|---|---|---|---|
| 56 × 41 cm | 34 cm | 8 × 100 mm, 4 × 150 mm, 1 × 400 mm | Add the 27 parts | Open the configurator |
| 56 × 41 cm | 44 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm, 1 × 400 mm | Add the 27 parts | Open the configurator |
| 56 × 41 cm | 54 cm | 4 × 100 mm, 4 × 200 mm, 4 × 250 mm, 1 × 400 mm | Add the 27 parts | Open the configurator |
| 66 × 45 cm | 34 cm | 4 × 100 mm, 4 × 120 mm, 4 × 150 mm, 1 × 500 mm | Add the 27 parts | Open the configurator |
| 66 × 45 cm | 44 cm | 4 × 120 mm, 4 × 150 mm, 4 × 200 mm, 1 × 500 mm | Add the 27 parts | Open the configurator |
| 66 × 45 cm | 54 cm | 4 × 120 mm, 4 × 200 mm, 4 × 250 mm, 1 × 500 mm | Add the 27 parts | Open the configurator |
| 76 × 51 cm | 34 cm | 4 × 100 mm, 8 × 150 mm, 1 × 600 mm | Add the 27 parts | Open the configurator |
| 76 × 51 cm | 44 cm | 8 × 150 mm, 4 × 200 mm, 1 × 600 mm | Add the 27 parts | Open the configurator |
| 76 × 51 cm | 54 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm, 1 × 600 mm | Add the 27 parts | Open the configurator |
| 86 × 51 cm | 34 cm | 4 × 100 mm, 8 × 150 mm, 1 × 700 mm | Add the 27 parts | Open the configurator |
| 86 × 51 cm | 44 cm | 8 × 150 mm, 4 × 200 mm, 1 × 700 mm | Add the 27 parts | Open the configurator |
| 86 × 51 cm | 54 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm, 1 × 700 mm | Add the 27 parts | Open the configurator |
| 96 × 57 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 180 mm, 1 × 800 mm | Add the 27 parts | Open the configurator |
| 96 × 57 cm | 44 cm | 4 × 150 mm, 4 × 180 mm, 4 × 200 mm, 1 × 800 mm | Add the 27 parts | Open the configurator |
| 96 × 57 cm | 54 cm | 4 × 180 mm, 4 × 200 mm, 4 × 250 mm, 1 × 800 mm | Add the 27 parts | Open the configurator |
| 106 × 61 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm, 1 × 900 mm | Add the 27 parts | Open the configurator |
| 106 × 61 cm | 44 cm | 4 × 150 mm, 8 × 200 mm, 1 × 900 mm | Add the 27 parts | Open the configurator |
| 106 × 61 cm | 54 cm | 8 × 200 mm, 4 × 250 mm, 1 × 900 mm | Add the 27 parts | Open the configurator |
| 116 × 61 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 200 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 116 × 61 cm | 44 cm | 4 × 150 mm, 8 × 200 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 116 × 61 cm | 54 cm | 8 × 200 mm, 4 × 250 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 116 × 71 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 250 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 116 × 71 cm | 44 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 116 × 71 cm | 54 cm | 4 × 200 mm, 8 × 250 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 136 × 71 cm | 34 cm | 4 × 100 mm, 4 × 150 mm, 4 × 250 mm, 1 × 1200 mm | Add the 27 parts | Open the configurator |
| 136 × 71 cm | 44 cm | 4 × 150 mm, 4 × 200 mm, 4 × 250 mm, 1 × 1200 mm | Add the 27 parts | Open the configurator |
| 136 × 71 cm | 54 cm | 4 × 200 mm, 8 × 250 mm, 1 × 1200 mm | Add the 27 parts | Open the configurator |
The assembled base, for its part, arrives varnished, checked and fitted with its floor-protection inserts, which are not sold separately.
