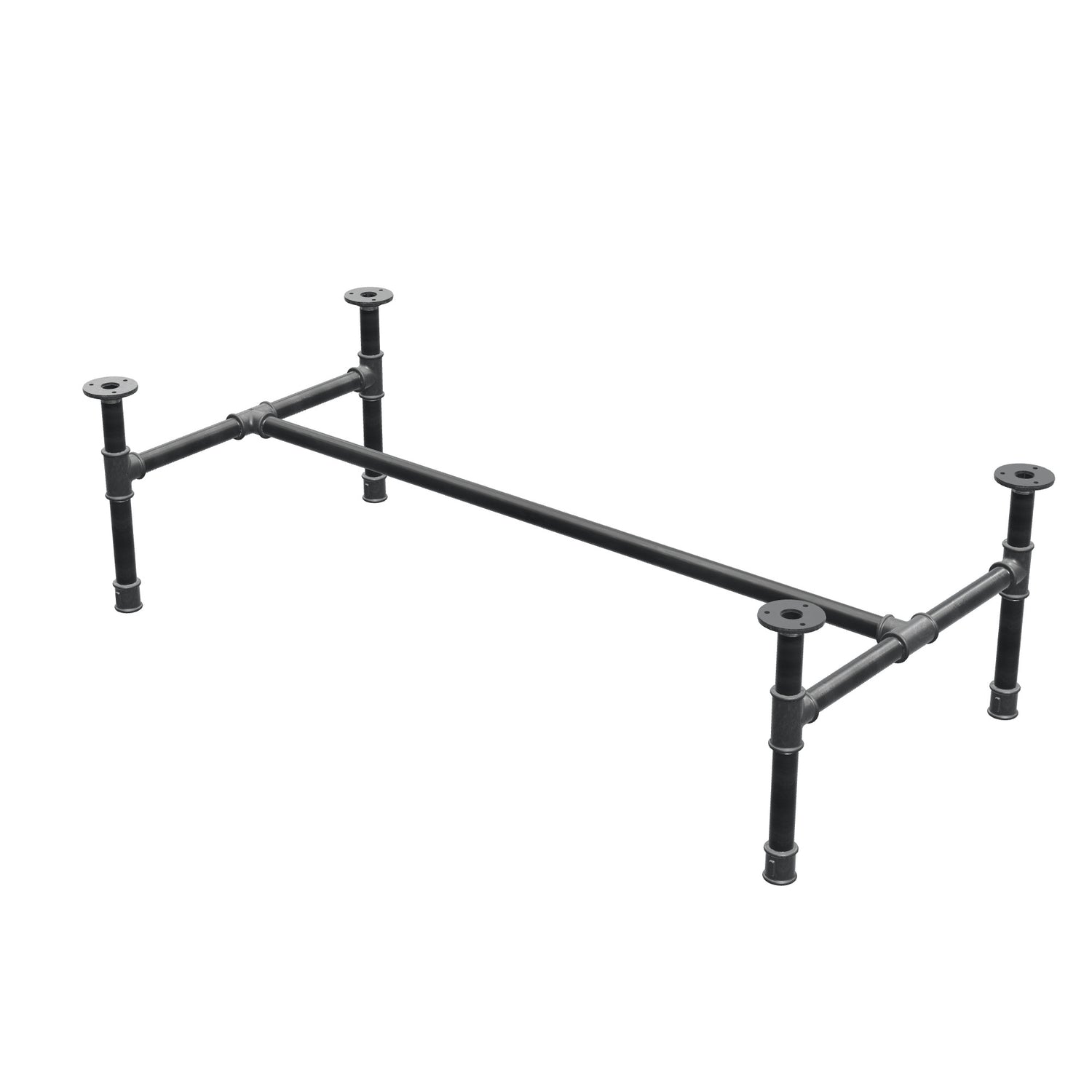

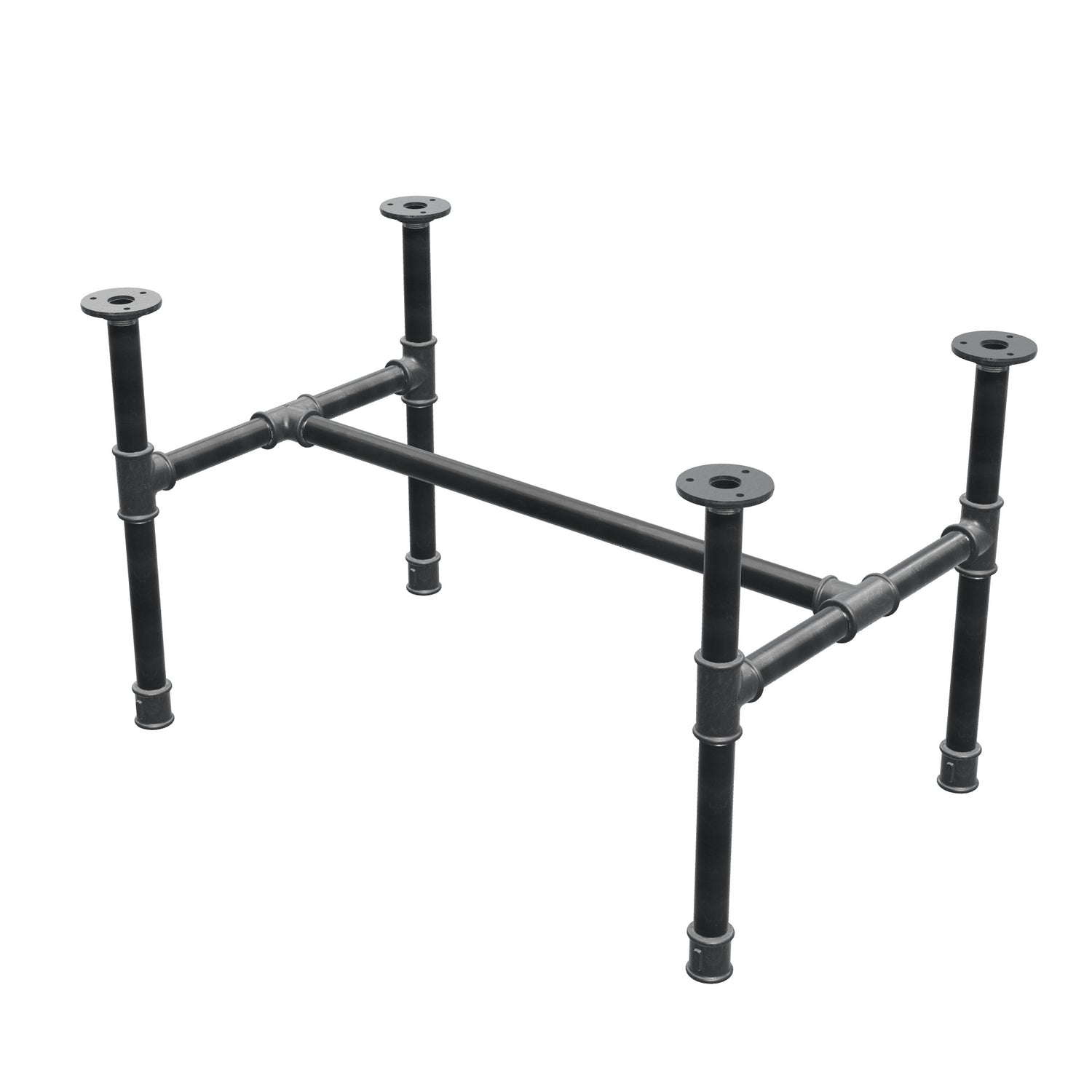

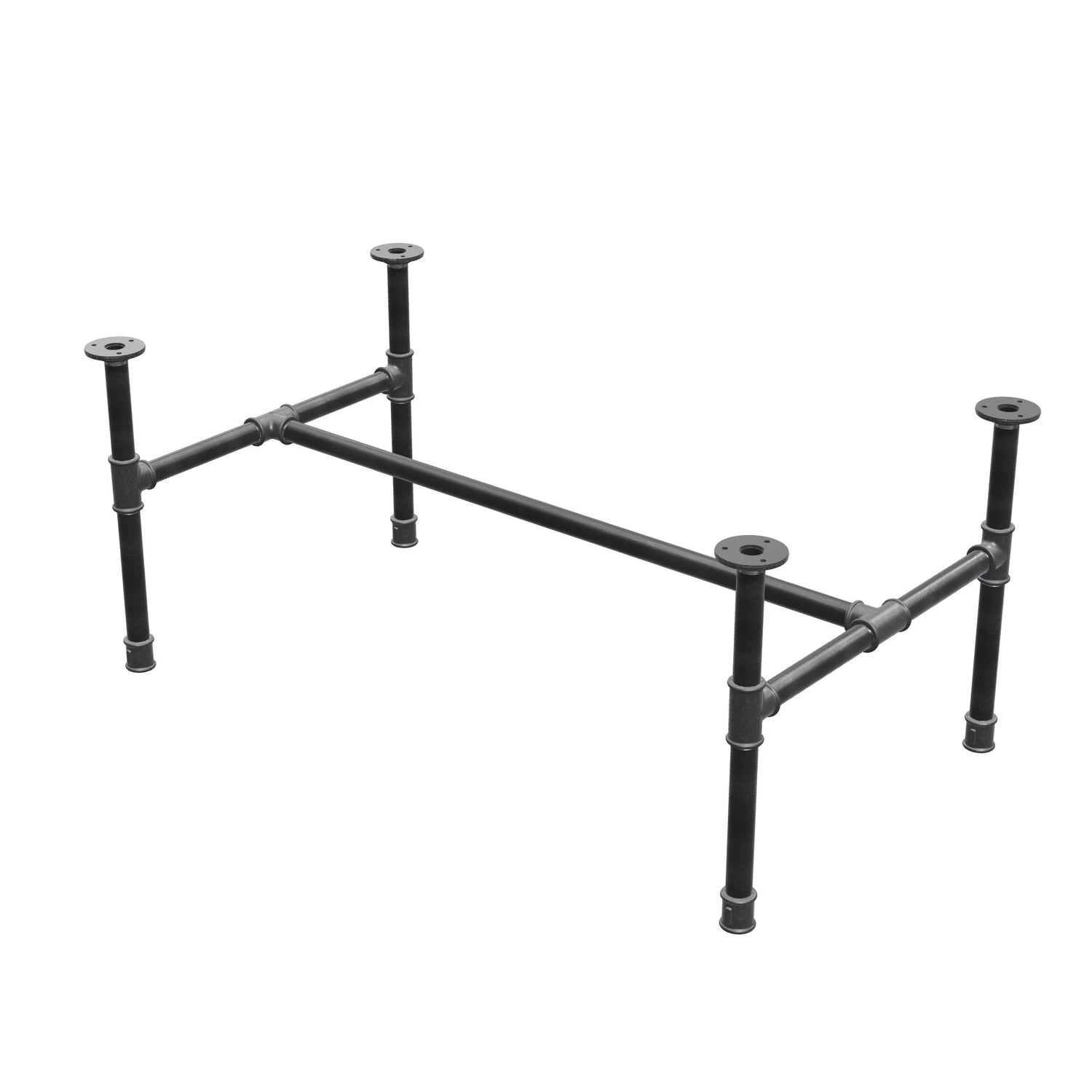

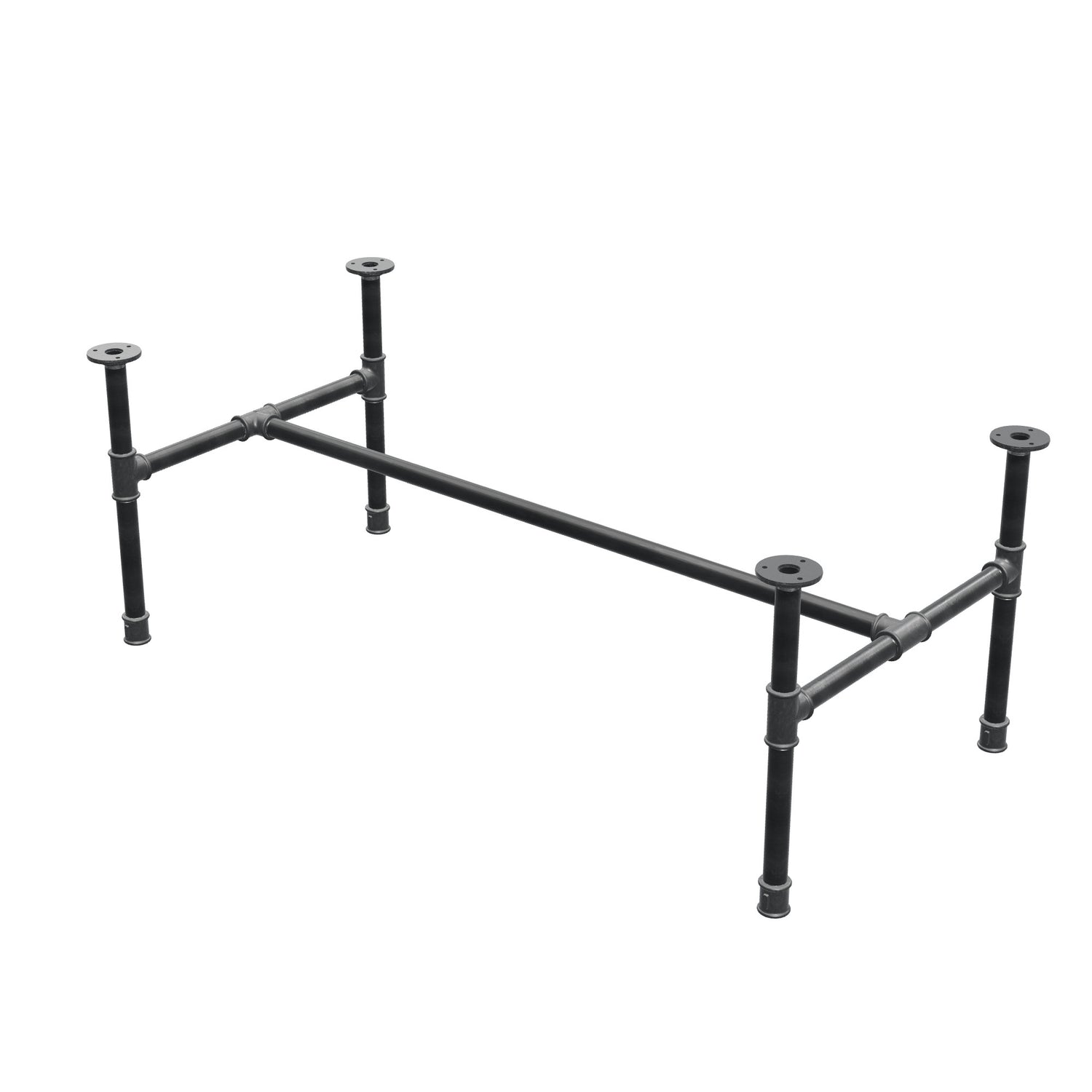

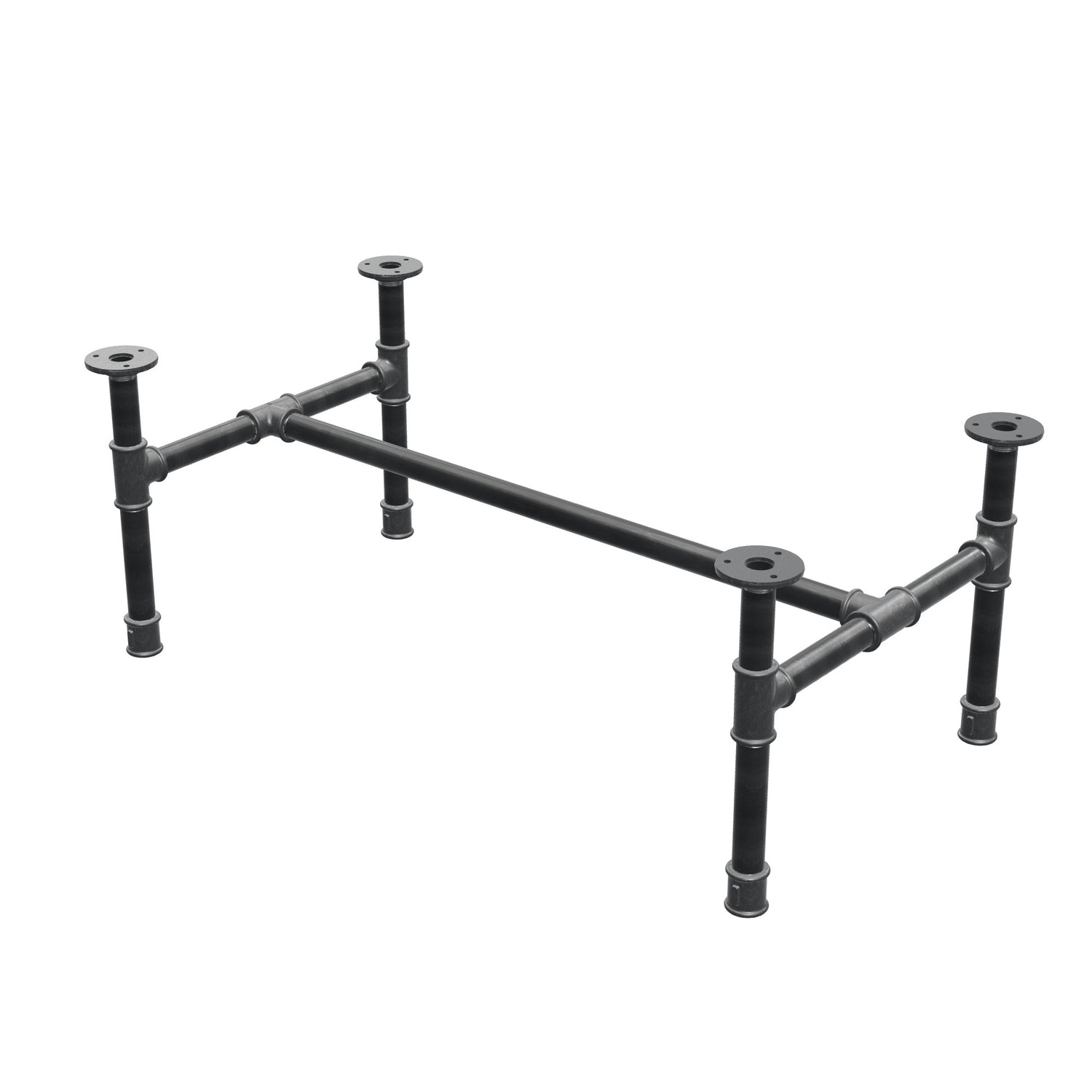

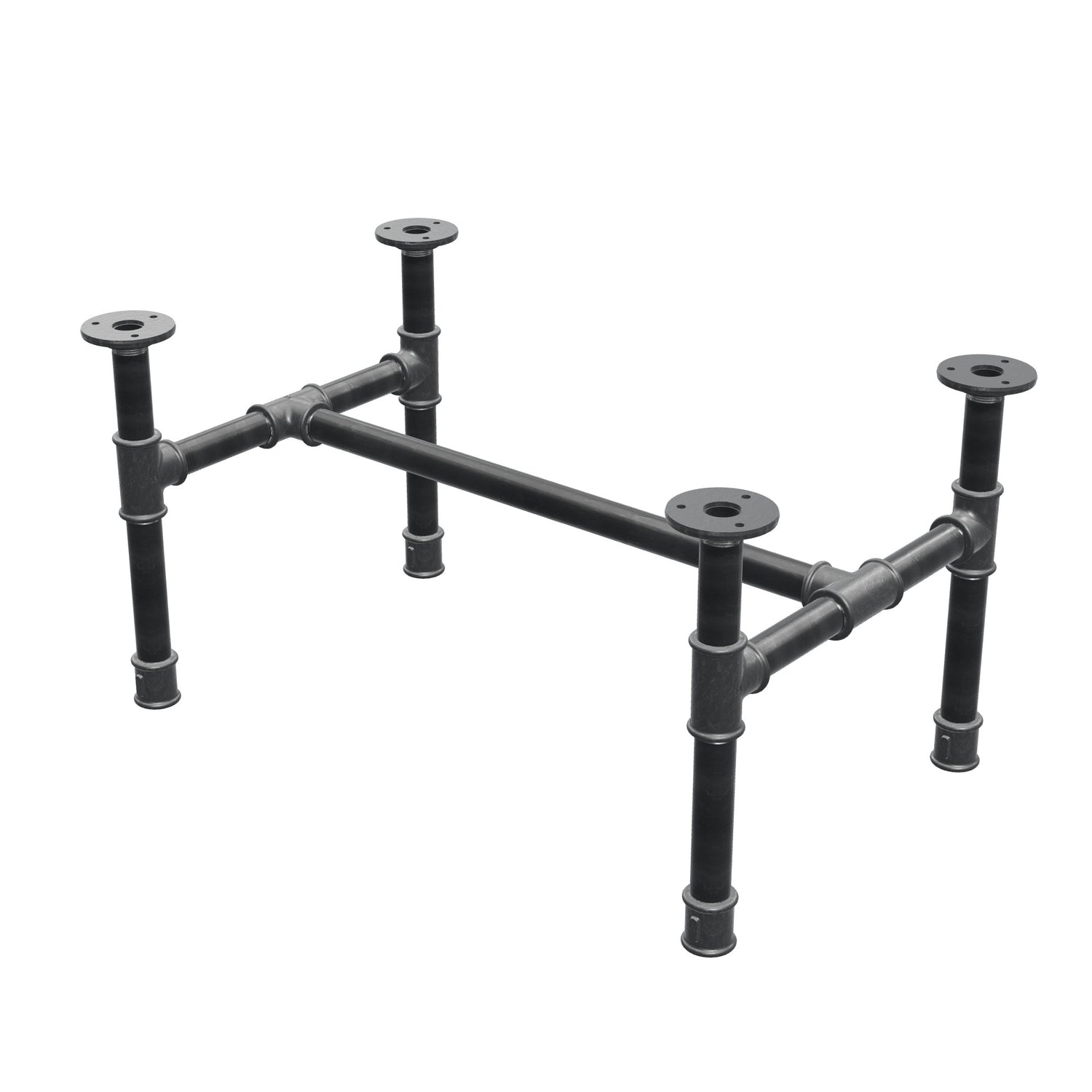

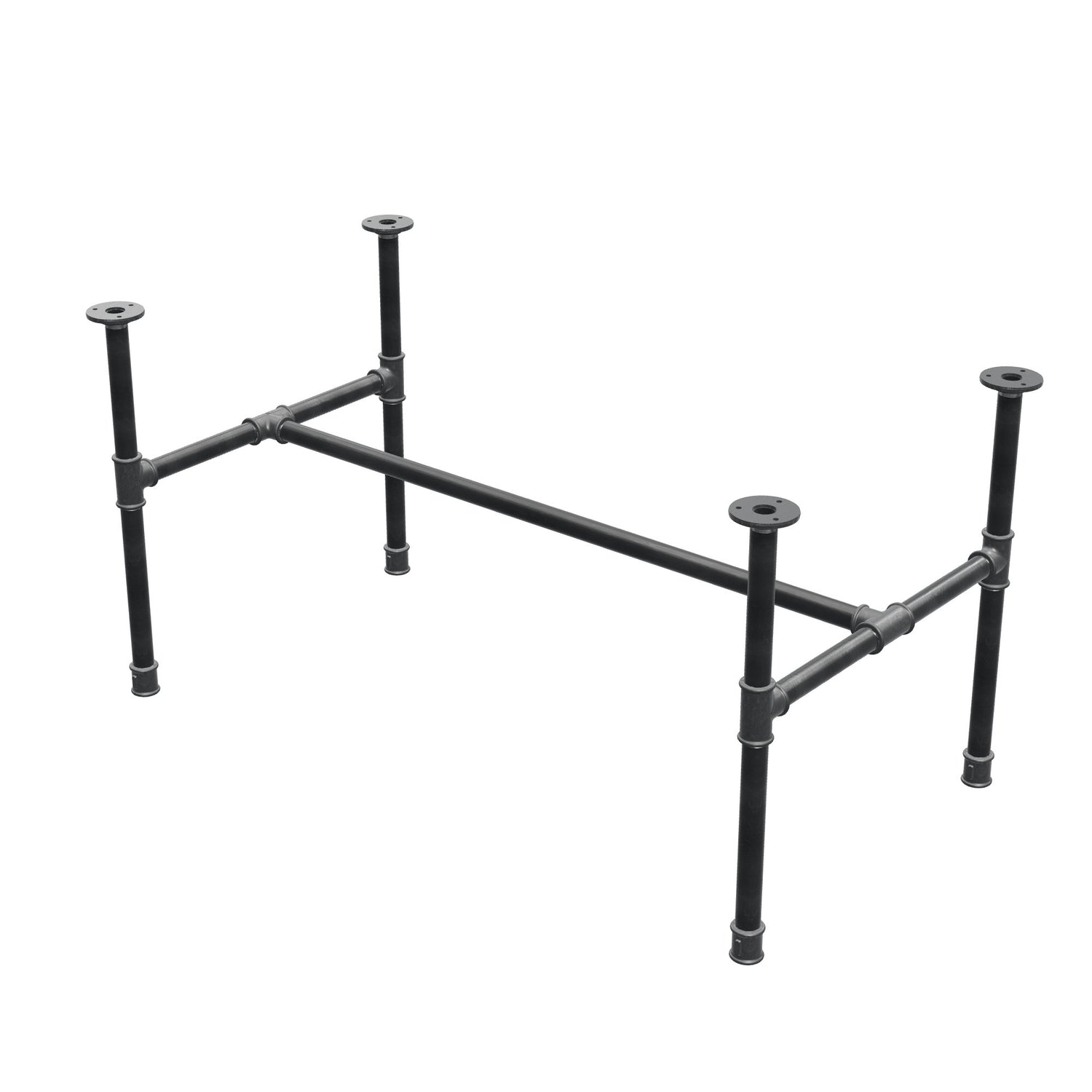

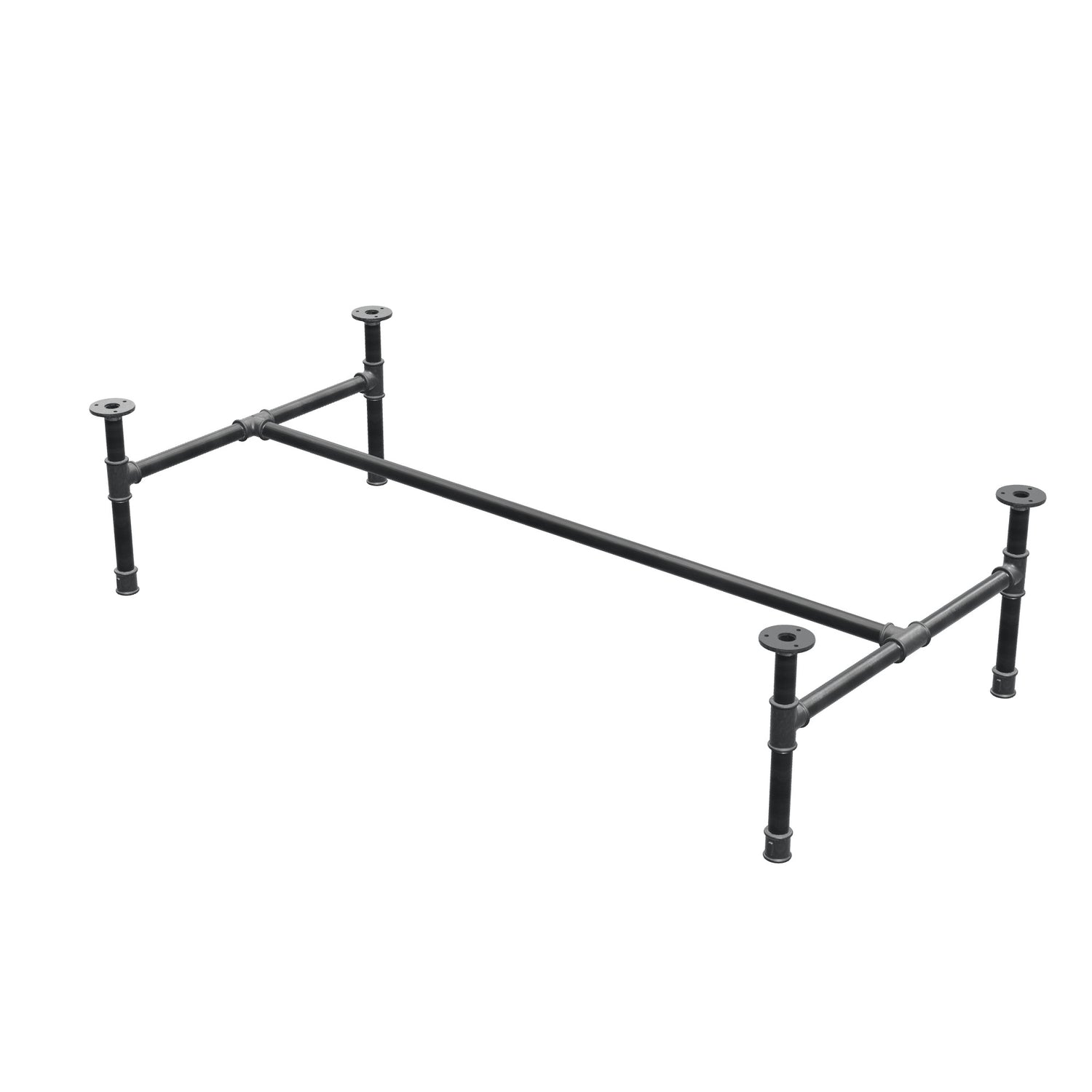

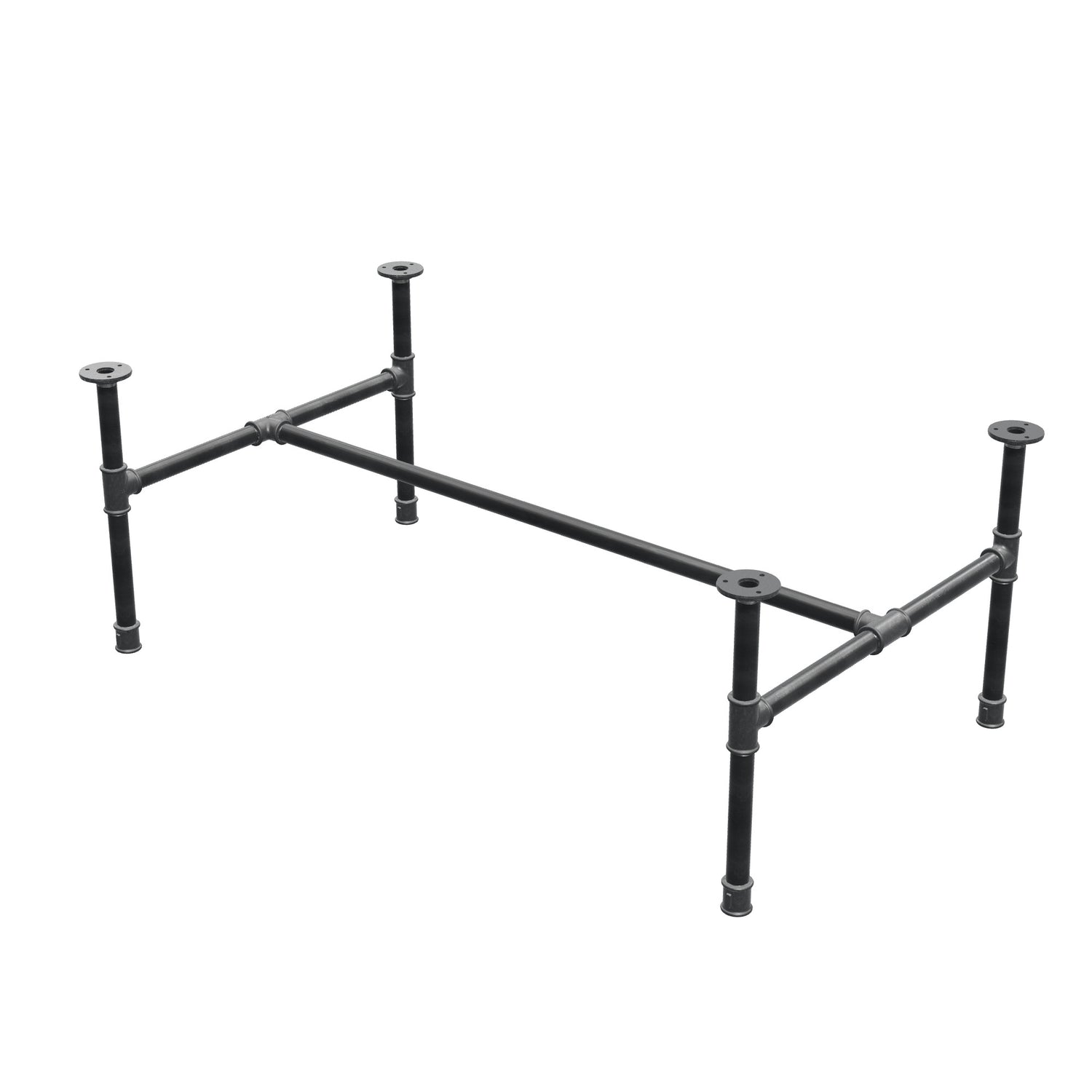

Industrial cast iron coffee table base, H-frame

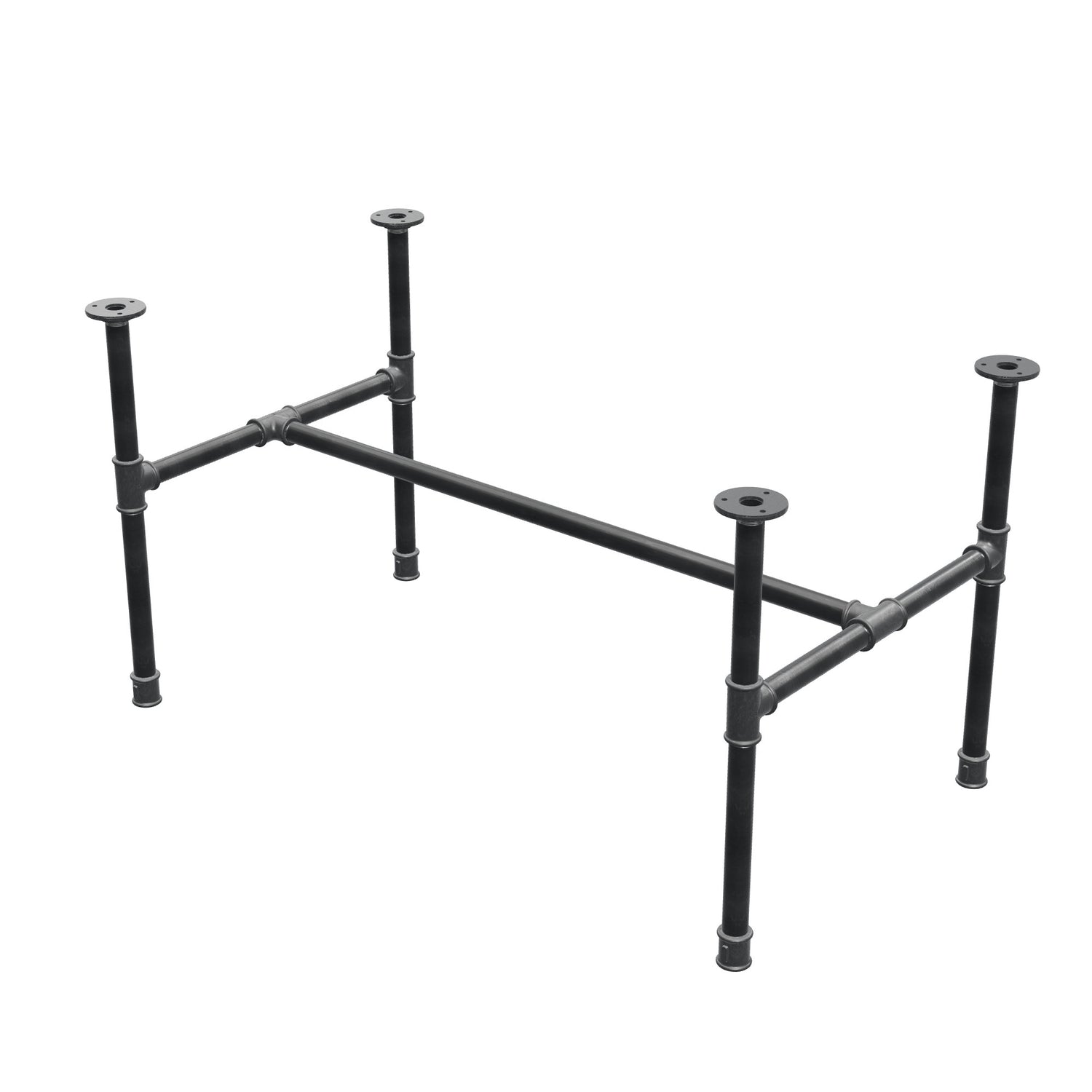

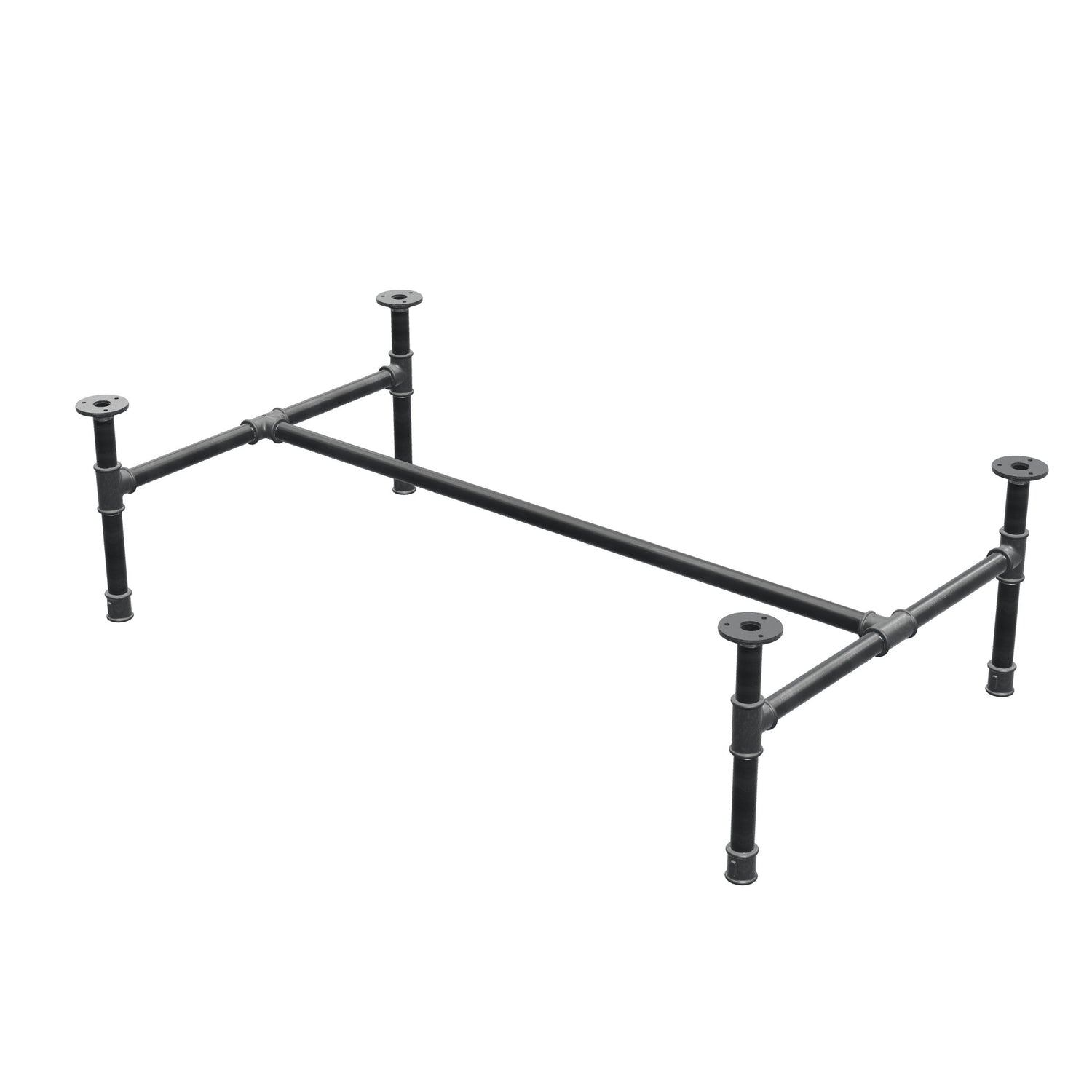

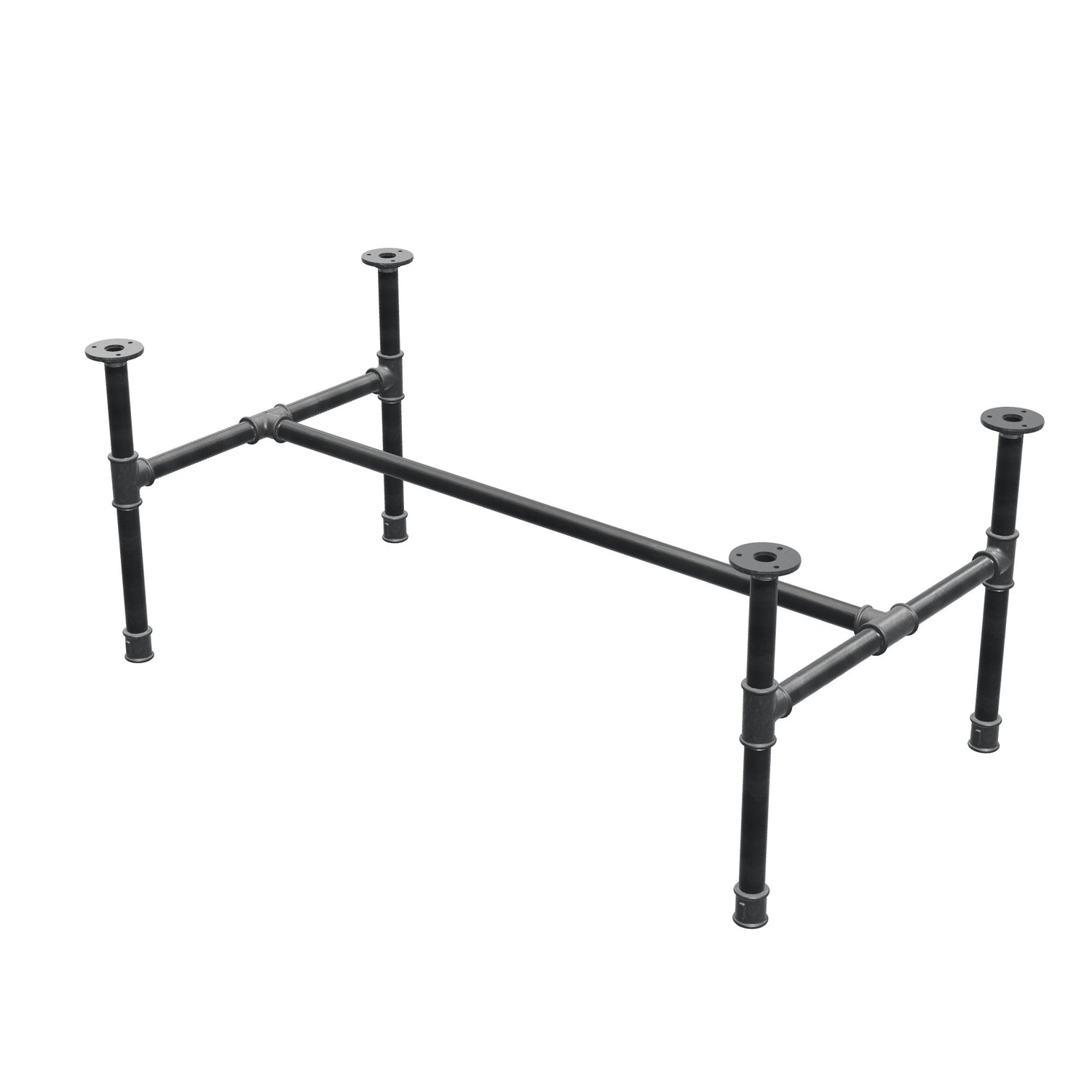

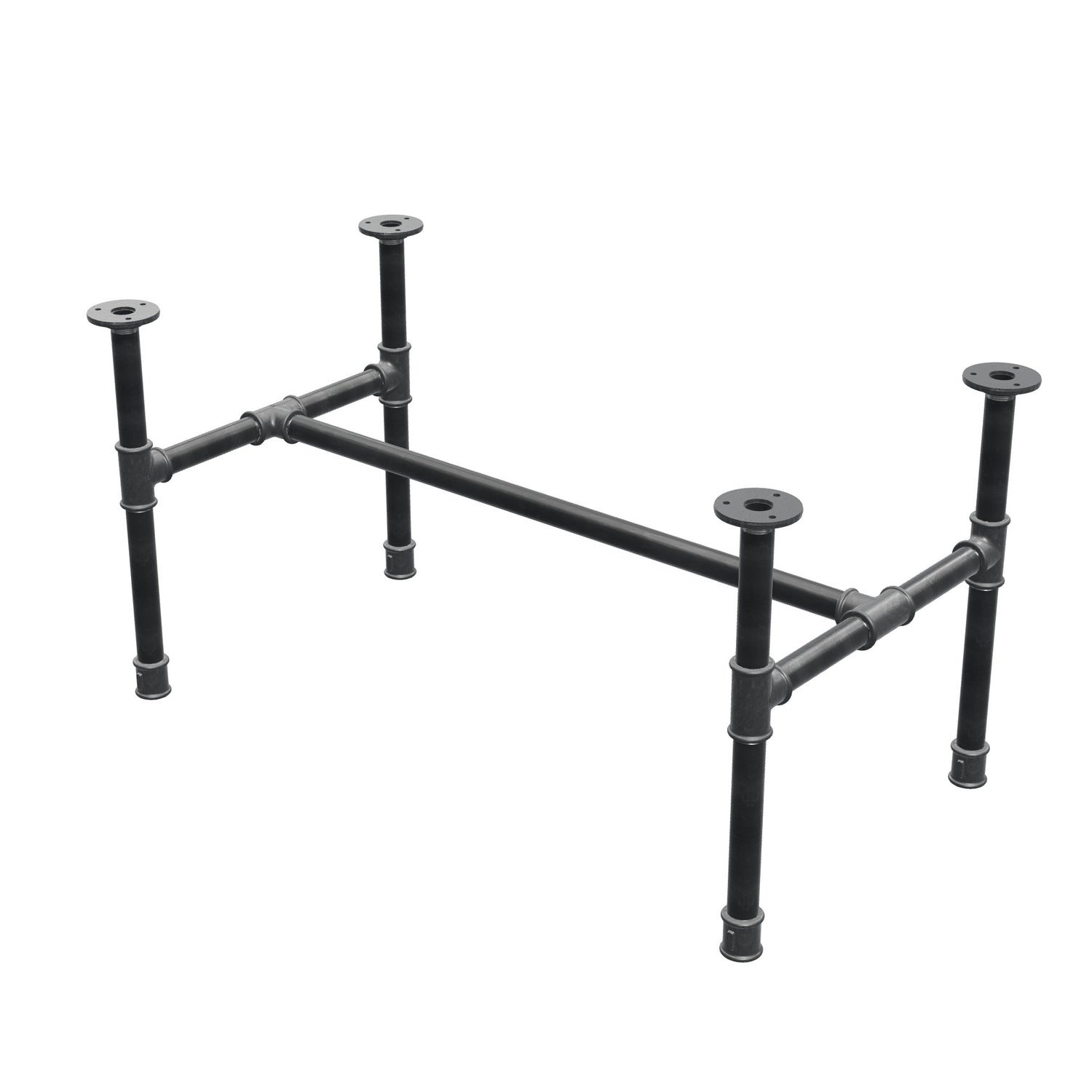

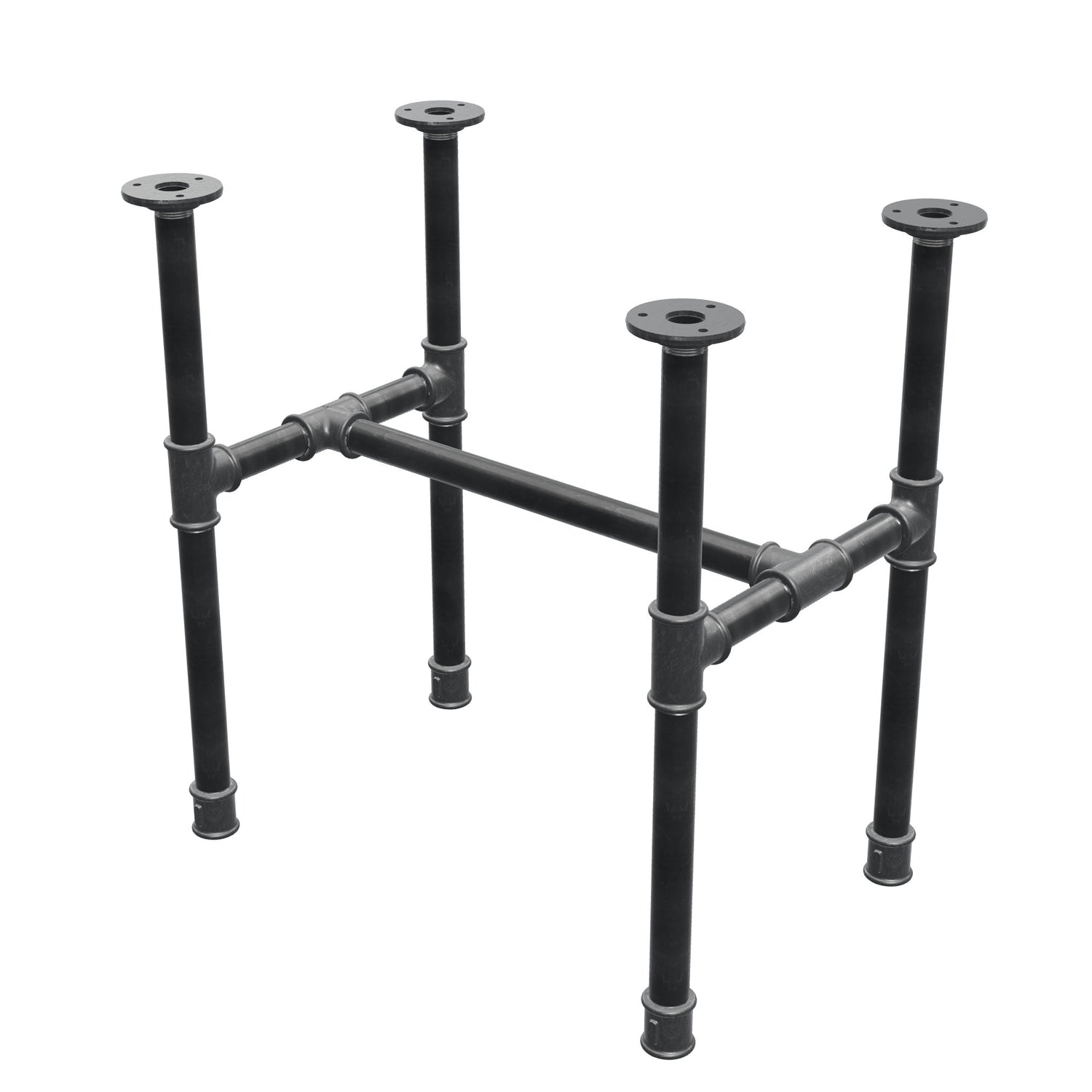

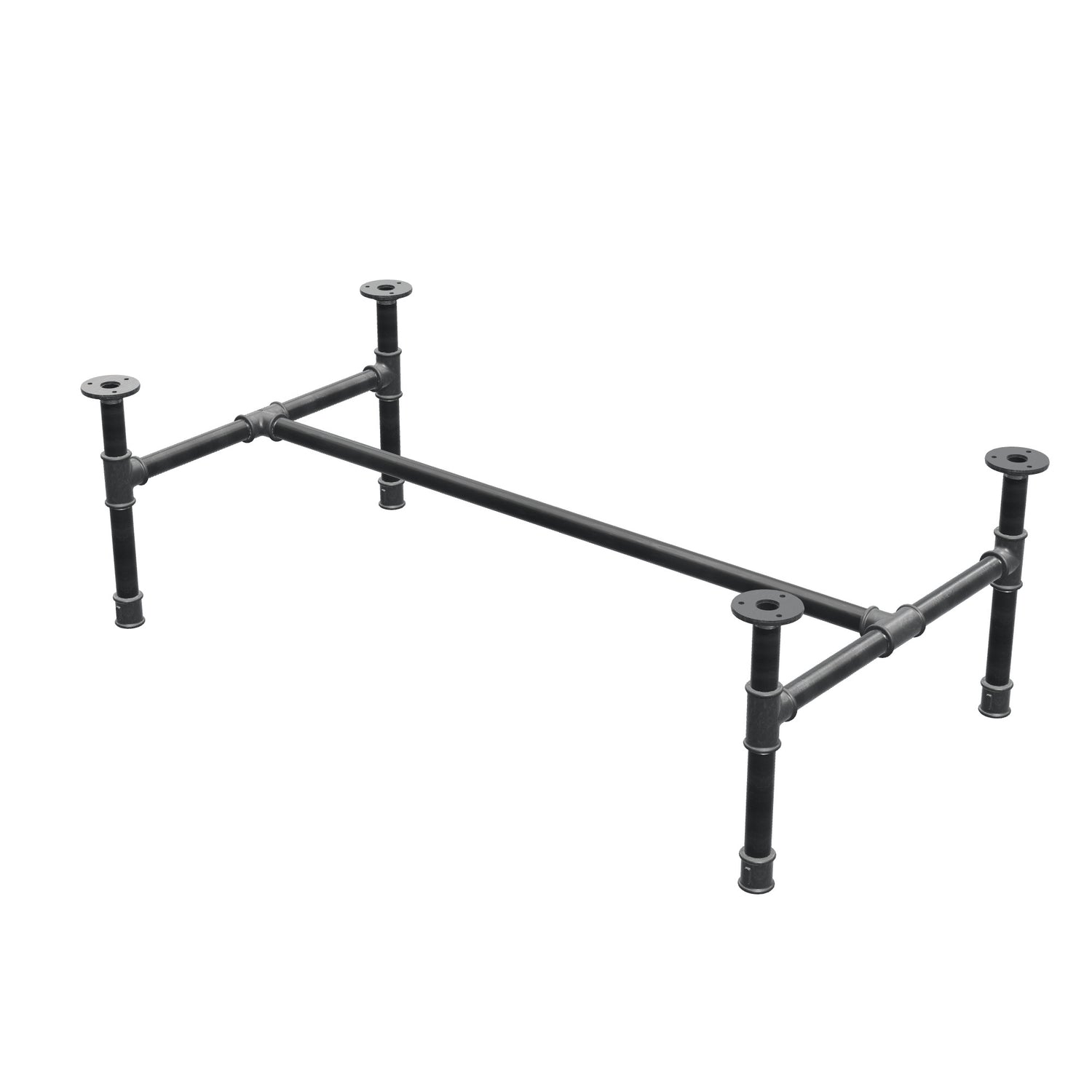

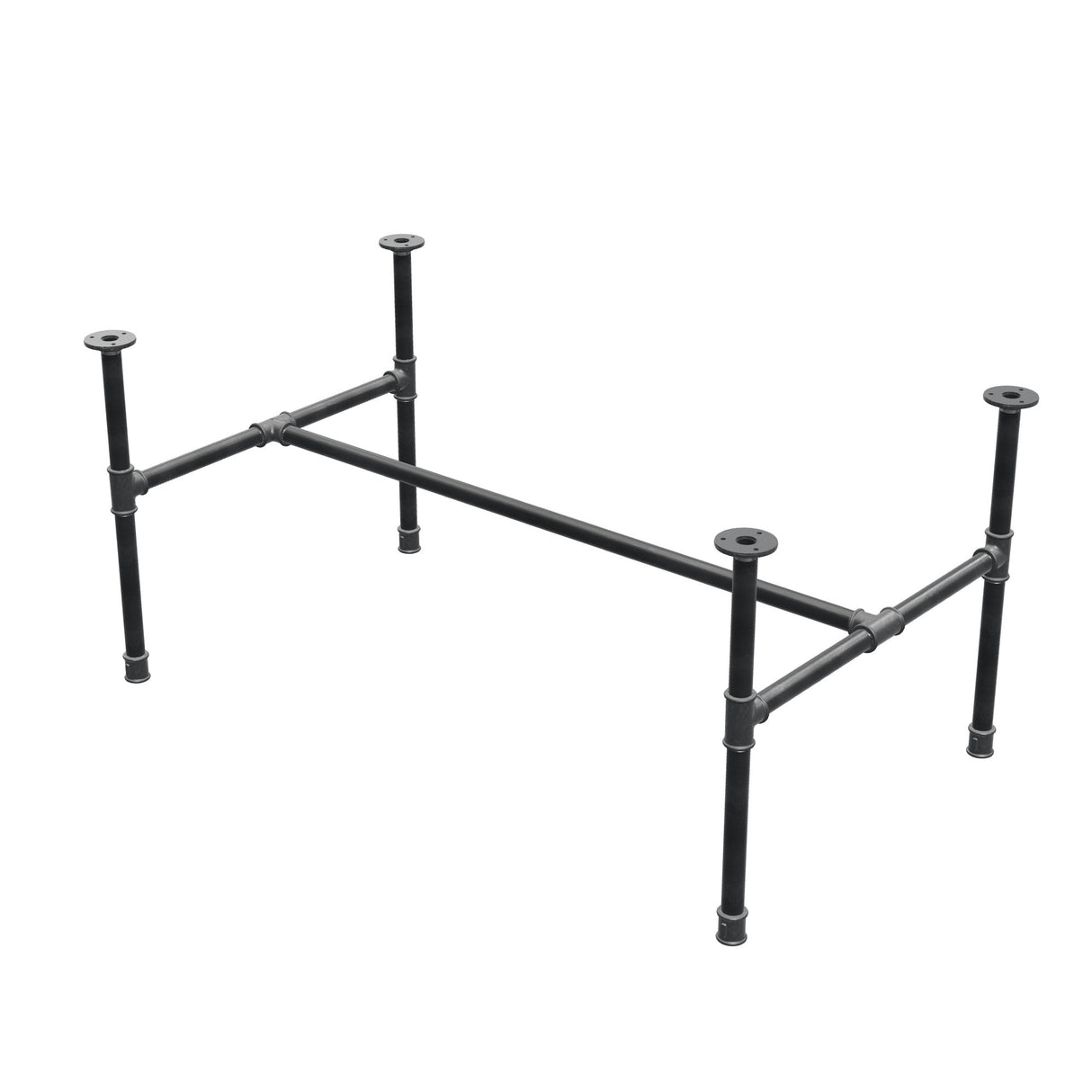

An H-frame for rectangular tabletops
Give your living room real character with this authentically industrial coffee table base, designed for rectangular tops. Its four legs, connected by two side rails and a central bar forming an H, create a sturdy, strikingly geometric base on which you fix the top of your choice (wood, glass…). End table, side table or full-size coffee table: build the piece that suits your loft, workshop or steampunk interior.
An Authentic Industrial Character

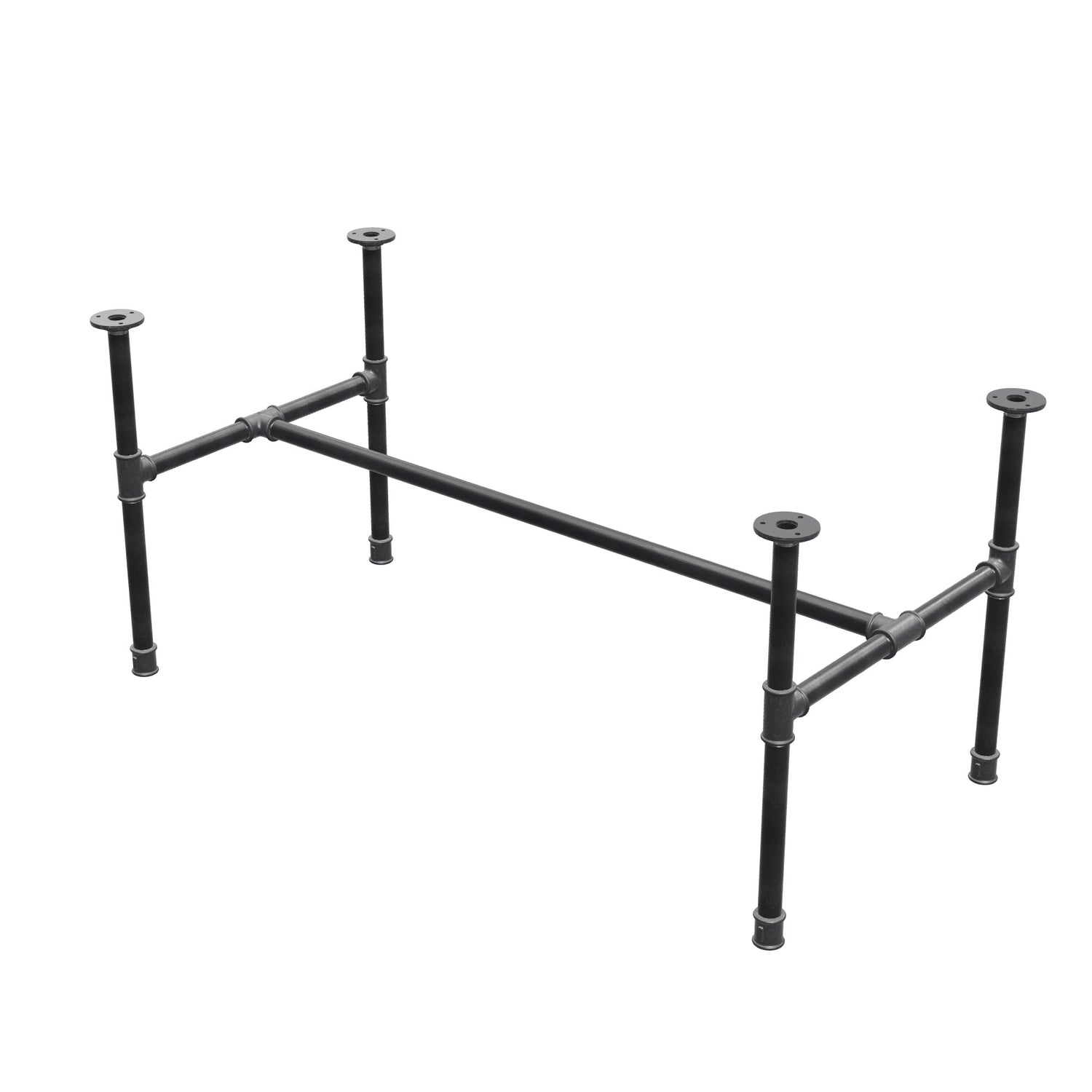

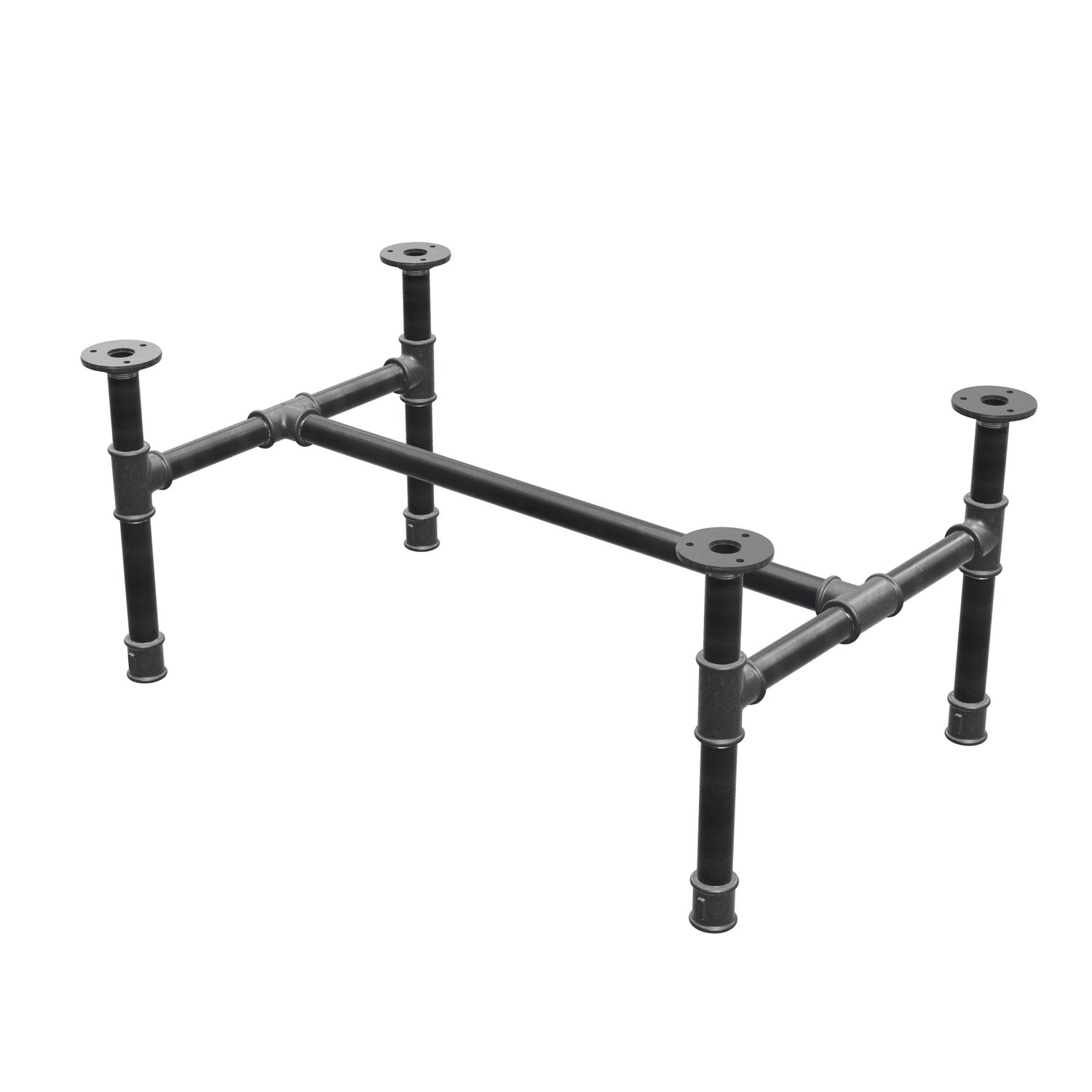

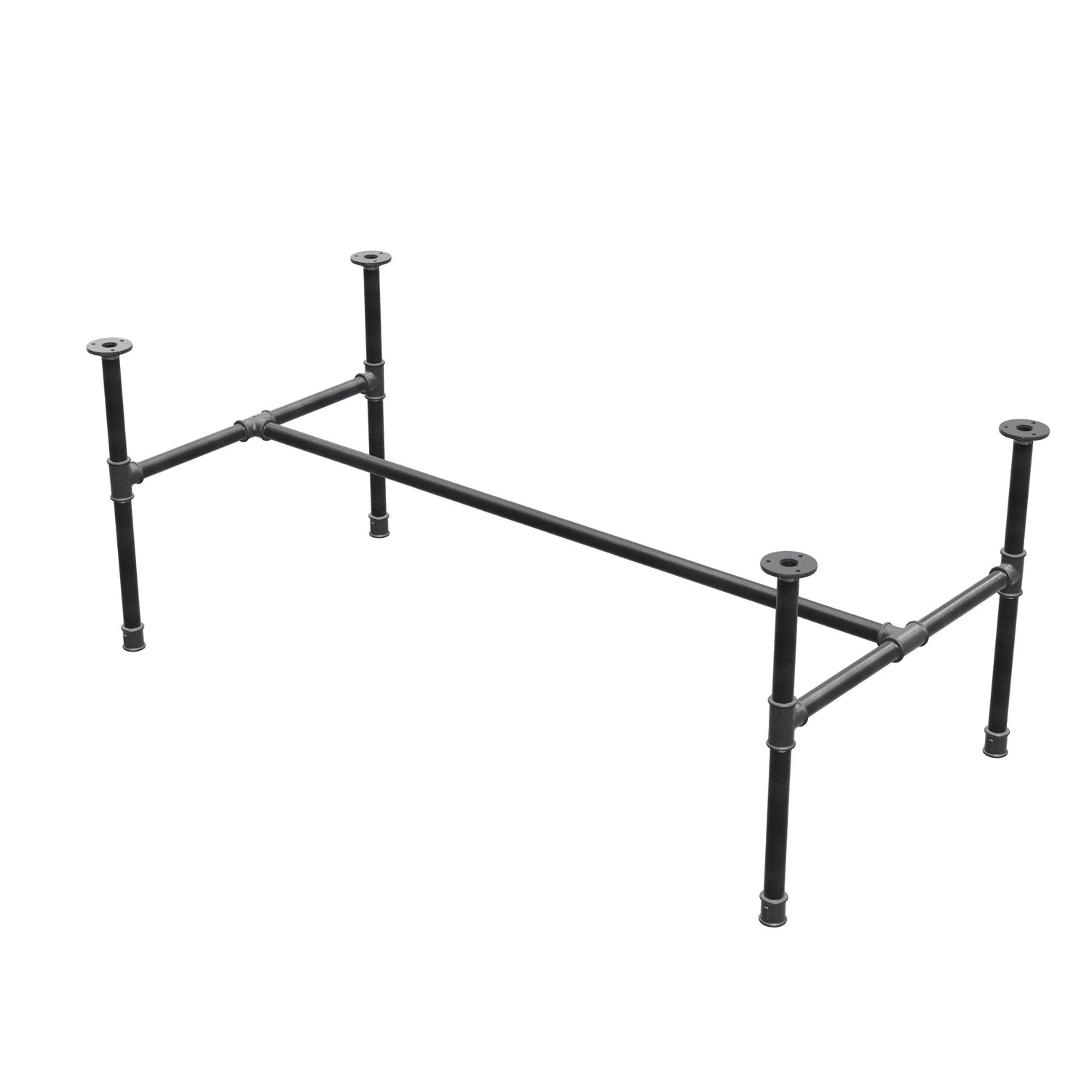

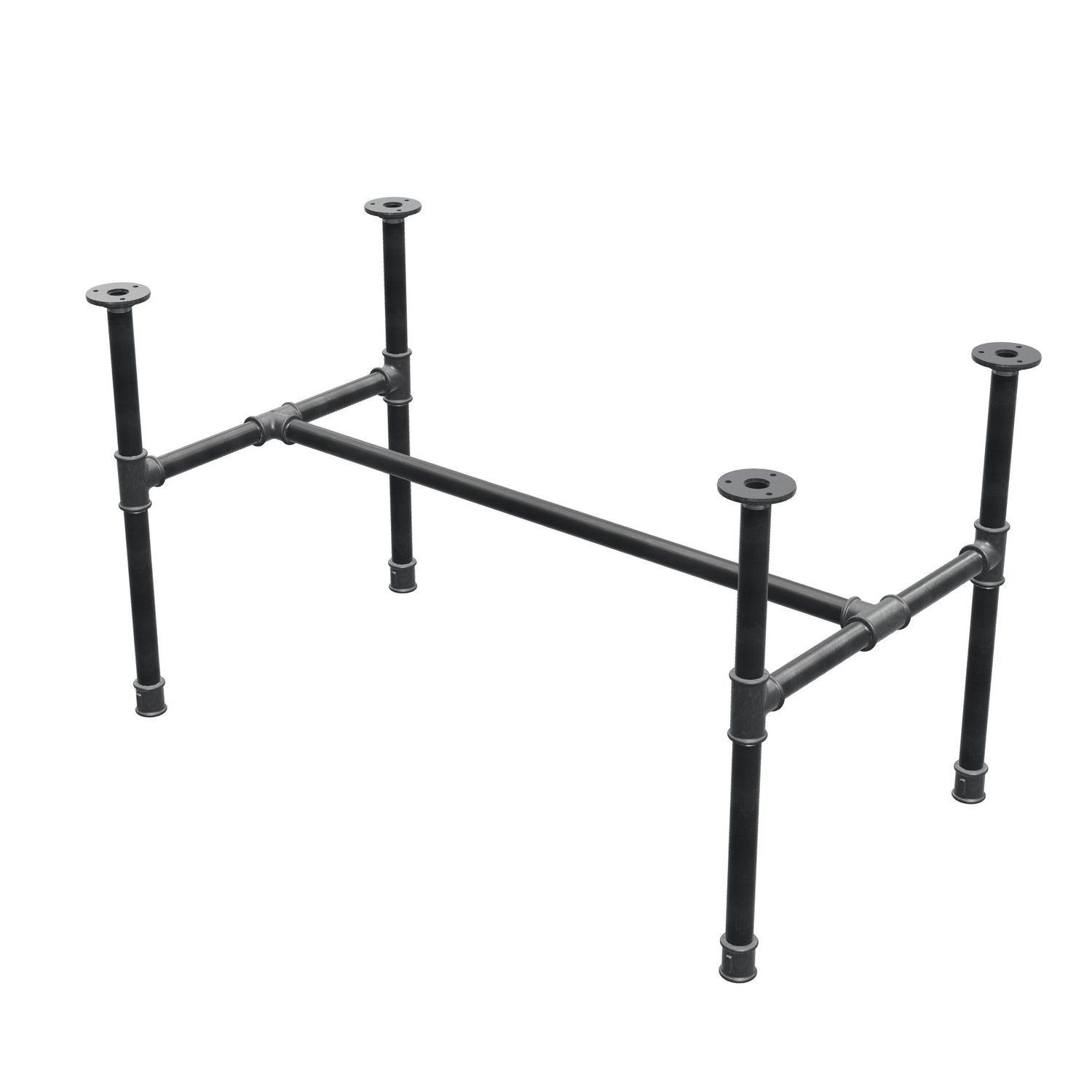

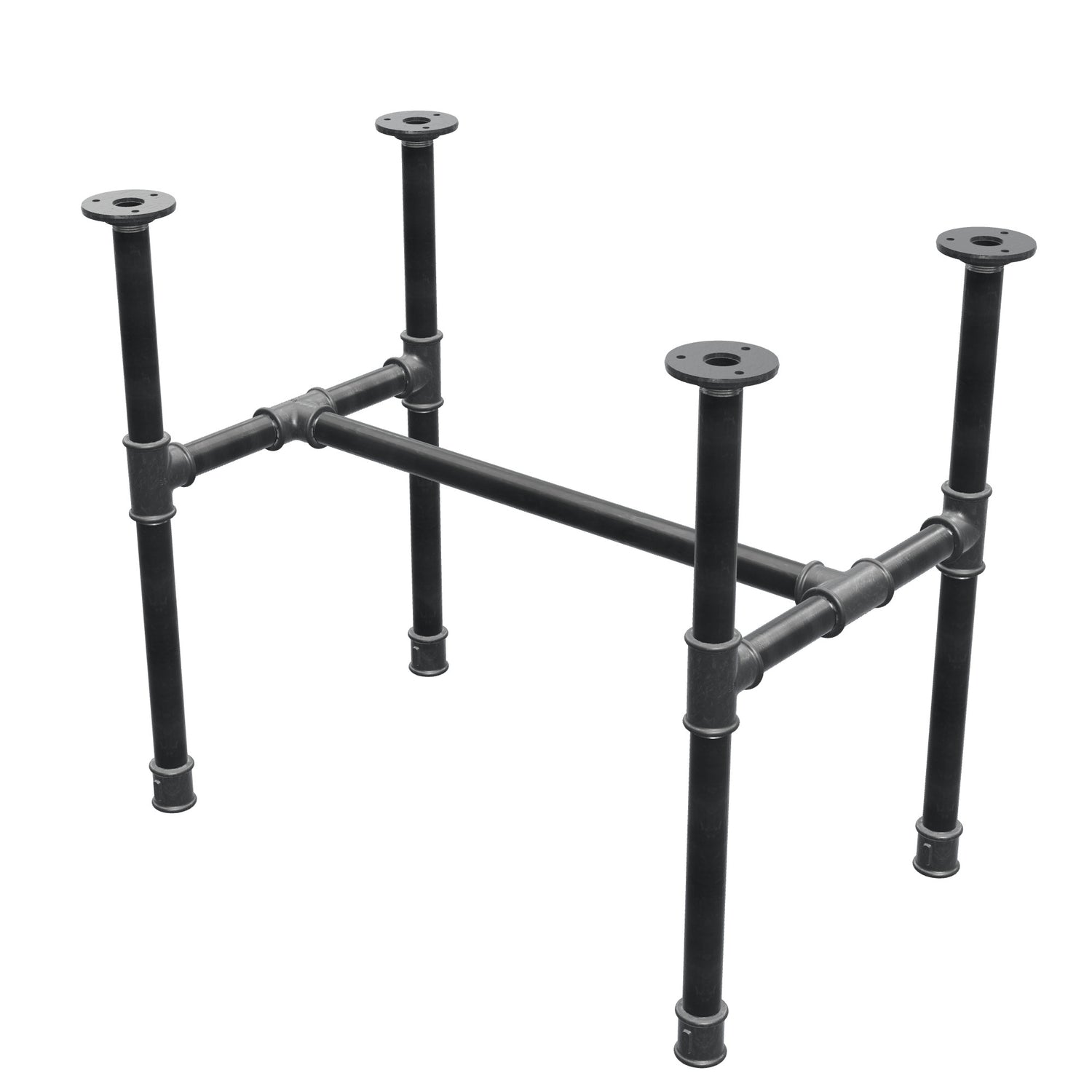

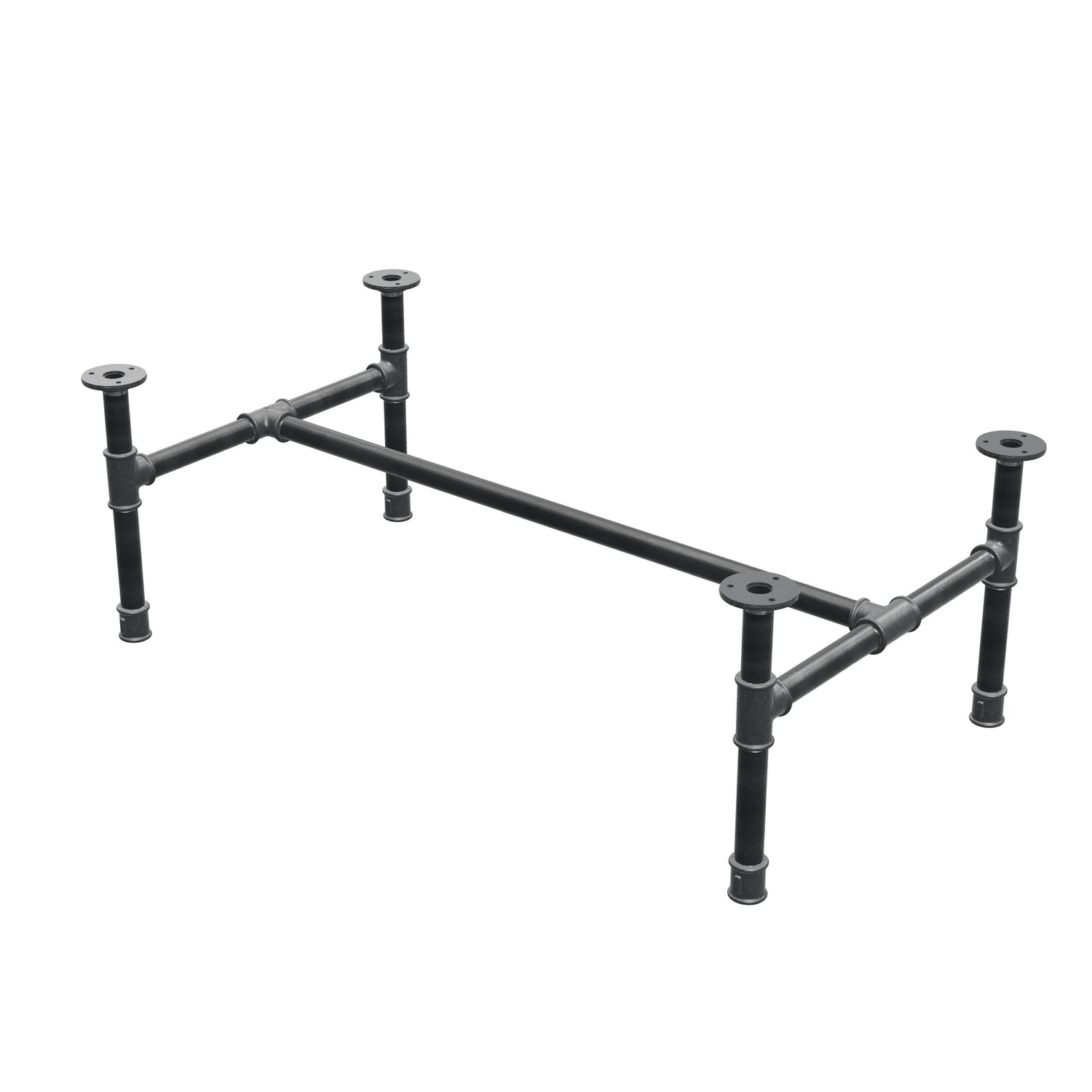

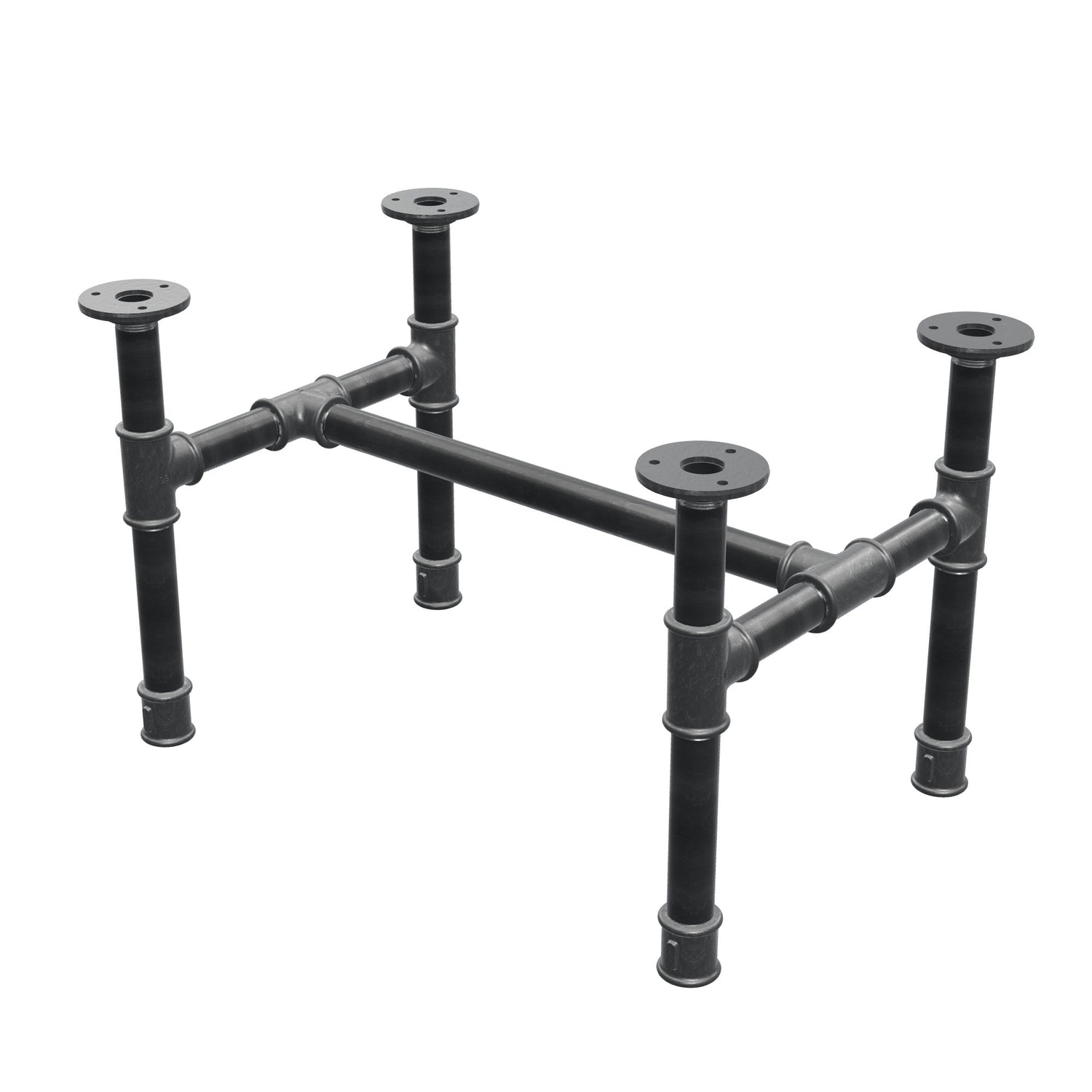

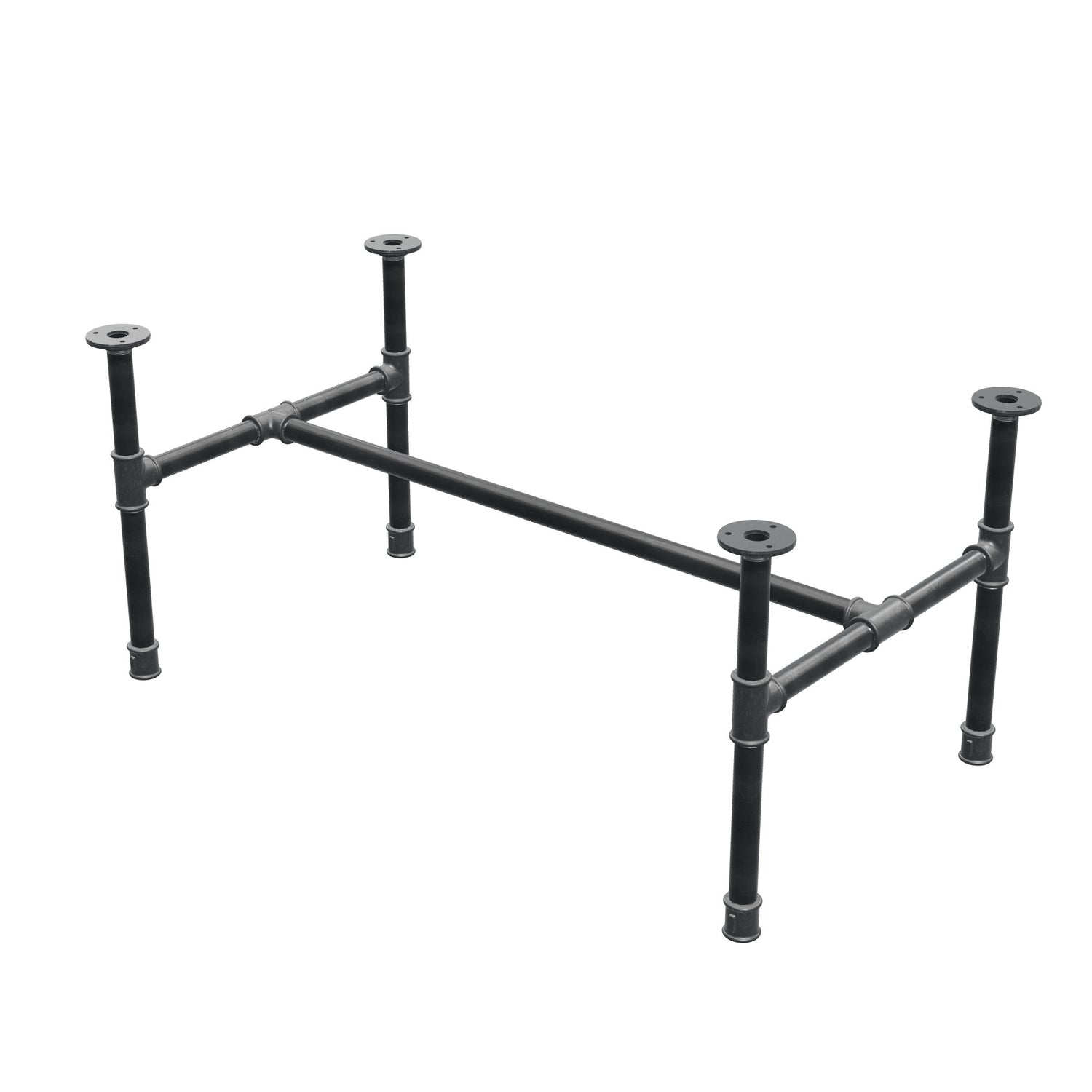

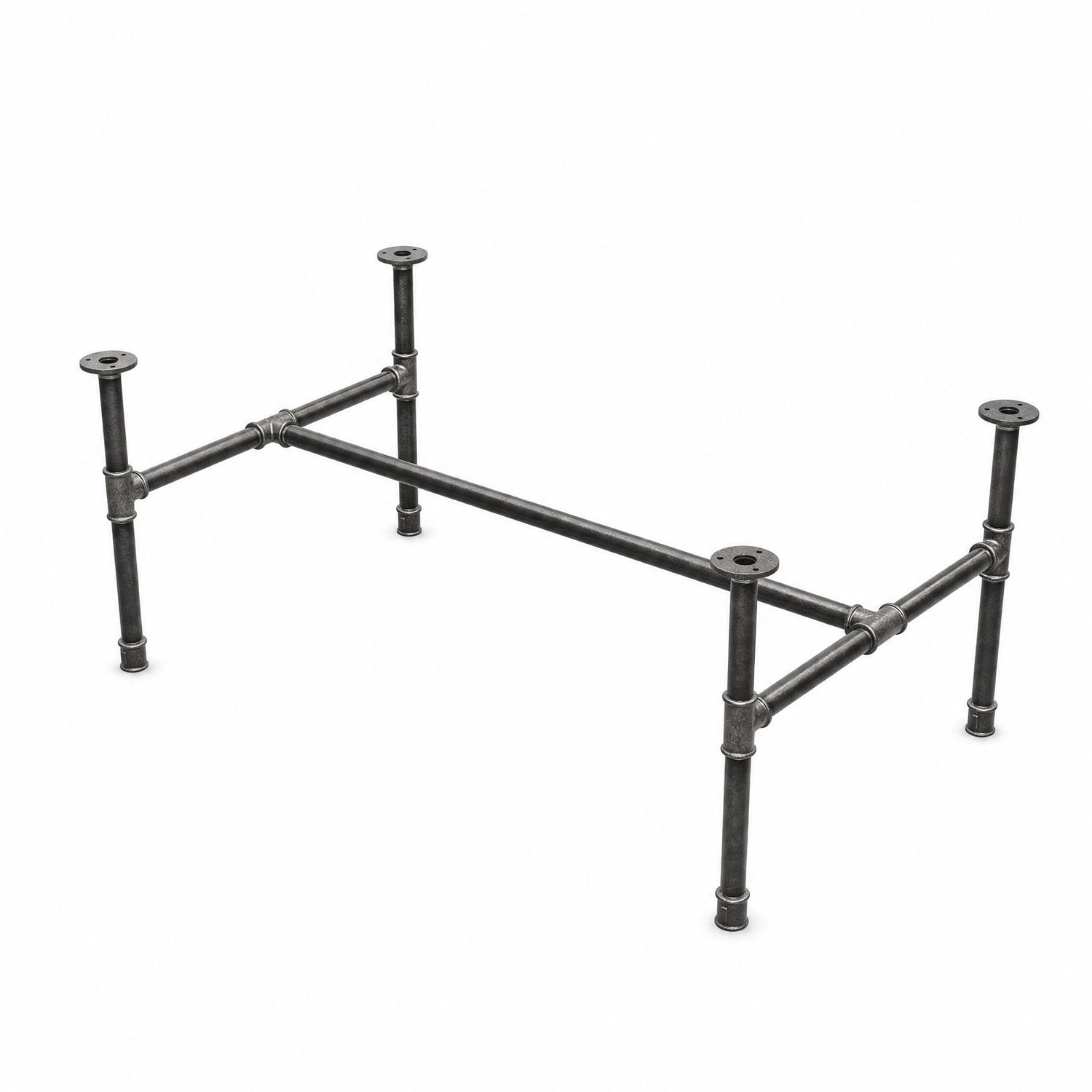

Handmade in Annecy, France, from genuine plumbing fittings, every base is unique. Four legs (flange, pipe, tee, pipe and coupling) are joined in pairs by side rails, themselves connected by a central bar: a screw-assembled H-frame with no welding, solid and durable. The leg couplings are fitted with black plastic inserts that protect your floors.
Choosing the right size and height
Size follows the tabletop you plan to fit: allow an overhang of 8 to 15 cm on each side. A 91 × 51 cm base therefore carries a tabletop of around 110 × 70 cm. The smaller the overhang, the steadier the table.
Height follows your seating: 32 cm for a low-slung living room, 42 cm for most sofas — the most versatile — and 52 cm for a deep sofa or an end table. The figure given is for the base alone: add the thickness of your tabletop for the finished height (42 cm + a 3 cm top = 45 cm).
Key Features
Available in 30 size combinations (rectangular footprint) — choose yours above: length/depth from 51 × 35 to 131 × 65 cm, height 32, 42 or 52 cm.
Colour: anthracite grey, clear varnish finish
Materials: cast iron and steel
Top: not included — the flanges are drilled with 3 holes to screw on the top of your choice (wood, glass…)
Flange centre distance: roughly the dimension minus 7.5 cm (in both length and depth), to position the top
Floor protection: black plastic inserts under each leg
Assembly: delivered part-assembled — a few fittings to screw together on arrival, then fix your tabletop to the flanges
Weight: 5.4 to 8.9 kg depending on size and height (table below)
Details and Specifics
The metal is protected by a clear varnish that keeps its raw look; clean with a soft, dry cloth, without water or abrasives. For indoor use only.

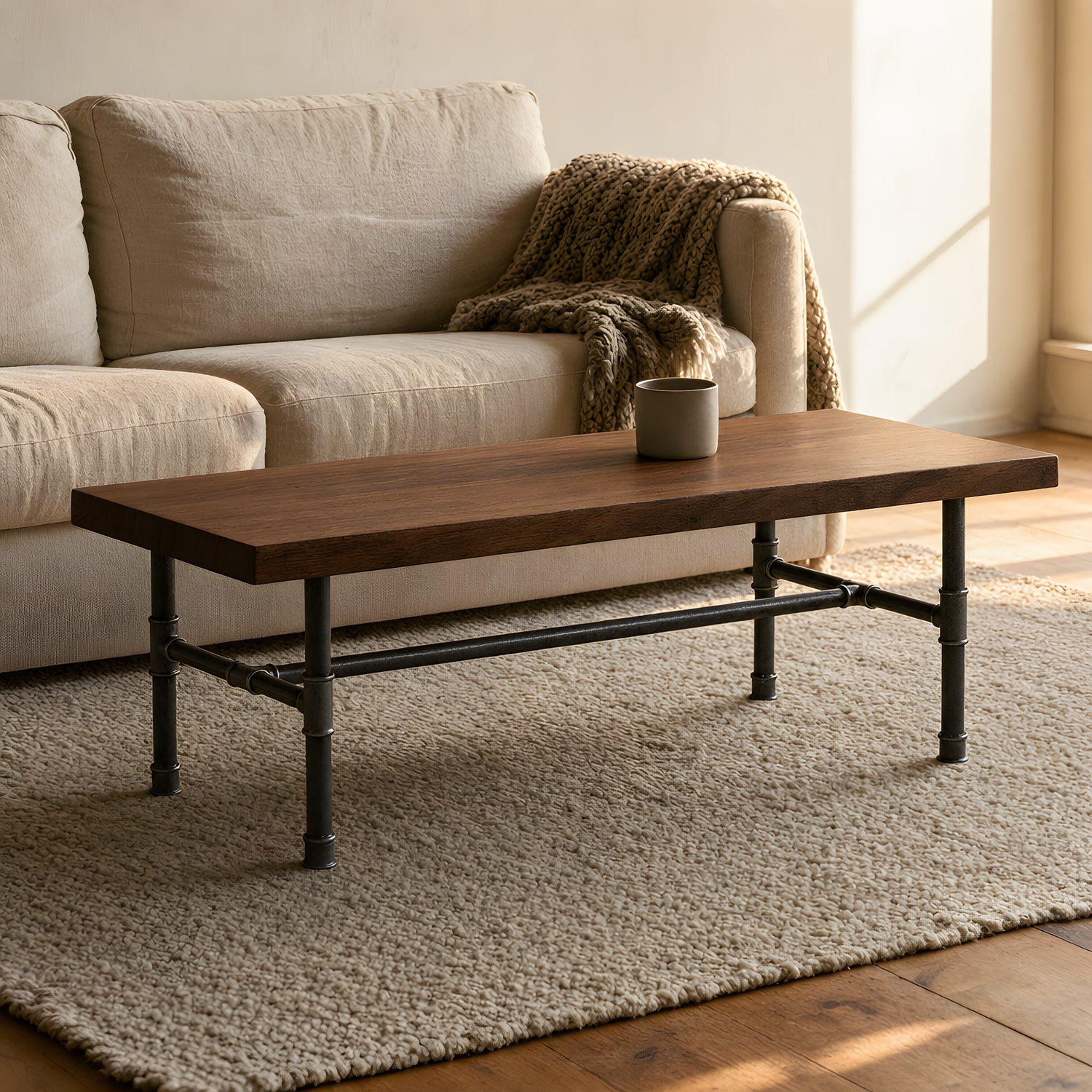

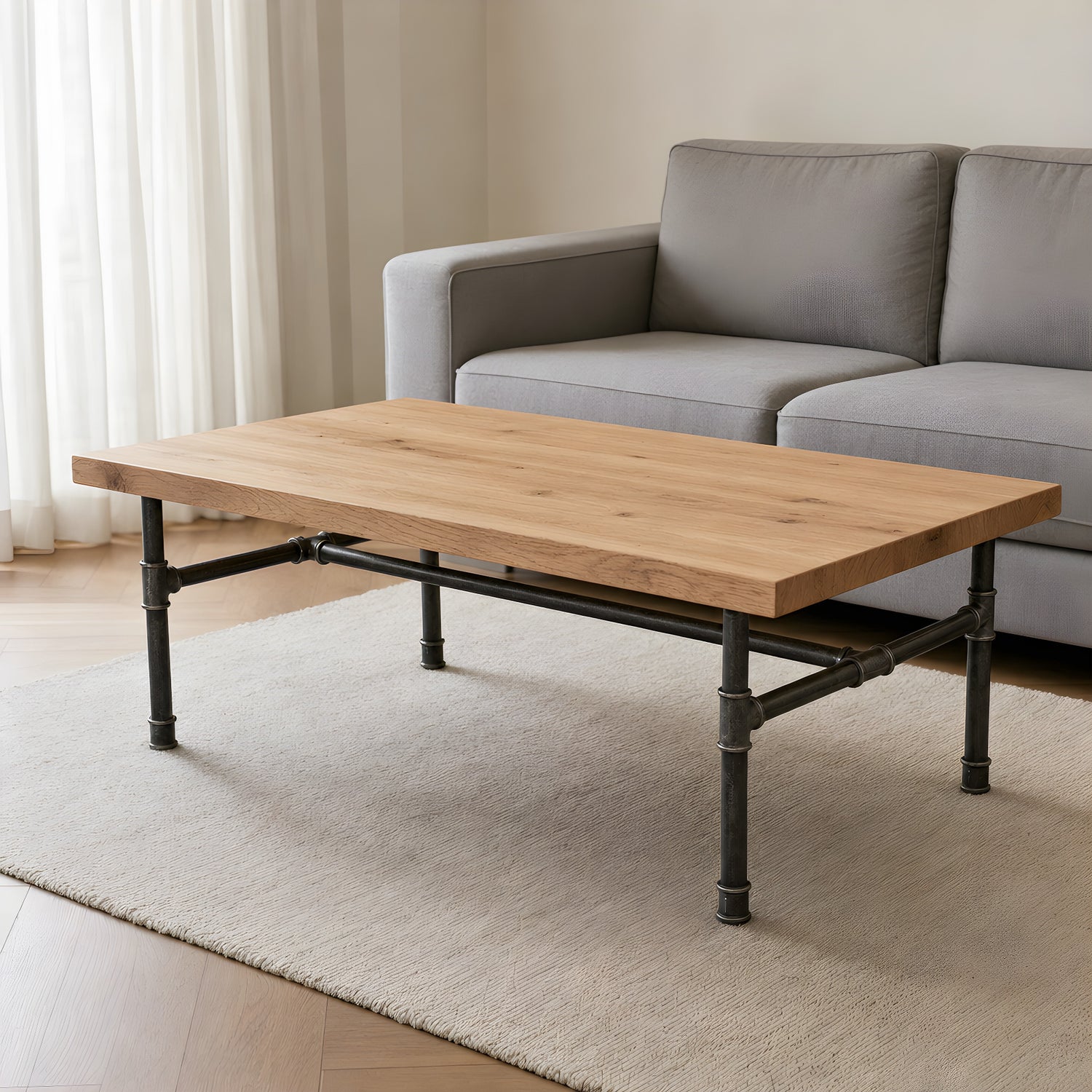

Photos showing a top are for illustration only: the top is not included.
The materials may show slight differences in appearance compared to the photographs. These imperfections, which make each piece unique, are part of the raw, authentic and unmistakably industrial character of every piece sold by Home Invasion.
Made to order in Annecy, Haute-Savoie, France.
Detailed dimensions
The letters refer to the drawings below. All dimensions in centimetres; dimension A is measured from the outer edge of one flange to the opposite flange. Centre distances (B, D) are measured between flange centres — useful for drilling the top.
Tolerance: these are nominal dimensions. How far each fitting is tightened, together with casting tolerances, gives about ±5 mm of variation on each dimension. Measure the assembled base before drilling your tabletop or having it cut.
| Size | A – overall length | B – centre distance (length) | C – overall depth | D – centre distance (depth) |
|---|---|---|---|---|

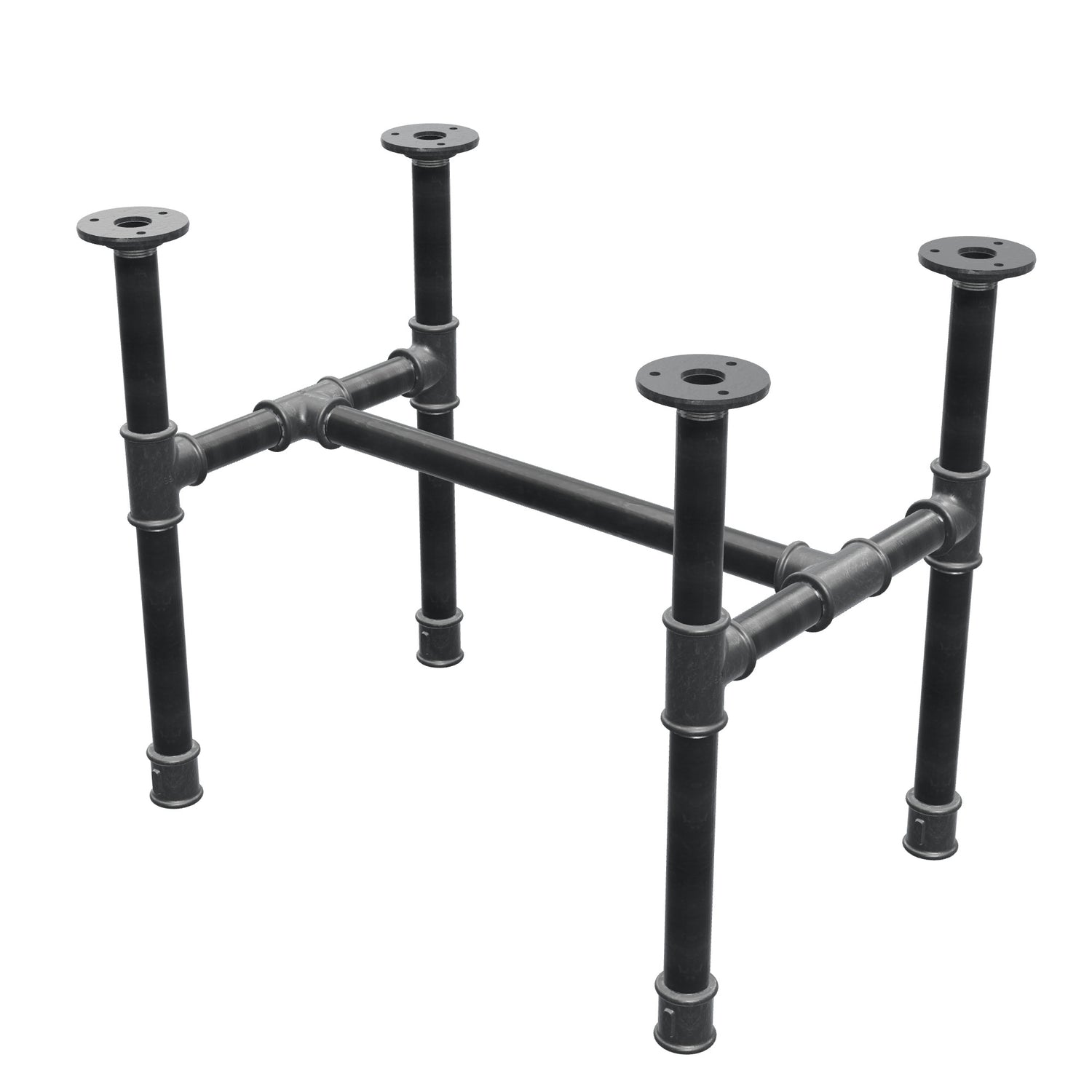

| 51 × 35 | 51.1 | 43.6 | 34.7 | 27.2 |

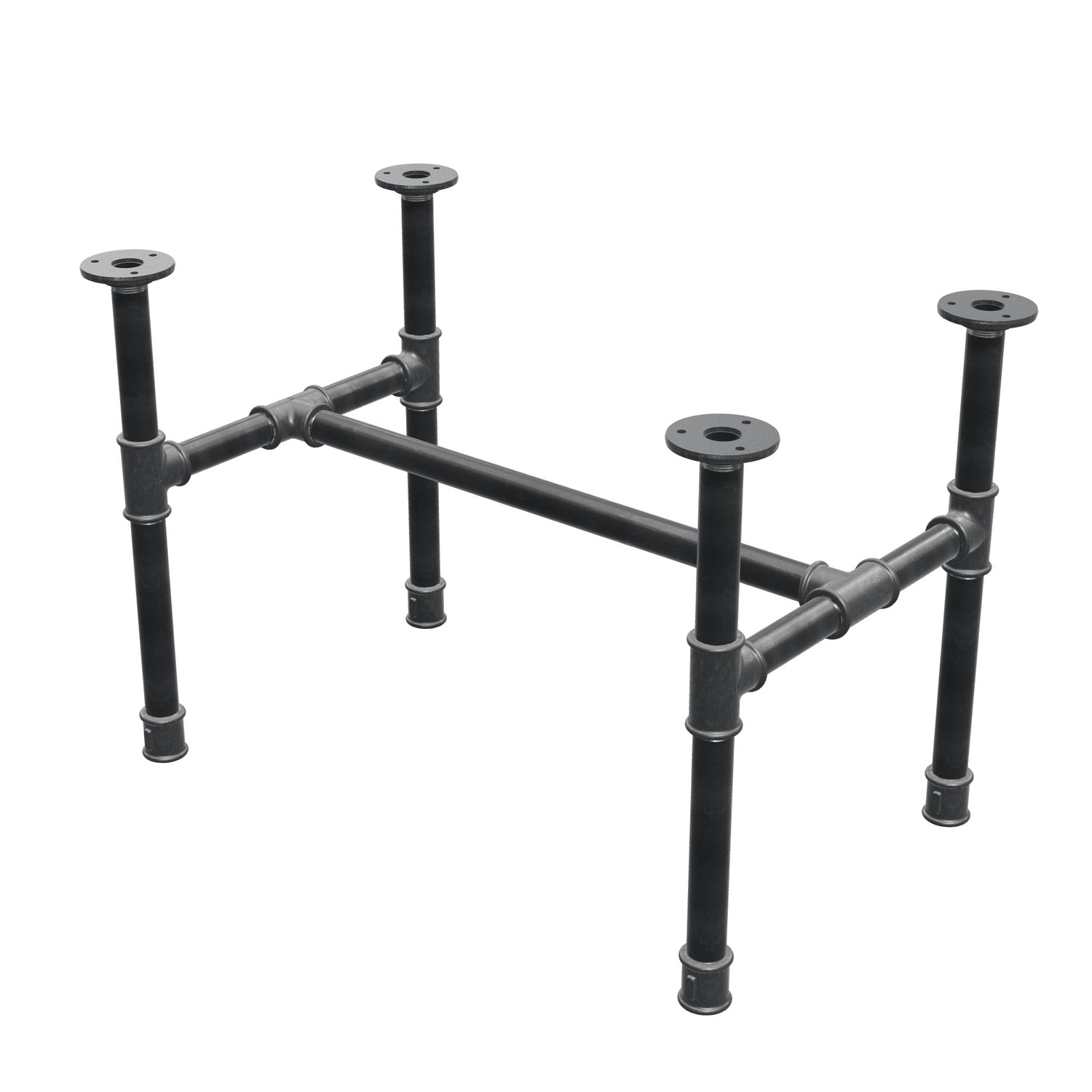

| 61 × 39 | 61.1 | 53.6 | 38.7 | 31.2 |

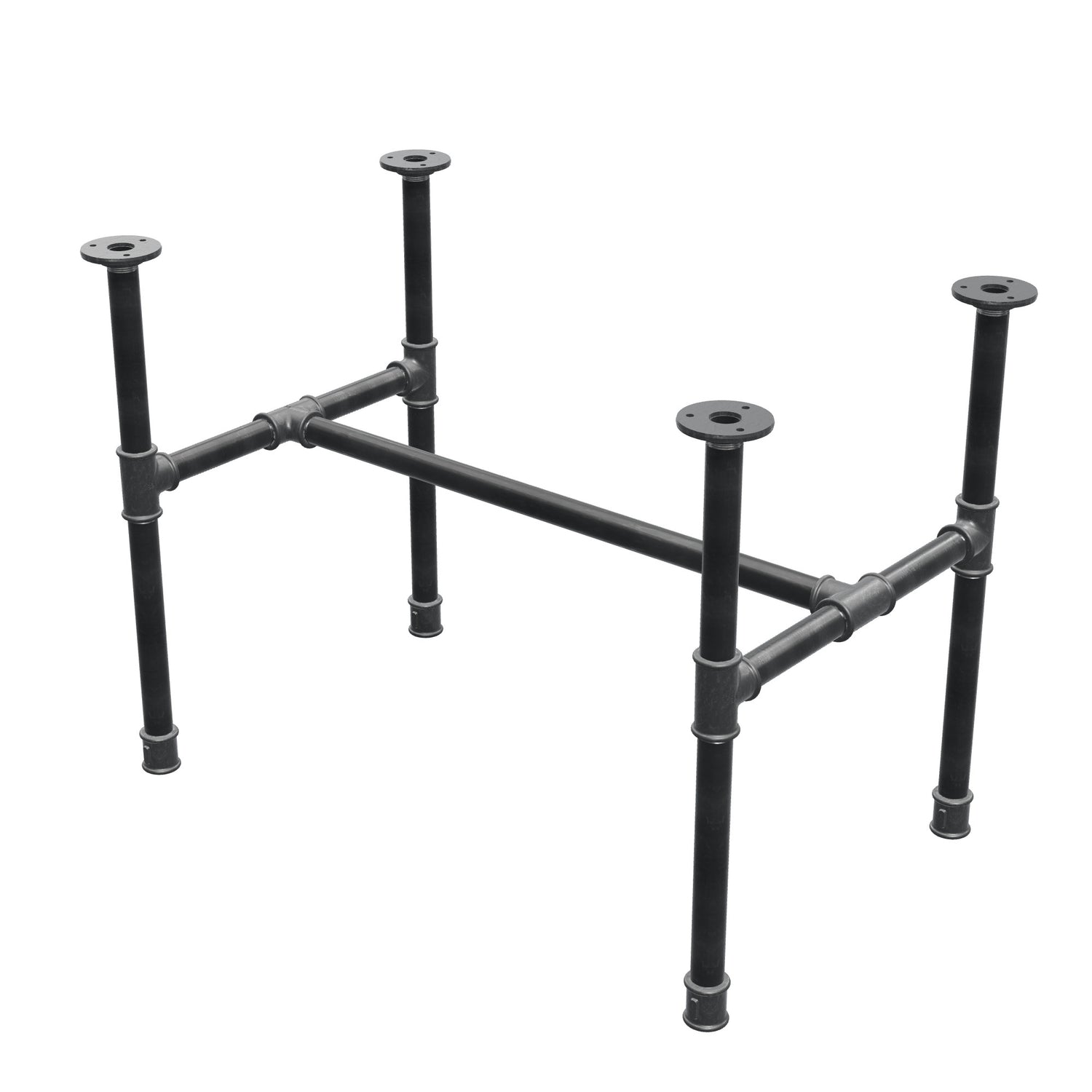

| 71 × 45 | 71.1 | 63.6 | 44.7 | 37.2 |

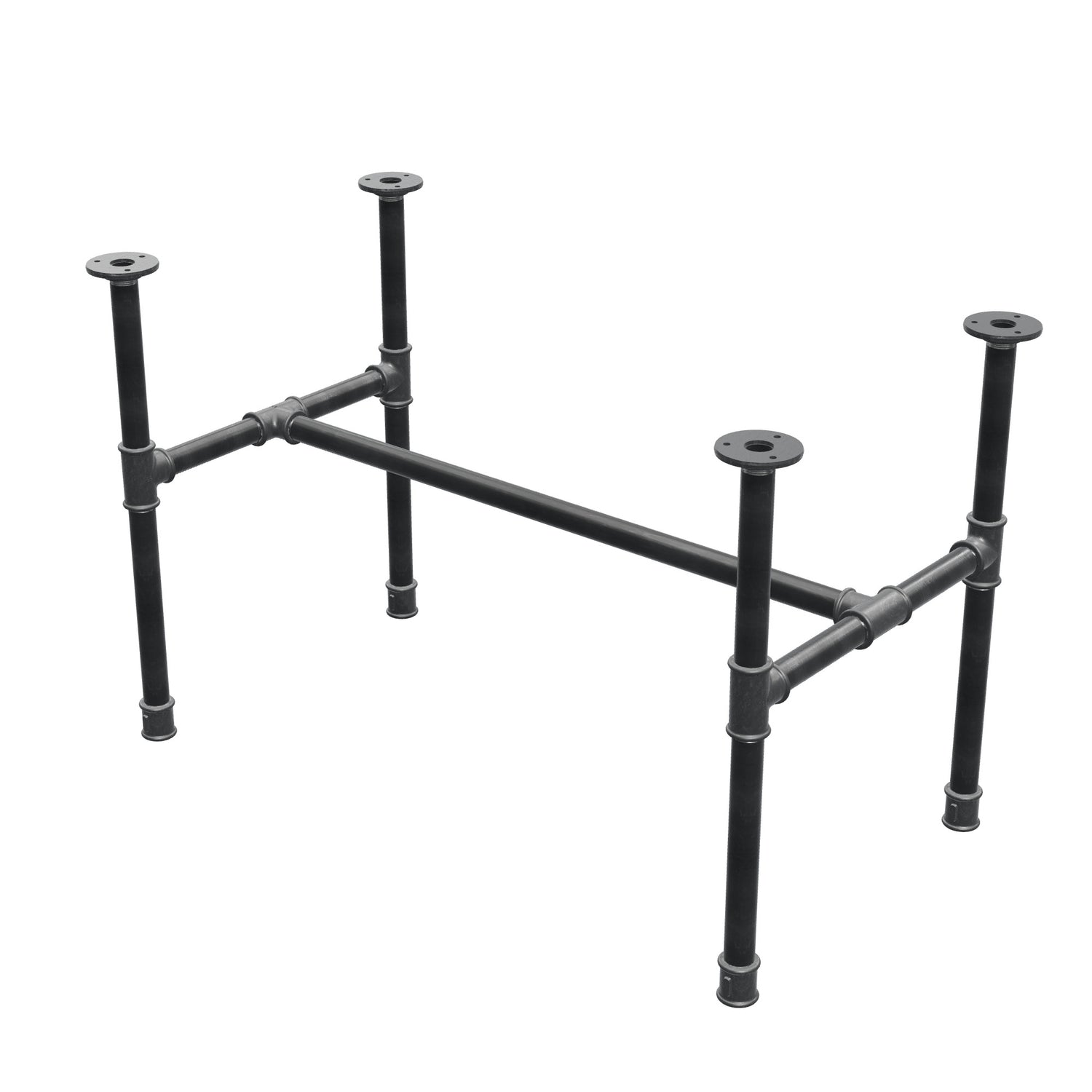

| 81 × 45 | 81.1 | 73.6 | 44.7 | 37.2 |
| 91 × 51 | 91.1 | 83.6 | 50.7 | 43.2 |

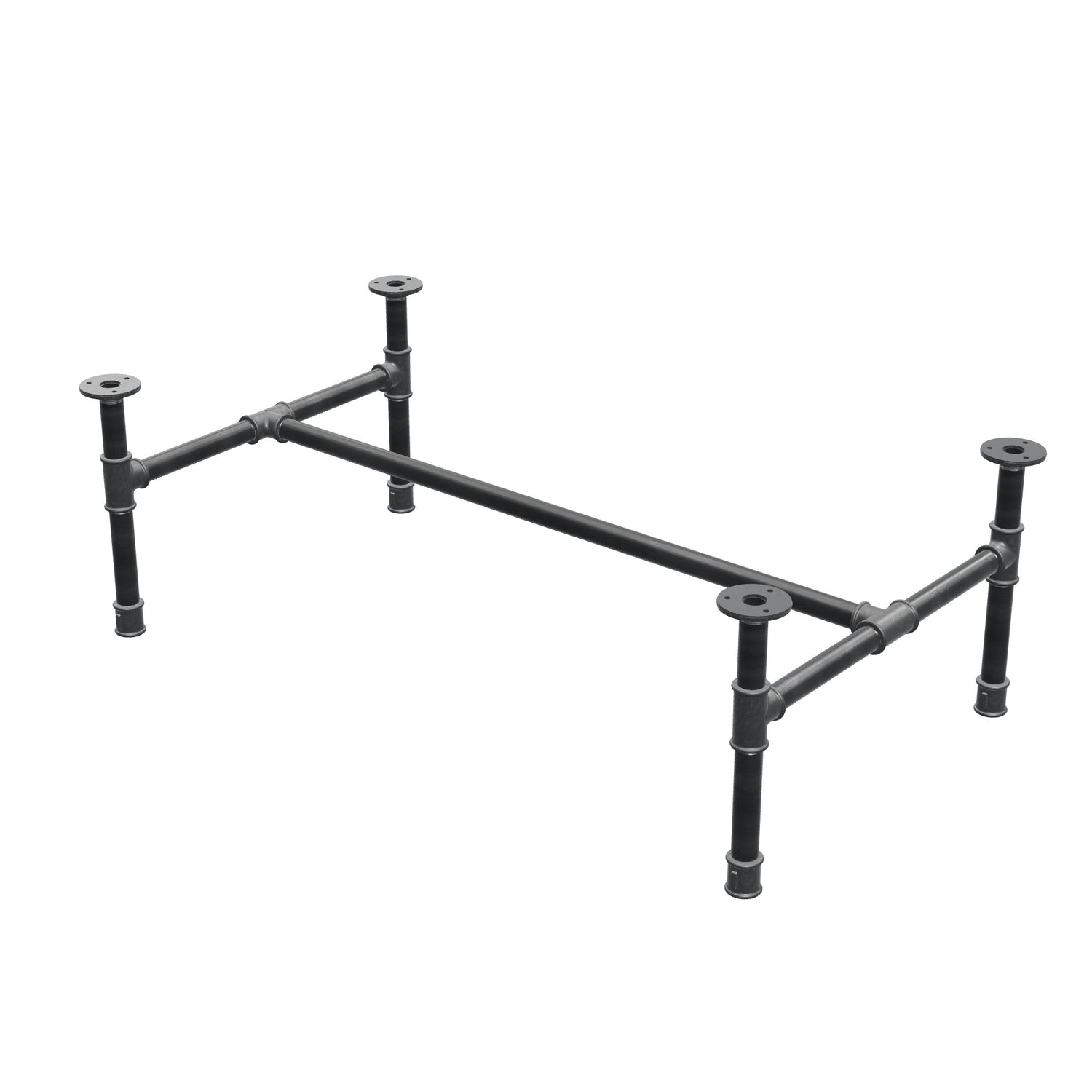

| 96 × 55 | 96.1 | 88.6 | 54.7 | 47.2 |
| 101 × 55 | 101.1 | 93.6 | 54.7 | 47.2 |
| 111 × 55 | 111.1 | 103.6 | 54.7 | 47.2 |

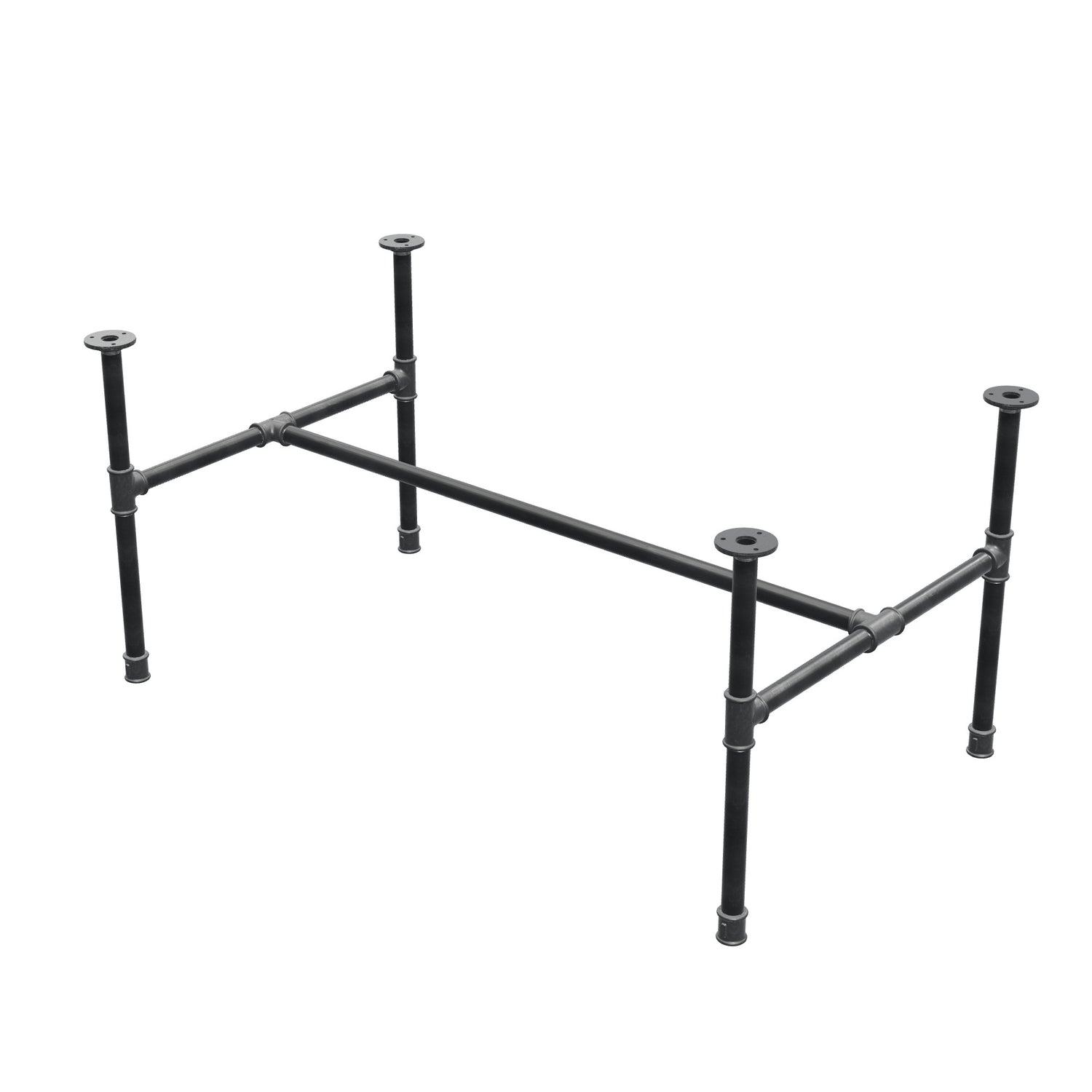

| 111 × 65 | 111.1 | 103.6 | 64.7 | 57.2 |
| 131 × 65 | 131.1 | 123.6 | 64.7 | 57.2 |
| Height | E – overall height | F – height to rail centreline |
|---|---|---|
| 32 cm | 31.5 | 19.4 |
| 42 cm | 41.5 | 24.4 |
| 52 cm | 51.5 | 29.4 |
Weight of the packed base, in kilograms:
| Size | H 32 cm | H 42 cm | H 52 cm |
|---|---|---|---|
| 51 × 35 | 5.4 | 6.1 | 6.7 |
| 61 × 39 | 5.7 | 6.3 | 6.9 |
| 71 × 45 | 6.0 | 6.7 | 7.3 |
| 81 × 45 | 6.2 | 6.9 | 7.5 |
| 91 × 51 | 6.5 | 7.2 | 7.8 |
| 96 × 55 | 6.8 | 7.4 | 8.1 |
| 101 × 55 | 6.8 | 7.4 | 8.1 |
| 111 × 55 | 7.0 | 7.6 | 8.2 |
| 111 × 65 | 7.3 | 7.9 | 8.5 |
| 131 × 65 | 7.6 | 8.2 | 8.9 |
To choose your tabletop and fix it in place, follow our tutorial: making a DIY wood and pipe coffee table.
