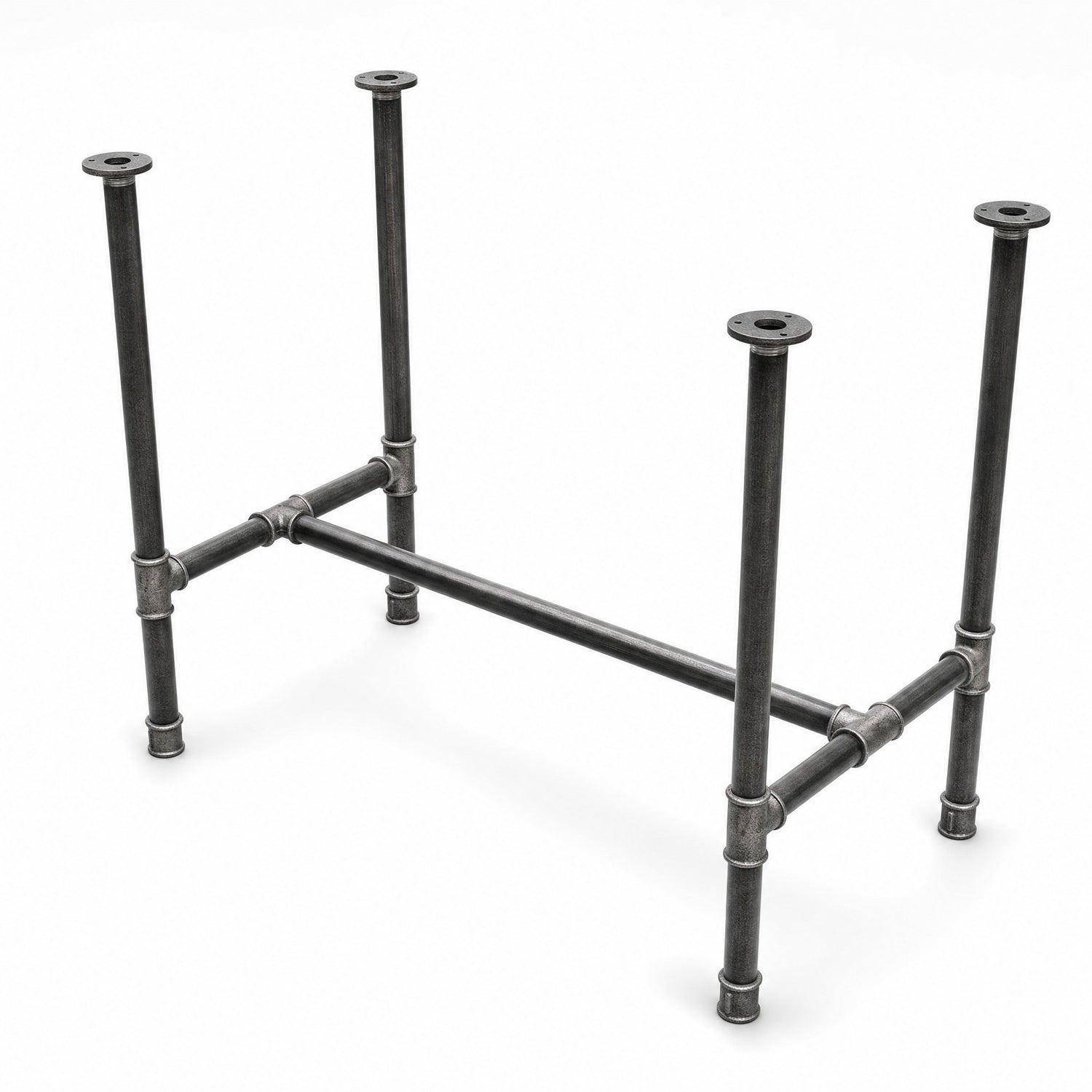

H-frame dining table base, cast iron and varnished steel Ø 34 mm
The H-frame at table height, in Ø 34 mm pipe
This is the reference format for a dining table or a large desk: four legs at the corners, nothing in the middle, and room for your knees. The 1 inch black steel pipe (34 mm outside diameter) gives the base the stiffness it needs over long spans, up to 132 cm. Malleable cast iron fittings, varnished black finish.
Six cast iron tees and a set of threads
The central stretcher links two tees; from each of them two half-rails run out to the leg tees. A 50 cm pipe rises from every tee to the tabletop flange, a short pipe drops to the coupling and its plastic insert. No welding, no glue: the base is screwed together by hand in Annecy.
Choosing your size
Size is read on the footprint. Allow 8 to 15 cm of tabletop overhang on each side: a 132 × 66 cm base carries a top of about 150 × 85 cm, seating six to eight. For a desk, a smaller overhang at the back lets you push the furniture against the wall.
The height is fixed: 75 cm for the base alone. Add the thickness of your tabletop to get the final height — 75 + 2 cm = 77 cm, 75 + 3 cm = 78 cm. A dining table usually sits between 74 and 78 cm: a 2 to 3 cm top puts you right in that range. The underside of the top stays clear at 75 cm from the floor, which is 27 to 30 cm above a standard chair seat.
Tabletop thickness depends on the span between the legs. Up to the 102 × 56 cm size, 18 mm plywood is enough; from 112 × 56 cm upwards, allow 27 mm solid wood or the equivalent. These figures correspond to a deflection below 1/300 of the span under a 100 kg/m² load — the dimensions table gives the detail for every size.
Key features

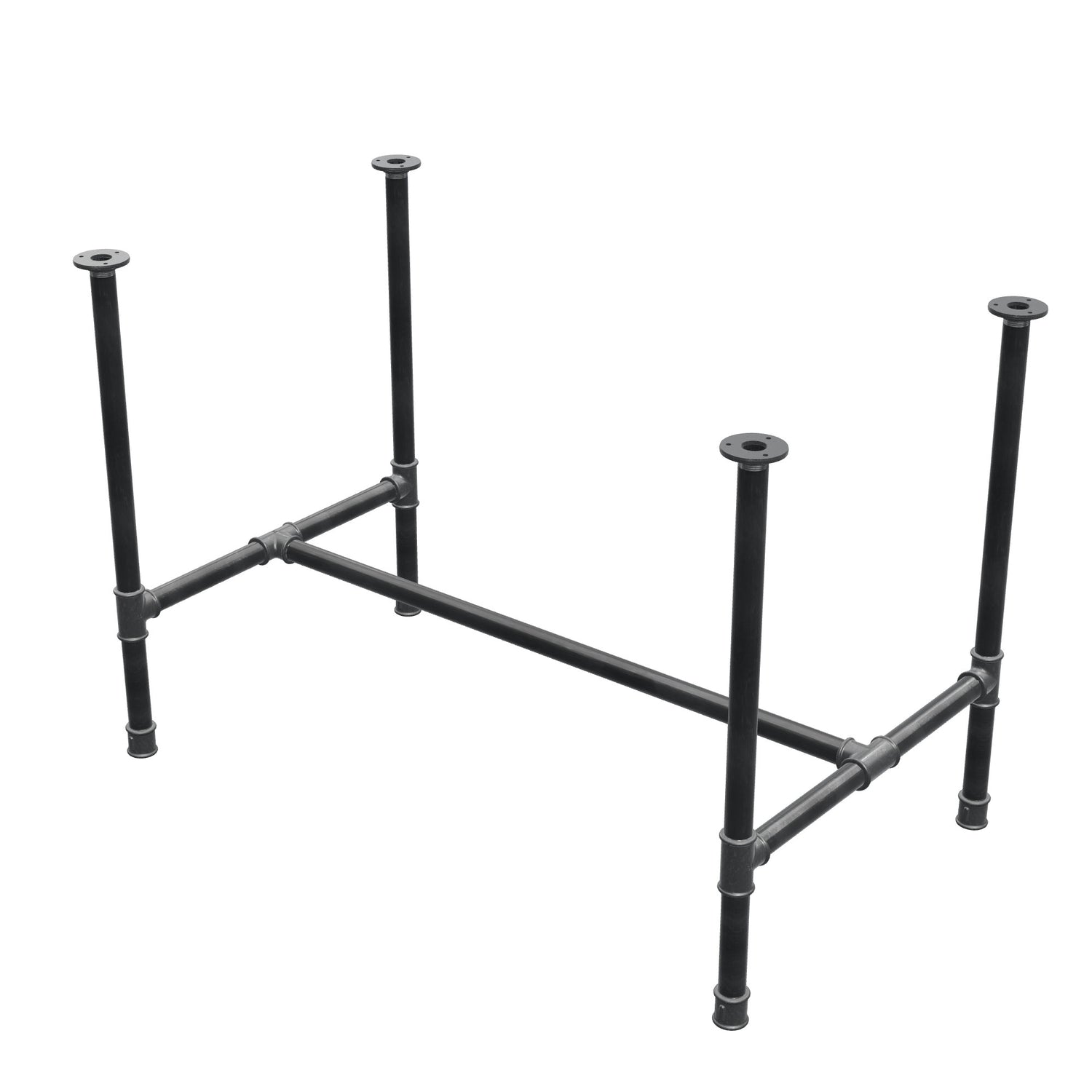

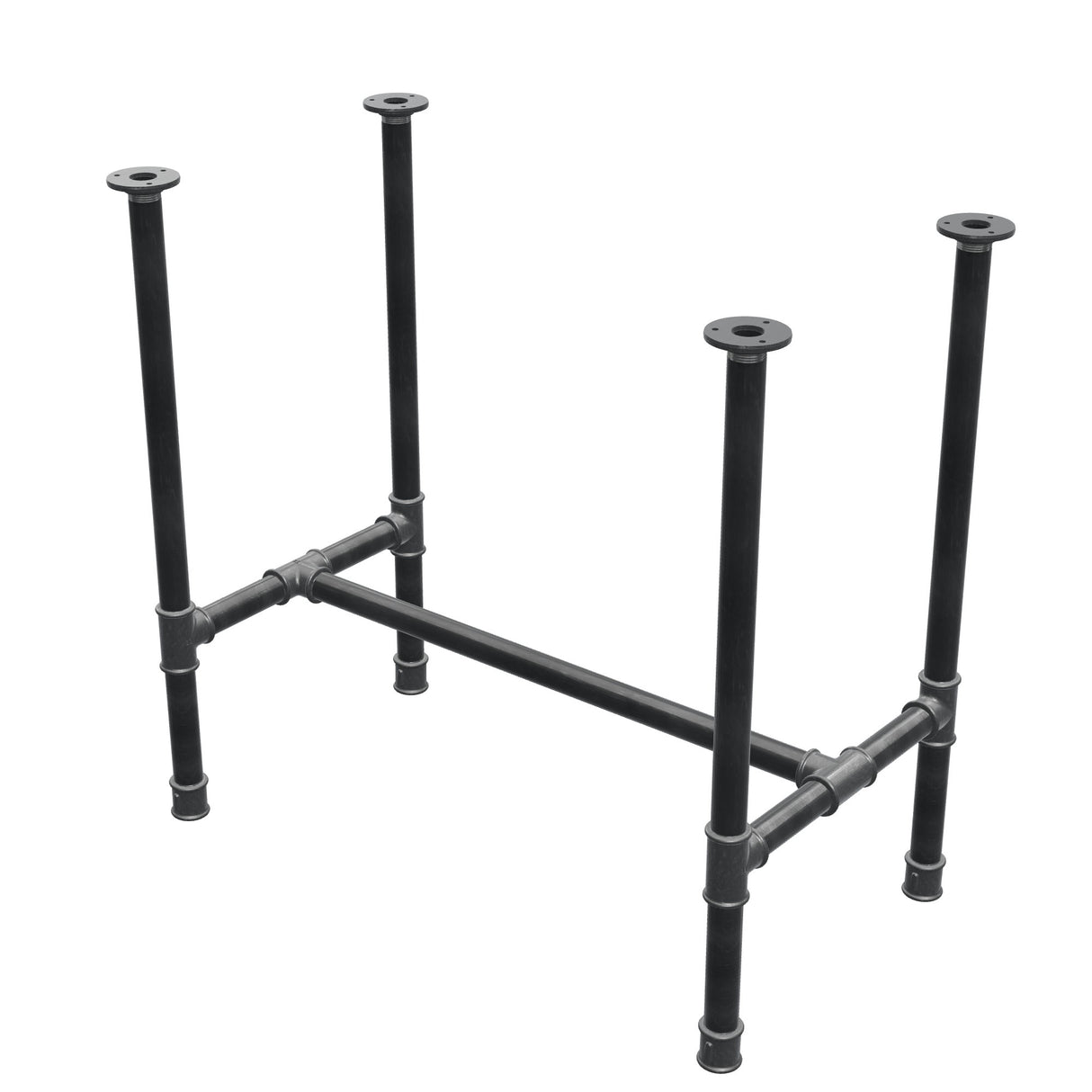

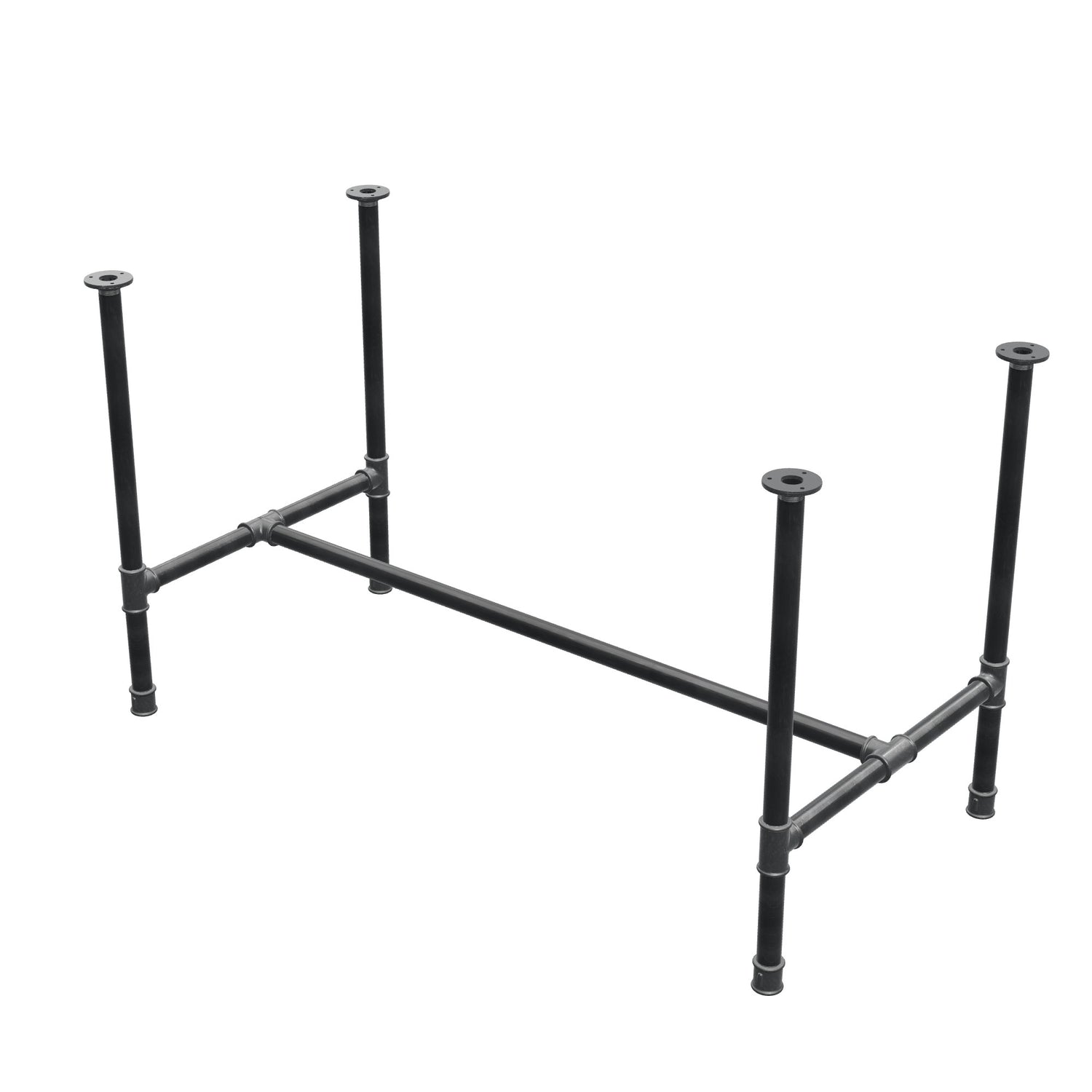

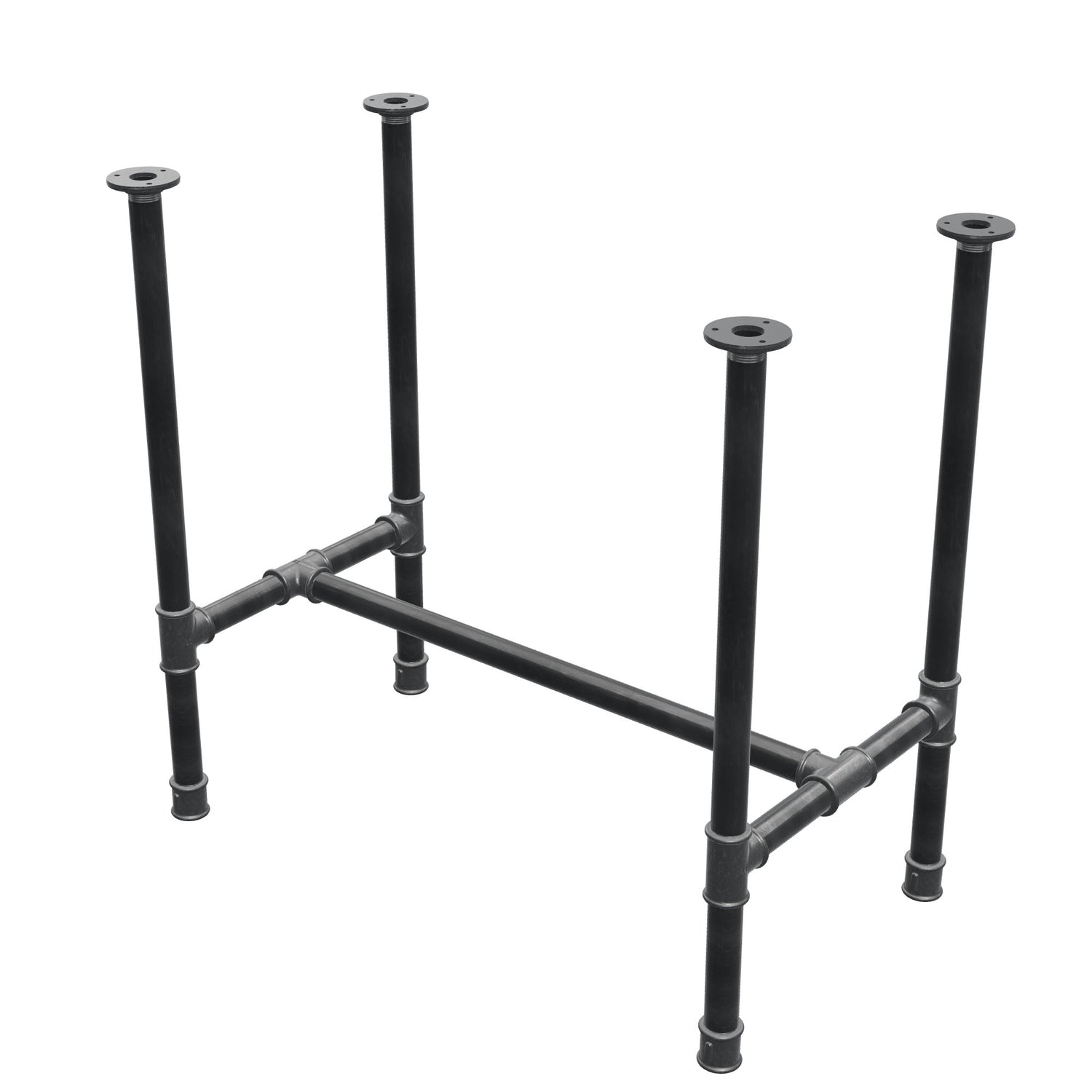

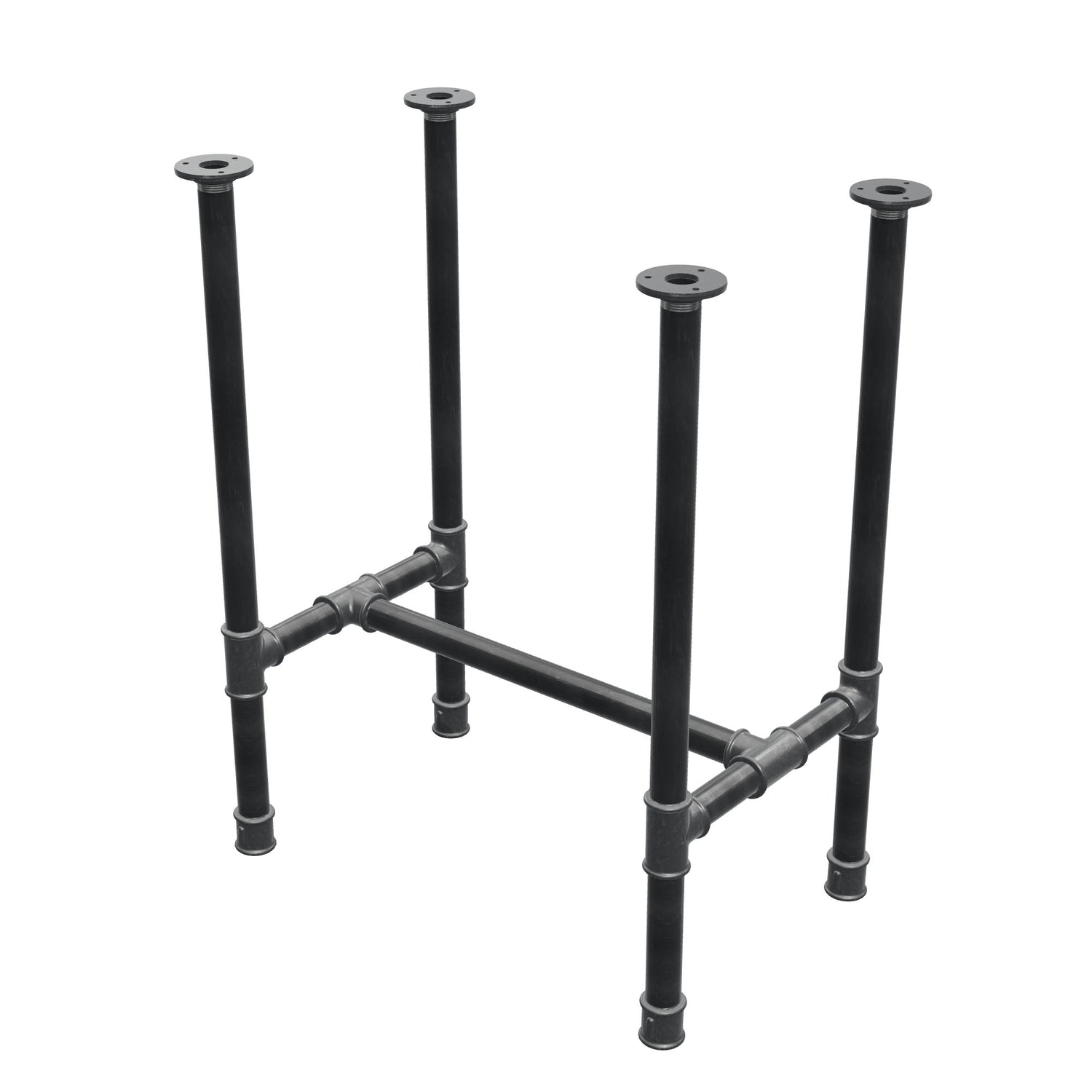

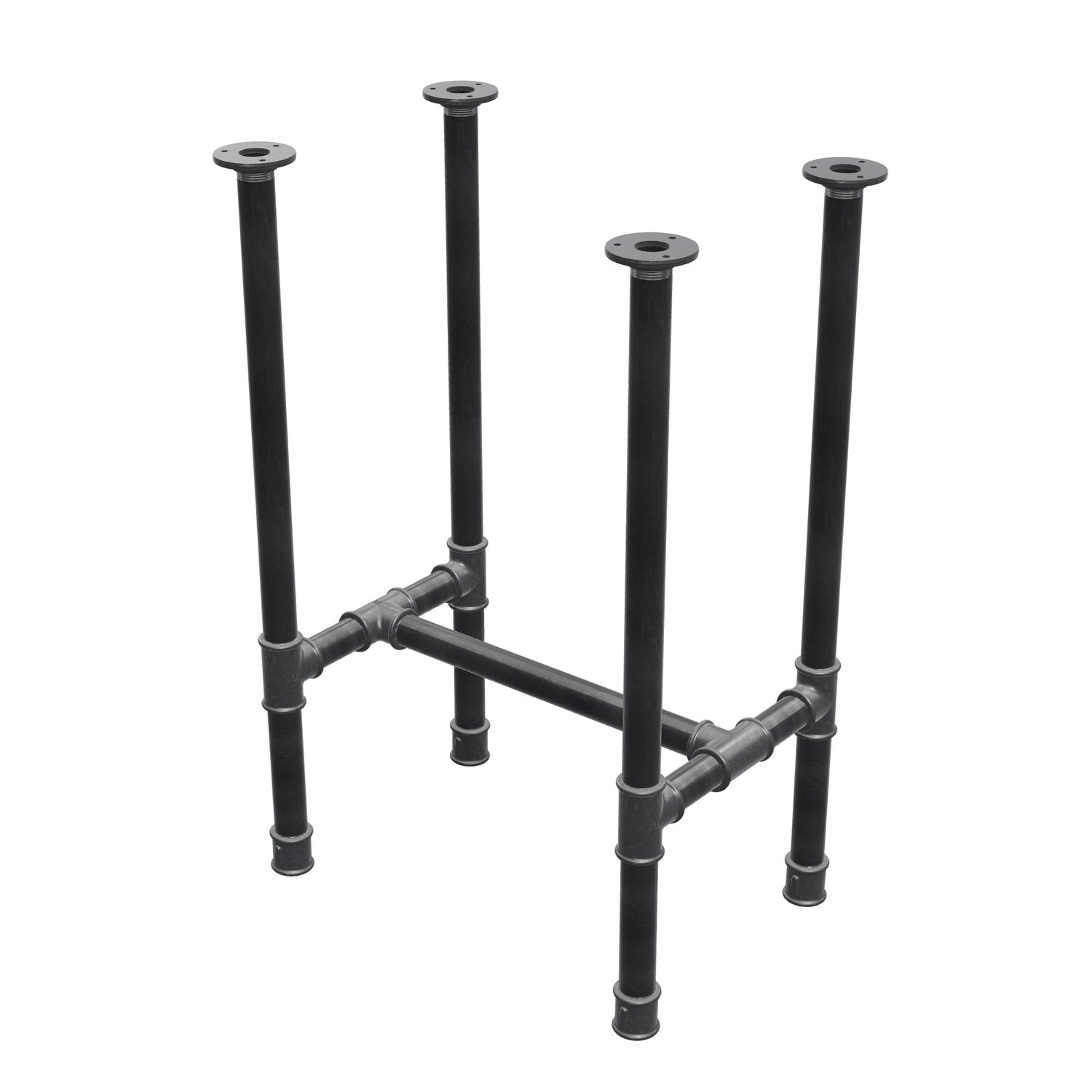

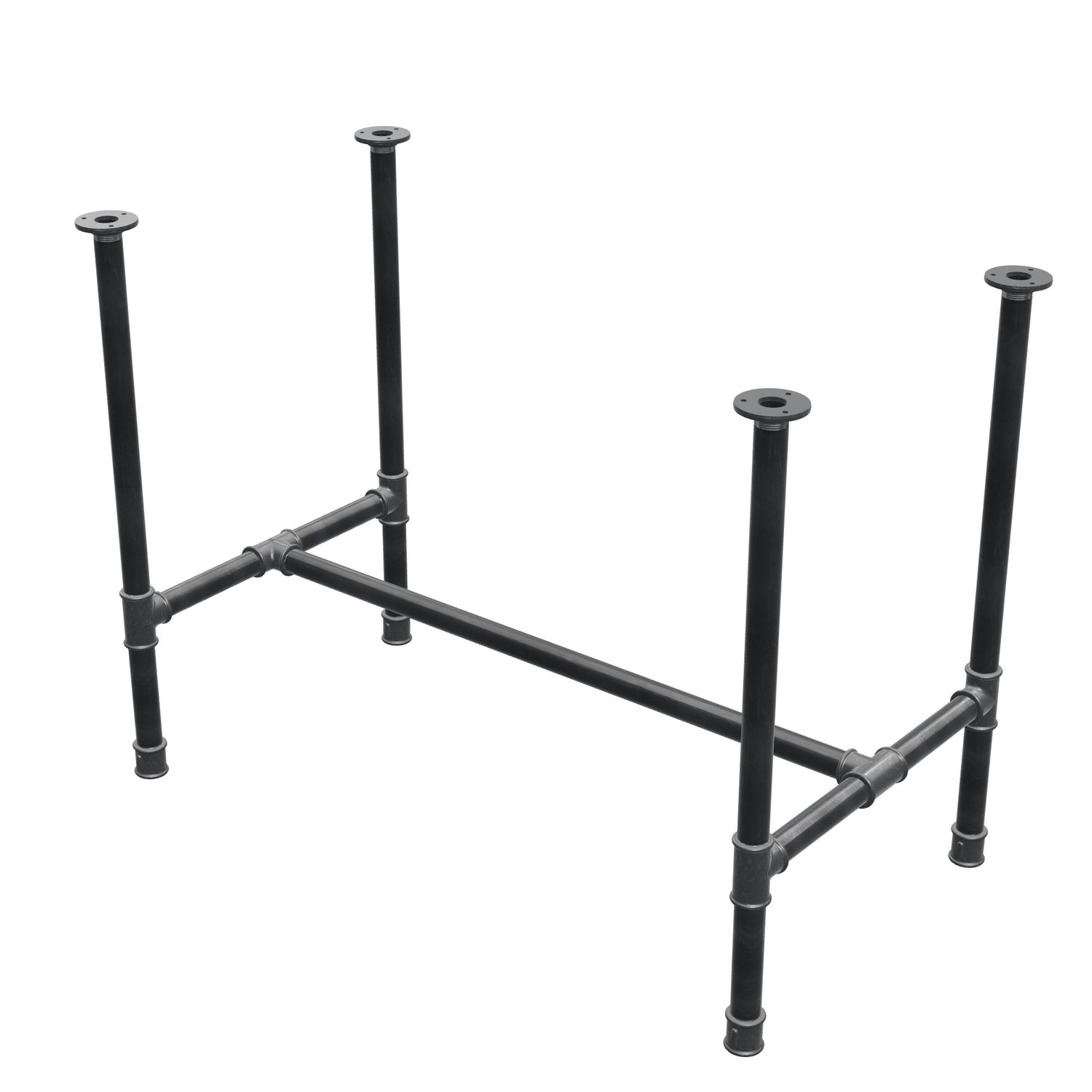

Available in 9 versions, to be chosen above: footprint from 52 × 36 cm to 132 × 66 cm, base height 75 cm.
| Pipes | black steel 1" (26 × 34), giving an outside diameter of 34 mm — see the table of steel pipe diameters |
|---|---|
| Materials | malleable cast iron fittings, black steel pipes (black or galvanised steel?) |
| Finish | clear varnish applied to the cast iron and the steel alike, leaving the raw metal visible |
| Colour | Grey / anthracite grey depending on the light |
| Tabletop | not included — the Ø 75 mm flanges are drilled with 3 holes to screw on the tabletop of your choice, wood or glass (choosing a floor flange) |
| Flange spacing (centre-to-centre) | approximately the dimension minus 7.5 cm, in length as well as in depth |
| Floor protection | black plastic inserts under each leg |
| Assembly | delivered part-assembled — a few fittings to screw together on arrival (how to screw threaded fittings together), then fix your tabletop to the flanges |
| Weight | 12.1 to 15.5 kg depending on the version (table below) |
The same base, other pipe diameters
This H-frame base comes in three pipe diameters: Ø 27 mm, Ø 34 mm (this page) and Ø 42 mm. The thicker the pipe, the heavier, steadier and bolder the base; the thinner it is, the more discreet the silhouette. The same frame is also offered at coffee-table height (32, 42 or 52 cm).
Details and features
The finish is a clear varnish: it protects the metal without colouring it. A soft, dry cloth is all it takes — no water, no detergent, no abrasives. For indoor use only.

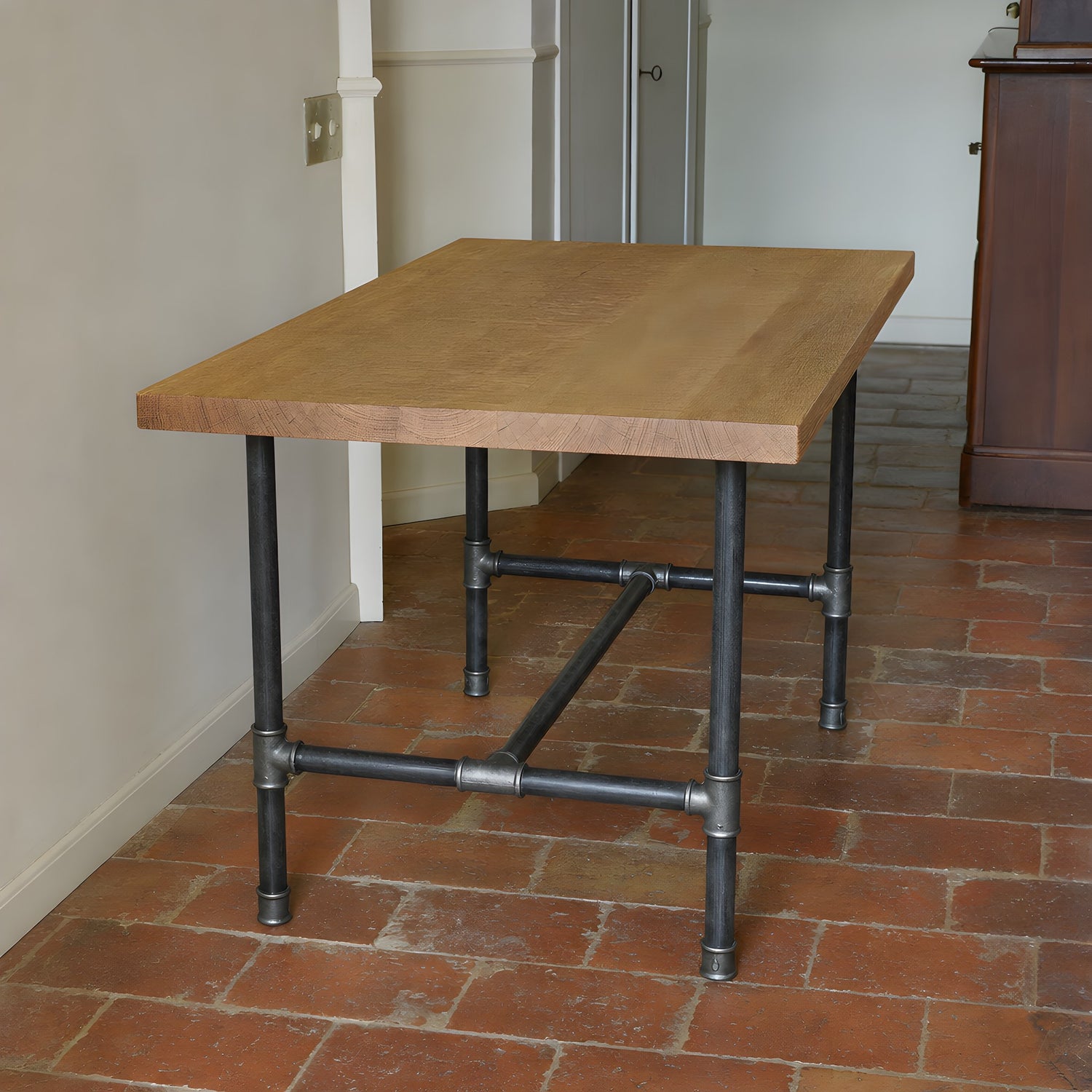

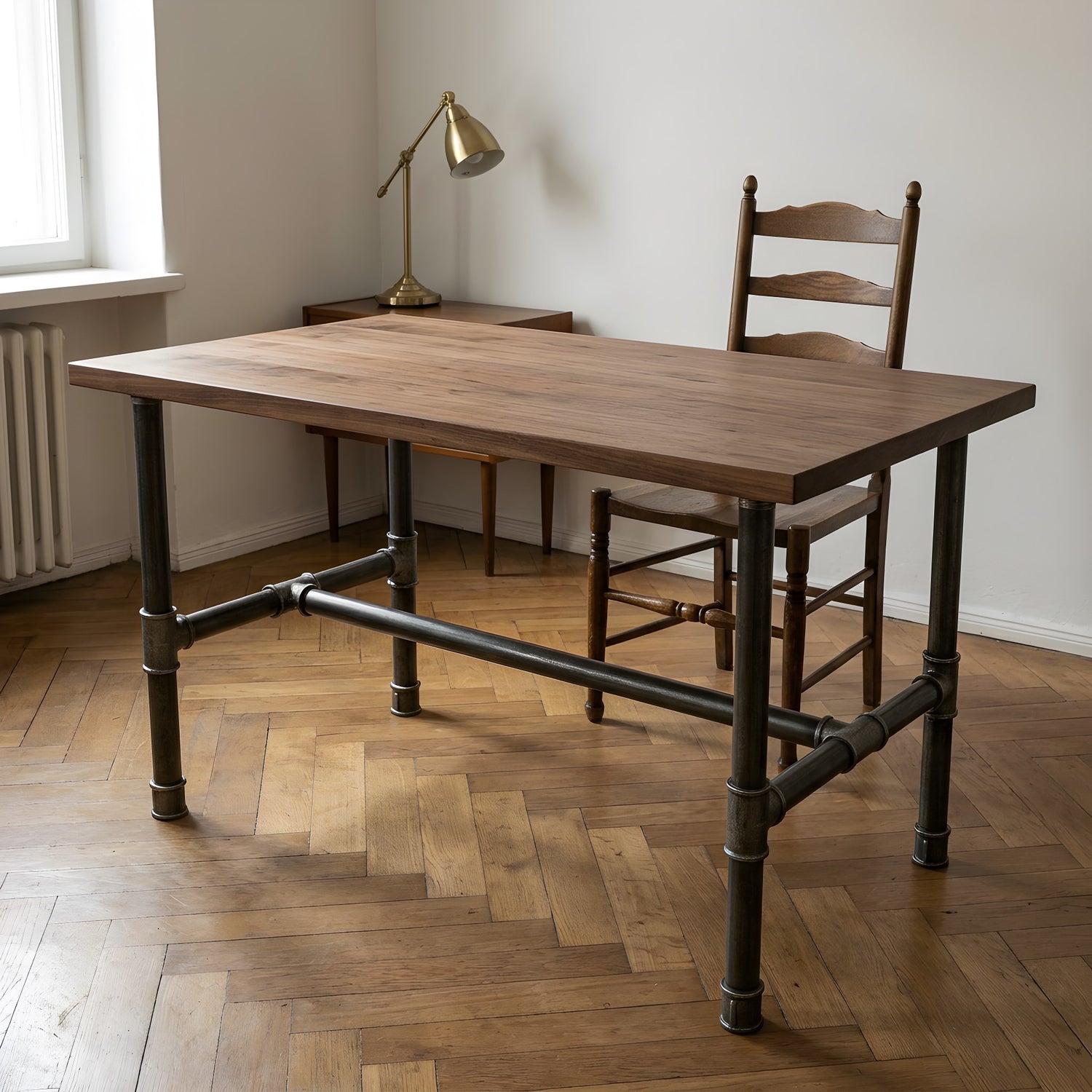

In the lifestyle shots the tabletop is there for illustration: it is not supplied with the base.
Cast iron and drawn steel are never exactly identical from one piece to the next. These small differences from the photographs are the signature of the industrial, authentic character of every Home Invasion base.
Every base is assembled to order in Annecy, France.
Detailed dimensions
The letters refer to the drawings below. All dimensions in centimetres; dimension A is measured from the outer edge of one flange to the opposite flange. Centre distances (B, D) are measured between flange centres — useful for drilling the top.
Tolerance: these are nominal dimensions. How far each fitting is tightened, together with casting tolerances, gives about ± 5 mm of variation on each dimension. Measure the base once assembled before drilling your tabletop or having it cut.
Side view, along the length — indicative drawing, dimensions in the table
Top view — indicative drawing, dimensions in the table
| Size | A – overall length | B – centre distance (length) | C – overall depth | D – centre distance (depth) | Min. tabletop thickness |
|---|---|---|---|---|---|
| 52 × 36 cm | 51.7 | 44.2 | 35.9 | 28.4 | 18 mm plywood |
| 62 × 40 cm | 61.7 | 54.2 | 39.9 | 32.4 | 18 mm plywood |

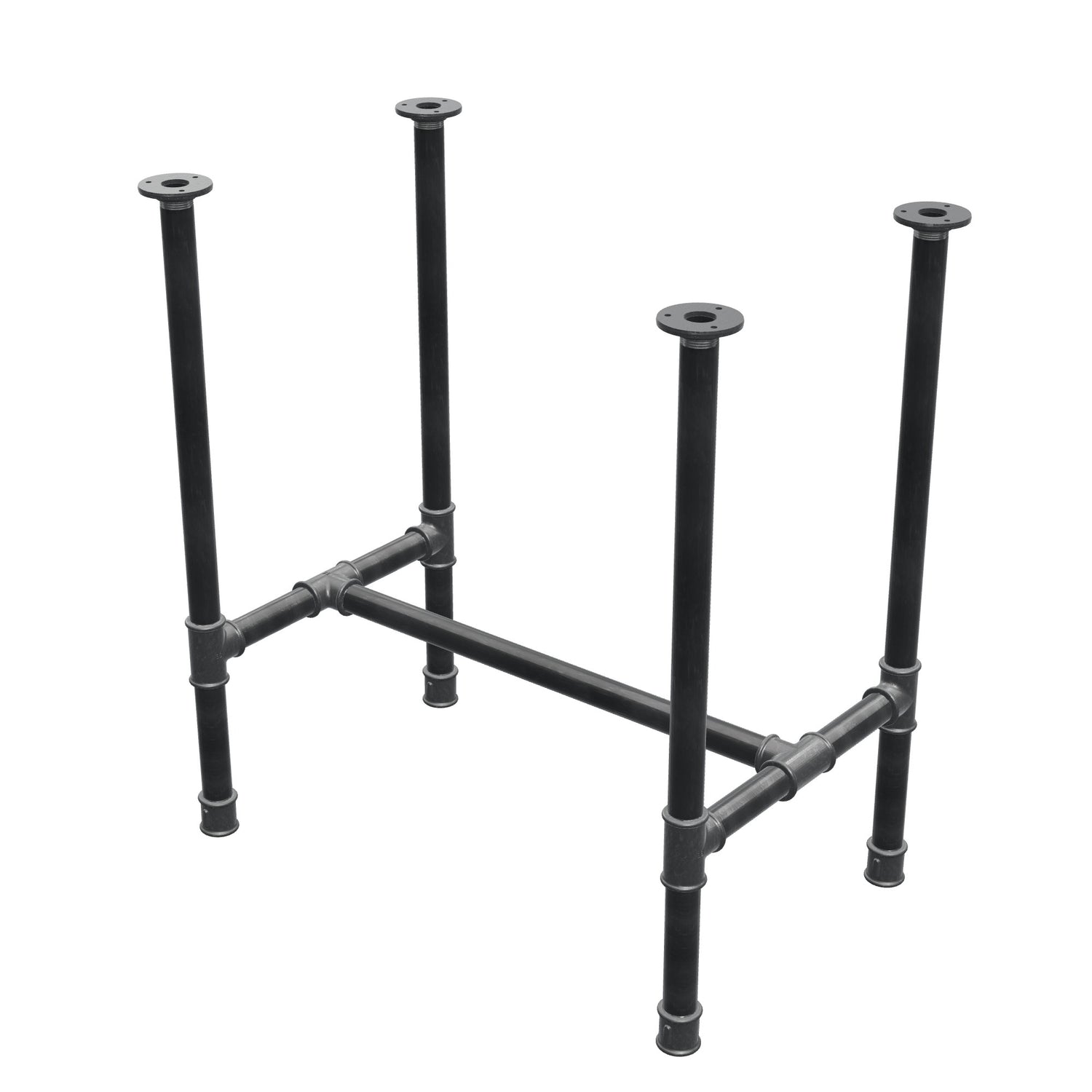

| 72 × 46 cm | 71.7 | 64.2 | 45.9 | 38.4 | 18 mm plywood |
| 82 × 46 cm | 81.7 | 74.2 | 45.9 | 38.4 | 18 mm plywood |

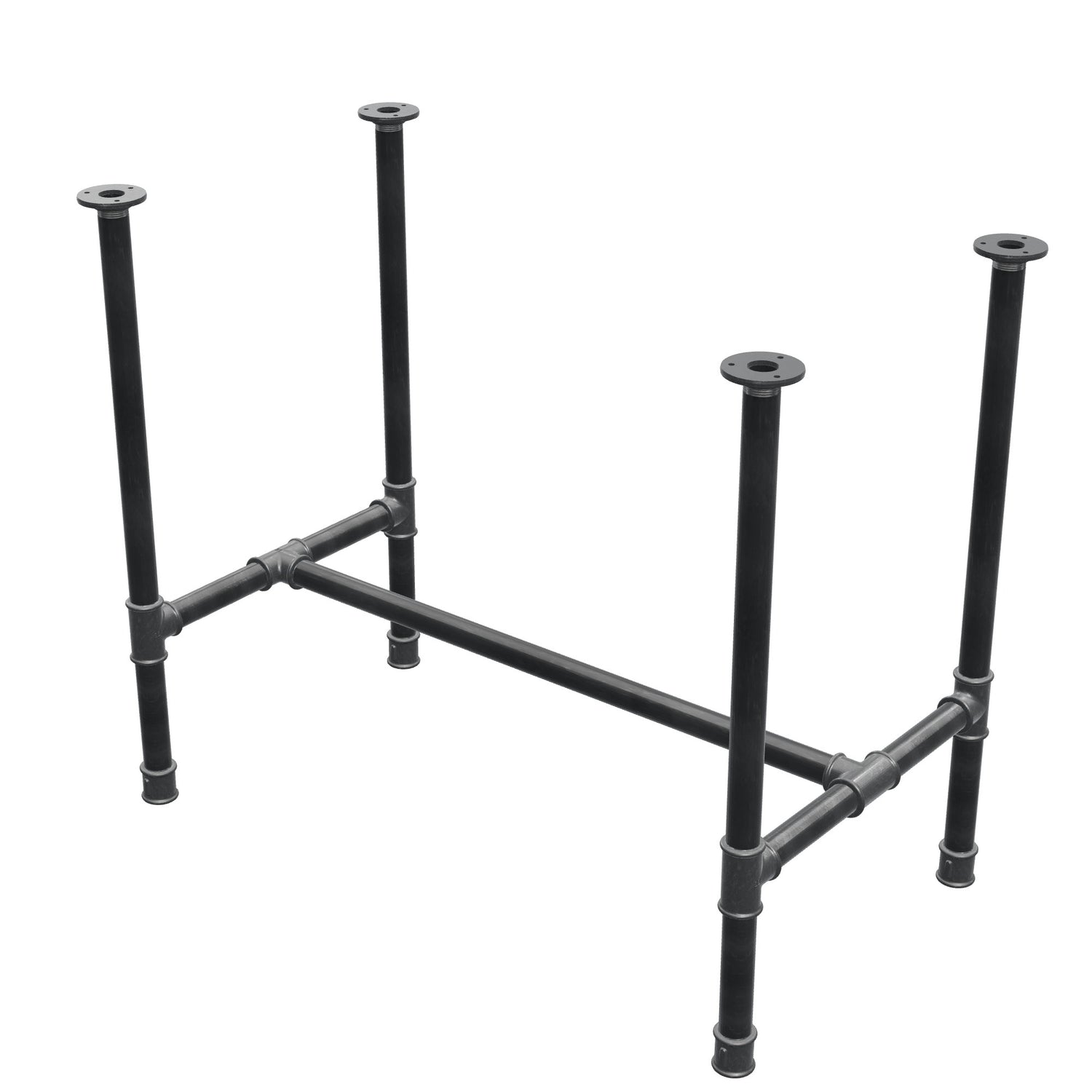

| 92 × 52 cm | 91.7 | 84.2 | 51.9 | 44.4 | 18 mm plywood |
| 102 × 56 cm | 101.7 | 94.2 | 55.9 | 48.4 | 18 mm plywood |

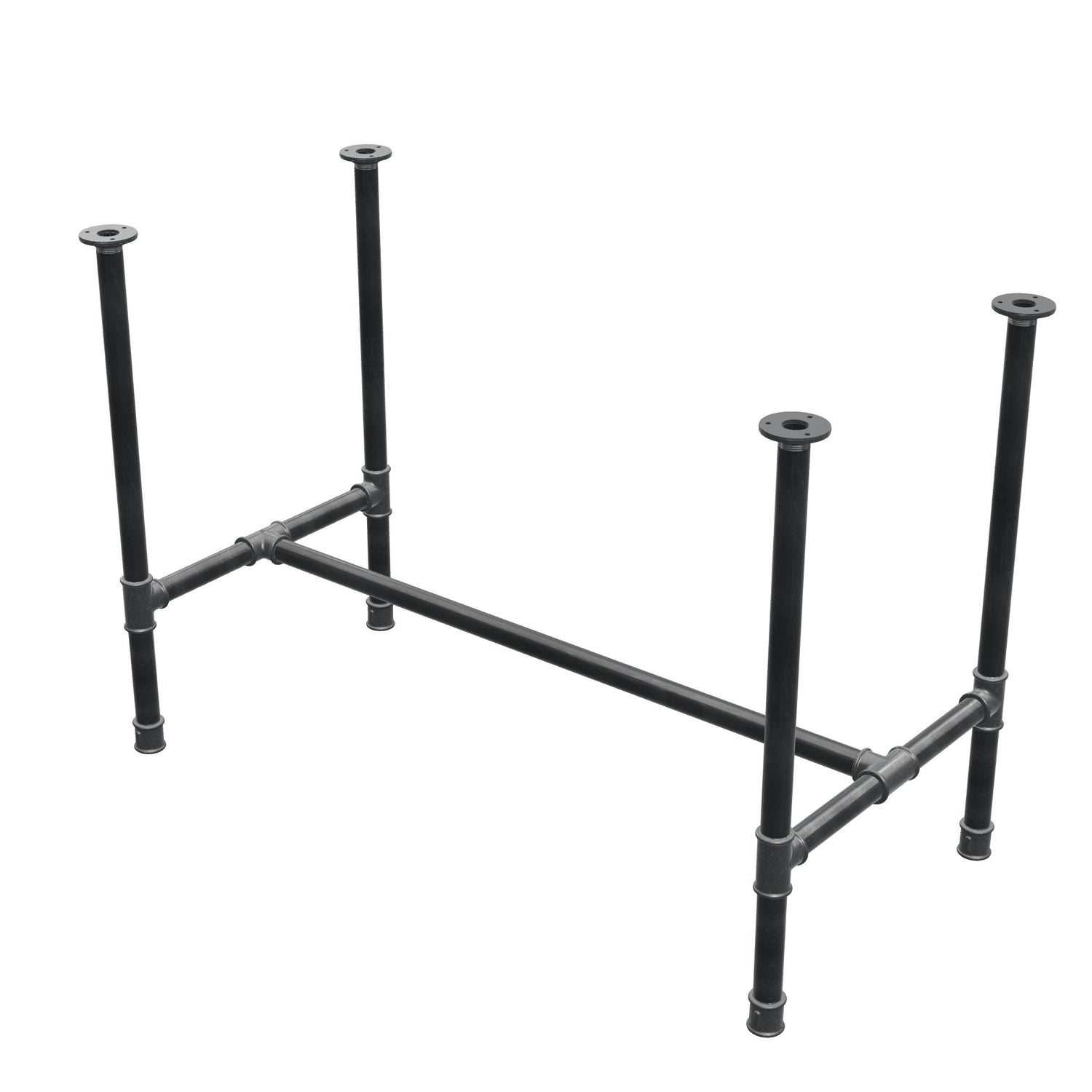

| 112 × 56 cm | 111.7 | 104.2 | 55.9 | 48.4 | 27 mm solid wood |
| 112 × 66 cm | 111.7 | 104.2 | 65.9 | 58.4 | 27 mm solid wood |
| 132 × 66 cm | 131.7 | 124.2 | 65.9 | 58.4 | 27 mm solid wood |
| E – overall height | F – height to rail centreline |
|---|---|
| 75.5 | 22.9 |
Weight of the packed base:
| Size | Weight |
|---|---|
| 52 × 36 cm | 12.1 kg |
| 62 × 40 cm | 12.5 kg |
| 72 × 46 cm | 13.0 kg |
| 82 × 46 cm | 13.3 kg |
| 92 × 52 cm | 13.8 kg |
| 102 × 56 cm | 14.3 kg |
| 112 × 56 cm | 14.5 kg |
| 112 × 66 cm | 15.0 kg |
| 132 × 66 cm | 15.5 kg |
For cutting the tabletop and fixing it to the flanges, our tutorial building an industrial-style desk from plumbing pipe takes you through it step by step.
Would you rather build it yourself?
Nothing here is welded: the base is a set of fittings screwed into one another, which you can redo, extend or take apart. Every part is sold individually in our catalogue, and the pipe lengths are standard references, not special cuts.
The parts of one base:
| Part | Quantity |
|---|---|
| Equal female tee, black malleable iron Ø 34 mm | 6 |
| Black malleable iron floor flange Ø 34 mm | 4 |
| Equal socket, black malleable iron Ø 34 mm | 4 |
| Threaded black steel pipe Ø 34 mm | 13 |
Pipe lengths, cart and 3D view by size:
| Size | Pipes to order | Cart | 3D view |
|---|---|---|---|
| 52 × 36 cm | 4 × 100 mm, 4 × 180 mm, 1 × 400 mm, 4 × 500 mm | Add the 27 parts | Open the configurator |
| 62 × 40 cm | 4 × 120 mm, 4 × 180 mm, 5 × 500 mm | Add the 27 parts | Open the configurator |
| 72 × 46 cm | 4 × 150 mm, 4 × 180 mm, 4 × 500 mm, 1 × 600 mm | Add the 27 parts | Open the configurator |
| 82 × 46 cm | 4 × 150 mm, 4 × 180 mm, 4 × 500 mm, 1 × 700 mm | Add the 27 parts | Open the configurator |
| 92 × 52 cm | 8 × 180 mm, 4 × 500 mm, 1 × 800 mm | Add the 27 parts | Open the configurator |
| 102 × 56 cm | 4 × 180 mm, 4 × 200 mm, 4 × 500 mm, 1 × 900 mm | Add the 27 parts | Open the configurator |
| 112 × 56 cm | 4 × 180 mm, 4 × 200 mm, 4 × 500 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 112 × 66 cm | 4 × 180 mm, 4 × 250 mm, 4 × 500 mm, 1 × 1000 mm | Add the 27 parts | Open the configurator |
| 132 × 66 cm | 4 × 180 mm, 4 × 250 mm, 4 × 500 mm, 1 × 1200 mm | Add the 27 parts | Open the configurator |
The assembled base, for its part, arrives varnished, checked and fitted with its floor-protection inserts, which are not sold separately.
